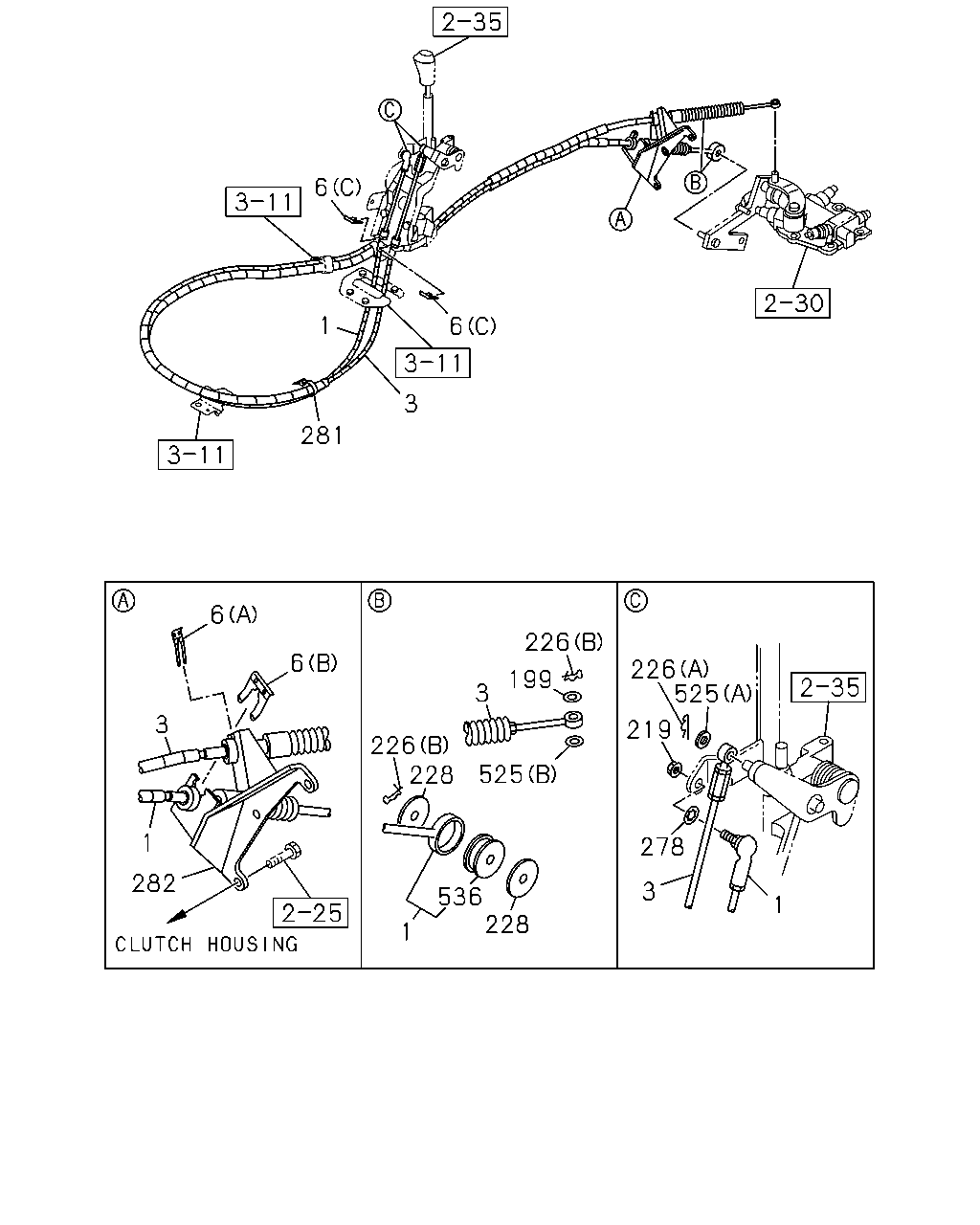

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#151289) — 32 parça

6 1 3 281 6 6 6 3 1 282 226 228 525 3 199 226 226 525 219 278 3 1 228 536 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=3090 THA	8-98146-856-0	01	1	1410-	●
1	CABLE; SHIFT,TRANS CONT L=3116 THA	8-98146-876-0	01	1	1410-		●
3	CABLE; SELECT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-98025-442-3	01	1	1410-	●
3	CABLE; SELECT,TRANS CONT THA	8-98025-443-4	01	1	1410-		●
6	CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) ID=22.2 THA	1-09701-209-1	01	1	1410-	●
6	CLIP; CABLE (A) ID=22.2 THA	1-09701-209-1	01	1	1410-		●
6	CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (C) THA	8-97011-448-0	02	1	1410-	●
6	CLIP; CABLE (C) THA	8-97011-448-0	02	1	1410-		●
6	CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) ID=19.2 THA	8-97211-011-0	01	1	1410-	●
6	CLIP; CABLE (B) ID=19.2 THA	8-97211-011-0	01	1	1410-		●
199	WASHER; PL,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=8.4 OD=16 THA	0-91610-508-0	01	1	1410-	●
199	WASHER; PL,SELECT ID=8.4 OD=16 THA	0-91610-508-0	01	1	1410-		●
219	NUT; FLANGE,SHAFT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 T=8.0 THA	8-94363-045-0	01	1	1410-	●
219	NUT; FLANGE,SHAFT CABLE M8 T=8.0 THA	8-94363-045-0	01	1	1410-		●
226	PIN; SHIFT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) L=27.7 THA	8-94111-137-0	01	1	1410-	●
226	PIN; SHIFT CABLE (A) L=27.7 THA	8-94111-137-0	01	1	1410-		●
226	PIN; SHIFT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) L=23 THA	8-94170-378-0	02	1	1410-	●
226	PIN; SHIFT CABLE (B) L=23 THA	8-94170-378-0	02	1	1410-		●
228	WASHER; PL,SHIFT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=8.2 OD=40 THA	8-97182-975-0	02	1	1410-	●
228	WASHER; PL,SHIFT CABLE ID=8.2 OD=40 THA	8-97182-975-0	02	1	1410-		●
278	WASHER; LK,SHIFT WIRE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=8.4 TOOTH LK INT THA	0-91541-208-0	01	1	1410-	●
278	WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT THA	0-91541-208-0	01	1	1410-		●
281	CLIP; BAND TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=140 THA	8-97920-656-0	01	1	1410-	●
281	CLIP; BAND L=140 THA	8-97920-656-0	01	1	1410-		●
282	BRACKET; TRANS SIDE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-98032-395-1	01	1	1410-	●
282	BRACKET; TRANS SIDE THA	8-98032-396-2	01	1	1410-		●
525	WASHER; SHIFT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) ID=8.4 OD=16 THA	0-91614-508-0	01	1	1410-	●
525	WASHER; SHIFT CABLE (A) ID=8.4 OD=16 THA	0-91614-508-0	01	1	1410-		●
525	WASHER; SHIFT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) ID=8.4 OD=14 THA	5-09550-002-0	01	1	1410-	●
525	WASHER; SHIFT CABLE (B) ID=8.4 OD=14 THA	5-09550-002-0	01	1	1410-		●
536	DAMPER; CABLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-98097-681-0	01	1	1410-	●
536	DAMPER; CABLE THA	8-98097-681-0	01	1	1410-		●
