2-30 — GEAR SHIFTER AND QUADRANT BOX (#151287) — 75 parça

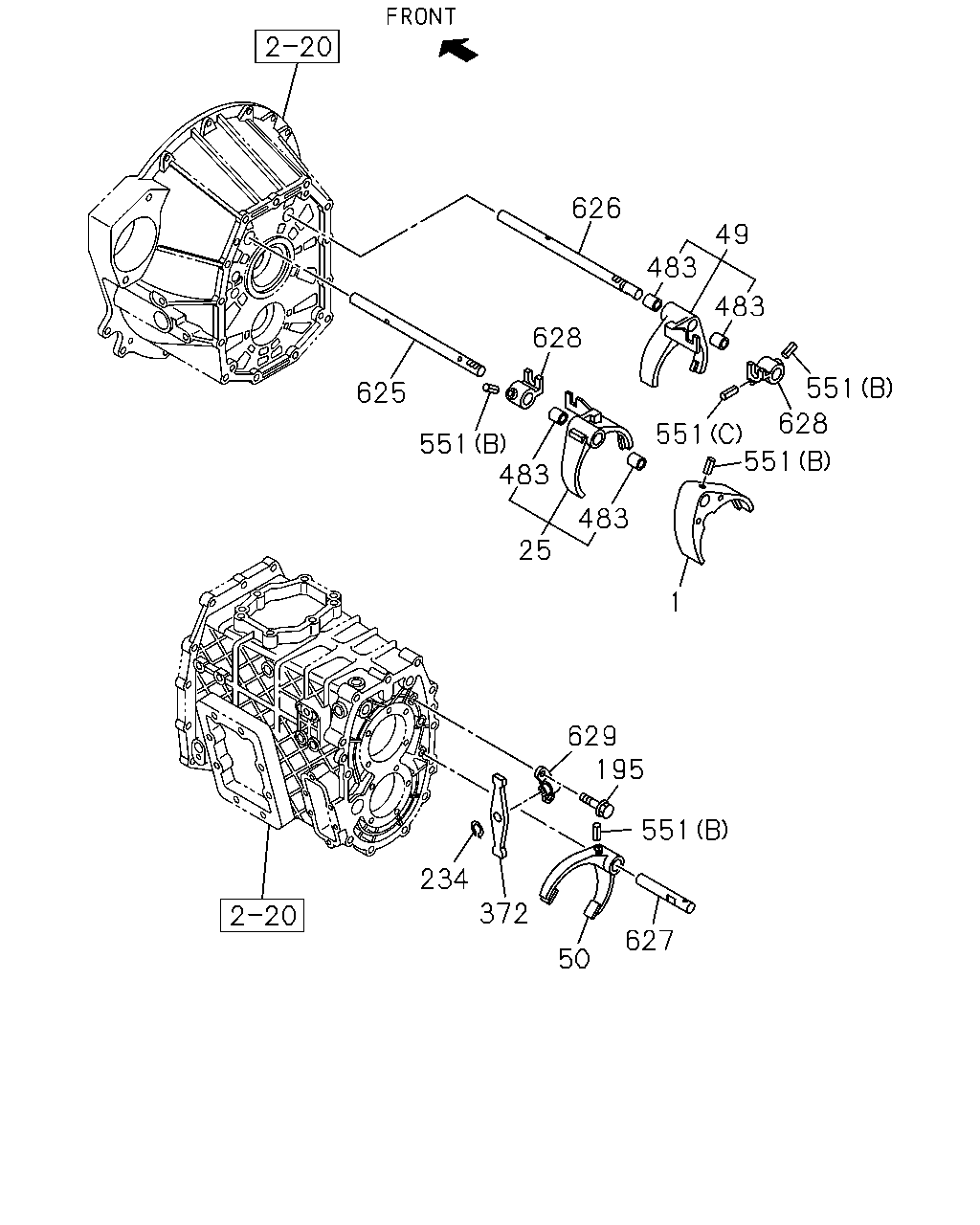

626 49 483 628 625 551 25 483 551 483 551 628 551 483 629 195 551 627 50 372 234 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV THA	8-97241-320-2	01	1	1410-	●
1	ARM; SHIFT,1ST & REV THA	8-97241-319-2	01	1	1410-		●
25	ARM; SHIFT,2ND & 3RD THA	8-98255-926-1	01	1	1410-	●
25	ARM; SHIFT,2ND & 3RD THA	8-97362-737-1	01	1	1410-		●
49	ARM; SHIFT,4TH & 5TH THA	8-97362-732-1	01	1	1410-	●
49	ARM; SHIFT,4TH & 5TH THA	8-97362-738-1	01	1	1410-		●
50	ARM; SHIFT,6TH THA	8-97241-325-1	01	1	1410-	●
50	ARM; SHIFT,6TH THA	8-97241-324-1	01	1	1410-		●
195	BOLT M10X28 FLANGE REAMER THA	8-97365-375-0	02	1	1410-	●	●
234	RING; SNAP ID=16.5 THA	0-91800-618-0	01	1	1410-	●	●
372	LEVER; RELAY,6TH THA	8-97241-343-0	01	1	1410-	●
372	LEVER; RELAY,6TH THA	8-97241-342-0	01	1	1410-		●
483	BUSHING; SHIFT ARM THA	8-97241-326-2	04	1	1410-	●	●
551	PIN; SPRING (A) L=25 OD=5 THA	1-09748-032-0	01	1	1410-	●	●
551	PIN; SPRING (B) L=32 THA	8-97011-596-2	05	1	1410-	●	●
551	PIN; SPRING (C) L=20 THA	8-97241-340-0	01	1	1410-	●	●
625	ROD; GEAR SHIFT,LOW,REV,2ND & 3RD THA	8-97362-741-0	01	1	1410-	●
625	ROD; GEAR SHIFT,LOW,REV,2ND & 3RD THA	8-97362-735-0	01	1	1410-		●
626	ROD; GEAR SHIFT,4TH,5TH & 6TH THA	8-97366-024-1	01	1	1410-	●
626	ROD; GEAR SHIFT,4TH,5TH & 6TH THA	8-98107-548-0	01	1	1410-		●
627	ROD; GEAR SHIFT,6TH SUB THA	8-98119-293-0	01	1	1410-	●	●
628	BLOCK; SHIFT,LOW,REV & 6TH THA	8-97241-327-1	02	1	1410-	●	●
629	BRIDGE; LEVER THA	8-97241-345-1	01	1	1410-	●	●

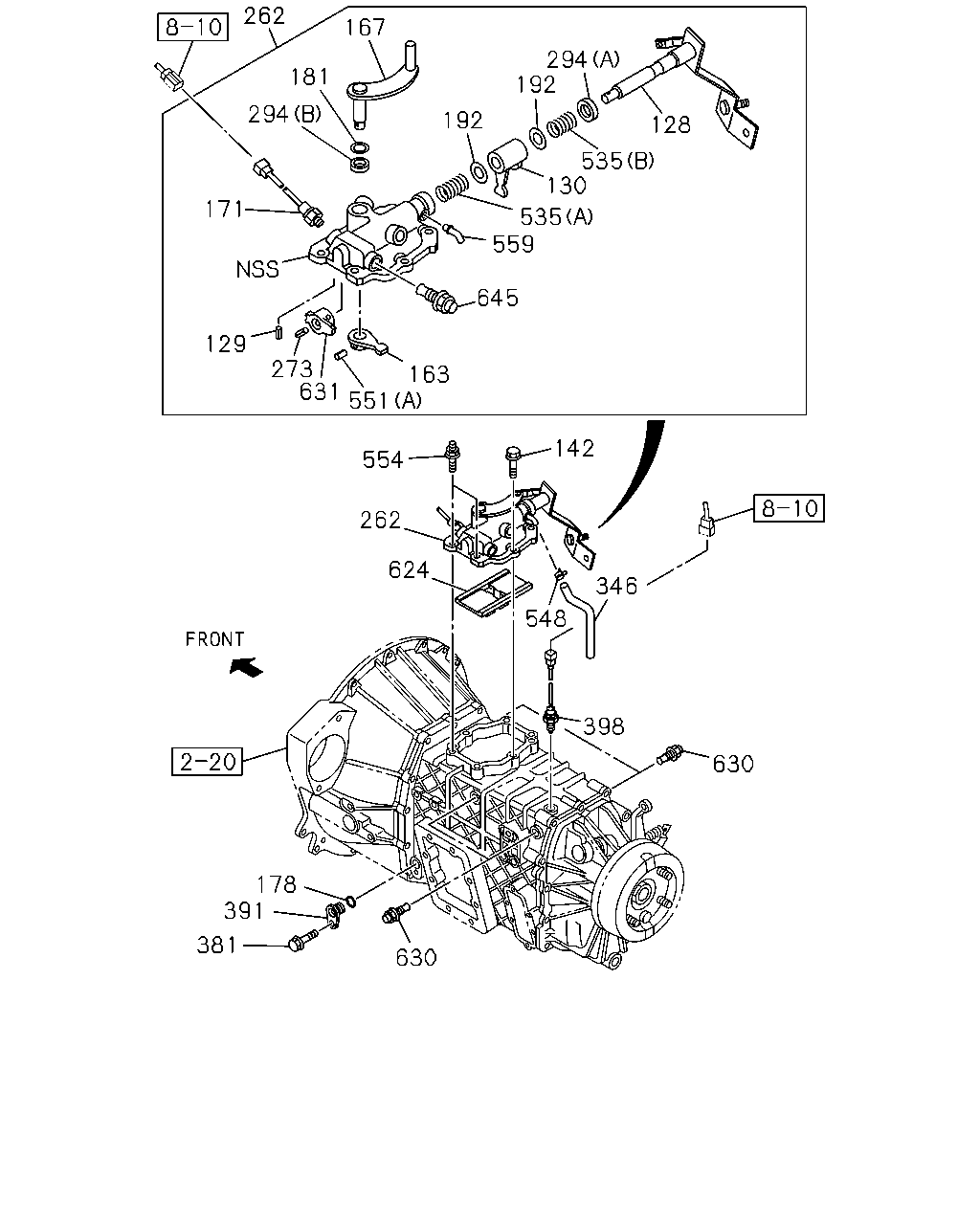

262 294 181 167 192 192 294 128 535 130 535 559 645 163 551 631 273 129 171 554 262 624 178 391 381 630 630 398 548 346 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
128	LEVER; SHIFT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-98021-595-0	01	1	1410-	●
128	LEVER; SHIFT,EXTERNAL THA	8-98021-595-0	01	1	1410-		●
129	PIN; SPR,SHIFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=30 OD=4 THA	1-09748-031-0	01	1	1410-	●
129	PIN; SPR,SHIFT L=30 OD=4 THA	1-09748-031-0	01	1	1410-		●
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97306-647-0	01	1	1410-	●
130	LEVER; SHIFT,INTERNAL THA	8-97306-647-0	01	1	1410-		●
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X22 FLANGE THA	8-97365-376-0	04	1	1410-	●
142	BOLT; QUAD BOX M8X22 FLANGE THA	8-97365-376-0	04	1	1410-		●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97305-663-0	01	1	1410-	●
163	LEVER; SELECT,INTERNAL THA	8-97305-663-0	01	1	1410-		●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-98039-444-0	01	1	1410-	●
167	LEVER; SELECT,EXTERNAL THA	8-98039-444-0	01	1	1410-		●
171	SWITCH; NEUTRAL THA	8-98242-172-1	01	1	1410-	●	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>. THA	9-09567-113-0	01	1	1410-	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). THA	9-09567-113-0	01	1	1410-		●
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97367-327-0	01	1	1410-	●
181	WASHER; PL,SELECT LEVER THA	8-97367-327-0	01	1	1410-		●
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97305-661-0	02	1	1410-	●
192	WASHER; PL THA	8-97305-661-0	02	1	1410-		●
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-98240-994-1	01	1	1410-	●
262	BOX ASM; SHIFT CONT THA	8-98240-994-1	01	1	1410-		●
273	PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> D=4.2 L=25 THA	8-97103-142-0	01	1	1410-	●
273	PIN; SPR,STOPPER D=4.2 L=25 THA	8-97103-142-0	01	1	1410-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>. (B) THA	8-97305-662-0	01	1	1410-	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B) THA	8-97305-662-0	01	1	1410-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>. (A) THA	8-97363-225-0	01	1	1410-	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A) THA	8-97363-225-0	01	1	1410-		●
346	HOSE; AIR THA	8-97309-855-0	01	1	1410-	●	●
381	BOLT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M6X16 FLANGE THA	0-28650-616-0	01	1	1410-	●
381	BOLT M6X16 FLANGE THA	0-28650-616-0	01	1	1410-		●
391	PLUG; SW HOLE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97300-273-1	01	1	1410-	●
391	PLUG; SW HOLE THA	8-97300-273-1	01	1	1410-		●
398	SWITCH; REV LAMP TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-98256-418-0	01	1	1410-	●
398	SWITCH; REV LAMP THA	8-98256-418-0	01	1	1410-		●
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA	8-97305-659-0	01	1	1410-	●
535	SPRING; LEVER (A) THA	8-97305-659-0	01	1	1410-		●
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA	8-97305-660-0	01	1	1410-	●
535	SPRING; LEVER (B) THA	8-97305-660-0	01	1	1410-		●
548	CLIP; HOSE THA	8-97031-674-0	01	1	1410-	●	●
551	PIN; SPRING (A) L=25 OD=5 THA	1-09748-032-0	01	1	1410-	●	●
551	PIN; SPRING (B) L=32 THA	8-97011-596-2	05	1	1410-	●	●
551	PIN; SPRING (C) L=20 THA	8-97241-340-0	01	1	1410-	●	●
554	STUD; CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X15,M8X25 L=49 THA	8-97365-378-0	02	1	1410-	●
554	STUD; CONT BOX M8X15,M8X25 L=49 THA	8-97365-378-0	02	1	1410-		●
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97358-318-0	01	1	1410-	●
559	PIPE; BREATHER THA	8-97358-318-0	01	1	1410-		●
624	PLATE; INTER LOCK THA	8-97241-317-3	01	1	1410-	●	●
630	DETENT ASM THA	8-98019-536-0	04	1	1410-	●	●
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97305-666-0	01	1	1410-	●
631	STOPPER; SPRING THA	8-97305-666-0	01	1	1410-		●
645	DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-98019-536-0	01	1	1410-	●
645	DETENT ASM THA	8-98019-536-0	01	1	1410-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
