Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#151286) — 287 parça

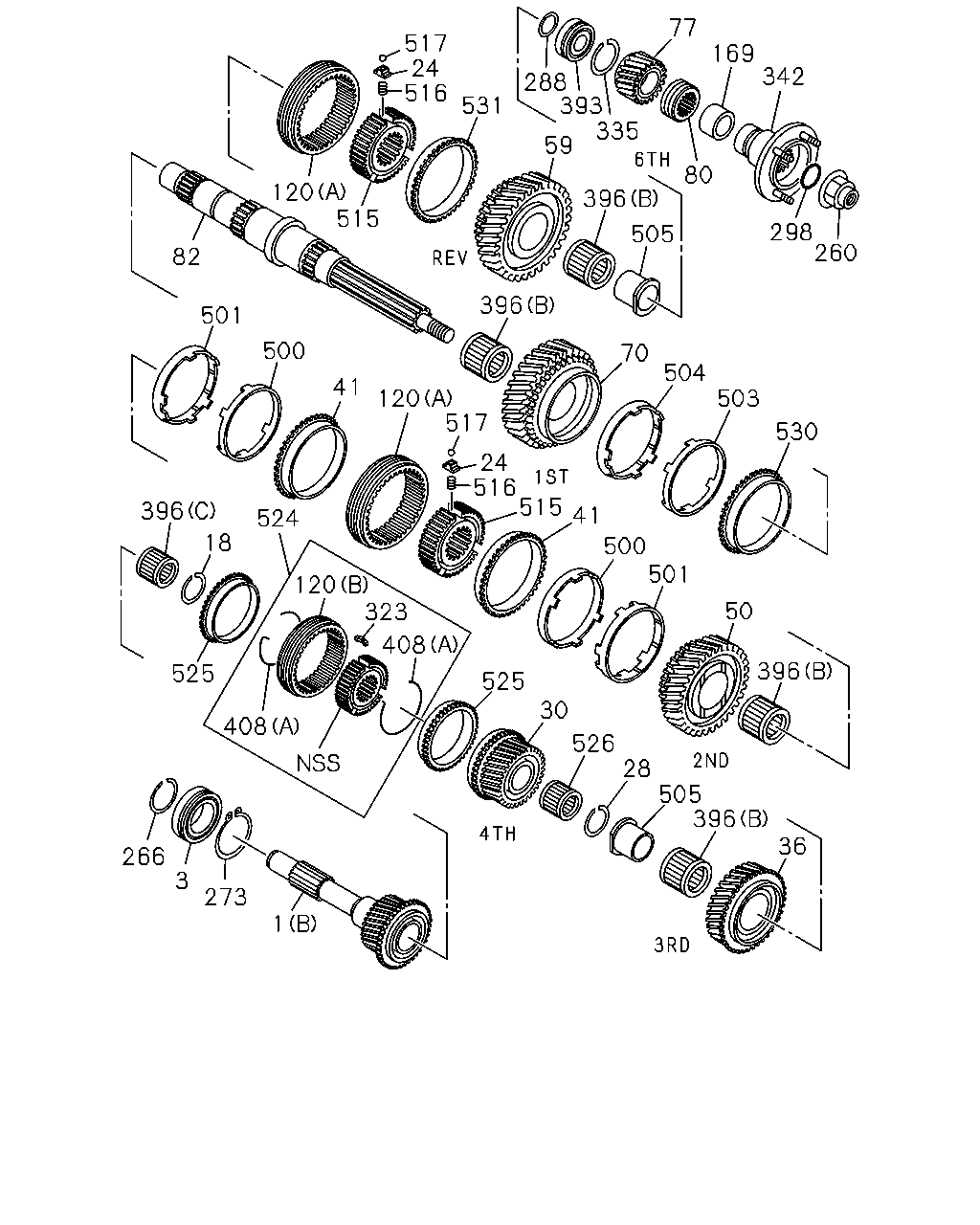

517 24 516 120 531 288 393 335 77 169 342 80 298 260 59 396 515 82 501 396 505 500 41 120 70 504 503 530 517 24 516 515 41 500 501 50 396 396 18 524 120 323 408 525 30 526 28 505 396 36 266 3 273 1 525 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) Z=26 THA	8-98021-266-0	01	1	1410-	●
1	SHAFT; TOP GEAR,TRANS (A) Z=25 THA	8-97371-090-0	01	1	1410-		●
3	BEARING; TOP GEAR SHAFT NSK THA	8-97253-098-1	01	1	1410-	●
3	BEARING; TOP GEAR SHAFT NSK THA	8-97253-097-1	01	1	1410-		●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8 THA	8-97254-728-0	01	1	1410-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8 THA	8-97256-855-0	01	1	1410-		●
24	BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97241-313-1	03	1	1410-	●
24	BLOCK; INDEX,SYN THA	8-97241-313-1	03	1	1410-	●
24	BLOCK; INDEX,SYN THA	8-97241-313-1	12	1	1410-		●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8 THA	8-97254-743-0	01	1	1410-	●	●
30	GEAR; 4TH,MAINSHAFT Z=28 THA	8-97241-230-0	01	1	1410-	●
30	GEAR; 4TH,MAINSHAFT Z=28 THA	8-97252-628-0	01	1	1410-		●
36	GEAR; 3RD,MAINSHAFT Z=34 THA	8-97241-234-0	01	1	1410-	●
36	GEAR; 3RD,MAINSHAFT Z=31 THA	8-97252-630-1	01	1	1410-		●
41	RING; BLOCK,2ND & 3RD Z=45 THA	8-97241-306-1	02	1	1410-	●
41	RING; BLOCK,2ND & 3RD Z=54 THA	8-97241-305-2	02	1	1410-		●
50	GEAR; 2ND,MAINSHAFT Z=38 THA	8-97241-237-1	01	1	1410-	●
50	GEAR; 2ND,MAINSHAFT Z=43 THA	8-97241-236-1	01	1	1410-		●
59	GEAR; REV MAINSHAFT Z=41 THA	8-97241-244-0	01	1	1410-	●
59	GEAR; REV MAINSHAFT Z=45 THA	8-97241-243-0	01	1	1410-		●
70	GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=43 THA	8-97350-010-0	01	1	1410-	●
70	GEAR; 1ST,MAINSHAFT Z=45 THA	8-97241-241-0	01	1	1410-		●
77	GEAR; 6TH,MAINSHAFT Z=21 THA	8-97386-582-0	01	1	1410-	●
77	GEAR; 6TH,MAINSHAFT Z=20 THA	8-97252-634-0	01	1	1410-		●
80	GEAR; SPD DRIVE Z=4 THA	8-97253-556-0	01	1	1410-	●
80	GEAR; SPD DRIVE Z=4 THA	8-97253-555-0	01	1	1410-		●
82	SHAFT; MAIN,TRANS Z=28-42-42-21 THA	8-97253-116-3	01	1	1410-	●
82	SHAFT; MAIN,TRANS Z=26-42-23 THA	8-97253-115-3	01	1	1410-		●
120	SLEEVE (A) Z=45 THA	8-98258-279-0	01	1	1410-	●
120	SLEEVE (A) Z=45 THA	8-98258-279-0	01	1	1410-	●
120	SLEEVE (B) Z=45 THA	8-94421-871-1	01	1	1410-	●
169	COLLAR; MAINSHAFT THA	8-97252-937-1	01	1	1410-	●
260	NUT; MAINSHAFT END M27 H=25 THA	8-97360-410-0	01	1	1410-	●	●
266	RING; SNAP,BRG INNER THA	8-97286-916-0	01	1	1410-	●
266	RING; SNAP,BRG INNER THA	8-97286-915-0	01	1	1410-		●
273	RING; SNAP,BRG OUTER THA	8-97254-610-0	01	1	1410-	●
273	RING; SNAP,BRG OUTER THA	8-97254-609-0	01	1	1410-		●
288	SPACER; BRG,MAINSHAFT THA	8-97252-942-0	01	1	1410-	●
288	SPACER; BRG,MAINSHAFT THA	8-97252-941-0	01	1	1410-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 THA	8-98028-226-0	01	1	1410-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 THA	1-09623-379-0	01	1	1410-		●
323	INSERT THA	8-94448-202-2	03	1	1410-	●
335	RING; SNAP,BEARING THA	8-97254-722-0	01	1	1410-	●
335	RING; SNAP,BEARING THA	8-97254-720-0	01	1	1410-		●
342	FLANGE; OUTPUT THA	8-98031-862-0	01	1	1410-	●
393	BEARING; MAINSHAFT END THA	8-97253-105-1	01	1	1410-	●
393	BEARING; MAINSHAFT END THA	8-97253-104-0	01	1	1410-		●
396	BEARING; NEEDLE,MAINSHAFT (C) THA	8-97253-102-1	01	1	1410-	●
396	BEARING; NEEDLE,MAINSHAFT (B) THA	8-97253-110-0	04	1	1410-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A) THA	8-97253-099-1	01	1	1410-		●
408	SPRING (A) THA	8-97366-040-1	04	1	1410-	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA	8-94148-196-0	03	1	1410-	●
500	RING; OUTSIDE,3RD & 2ND THA	8-97241-309-1	02	1	1410-	●
500	RING; OUTSIDE,3RD & 2ND THA	8-97241-307-1	02	1	1410-		●
501	RING; INSIDE,3RD & 2ND THA	8-97241-312-1	02	1	1410-	●
501	RING; INSIDE,3RD & 2ND THA	8-97241-311-1	02	1	1410-		●
503	RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97241-309-1	01	1	1410-	●
503	RING; OUTSIDE,LOW & REV THA	8-97241-307-1	02	1	1410-		●
504	RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97241-312-1	01	1	1410-	●
504	RING; INSIDE,LOW & REV THA	8-97241-311-1	02	1	1410-		●
505	COLLAR; 3RD & REV THA	8-97253-119-2	02	1	1410-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD THA	8-97241-298-3	01	1	1410-	●
515	HUB; CLU,1ST & REV,2ND & 3RD THA	8-97241-298-3	01	1	1410-	●
515	HUB; CLU,1ST & REV,2ND & 3RD THA	8-97239-155-2	02	1	1410-		●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97254-835-0	03	1	1410-	●
516	SPRING; SYNCHRO,INDEX THA	8-97254-835-0	03	1	1410-	●
516	SPRING; SYNCHRO,INDEX THA	8-97305-803-1	12	1	1410-		●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97252-935-0	03	1	1410-	●
517	BALL; SYNCHRO,INDEX THA	8-97252-935-0	03	1	1410-	●
517	BALL; SYNCHRO,INDEX THA	8-97252-935-0	12	1	1410-		●
524	SLEEVE & HUB ASM; TOP-4TH,OD THA	8-97366-526-0	01	1	1410-	●
525	RING; BLOCK,TOP & 4TH,OD Z=45 THA	8-97309-532-0	02	1	1410-	●
526	BEARING; NEEDLE,4TH & 5TH THA	8-97253-112-0	01	1	1410-	●
530	RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45 THA	8-97241-306-1	01	1	1410-	●
530	RING; BLOCK,LOW Z=54 THA	8-97241-305-2	01	1	1410-		●
531	RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45 THA	8-97368-343-0	01	1	1410-	●
531	RING; BLOCK,REV Z=54 THA	8-97241-305-2	01	1	1410-		●

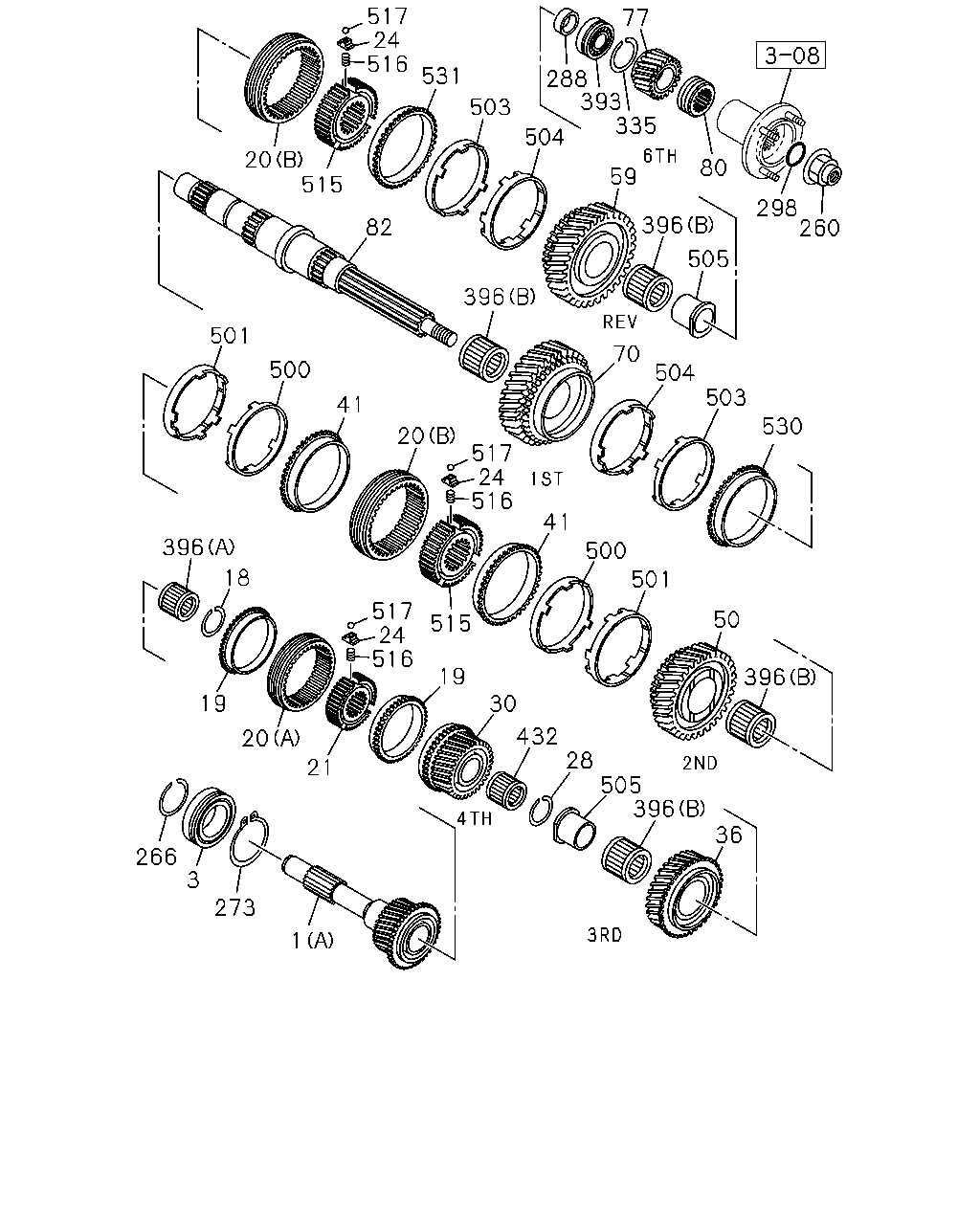

517 24 516 531 503 504 288 393 335 77 80 260 298 396 505 59 396 70 504 503 530 50 396 501 500 41 517 24 516 20 41 500 501 396 18 19 20 21 515 517 24 516 19 30 432 28 505 396 36 1 273 3 266 82 515 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) Z=26 THA	8-98021-266-0	01	1	1410-	●
1	SHAFT; TOP GEAR,TRANS (A) Z=25 THA	8-97371-090-0	01	1	1410-		●
3	BEARING; TOP GEAR SHAFT NSK THA	8-97253-098-1	01	1	1410-	●
3	BEARING; TOP GEAR SHAFT NSK THA	8-97253-097-1	01	1	1410-		●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8 THA	8-97254-728-0	01	1	1410-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8 THA	8-97256-855-0	01	1	1410-		●
19	RING; BLOCK,4TH & 5TH Z=45 THA	8-97241-306-1	02	1	1410-		●
20	SLEEVE (B) Z=54 THA	8-97241-295-2	02	1	1410-		●
20	SLEEVE (A) Z=45 THA	8-98258-279-0	02	1	1410-		●
21	HUB; CLU,4TH & 5TH THA	8-97241-299-3	01	1	1410-		●
24	BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97241-313-1	03	1	1410-	●
24	BLOCK; INDEX,SYN THA	8-97241-313-1	03	1	1410-	●
24	BLOCK; INDEX,SYN THA	8-97241-313-1	12	1	1410-		●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8 THA	8-97254-743-0	01	1	1410-	●	●
30	GEAR; 4TH,MAINSHAFT Z=28 THA	8-97241-230-0	01	1	1410-	●
30	GEAR; 4TH,MAINSHAFT Z=28 THA	8-97252-628-0	01	1	1410-		●
36	GEAR; 3RD,MAINSHAFT Z=34 THA	8-97241-234-0	01	1	1410-	●
36	GEAR; 3RD,MAINSHAFT Z=31 THA	8-97252-630-1	01	1	1410-		●
41	RING; BLOCK,2ND & 3RD Z=45 THA	8-97241-306-1	02	1	1410-	●
41	RING; BLOCK,2ND & 3RD Z=54 THA	8-97241-305-2	02	1	1410-		●
50	GEAR; 2ND,MAINSHAFT Z=38 THA	8-97241-237-1	01	1	1410-	●
50	GEAR; 2ND,MAINSHAFT Z=43 THA	8-97241-236-1	01	1	1410-		●
59	GEAR; REV MAINSHAFT Z=41 THA	8-97241-244-0	01	1	1410-	●
59	GEAR; REV MAINSHAFT Z=45 THA	8-97241-243-0	01	1	1410-		●
70	GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=43 THA	8-97350-010-0	01	1	1410-	●
70	GEAR; 1ST,MAINSHAFT Z=45 THA	8-97241-241-0	01	1	1410-		●
77	GEAR; 6TH,MAINSHAFT Z=21 THA	8-97386-582-0	01	1	1410-	●
77	GEAR; 6TH,MAINSHAFT Z=20 THA	8-97252-634-0	01	1	1410-		●
80	GEAR; SPD DRIVE Z=4 THA	8-97253-556-0	01	1	1410-	●
80	GEAR; SPD DRIVE Z=4 THA	8-97253-555-0	01	1	1410-		●
82	SHAFT; MAIN,TRANS Z=28-42-42-21 THA	8-97253-116-3	01	1	1410-	●
82	SHAFT; MAIN,TRANS Z=26-42-23 THA	8-97253-115-3	01	1	1410-		●
260	NUT; MAINSHAFT END M27 H=25 THA	8-97360-410-0	01	1	1410-	●	●
266	RING; SNAP,BRG INNER THA	8-97286-916-0	01	1	1410-	●
266	RING; SNAP,BRG INNER THA	8-97286-915-0	01	1	1410-		●
273	RING; SNAP,BRG OUTER THA	8-97254-610-0	01	1	1410-	●
273	RING; SNAP,BRG OUTER THA	8-97254-609-0	01	1	1410-		●
288	SPACER; BRG,MAINSHAFT THA	8-97252-942-0	01	1	1410-	●
288	SPACER; BRG,MAINSHAFT THA	8-97252-941-0	01	1	1410-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 THA	8-98028-226-0	01	1	1410-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 THA	1-09623-379-0	01	1	1410-		●
335	RING; SNAP,BEARING THA	8-97254-722-0	01	1	1410-	●
335	RING; SNAP,BEARING THA	8-97254-720-0	01	1	1410-		●
393	BEARING; MAINSHAFT END THA	8-97253-105-1	01	1	1410-	●
393	BEARING; MAINSHAFT END THA	8-97253-104-0	01	1	1410-		●
396	BEARING; NEEDLE,MAINSHAFT (C) THA	8-97253-102-1	01	1	1410-	●
396	BEARING; NEEDLE,MAINSHAFT (B) THA	8-97253-110-0	04	1	1410-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A) THA	8-97253-099-1	01	1	1410-		●
432	BEARING; NEEDLE,4TH NSK THA	8-97253-111-0	01	1	1410-		●
500	RING; OUTSIDE,3RD & 2ND THA	8-97241-309-1	02	1	1410-	●
500	RING; OUTSIDE,3RD & 2ND THA	8-97241-307-1	02	1	1410-		●
501	RING; INSIDE,3RD & 2ND THA	8-97241-312-1	02	1	1410-	●
501	RING; INSIDE,3RD & 2ND THA	8-97241-311-1	02	1	1410-		●
503	RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97241-309-1	01	1	1410-	●
503	RING; OUTSIDE,LOW & REV THA	8-97241-307-1	02	1	1410-		●
504	RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97241-312-1	01	1	1410-	●
504	RING; INSIDE,LOW & REV THA	8-97241-311-1	02	1	1410-		●
505	COLLAR; 3RD & REV THA	8-97253-119-2	02	1	1410-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD THA	8-97241-298-3	01	1	1410-	●
515	HUB; CLU,1ST & REV,2ND & 3RD THA	8-97241-298-3	01	1	1410-	●
515	HUB; CLU,1ST & REV,2ND & 3RD THA	8-97239-155-2	02	1	1410-		●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97254-835-0	03	1	1410-	●
516	SPRING; SYNCHRO,INDEX THA	8-97254-835-0	03	1	1410-	●
516	SPRING; SYNCHRO,INDEX THA	8-97305-803-1	12	1	1410-		●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97252-935-0	03	1	1410-	●
517	BALL; SYNCHRO,INDEX THA	8-97252-935-0	03	1	1410-	●
517	BALL; SYNCHRO,INDEX THA	8-97252-935-0	12	1	1410-		●
530	RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45 THA	8-97241-306-1	01	1	1410-	●
530	RING; BLOCK,LOW Z=54 THA	8-97241-305-2	01	1	1410-		●
531	RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=45 THA	8-97368-343-0	01	1	1410-	●
531	RING; BLOCK,REV Z=54 THA	8-97241-305-2	01	1	1410-		●

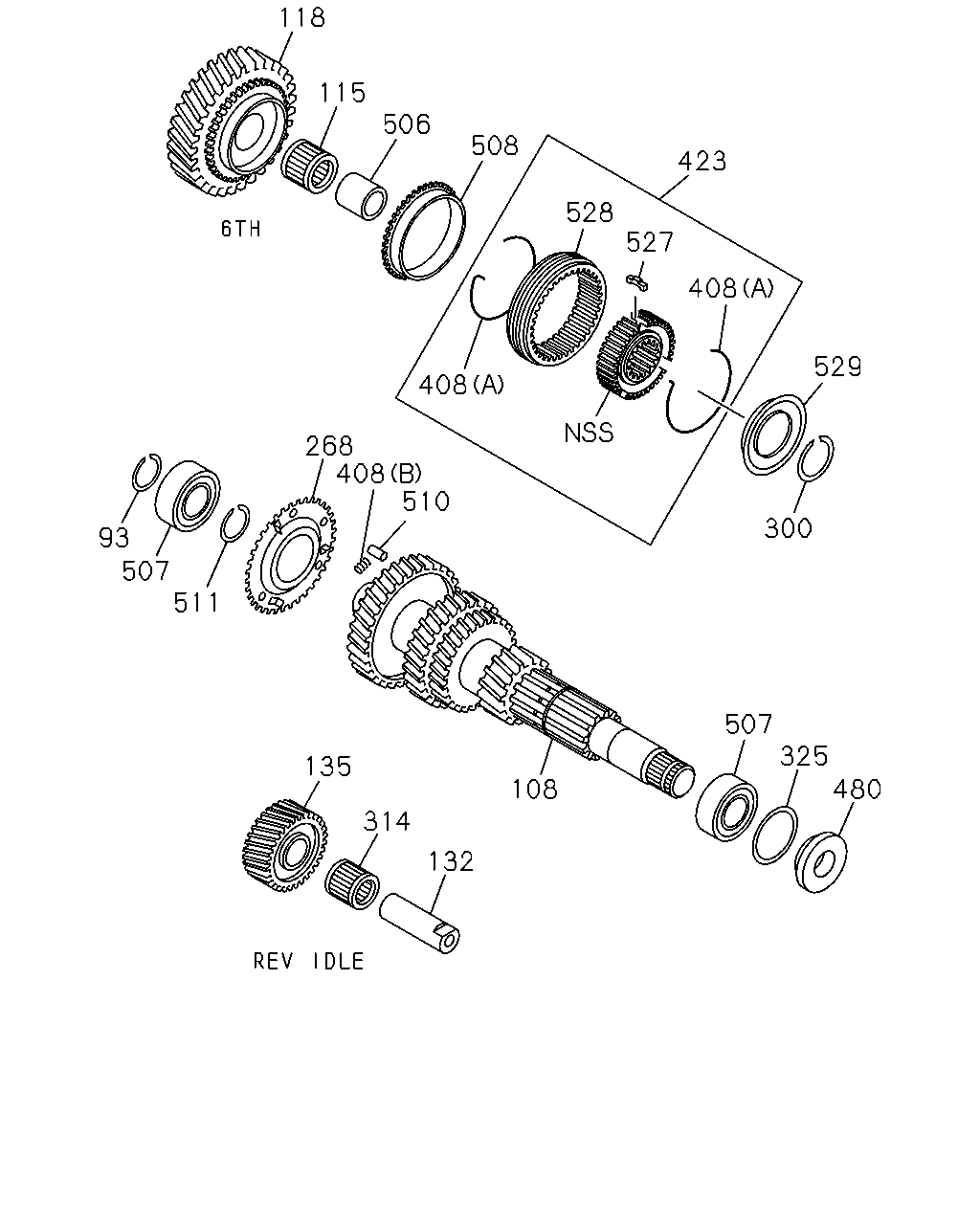

118 115 506 508 528 527 423 408 408 529 300 93 507 511 268 408 510 135 314 132 108 507 325 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9 THA	8-97254-734-0	01	1	1410-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1 THA	8-97254-740-0	01	1	1410-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3 THA	8-97254-742-0	01	1	1410-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9 THA	8-97254-735-0	01	1	1410-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1 THA	8-97254-738-0	01	1	1410-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3 THA	8-97254-741-0	01	1	1410-		●
108	SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=47-39-33-20 THA	8-97380-627-1	01	1	1410-	●
108	SHAFT; COUNTER Z=46-38-29-21 THA	8-98249-489-0	01	1	1410-		●
115	BEARING; NEEDLE,6TH,COUNTER THA	8-97253-113-0	01	1	1410-	●	●
118	GEAR; 6TH,COUNTER Z=50 THA	8-97386-580-0	01	1	1410-	●
118	GEAR; 6TH,COUNTER Z=47 THA	8-97241-246-0	01	1	1410-		●
132	SHAFT; REV THA	8-97252-655-0	01	1	1410-	●	●
135	GEAR; REV IDLER Z=25 THA	8-98031-869-1	01	1	1410-	●
135	GEAR; REV IDLER Z=26 THA	8-97241-292-2	01	1	1410-		●
268	PLATE; ANTI LASH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97252-684-1	01	1	1410-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7 THA	8-97254-727-0	01	1	1410-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.8 THA	8-97254-728-0	01	1	1410-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9 THA	8-97254-734-0	01	1	1410-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6 THA	8-97365-617-0	01	1	1410-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7 THA	8-97288-618-0	01	1	1410-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8 THA	8-97288-619-0	01	1	1410-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9 THA	8-97288-620-0	01	1	1410-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6 THA	8-97365-616-0	01	1	1410-		●
314	BEARING; NEEDLE,REV GEAR NSK THA	8-97253-114-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29 THA	8-97252-666-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35 THA	8-97252-667-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41 THA	8-97252-668-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47 THA	8-97252-669-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53 THA	8-97252-670-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59 THA	8-97252-671-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65 THA	8-97252-672-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71 THA	8-97252-673-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77 THA	8-97252-674-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83 THA	8-97252-675-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89 THA	8-97257-622-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11 THA	8-97306-188-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17 THA	8-97306-189-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23 THA	8-97306-190-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38 THA	8-97252-656-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44 THA	8-97252-657-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50 THA	8-97252-658-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56 THA	8-97252-659-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62 THA	8-97252-660-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68 THA	8-97252-661-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74 THA	8-97252-662-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80 THA	8-97252-663-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86 THA	8-97252-664-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92 THA	8-97252-665-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98 THA	8-97257-621-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20 THA	8-97306-185-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26 THA	8-97306-186-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32 THA	8-97306-187-0	01	1	1410-		●
408	SPRING (A) THA	8-97366-040-1	04	1	1410-	●
408	SPRING TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA	8-94148-196-0	03	1	1410-	●
423	SLEEVE & HUB ASM; 6TH THA	8-97367-022-0	01	1	1410-	●
480	WASHER; THRUST,6TH THA	8-97253-123-1	01	1	1410-	●
480	WASHER; THRUST,6TH THA	8-97253-122-1	01	1	1410-		●
506	COLLAR; 6TH,COUNTER THA	8-97253-121-1	01	1	1410-	●
506	COLLAR; 6TH,COUNTER THA	8-97253-120-1	01	1	1410-		●
507	BEARING; COUNTER SHAFT,FRT & RR THA	8-97253-107-0	02	1	1410-	●
507	BEARING; COUNTER SHAFT,FRT & RR THA	8-97253-106-0	02	1	1410-		●
508	RING; BLOCK,6TH Z=45 THA	8-97309-532-0	01	1	1410-	●
508	RING; BLOCK,6TH Z=45 THA	8-97241-306-1	01	1	1410-		●
510	PIN; STRAIGHT,ANTI LASH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	9-08160-825-0	03	1	1410-	●
511	RING; SNAP,ANTI LASH PLATE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97254-767-0	01	1	1410-	●
527	INSERT; 6TH THA	8-94448-202-2	03	1	1410-	●
528	SLEEVE; 6TH Z=45 THA	8-94421-871-1	01	1	1410-	●
529	PLATE; STOPPER,6TH THA	8-97248-952-0	01	1	1410-	●

132 314 135 507 93 480 325 507 300 121 20 24 517 508 516 506 115 118 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	SLEEVE (B) Z=54 THA	8-97241-295-2	02	1	1410-		●
20	SLEEVE (A) Z=45 THA	8-98258-279-0	02	1	1410-		●
24	BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97241-313-1	03	1	1410-	●
24	BLOCK; INDEX,SYN THA	8-97241-313-1	03	1	1410-	●
24	BLOCK; INDEX,SYN THA	8-97241-313-1	12	1	1410-		●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9 THA	8-97254-734-0	01	1	1410-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1 THA	8-97254-740-0	01	1	1410-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3 THA	8-97254-742-0	01	1	1410-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9 THA	8-97254-735-0	01	1	1410-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1 THA	8-97254-738-0	01	1	1410-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3 THA	8-97254-741-0	01	1	1410-		●
108	SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> Z=47-39-33-20 THA	8-97380-627-1	01	1	1410-	●
108	SHAFT; COUNTER Z=46-38-29-21 THA	8-98249-489-0	01	1	1410-		●
115	BEARING; NEEDLE,6TH,COUNTER THA	8-97253-113-0	01	1	1410-	●	●
118	GEAR; 6TH,COUNTER Z=50 THA	8-97386-580-0	01	1	1410-	●
118	GEAR; 6TH,COUNTER Z=47 THA	8-97241-246-0	01	1	1410-		●
121	HUB; CLU,6TH THA	8-97241-301-2	01	1	1410-		●
132	SHAFT; REV THA	8-97252-655-0	01	1	1410-	●	●
135	GEAR; REV IDLER Z=25 THA	8-98031-869-1	01	1	1410-	●
135	GEAR; REV IDLER Z=26 THA	8-97241-292-2	01	1	1410-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7 THA	8-97254-727-0	01	1	1410-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.8 THA	8-97254-728-0	01	1	1410-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9 THA	8-97254-734-0	01	1	1410-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6 THA	8-97365-617-0	01	1	1410-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7 THA	8-97288-618-0	01	1	1410-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8 THA	8-97288-619-0	01	1	1410-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9 THA	8-97288-620-0	01	1	1410-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6 THA	8-97365-616-0	01	1	1410-		●
314	BEARING; NEEDLE,REV GEAR NSK THA	8-97253-114-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29 THA	8-97252-666-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35 THA	8-97252-667-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41 THA	8-97252-668-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47 THA	8-97252-669-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53 THA	8-97252-670-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59 THA	8-97252-671-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65 THA	8-97252-672-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71 THA	8-97252-673-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77 THA	8-97252-674-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83 THA	8-97252-675-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89 THA	8-97257-622-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11 THA	8-97306-188-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17 THA	8-97306-189-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23 THA	8-97306-190-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38 THA	8-97252-656-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44 THA	8-97252-657-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50 THA	8-97252-658-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56 THA	8-97252-659-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62 THA	8-97252-660-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68 THA	8-97252-661-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74 THA	8-97252-662-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80 THA	8-97252-663-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86 THA	8-97252-664-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92 THA	8-97252-665-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98 THA	8-97257-621-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20 THA	8-97306-185-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26 THA	8-97306-186-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32 THA	8-97306-187-0	01	1	1410-		●
480	WASHER; THRUST,6TH THA	8-97253-123-1	01	1	1410-	●
480	WASHER; THRUST,6TH THA	8-97253-122-1	01	1	1410-		●
506	COLLAR; 6TH,COUNTER THA	8-97253-121-1	01	1	1410-	●
506	COLLAR; 6TH,COUNTER THA	8-97253-120-1	01	1	1410-		●
507	BEARING; COUNTER SHAFT,FRT & RR THA	8-97253-107-0	02	1	1410-	●
507	BEARING; COUNTER SHAFT,FRT & RR THA	8-97253-106-0	02	1	1410-		●
508	RING; BLOCK,6TH Z=45 THA	8-97309-532-0	01	1	1410-	●
508	RING; BLOCK,6TH Z=45 THA	8-97241-306-1	01	1	1410-		●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97254-835-0	03	1	1410-	●
516	SPRING; SYNCHRO,INDEX THA	8-97254-835-0	03	1	1410-	●
516	SPRING; SYNCHRO,INDEX THA	8-97305-803-1	12	1	1410-		●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97252-935-0	03	1	1410-	●
517	BALL; SYNCHRO,INDEX THA	8-97252-935-0	03	1	1410-	●
517	BALL; SYNCHRO,INDEX THA	8-97252-935-0	12	1	1410-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
