2-20 — MANUAL TRANSMISSION ASM AND CASE (#151284) — 82 parça

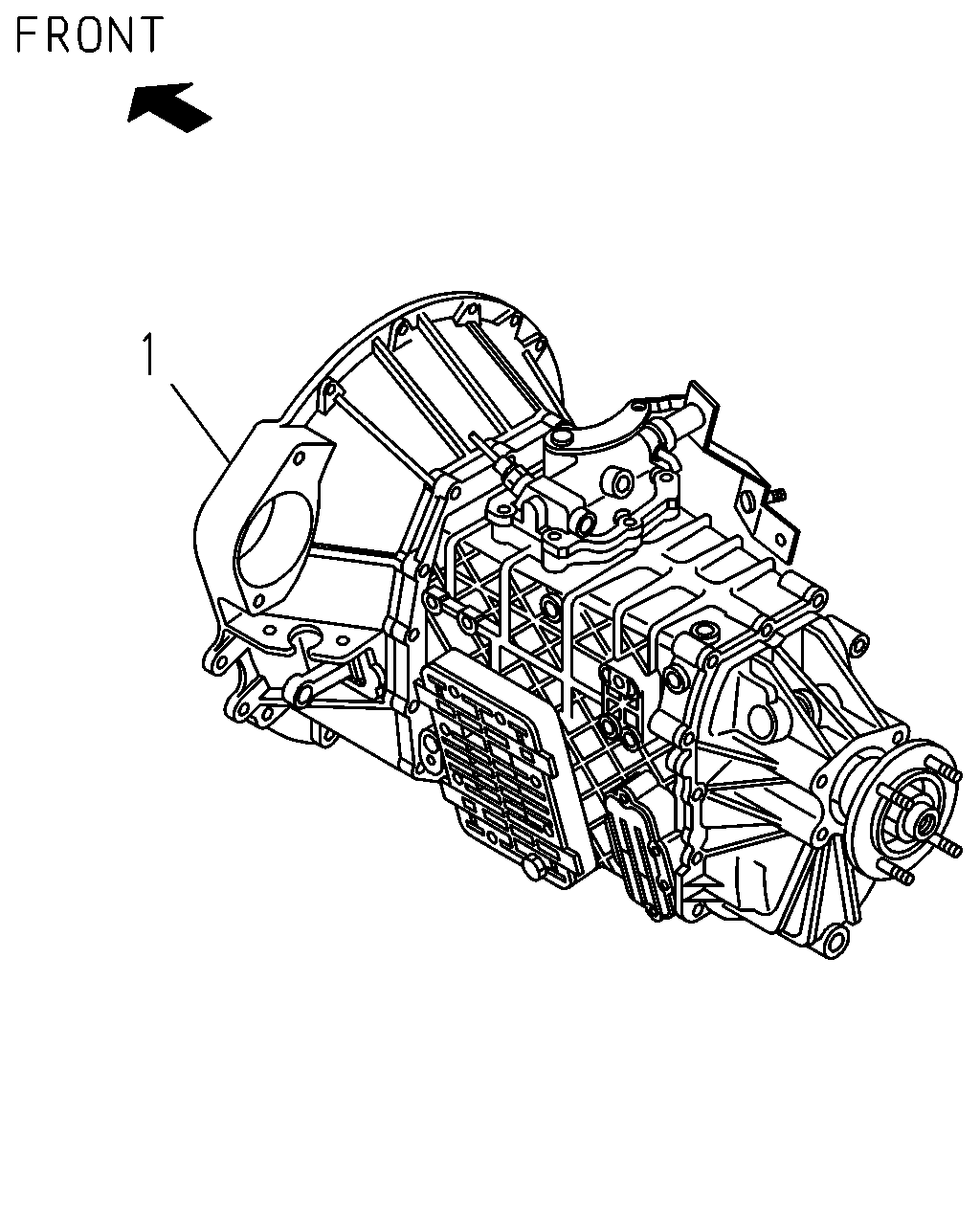

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> THA	8-98067-680-0	01	1	1410-	●
	1	TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> THA	8-98066-931-0	01	1	1410-		●

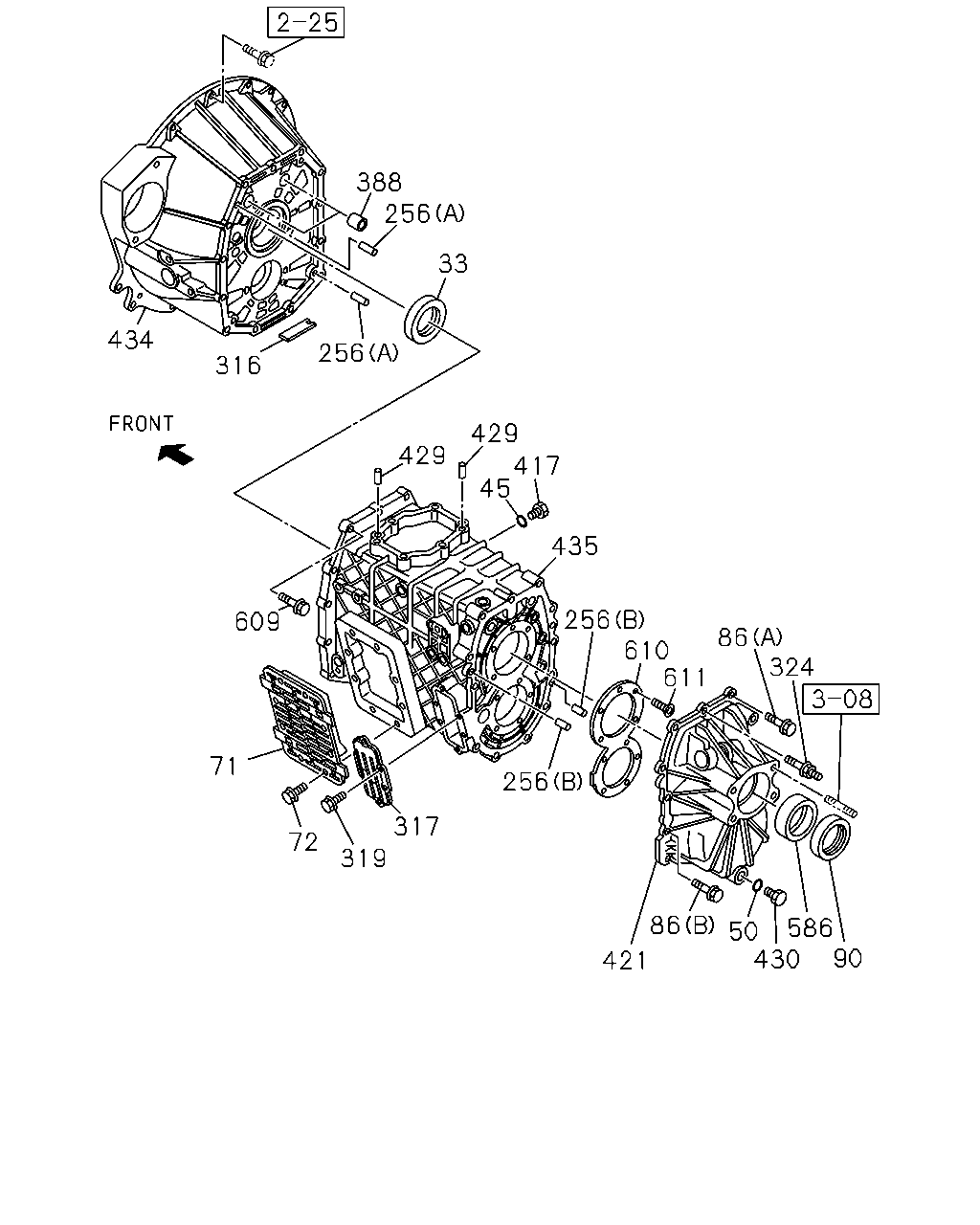

388 256 33 256 316 434 429 429 45 417 435 256 610 611 86 324 86 50 421 430 586 90 256 317 319 72 71 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>. THA	8-97253-550-0	01	1	1410-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). THA	8-97253-550-0	01	1	1410-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 THA	8-97115-712-0	01	1	1410-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 THA	8-97115-712-0	02	1	1410-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 THA	8-97115-712-0	01	1	1410-		●
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> THA	8-97252-625-0	01	1	1410-	●
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> THA	8-97252-624-2	01	1	1410-		●
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> M10X20 FLANGE THA	8-98014-142-0	06	1	1410-	●
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> M10X20 FLANGE THA	8-98014-142-0	08	1	1410-		●
86	BOLT; RR COVER (A) M10X40 FLANGE THA	0-28151-040-0	09	1	1410-	●
86	BOLT; RR COVER (B) M10X40 FLANGE THA	8-97365-377-0	02	1	1410-	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE THA	0-28151-040-0	10	1	1410-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97253-552-1	01	1	1410-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97253-551-1	01	1	1410-		●
256	PIN; KNOCK (A) OD=10 L=20 THA	8-97135-423-0	02	1	1410-	●	●
256	PIN; KNOCK (B) ID=6 L=12 THA	9-08160-612-0	02	1	1410-	●	●
316	MAGNET; TRANS CASE THA	8-94249-524-2	01	1	1410-	●	●
317	COVER; CASE THA	8-97252-626-0	01	1	1410-	●	●
319	BOLT; COVER M8X20 FLANGE THA	0-28050-820-0	06	1	1410-	●	●
324	STUD; RR COVER M10X15,M10X40 L=65 THA	8-97365-379-0	02	1	1410-	●
324	STUD; RR COVER M10X15,M10X40 L=65 THA	8-97365-379-0	01	1	1410-		●
388	BUSHING; CLU HSG THA	8-97241-326-2	02	1	1410-	●	●
417	PLUG; OIL FILLER,TRANS THA	8-97365-373-0	01	1	1410-	●	●
421	COVER; RR,TRANS THA	8-98020-028-0	01	1	1410-	●
421	COVER; RR,TRANS THA	8-97238-934-5	01	1	1410-		●
429	PIN; STRAIGHT OD=10 L=20 THA	8-97135-423-0	02	1	1410-	●	●
430	PLUG; OIL DRAIN THA	8-97365-374-0	02	1	1410-	●
430	PLUG; OIL DRAIN THA	8-97365-374-0	01	1	1410-		●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97237-099-5	01	1	1410-	●
434	HOUSING; CLU THA	8-97238-930-4	01	1	1410-		●
435	CASE; TRANS THA	8-97379-374-0	01	1	1410-	●
435	CASE; TRANS THA	8-97382-868-1	01	1	1410-		●
586	BEARING; NEEDLE THA	8-97253-109-0	01	1	1410-	●
586	BEARING; NEEDLE THA	8-97253-108-0	01	1	1410-		●
609	BOLT; HSG TO CASE M10X40 FLANGE THA	0-28151-040-0	13	1	1410-	●	●
610	RETAINER; BRG THA	8-97241-315-1	01	1	1410-	●
610	RETAINER; BRG THA	8-97241-314-2	01	1	1410-		●
611	SCREW M10X27 TORQUES THA	8-97365-354-0	11	1	1410-	●
611	SCREW M10X27 TORQUES THA	8-97365-354-0	10	1	1410-		●

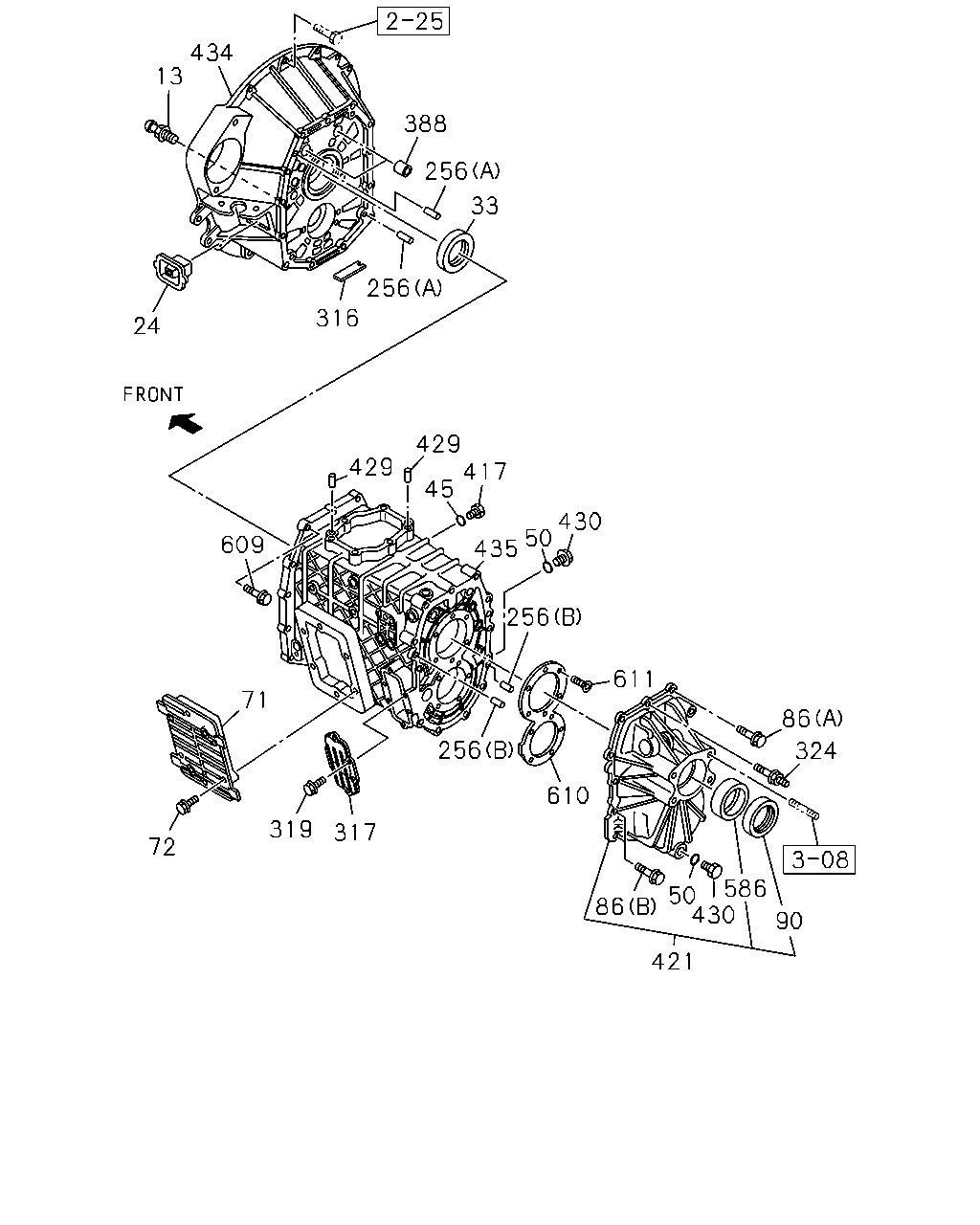

434 13 24 316 256 33 256 388 429 429 609 45 417 435 50 430 71 72 319 317 256 610 611 256 86 324 586 90 421 430 50 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	SUPPORT; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97255-385-1	01	1	1410-	●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97255-201-0	01	1	1410-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ>. THA	8-97253-550-0	01	1	1410-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). THA	8-97253-550-0	01	1	1410-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 THA	8-97115-712-0	01	1	1410-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 THA	8-97115-712-0	02	1	1410-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 THA	8-97115-712-0	01	1	1410-		●
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> THA	8-97252-625-0	01	1	1410-	●
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> THA	8-97252-624-2	01	1	1410-		●
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> M10X20 FLANGE THA	8-98014-142-0	06	1	1410-	●
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> M10X20 FLANGE THA	8-98014-142-0	08	1	1410-		●
86	BOLT; RR COVER (A) M10X40 FLANGE THA	0-28151-040-0	09	1	1410-	●
86	BOLT; RR COVER (B) M10X40 FLANGE THA	8-97365-377-0	02	1	1410-	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE THA	0-28151-040-0	10	1	1410-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97253-552-1	01	1	1410-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97253-551-1	01	1	1410-		●
256	PIN; KNOCK (A) OD=10 L=20 THA	8-97135-423-0	02	1	1410-	●	●
256	PIN; KNOCK (B) ID=6 L=12 THA	9-08160-612-0	02	1	1410-	●	●
316	MAGNET; TRANS CASE THA	8-94249-524-2	01	1	1410-	●	●
317	COVER; CASE THA	8-97252-626-0	01	1	1410-	●	●
319	BOLT; COVER M8X20 FLANGE THA	0-28050-820-0	06	1	1410-	●	●
324	STUD; RR COVER M10X15,M10X40 L=65 THA	8-97365-379-0	02	1	1410-	●
324	STUD; RR COVER M10X15,M10X40 L=65 THA	8-97365-379-0	01	1	1410-		●
388	BUSHING; CLU HSG THA	8-97241-326-2	02	1	1410-	●	●
417	PLUG; OIL FILLER,TRANS THA	8-97365-373-0	01	1	1410-	●	●
421	COVER; RR,TRANS THA	8-98020-028-0	01	1	1410-	●
421	COVER; RR,TRANS THA	8-97238-934-5	01	1	1410-		●
429	PIN; STRAIGHT OD=10 L=20 THA	8-97135-423-0	02	1	1410-	●	●
430	PLUG; OIL DRAIN THA	8-97365-374-0	02	1	1410-	●
430	PLUG; OIL DRAIN THA	8-97365-374-0	01	1	1410-		●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97237-099-5	01	1	1410-	●
434	HOUSING; CLU THA	8-97238-930-4	01	1	1410-		●
435	CASE; TRANS THA	8-97379-374-0	01	1	1410-	●
435	CASE; TRANS THA	8-97382-868-1	01	1	1410-		●
586	BEARING; NEEDLE THA	8-97253-109-0	01	1	1410-	●
586	BEARING; NEEDLE THA	8-97253-108-0	01	1	1410-		●
609	BOLT; HSG TO CASE M10X40 FLANGE THA	0-28151-040-0	13	1	1410-	●	●
610	RETAINER; BRG THA	8-97241-315-1	01	1	1410-	●
610	RETAINER; BRG THA	8-97241-314-2	01	1	1410-		●
611	SCREW M10X27 TORQUES THA	8-97365-354-0	11	1	1410-	●
611	SCREW M10X27 TORQUES THA	8-97365-354-0	10	1	1410-		●
