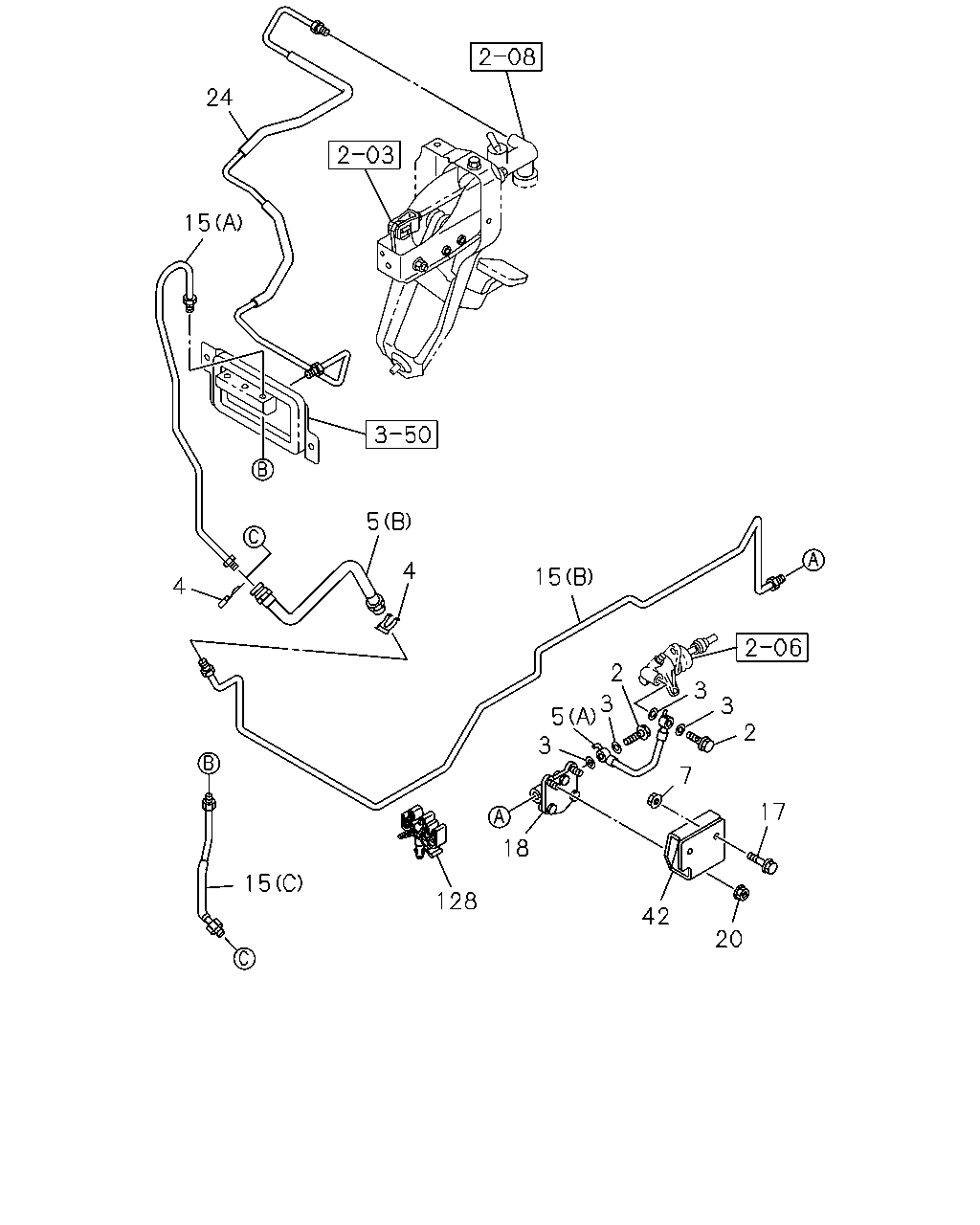

2-05 — CLUTCH PIPING (#151280) — 28 parça

24 15 5 4 15 3 3 2 17 20 42 7 18 128 3 5 3 2 15 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,SLAVE CYL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X22 THA	8-98014-005-0	02	1	1410-	●
2	BOLT; EYE,SLAVE CYL M10X22 THA	8-98014-005-0	02	1	1410-		●
3	GASKET; FLEX HOSE,CLU TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=10.2 OD=16.0 THA	9-09571-410-0	04	1	1410-	●
3	GASKET; FLEX HOSE,CLU ID=10.2 OD=16.0 THA	9-09571-410-0	04	1	1410-		●
4	CLIP; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97365-304-0	02	1	1410-	●
4	CLIP; FLEX HOSE,CLU CONT THA	8-97365-304-0	02	1	1410-		●
5	HOSE; FLEX,CLU PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA	8-98083-907-0	01	1	1410-	●
5	HOSE; FLEX,CLU PIPE (B) THA	8-98083-907-0	01	1	1410-		●
5	HOSE; FLEX,CLU PIPE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA	8-98077-611-2	01	1	1410-	●
5	HOSE; FLEX,CLU PIPE (A) THA	8-98077-611-2	01	1	1410-		●
7	NUT; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE THA	0-91180-108-0	02	1	1410-	●
7	NUT; FLEX HOSE,CLU CONT M8 FLANGE THA	0-91180-108-0	02	1	1410-		●
15	PIPE; CLU,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA	8-98041-742-3	01	1	1410-	●
15	PIPE; CLU,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98041-742-3	01	1	1410-		●
15	PIPE; CLU,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA	8-98250-269-0	01	1	1410-	●
15	PIPE; CLU,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> (C) THA	8-98043-499-3	01	1	1410-		●
17	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-	●
17	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1410-		●
18	DAMPER ASM; CLU OIL TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-98077-610-1	01	1	1410-	●
18	DAMPER ASM; CLU OIL THA	8-98077-610-1	01	1	1410-		●
20	NUT; CLU OIL DAMPER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8 FLANGE THA	0-91180-108-0	02	1	1410-	●
20	NUT; CLU OIL DAMPER M8 FLANGE THA	0-91180-108-0	02	1	1410-		●
24	PIPE ASM; CLU,M/CYL TO UNION TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-98077-617-0	01	1	1410-	●
24	PIPE ASM; CLU,M/CYL TO UNION THA	8-98098-686-1	01	1	1410-		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-98082-472-2	01	1	1410-	●
42	BRACKET; FLEX HOSE,CLU CONT THA	8-98082-472-2	01	1	1410-		●
128	CLIP; AIR PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> ID=12 & 6.35 & 4.76 THA	8-97202-954-1	01	1	1410-	●
128	CLIP; AIR PIPE FRAME STRAIGHT TYPE<7KJ> ID=12 & 6.35 & 4.76 THA	8-97202-954-1	01	1	1410-		●
