◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶

2-01 — CLUTCH (#151278) — 47 parça

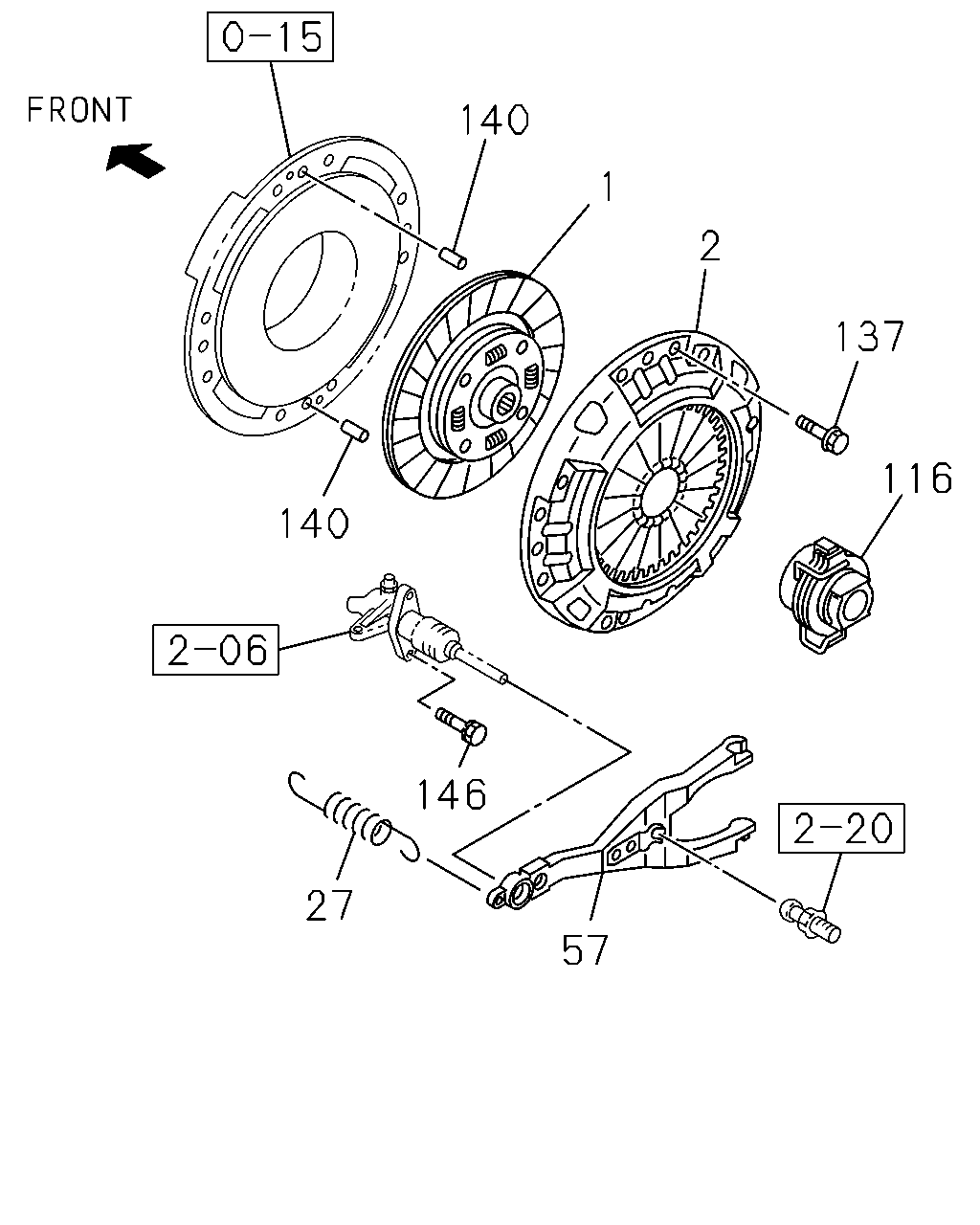

140 1 2 137 116 57 146 27 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-98255-140-0	01	1	1410-	●
1	DISC; CLUTCH THA	8-98164-917-0	01	1	1410-		●
1	DISC; CLUTCH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> BEST VALUE PARTS THA	5-87610-080-1	01	1	1410-	●
1	DISC; CLUTCH BEST VALUE PARTS THA	5-87610-092-0	01	1	1410-		●
2	PLATE ASM; PRESSURE,CLU TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97038-831-2	01	1	1410-	●
2	PLATE ASM; PRESSURE,CLU THA	8-97038-831-2	01	1	1410-		●
2	PLATE ASM; PRESSURE,CLU TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> BEST VALUE PARTS THA	5-87610-104-0	01	1	1410-	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS THA	5-87610-104-0	01	1	1410-		●
27	SPRING; RETURN,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-98025-313-0	01	1	1410-	●
27	SPRING; RETURN,SHIFT FORK THA	8-98025-314-0	01	1	1410-		●
57	FORK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97255-303-0	01	1	1410-	●
57	FORK; SHIFT,CLU THA	8-97310-456-1	01	1	1410-		●
116	BLOCK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97255-313-0	01	1	1410-	●
116	BLOCK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> BEST VALUE PARTS THA	5-87610-110-0	01	1	1410-	●
137	BOLT; CLU COVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X16 FLANGE THA	0-28051-016-0	10	1	1410-	●
137	BOLT; CLU COVER M10X16 FLANGE THA	0-28051-016-0	10	1	1410-		●
140	PIN; STRAIGHT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=25 THA	8-94410-361-0	02	1	1410-	●
140	PIN; STRAIGHT L=25 THA	8-94410-361-0	02	1	1410-		●
146	BOLT; SLAVE CYL TO TRANS CASE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-	●
146	BOLT; SLAVE CYL TO TRANS CASE M8X30 FLANGE THA	0-28650-830-0	02	1	1410-		●

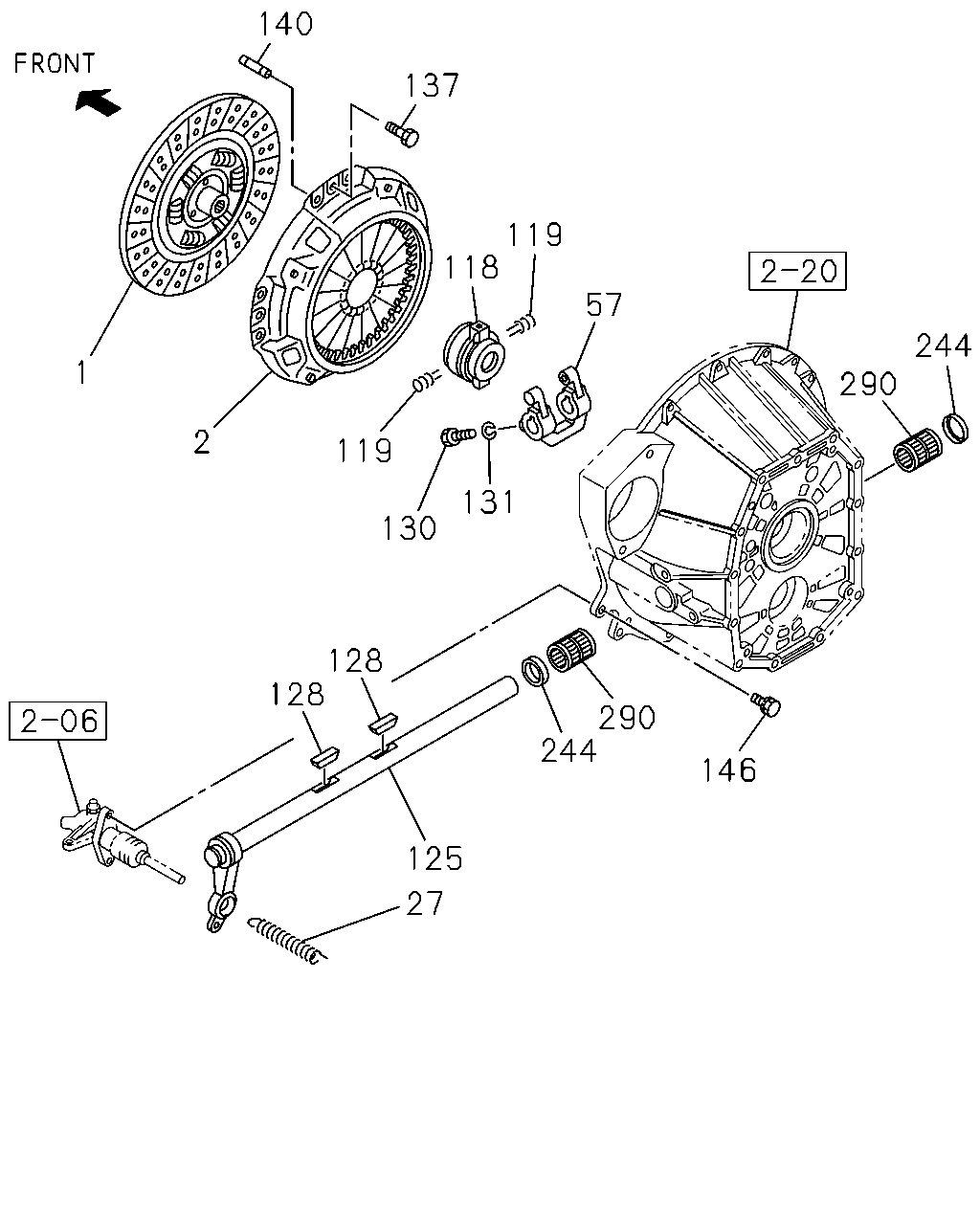

140 137 119 118 119 2 1 57 290 244 131 130 128 128 125 27 244 290 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-98255-140-0	01	1	1410-	●
1	DISC; CLUTCH THA	8-98164-917-0	01	1	1410-		●
1	DISC; CLUTCH TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> BEST VALUE PARTS THA	5-87610-080-1	01	1	1410-	●
1	DISC; CLUTCH BEST VALUE PARTS THA	5-87610-092-0	01	1	1410-		●
2	PLATE ASM; PRESSURE,CLU TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97038-831-2	01	1	1410-	●
2	PLATE ASM; PRESSURE,CLU THA	8-97038-831-2	01	1	1410-		●
2	PLATE ASM; PRESSURE,CLU TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> BEST VALUE PARTS THA	5-87610-104-0	01	1	1410-	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS THA	5-87610-104-0	01	1	1410-		●
27	SPRING; RETURN,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-98025-313-0	01	1	1410-	●
27	SPRING; RETURN,SHIFT FORK THA	8-98025-314-0	01	1	1410-		●
57	FORK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA	8-97255-303-0	01	1	1410-	●
57	FORK; SHIFT,CLU THA	8-97310-456-1	01	1	1410-		●
118	BEARING; CLU RELEASE THA	1-31310-012-0	01	1	1410-		●
118	BEARING; CLU RELEASE BEST VALUE PARTS THA	1-87610-110-0	01	1	1410-		●
119	SPRING; SHIFT FORK THA	1-31329-024-0	02	1	1410-		●
125	SHAFT; CLU THA	8-97310-435-0	01	1	1410-		●
128	KEY; FEATHER,CLU SHAFT THA	9-09867-008-0	02	1	1410-		●
130	SCREW; SHIFT FORK M8X14 THA	0-61200-814-0	01	1	1410-		●
131	WASHER; LK,SHIFT FORK ID=8.2 THA	0-91510-508-0	01	1	1410-		●
137	BOLT; CLU COVER TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X16 FLANGE THA	0-28051-016-0	10	1	1410-	●
137	BOLT; CLU COVER M10X16 FLANGE THA	0-28051-016-0	10	1	1410-		●
140	PIN; STRAIGHT TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=25 THA	8-94410-361-0	02	1	1410-	●
140	PIN; STRAIGHT L=25 THA	8-94410-361-0	02	1	1410-		●
146	BOLT; SLAVE CYL TO TRANS CASE TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-	●
146	BOLT; SLAVE CYL TO TRANS CASE M8X30 FLANGE THA	0-28650-830-0	02	1	1410-		●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). THA	1-09625-002-0	02	1	1410-		●
290	BEARING; NEEDLE NTN THA	1-09811-002-1	02	1	1410-		●
