1-41 — FUEL PIPING; CHASSIS (#151274) — 52 parça

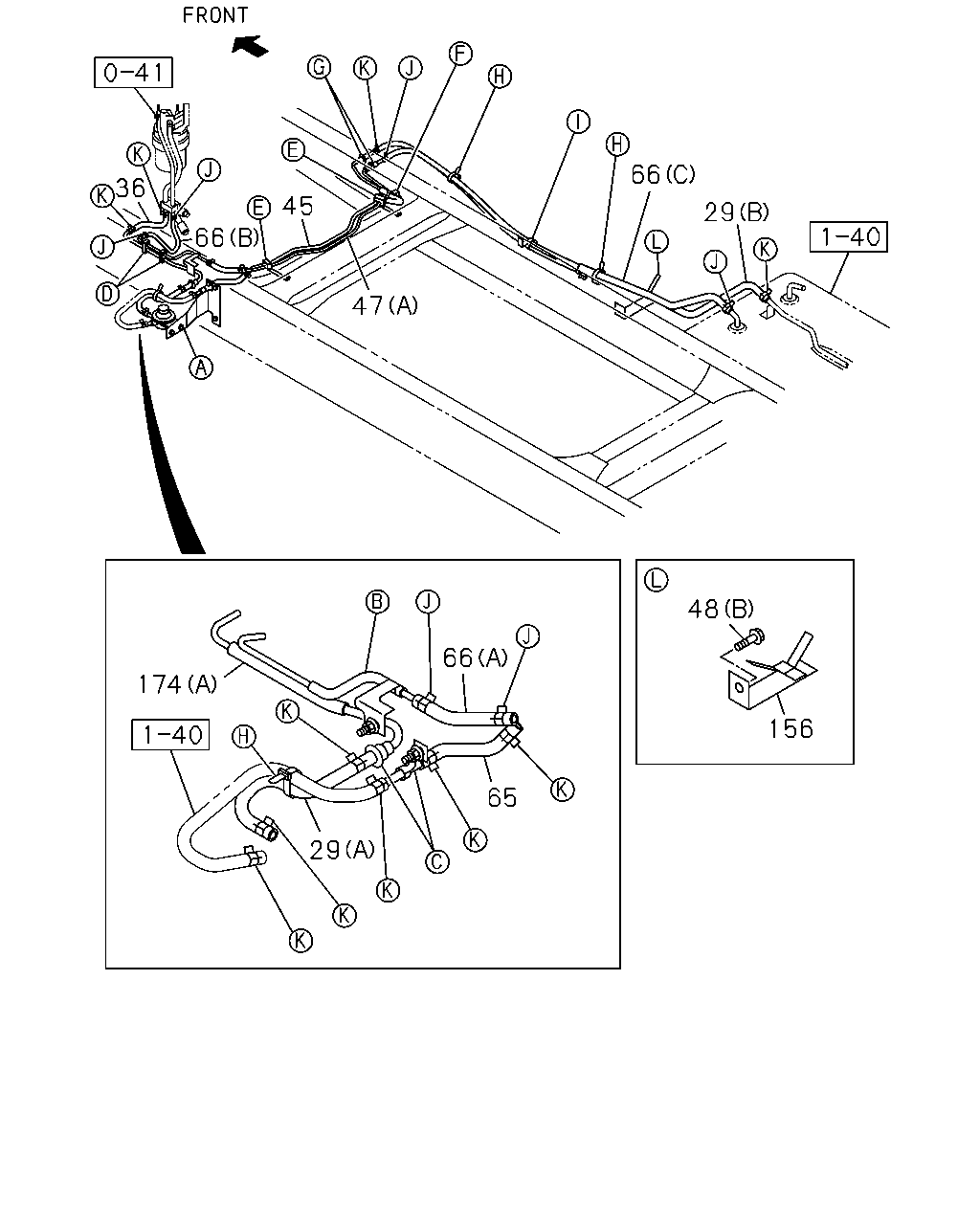

çizim 449983
36 66 45 47 66 29 174 29 65 66 48 156
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97924-005-0 01 1 1410- ● ●
29 HOSE; FUEL
WHEEL BASE 3800MM<38W>,WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97924-004-0 01 1 1410- ● ●
29 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98037-758-0 01 1 1410- ● ●
36 HOSE; FUEL,FILTER TO TANK
FRAME STRAIGHT TYPE<7KJ> THA 		8-98034-028-1 01 1 1410- ● ●
45 PIPE; FUEL,DELIVERY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-98043-681-1 01 1 1410- ●
45 PIPE; FUEL,DELIVERY
FRAME STRAIGHT TYPE<7KJ> THA 		8-98057-486-1 01 1 1410- ●
47 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA 		8-98043-639-0 01 1 1410- ●
47 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA 		8-98041-618-1 01 1 1410- ● ●
47 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98057-487-1 01 1 1410- ●
48 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1410- ● ●
48 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA 		0-28651-030-0 01 1 1410- ● ●
65 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> L=140 SERVICED BY L=3000 THA 		0-01259-300-0 01 1 1410- ●
65 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ> L=200 SERVICED BY L=3000 THA 		0-01259-300-0 01 1 1410- ●
66 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> (A) L=150 SERVICED BY L=3000 THA 		0-01855-300-0 01 1 1410- ●
66 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3400MM<34W> FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-97924-008-0 01 1 1410- ● ●
66 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM<38W>,WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-97924-007-0 01 1 1410- ● ●
66 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98065-058-0 01 1 1410- ● ●
66 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ> (A) L=200 SERVICED BY L=3000 THA 		0-01855-300-0 01 1 1410- ●
156 BRACKET; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> THA 		8-98041-250-2 01 1 1410- ● ●
174 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98033-844-1 01 1 1410- ● ●
174 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA 		8-98041-616-0 01 1 1410- ● ●
çizim 450159
72 270 426 28 106 47 15 15 174 106 61 199 15 97 48 61 199 61 8 64 15 62 24 41 147 24 147 24
BalonParca AdiParca NoAdetTipApplied Date A B
8 RUBBER; MTG
FRAME STRAIGHT TYPE<7KJ> OD=17 L=50 THA 		8-94157-054-1 01 1 1410- ● ●
15 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5 THA 		1-09701-027-0 01 1 1410- ● ●
15 CLIP; FUEL PIPE
WHEEL BASE 3800MM<38W>,WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5 THA 		1-09701-027-0 01 1 1410- ● ●
15 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=12 & 6.35 & 4.76 THA 		8-97202-954-1 02 1 1410- ● ●
15 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> (C) ID=12 & 6.35 THA 		8-97215-437-0 02 1 1410- ● ●
15 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 OR 12X2 & 6.35 THA 		8-97326-157-1 01 1 1410- ● ●
24 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (C) ID=16 THA 		8-98008-098-0 04 1 1410- ● ●
24 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (B) ID=12 THA 		8-98150-358-0 02 1 1410- ● ●
24 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ> (A) L=140 THA 		8-97920-656-0 03 1 1410- ● ●
28 BOLT; BRKT,FUEL PUMP
M10X30 FLANGE THA 		0-28651-030-0 02 1 1410- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
FRAME STRAIGHT TYPE<7KJ> ID=12 THA 		8-98150-358-0 02 1 1410- ● ●
47 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA 		8-98043-639-0 01 1 1410- ●
47 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA 		8-98041-618-1 01 1 1410- ● ●
47 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98057-487-1 01 1 1410- ●
48 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1410- ● ●
48 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE THA 		0-28651-030-0 01 1 1410- ● ●
61 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ> ID=17 THA 		8-94128-319-2 03 1 1410- ● ●
62 BOLT; CLIP FIX
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 01 1 1410- ● ●
62 BOLT; CLIP FIX
WHEEL BASE 3800MM<38W>,WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 01 1 1410- ● ●
64 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
64 NUT; CLIP
WHEEL BASE 3800MM<38W>,WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
72 BRACKET; FUEL PUMP & FILTER
THA 		8-98084-815-1 01 1 1410- ● ●
97 BRACKET; CLIP
FRAME STRAIGHT TYPE<7KJ> THA 		8-98041-203-0 02 1 1410- ● ●
106 NUT; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA 		0-91180-110-0 02 1 1410- ● ●
147 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> (A) ID=16 THA 		8-98008-098-0 06 1 1410- ● ●
147 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ> (B) ID=12 THA 		8-98150-358-0 02 1 1410- ● ●
174 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98033-844-1 01 1 1410- ● ●
174 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (B) THA 		8-98041-616-0 01 1 1410- ● ●
199 PROTECTOR; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ> OD=15 L=50 THA 		8-97077-629-0 02 1 1410- ● ●
270 PUMP ASM; FUEL
THA 		8-97948-892-0 01 1 1410- ● ●
426 BOLT; FUEL PUMP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1410- ● ●
