◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#151268) — 25 parça

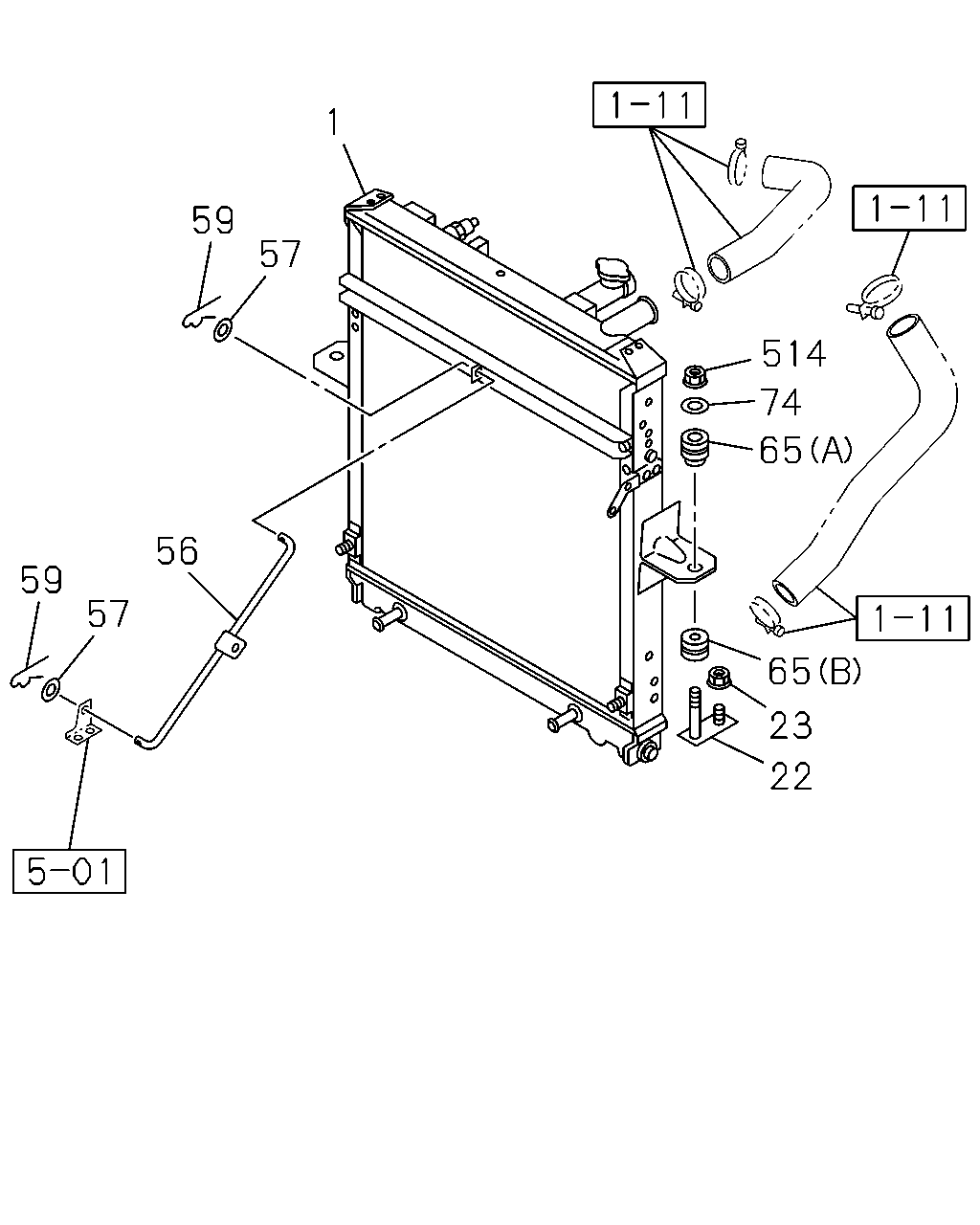

çizim 450116
57 56 59 57 59 1 514 22 65 23 65 74
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
VIN MODEL YEAR 2011<VZB> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> THA 		8-98174-420-0 01 1 1410- ●
1 RADIATOR ASM
VIN MODEL YEAR 2011<VZB> THA 		8-98174-420-0 01 1 1410- ●
22 BRACKET; RAD MTG
THA 		8-97330-527-1 02 1 1410- ● ●
23 NUT; RAD MTG
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●
56 STAY; RAD
THA 		8-98049-051-0 01 1 1410- ● ●
57 WASHER; PL,STAY
ID=10.5 THA 		0-91610-510-0 02 1 1410- ● ●
59 PIN; SNAP,STAY
L=32.6 THA 		8-97359-052-0 02 1 1410- ● ●
65 INSULATOR; RAD
(A) THA 		8-94249-346-0 02 1 1410- ● ●
65 INSULATOR; RAD
(B) THA 		8-94249-347-0 02 1 1410- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36 THA 		8-97359-049-1 02 1 1410- ● ●
514 NUT; RAD
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●

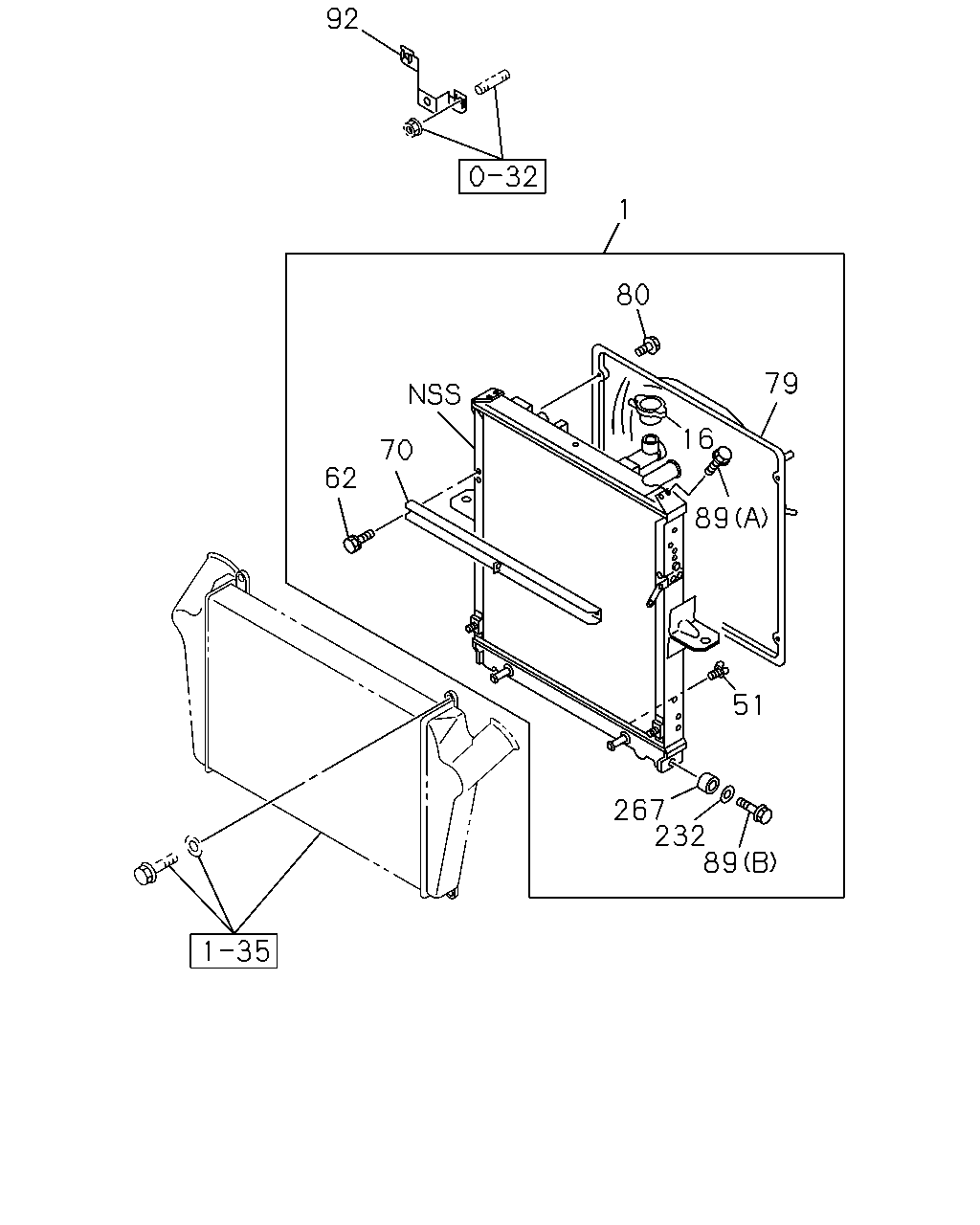

çizim 450274
70 62 79 80 1 92 89 232 267 51 89 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
VIN MODEL YEAR 2011<VZB> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> THA 		8-98174-420-0 01 1 1410- ●
1 RADIATOR ASM
VIN MODEL YEAR 2011<VZB> THA 		8-98174-420-0 01 1 1410- ●
16 CAP; RAD
VIN MODEL YEAR 2011<VZB> THA 		8-98096-226-0 01 1 1410- ● ●
51 PLUG; DRAIN
W/GASKET THA 		8-97171-437-0 01 1 1410- ● ●
62 BOLT; STAY
M8X12 FLANGE THA 		0-28050-812-0 02 1 1410- ● ●
70 STAY; RAD
THA 		8-98018-941-0 01 1 1410- ● ●
79 GUIDE; FAN,RAD
VIN MODEL YEAR 2011<VZB> THA 		8-98172-924-0 01 1 1410- ● ●
80 BOLT; FAN GUIDE
M6X16 THA 		1-21559-481-0 04 1 1410- ● ●
89 BOLT
(A) M8X12 FLANGE THA 		0-28050-812-0 02 1 1410- ● ●
89 BOLT
(B) M8X25 THA 		1-21469-153-0 02 1 1410- ● ●
92 BRACKET; FAN GUIDE
THA 		8-97382-827-2 01 1 1410- ● ●
232 COLLAR; DIST,CUSHION RUBBER
VIN MODEL YEAR 2011<VZB> EXC. TRANSMISSION CONTROL-SMOOTHER<8GF> THA 		1-87410-723-0 02 1 1410- ●
232 COLLAR; DIST,CUSHION RUBBER
VIN MODEL YEAR 2011<VZB> THA 		1-87410-723-0 02 1 1410- ●
267 RUBBER; CUSHION
THA 		1-21467-023-0 02 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
