0-66 — GENERATOR (#151264) — 14 parça

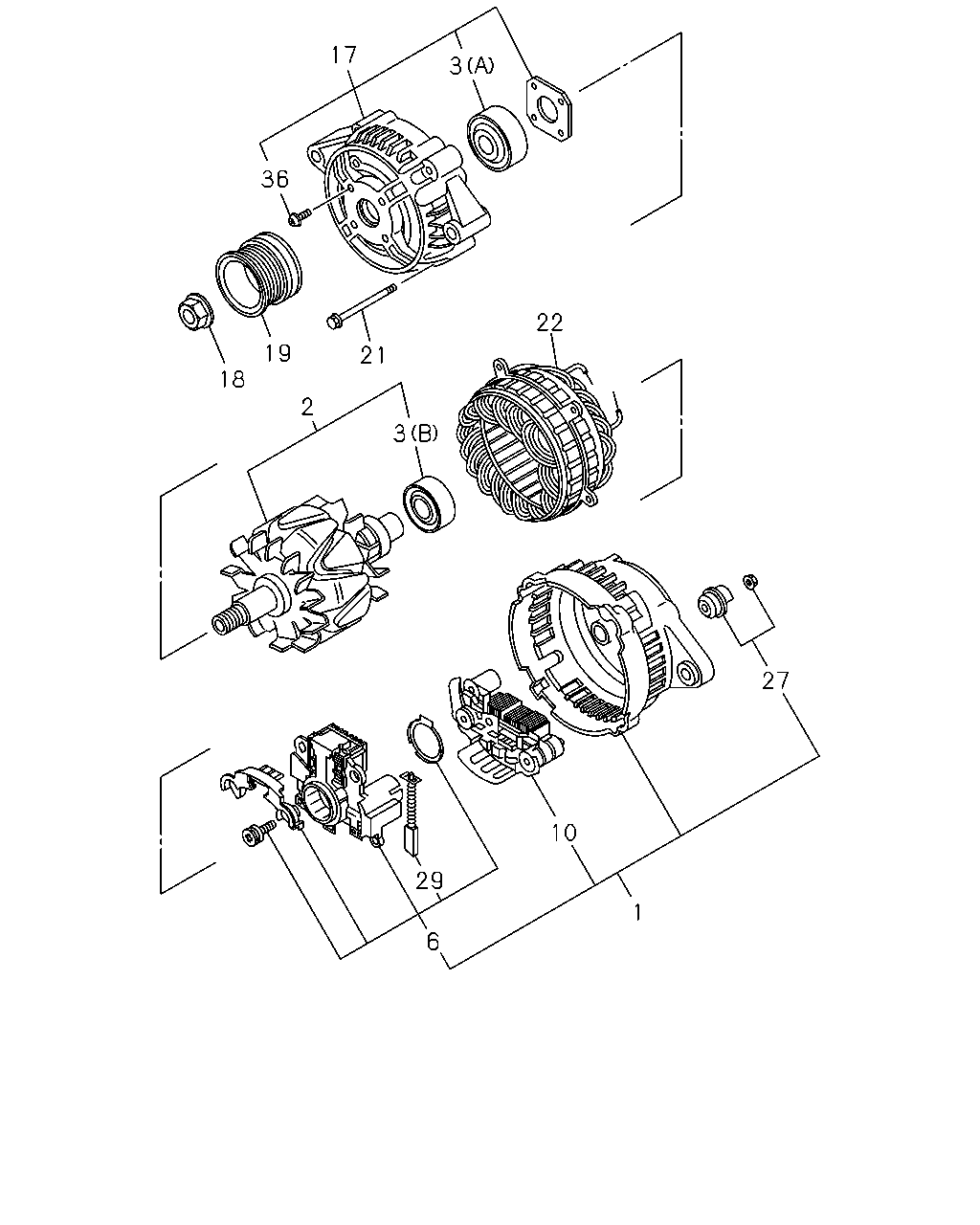

çizim 449773
17 36 3 18 19 21 2 3 22 29 6 10 1 27
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-118-0 01 1 -
2 ROTOR; GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-115-0 01 1 -
3 BEARING; ROTOR,GEN
(A), THA ASM PART: A = 8-97948-541-0 		8-98251-113-0 01 1 -
3 BEARING; ROTOR,GEN
(B), THA ASM PART: A = 8-97948-541-0 		8-98251-116-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-121-0 01 1 -
10 RECTIFIER; GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-119-0 01 1 -
17 COVER ASM; FRT,GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-110-0 01 1 -
18 NUT; PULLEY,GEN
THA ASM PART: A = 8-97948-541-0 		8-98281-812-0 01 1 -
19 PULLEY; GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-124-0 01 1 -
21 BOLT; THROUGH,GEN
THA ASM PART: A = 8-97948-541-0 		8-98281-813-0 01 1 -
22 STATOR; GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-117-0 01 1 -
27 NUT; RECTIFIER,GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-120-0 01 1 -
29 BRUSH; GEN
THA ASM PART: A = 8-97948-541-0 		8-98251-125-0 01 1 -
36 SCREW; FRT COVER
THA ASM PART: A = 8-97948-541-0 		8-98281-814-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
