◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#151262) — 11 parça

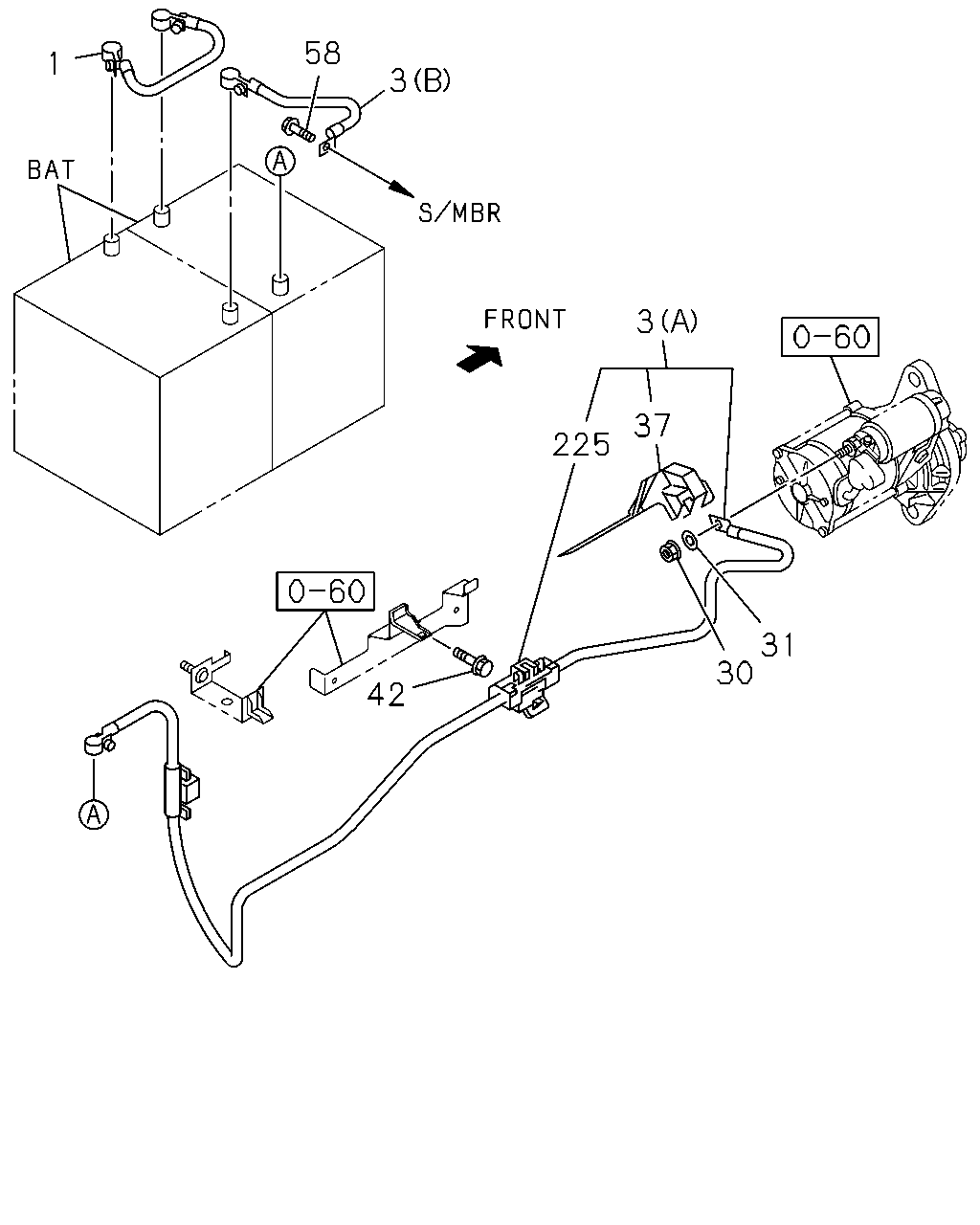

çizim 449751
1 58 3 42 225 3 37 30 31
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 THA 		8-97922-383-0 01 1 1410- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
(B) THA 		8-97922-384-0 01 1 1410- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> (A) THA 		8-97926-984-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
(A) THA 		8-97926-985-0 01 1 1410- ●
30 NUT; CABLE,STARTER TO BATTERY
M8 THA 		0-91110-508-0 01 1 1410- ● ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 THA 		0-91510-808-0 01 1 1410- ● ●
37 CAP; TERMINAL,BATTERY CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-97927-023-1 01 1 1410- ●
37 CAP; TERMINAL,BATTERY CABLE
THA 		8-97927-023-1 01 1 1410- ●
42 BOLT; BRKT,BATTERY CABLE
M6X16 FLANGE THA 		8-97329-599-0 01 1 1410- ● ●
58 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER THA 		8-98141-256-1 01 1 1410- ● ●
225 BLOCK; TERMINAL
THA 		8-98029-689-0 01 1 1410- ● ●
