◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#151257) — 11 parça

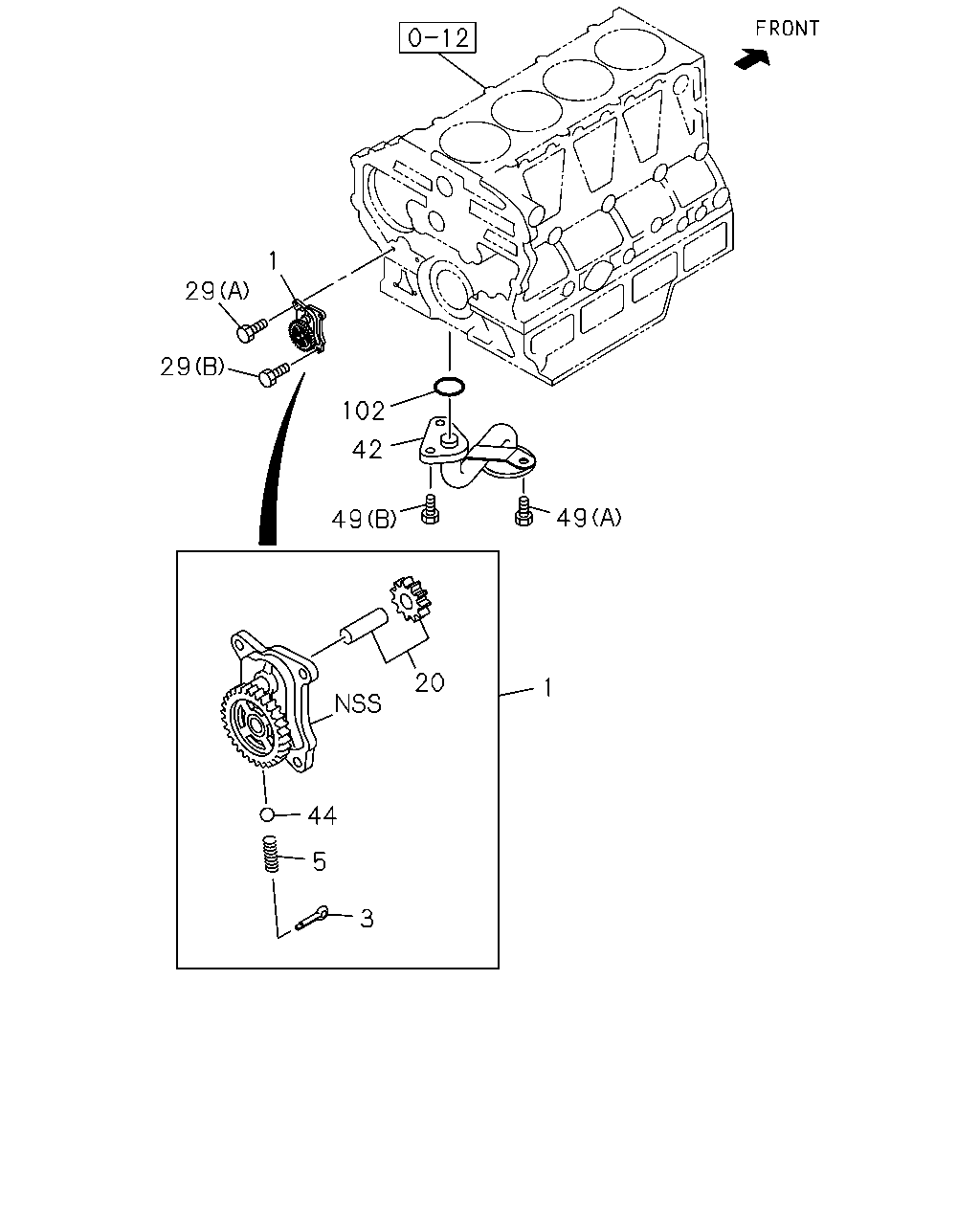

çizim 448376
29 1 29 102 42 49 49 1 44 5 3 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL
THA 		8-98017-585-1 01 1 1410- ● ●
3 PIN; SPLIT
L=30 THA 		9-08104-030-0 01 1 1410- ● ●
5 SPRING; COIL
THA 		5-09580-098-0 01 1 1410- ● ●
20 GEAR; DRIVE,OIL PUMP
THA 		8-98059-192-0 01 1 1410- ● ●
29 BOLT; OIL PUMP
(A) M8X25 FLANGE THA 		0-28060-825-0 02 1 1410- ● ●
29 BOLT; OIL PUMP
(B) M8X30 FLANGE THA 		0-28060-830-0 02 1 1410- ● ●
42 STRAINER; OIL,OIL PUMP
THA 		8-98213-867-0 01 1 1410- ● ●
44 BALL; RELIEF VLV
THA 		5-09843-003-0 01 1 1410- ● ●
49 BOLT; STRAINER,OIL PUMP
(B) M8X16 FLANGE THA 		0-28060-816-0 02 1 1410- ● ●
49 BOLT; STRAINER,OIL PUMP
(A) M10X80 THA 		8-97071-956-0 01 1 1410- ● ●
102 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 THA 		8-94399-398-0 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
