Sayfa 0-41 - Isuzu EPC

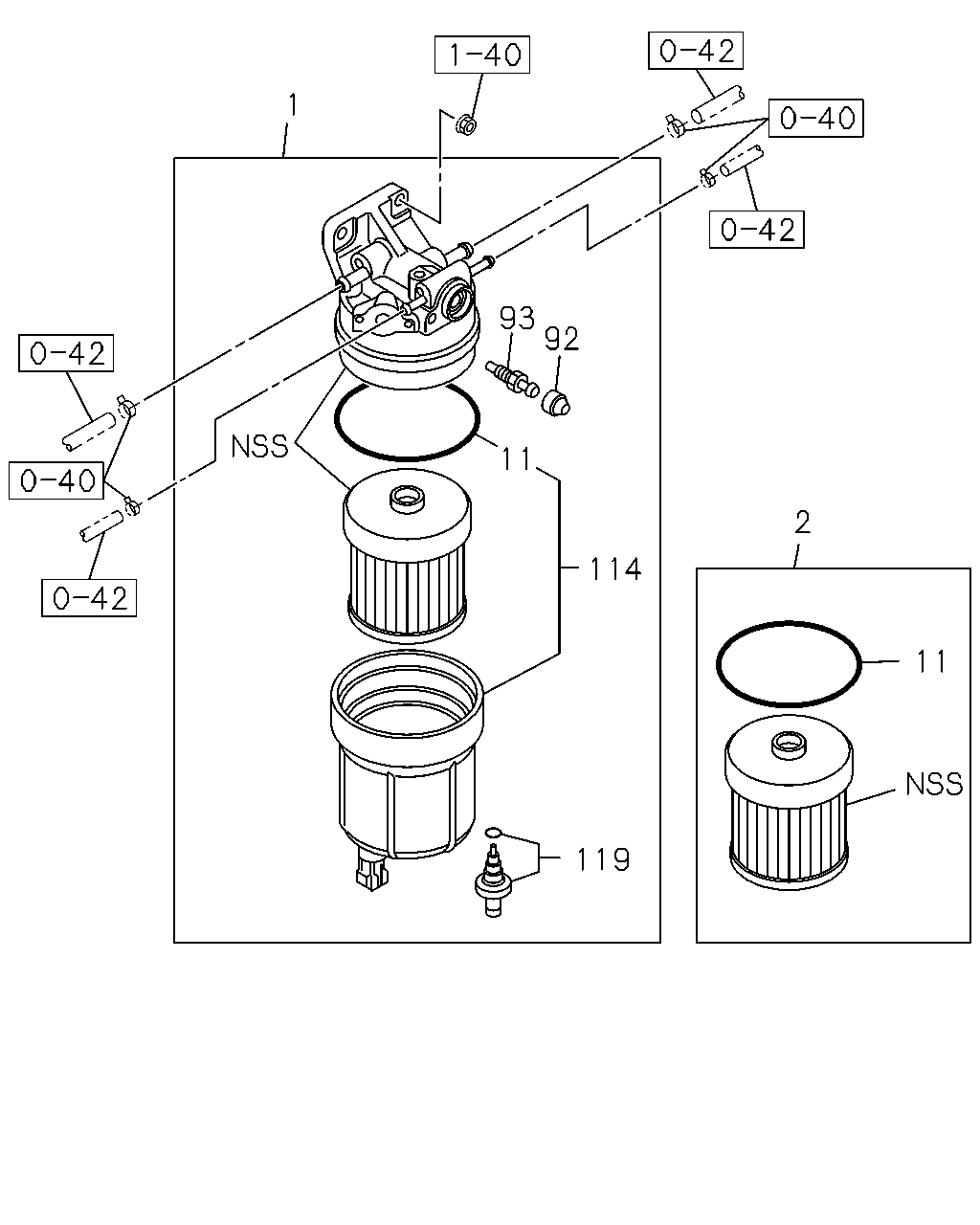

0-41 — FUEL FILTER AND BRACKET (#151254) — 8 parça

1 93 92 11 114 119 2 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER ASM; FUEL THA	8-98162-903-2	01	1	1410-	●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98203-599-0	01	1	1410-	●	●
2	ELEMENT KIT; FUEL FILTER BEST VALUE PARTS THA	1-87610-093-0	01	1	1410-	●	●
11	GASKET; CASE TO BODY,FUEL FILTER THA	8-98203-600-0	01	1	1410-	●	●
92	CAP; FUEL FILTER THA	8-98034-314-0	01	1	1410-	●	●
93	CONNECTOR; FUEL FILTER M8X10 THA	8-98034-312-0	01	1	1410-	●	●
114	CASE ASM; FUEL FILTER THA	8-98039-987-1	01	1	1410-	●	●
119	PLUG; DRAIN,FUEL FILTER THA	8-98037-095-0	01	1	1410-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
