◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51569 - NPR/NQR THAILAND ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#151253) — 77 parça

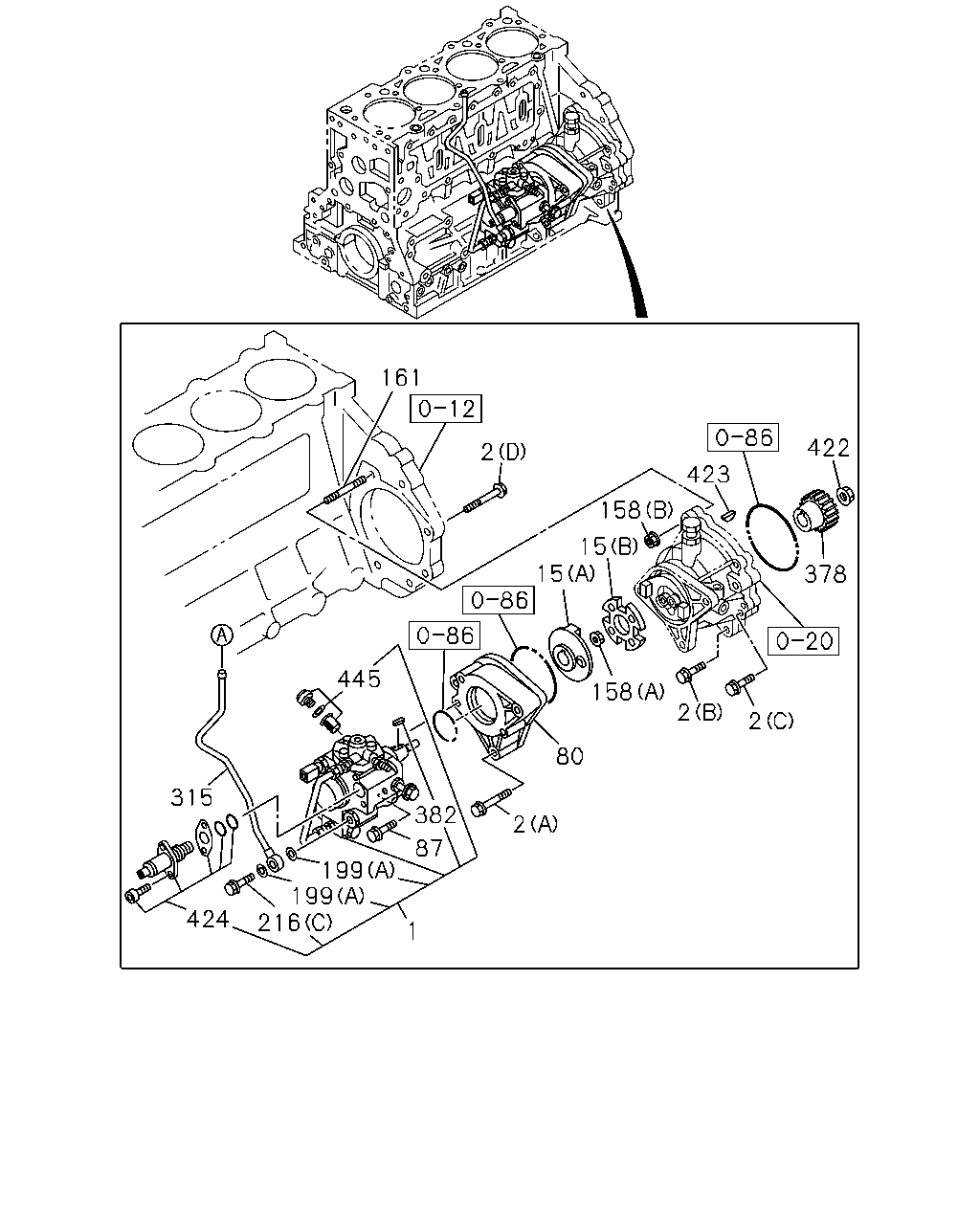

çizim 448444
1 216 424 199 199 87 382 315 2 445 80 161 2 15 15 158 158 2 2 423 422 378
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
THA 		8-97386-557-5 01 1 1410- ● ●
2 BOLT; INJ PUMP
(A) M10X60 FLANGE THA 		0-28051-060-0 03 1 1410- ● ●
2 BOLT; INJ PUMP
(B) M10X70 FLANGE THA 		0-28151-070-0 01 1 1410- ● ●
2 BOLT; INJ PUMP
(C) M12X70 FLANGE THA 		0-28151-270-0 01 1 1410- ● ●
2 BOLT; INJ PUMP
(D) M12X95 FLANGE THA 		8-94396-485-1 01 1 1410- ● ●
15 COUPLING ASM; INJ PUMP
(A) THA 		8-97306-054-0 01 1 1410- ● ●
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. THA 		8-97306-059-1 01 1 1410- ● ●
80 BRACKET; PUMP
THA 		8-98061-699-0 01 1 1410- ● ●
87 BOLT; PUMP
M8X30 FLANGE THA 		0-28650-830-0 03 1 1410- ● ●
158 NUT; INJ PUMP
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1410- ● ●
158 NUT; INJ PUMP
(A) M14 FLANGE THA 		0-91180-114-0 01 1 1410- ● ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 THA 		8-97066-386-1 02 1 1410- ● ●
199 GASKET; EYE BOLT
(A) THA 		1-15619-507-0 02 1 1410- ● ●
199 GASKET; EYE BOLT
(B) THA 		8-97602-218-0 04 1 1410- ● ●
216 BOLT; EYE
(C) THA 		5-15759-003-0 01 1 1410- ● ●
216 BOLT; EYE
(B) THA 		8-97351-388-0 01 1 1410- ● ●
216 BOLT; EYE
(A) THA 		8-98043-033-0 01 1 1410- ● ●
315 PIPE; FUEL,SUCTION
THA 		8-98126-333-0 01 1 1410- ● ●
378 GEAR; PUMP
Z=35 THA 		8-98017-915-0 01 1 1410- ● ●
382 KEY; DRIVE SHAFT
THA 		8-98161-995-0 01 1 1410- ● ●
422 NUT; GEAR
M18 THA 		8-97141-154-0 01 1 1410- ● ●
423 KEY; GEAR
THA 		9-08055-519-0 01 1 1410- ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-501-1 01 1 1410- ● ●
445 SCREW; FILTER,INLET
THA 		8-98204-986-0 01 1 1410- ● ●

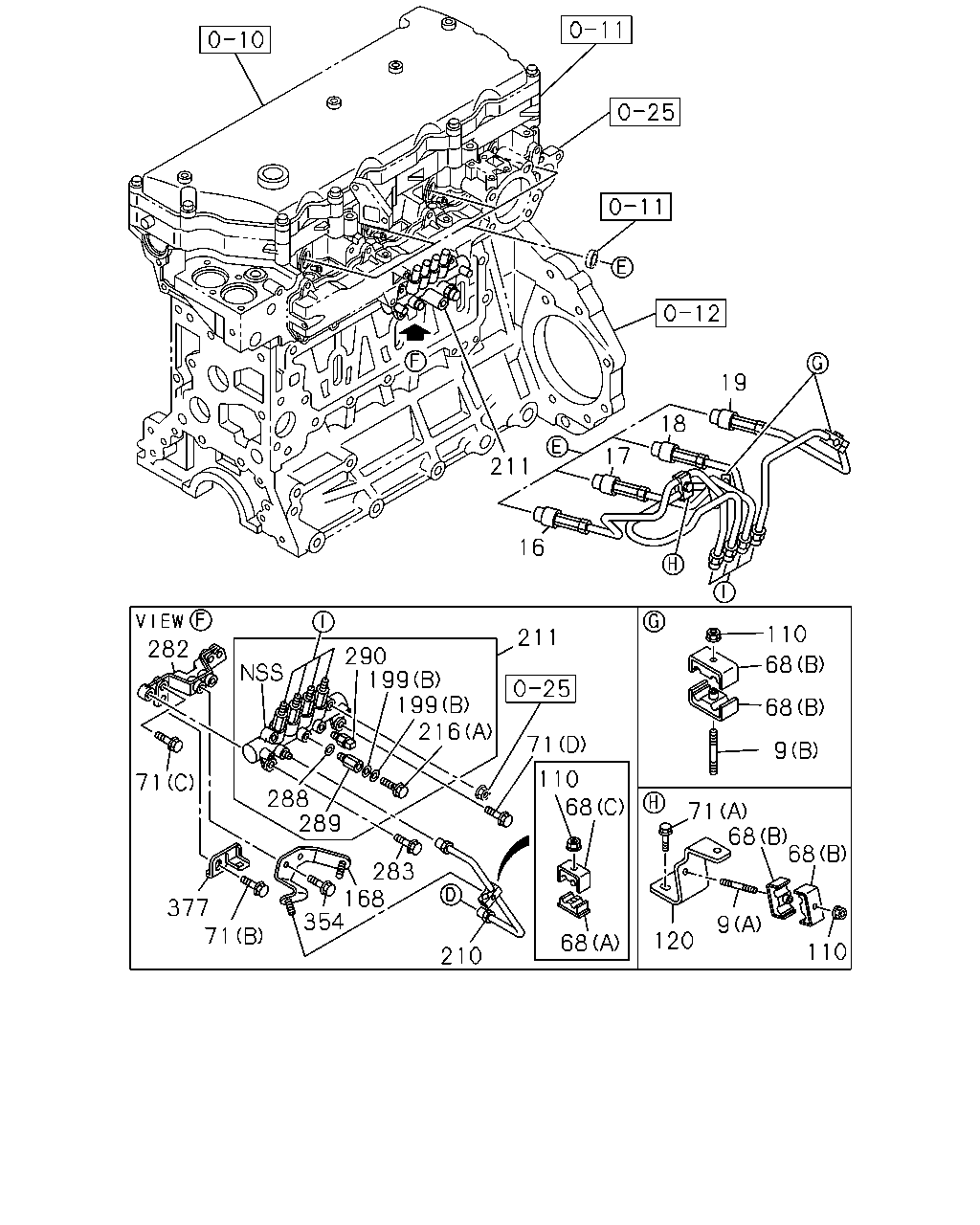

çizim 448930
211 16 17 18 19 282 71 377 71 288 289 283 168 354 290 199 199 216 210 211 71 110 68 68 110 68 68 9 71 68 68 9 120 110
BalonParca AdiParca NoAdetTipApplied Date A B
9 STUD; CLIP
(B) M6X30 L=38 THA 		0-41010-630-0 02 1 1410- ● ●
9 STUD; CLIP
(A) M6X35 L=43 THA 		8-97203-278-0 01 1 1410- ● ●
16 PIPE; INJ NO.1
THA 		8-98271-202-0 01 1 1410- ● ●
17 PIPE; INJ NO.2
THA 		8-98271-203-0 01 1 1410- ● ●
18 PIPE; INJ NO.3
THA 		8-98271-204-0 01 1 1410- ● ●
19 PIPE; INJ NO.4
THA 		8-98271-205-0 01 1 1410- ● ●
68 CLIP; INJ PIPE
(C) THA 		1-09701-195-3 01 1 1410- ● ●
68 CLIP; INJ PIPE
(A) THA 		1-09701-196-2 01 1 1410- ● ●
68 CLIP; INJ PIPE
(B) THA 		8-98148-996-2 06 1 1410- ● ●
71 BOLT; BRKT
(B) M6X10 FLANGE THA 		0-28050-610-0 02 1 1410- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1410- ● ●
71 BOLT; BRKT
(C) M8X40 FLANGE THA 		0-28050-840-0 01 1 1410- ● ●
71 BOLT; BRKT
(D) M8X50 FLANGE THA 		0-28050-850-0 01 1 1410- ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 04 1 1410- ● ●
120 BRACKET; INJ PIPE
THA 		8-98041-601-0 01 1 1410- ● ●
168 BRACKET; FUEL PIPE
THA 		8-98036-175-1 01 1 1410- ● ●
199 GASKET; EYE BOLT
(A) THA 		1-15619-507-0 02 1 1410- ● ●
199 GASKET; EYE BOLT
(B) THA 		8-97602-218-0 04 1 1410- ● ●
210 PIPE; INJ,C/R
THA 		8-98036-176-1 01 1 1410- ● ●
211 RAIL ASM; COMMON
THA 		8-98011-888-2 01 1 1410- ● ●
216 BOLT; EYE
(C) THA 		5-15759-003-0 01 1 1410- ● ●
216 BOLT; EYE
(B) THA 		8-97351-388-0 01 1 1410- ● ●
216 BOLT; EYE
(A) THA 		8-98043-033-0 01 1 1410- ● ●
282 BRACKET; COMMON RAIL
THA 		8-98157-115-0 01 1 1410- ● ●
283 BOLT; COMMON RAIL
M8X25 FLANGE THA 		0-28050-825-0 01 1 1410- ● ●
288 GASKET
ID=11 OD=16.3 THA 		1-15641-046-0 01 1 1410- ● ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 1410- ● ●
290 SENSOR; PRESS
THA 		8-98119-790-0 01 1 1410- ● ●
354 BOLT; FUEL PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 1410- ● ●
377 BRACKET; HARNESS
THA 		8-97310-438-1 02 1 1410- ● ●

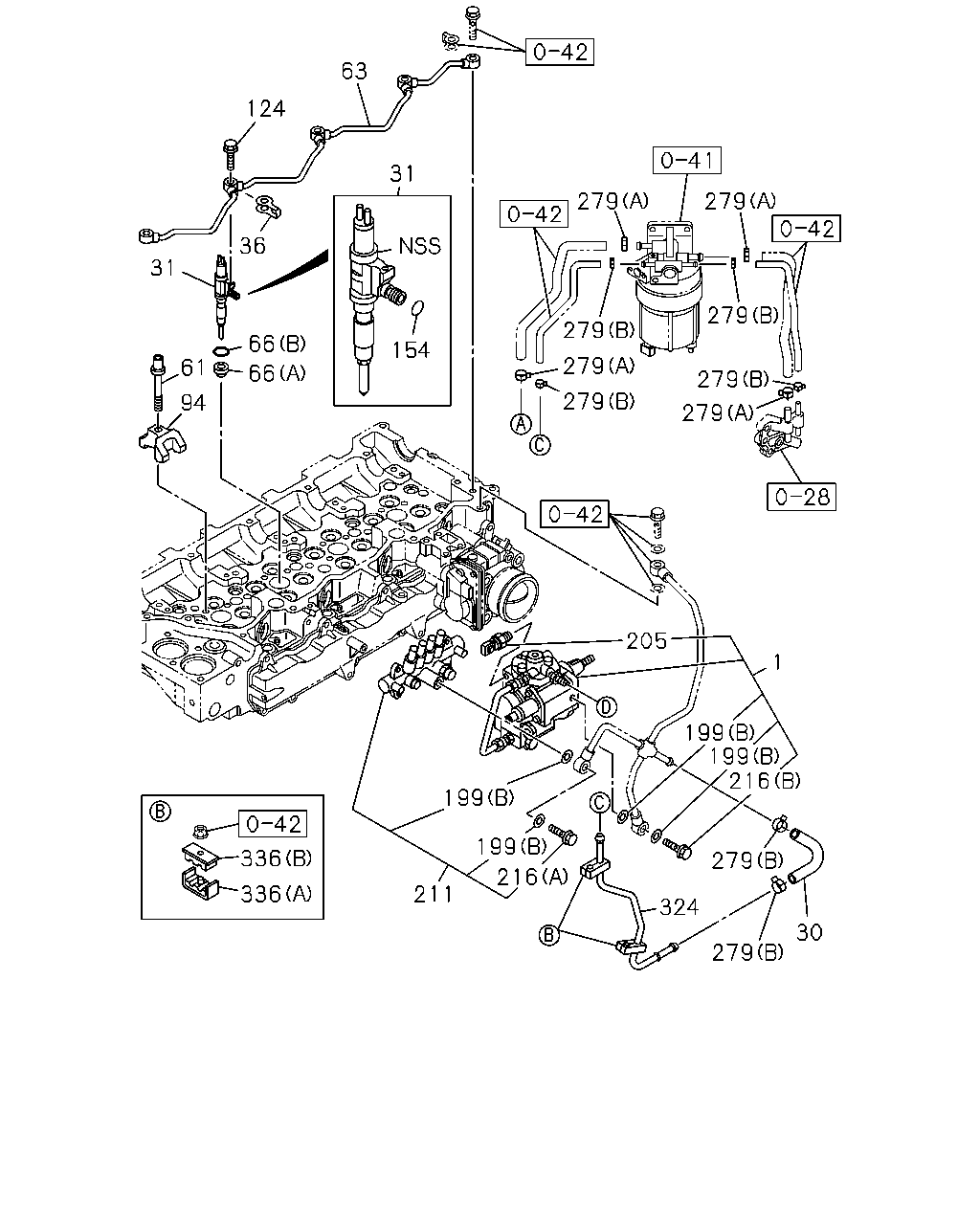

çizim 448999
63 124 31 36 31 66 66 61 94 154 279 279 279 279 279 279 279 279 205 1 199 199 216 279 30 279 324 216 211 199 199 336 336
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
THA 		8-97386-557-5 01 1 1410- ● ●
30 HOSE; RUBBER,FUEL LEAK
THA 		8-98036-320-2 01 1 1410- ● ●
31 NOZZLE ASM; INJ
THA 		8-97609-788-6 04 1 1410- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 THA 		8-98065-992-0 04 1 1410- ● ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 THA 		8-98008-895-0 04 1 1410- ● ●
63 PIPE; FUEL,NOZZLE LEAK OFF
THA 		8-97306-081-0 01 1 1410- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 THA 		8-94173-412-0 04 1 1410- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 THA 		8-98079-248-0 04 1 1410- ● ●
94 BRACKET; INJ NOZZLE
THA 		8-98028-999-1 04 1 1410- ● ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT THA 		1-09675-037-1 04 1 1410- ● ●
154 GASKET; CONNECTOR
ID=11.0 THA 		0-95690-111-0 04 1 1410- ● ●
199 GASKET; EYE BOLT
(A) THA 		1-15619-507-0 02 1 1410- ● ●
199 GASKET; EYE BOLT
(B) THA 		8-97602-218-0 04 1 1410- ● ●
205 SENSOR; FUEL TEMP
THA 		8-98023-581-0 01 1 1410- ● ●
211 RAIL ASM; COMMON
THA 		8-98011-888-2 01 1 1410- ● ●
216 BOLT; EYE
(C) THA 		5-15759-003-0 01 1 1410- ● ●
216 BOLT; EYE
(B) THA 		8-97351-388-0 01 1 1410- ● ●
216 BOLT; EYE
(A) THA 		8-98043-033-0 01 1 1410- ● ●
279 CLIP; FUEL HOSE
(A) ID=16 THA 		8-97329-628-0 04 1 1410- ● ●
279 CLIP; FUEL HOSE
(B) ID=11.5 THA 		8-97375-638-0 06 1 1410- ● ●
324 PIPE; FUEL RETURN
THA 		8-98036-173-0 01 1 1410- ● ●
336 CLIP; FUEL PIPE
(A) THA 		8-97603-522-0 02 1 1410- ● ●
336 CLIP; FUEL PIPE
(B) THA 		8-97603-523-0 02 1 1410- ● ●
