0-25 — INLET MANIFOLD (#151243) — 15 parça

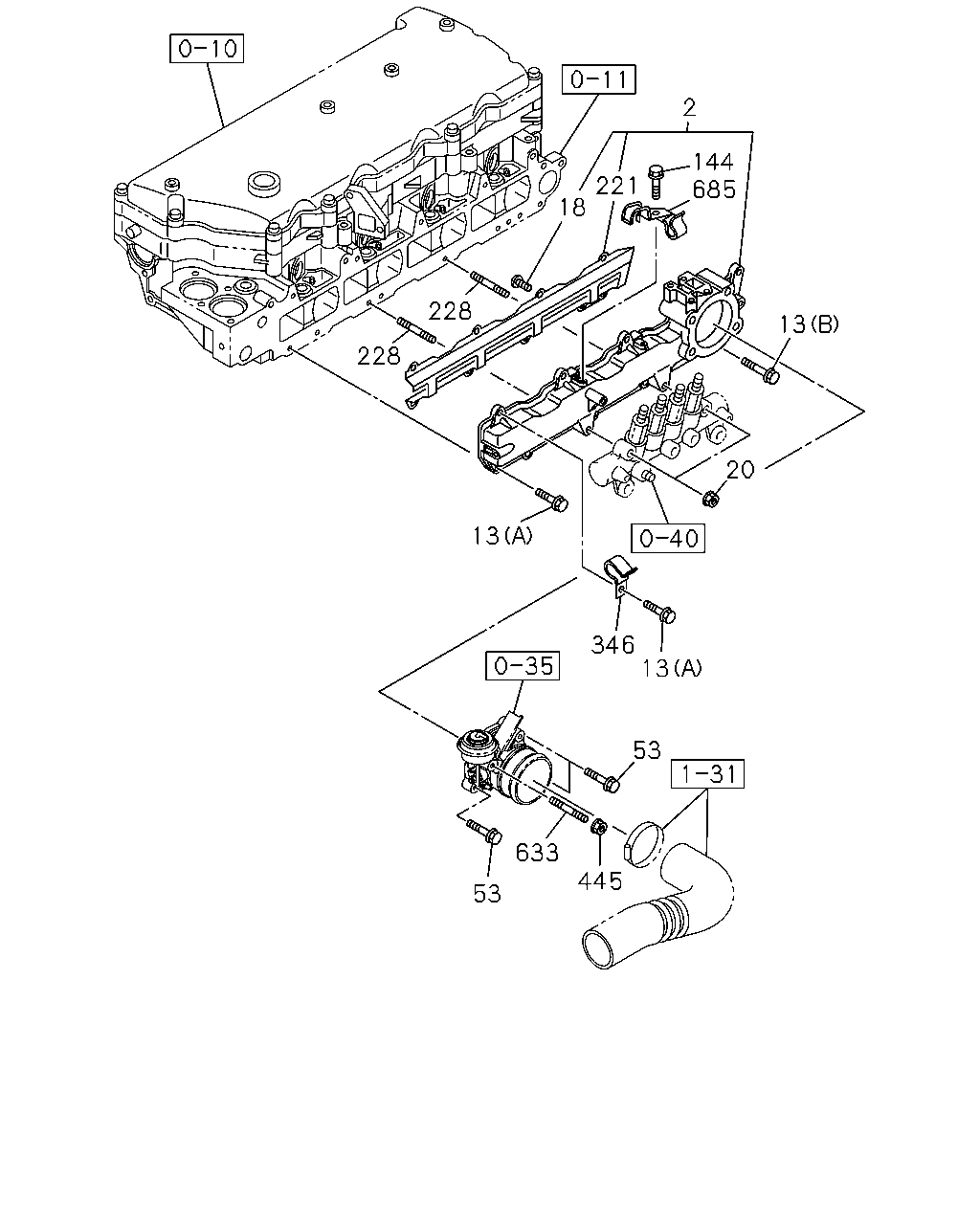

çizim 448169
2 144 685 13 20 221 18 228 228 13 346 13 53 445 633 53
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; INL
THA 		8-97387-038-0 01 1 1410- ● ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE THA 		0-28050-830-0 09 1 1410- ● ●
13 BOLT; INL MANIF
(B) M8X80 FLANGE THA 		0-28050-880-0 01 1 1410- ● ●
18 SCREW; PLATE,INL CVR
M6X10 THA 		9-03490-610-0 09 1 1410- ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●
53 BOLT; INL PIPE
M8X30 FLANGE THA 		0-28650-830-0 03 1 1410- ● ●
144 BOLT; BRKT FIX
M8X12 FLANGE THA 		0-28050-812-0 01 1 1410- ● ●
221 PLATE; INL COVER
THA 		8-97379-202-0 01 1 1410- ● ●
228 STUD; INL COVER
M8X117 L=128 THA 		8-97111-477-0 02 1 1410- ● ●
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE THA 		8-97367-984-1 01 1 1410- ● ●
445 NUT; THROTTLE BODY TO MANIF
M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
633 STUD; THROTTLE BODY
M8X71 L=83 THA 		9-09830-212-0 01 1 1410- ● ●
685 BRACKET; HARNESS
THA 		8-97331-921-1 01 1 1410- ● ●

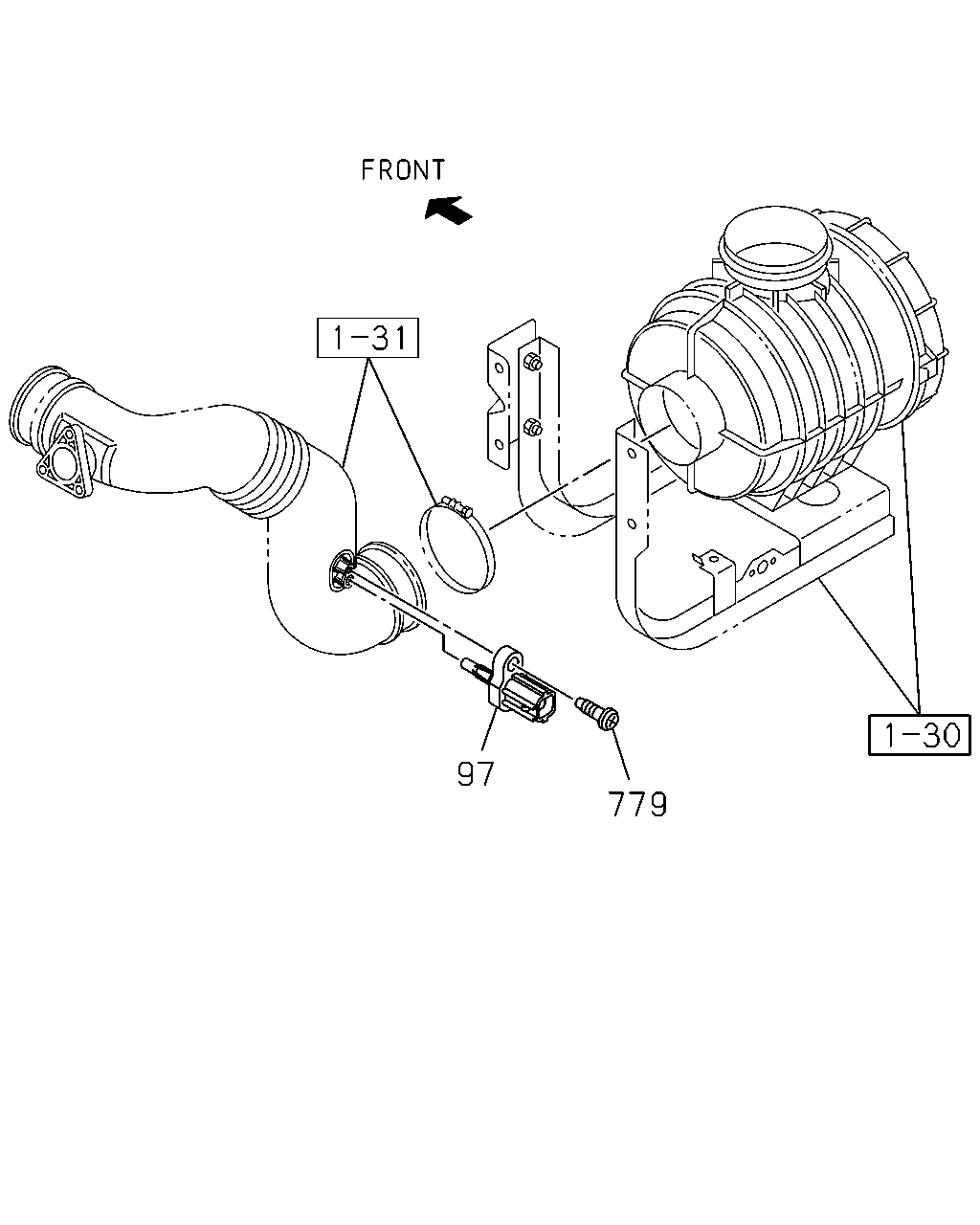

çizim 448482
97 779
BalonParca AdiParca NoAdetTipApplied Date A B
97 SENSOR; INTAKE,AIR TEMPERATURE
THA 		8-98065-377-0 01 1 1410- ● ●
779 BOLT; SENSOR
M5X14 W/LK WASHER THA 		0-36220-514-0 01 1 1410- ● ●
