Isuzu WW
▶
TRUCKS
▶
NPR
▶
51569 - NPR/NQR THAILAND
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#151239) — 51 parça
Tümü
A - 4HK1-TCN ENG
B - 4HK1-TCS ENG
◀

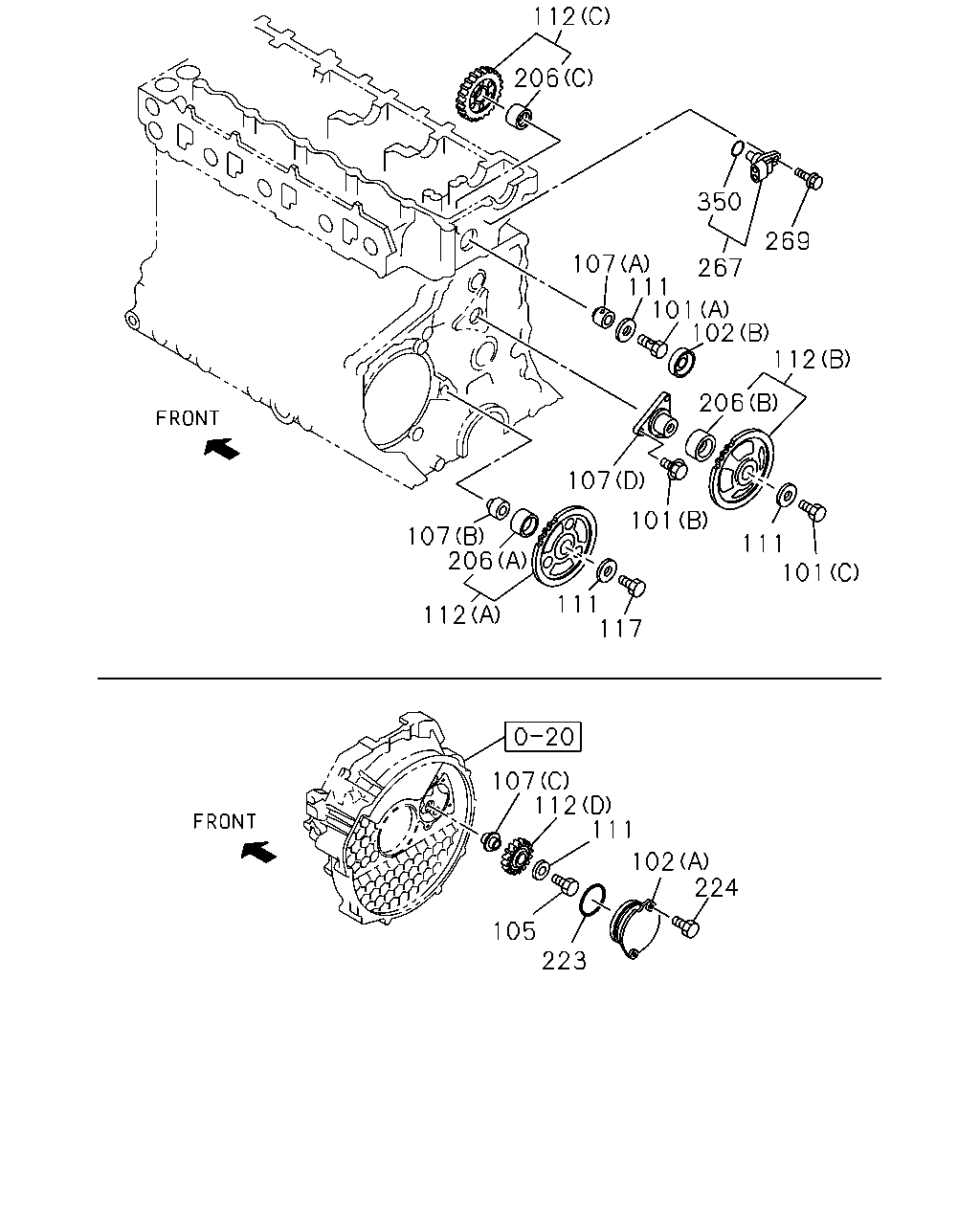

[014A] IDLE GEAR (24 parça)

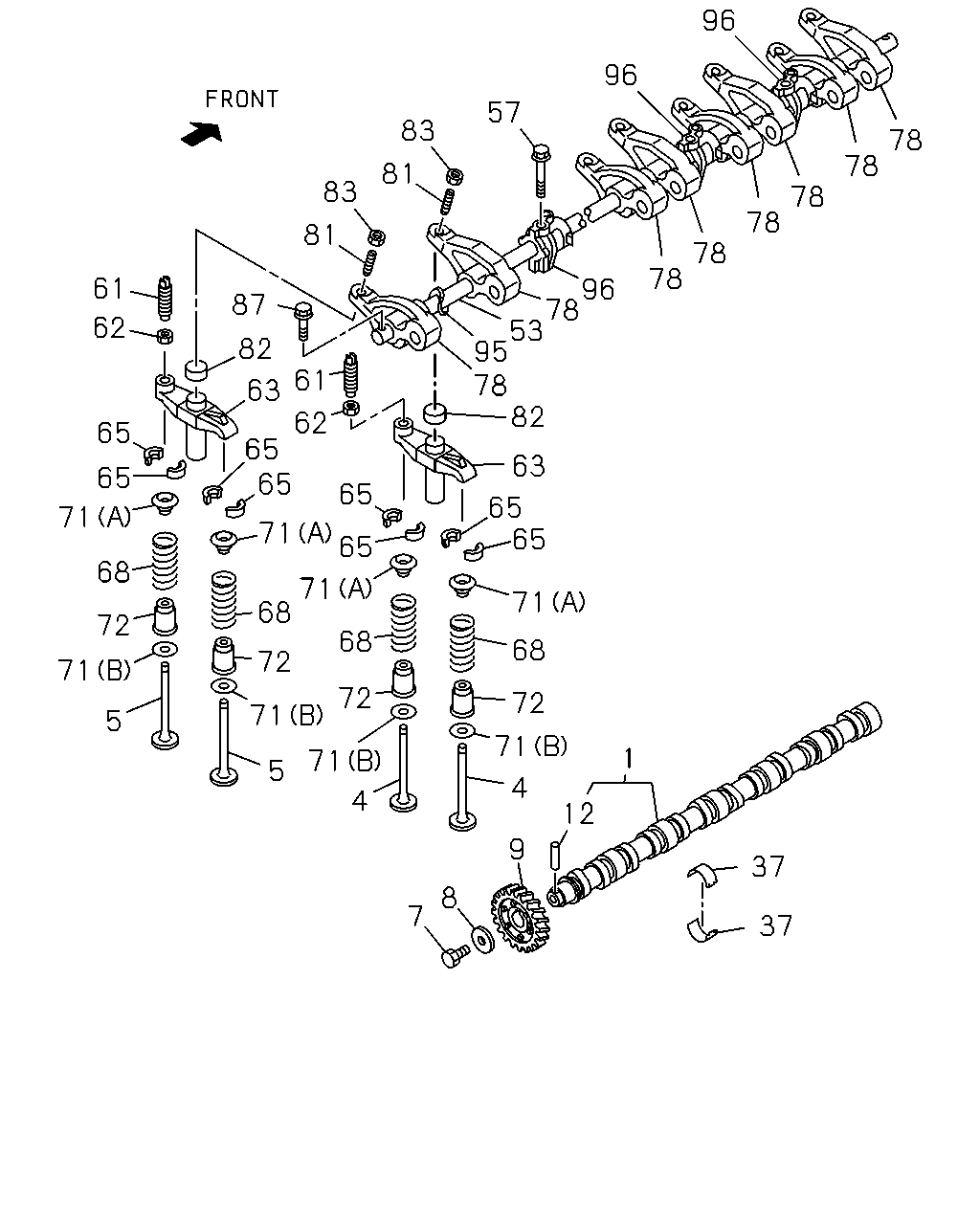

[014A] CAMSHAFT,ROCKER ARM VALVE (27 parça)
▶
112
206
350
269
107
267
111
101
102
112
206
107
101
111
101
117
111
112
206
107
107
112
111
102
224
105
223
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
101
BOLT; THRUST COLLAR
(C) M14X25 THA
0-23951-425-0
01
1
1410-
●
●
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE THA
0-28060-816-0
03
1
1410-
●
●
101
BOLT; THRUST COLLAR
(A) M14X36.5 THA
8-94372-221-1
01
1
1410-
●
●
102
COVER; IDLE GEAR
(A) THA
8-94334-681-1
01
1
1410-
●
●
102
COVER; IDLE GEAR
(B) OD=51 THA
8-97096-826-0
01
1
1410-
●
●
105
BOLT; IDLE GEAR SHAFT
M14X60 THA
0-16956-460-0
01
1
1410-
●
●
107
SHAFT; IDLE GEAR
(C) THA
8-94334-682-1
01
1
1410-
●
●
107
SHAFT; IDLE GEAR
(A) THA
8-97186-398-1
01
1
1410-
●
●
107
SHAFT; IDLE GEAR
(D) THA
8-97350-021-0
01
1
1410-
●
●
107
SHAFT; IDLE GEAR
(B) THA
8-98060-780-0
01
1
1410-
●
●
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46 THA
8-97209-728-2
04
1
1410-
●
●
112
GEAR; IDLE
(D) Z=34 THA
8-97120-005-1
01
1
1410-
●
●
112
GEAR; IDLE
(B) Z=61 THA
8-97606-767-0
01
1
1410-
●
●
112
GEAR; IDLE
(C) Z=41 THA
8-97606-929-0
01
1
1410-
●
●
112
GEAR; IDLE
(A) Z=72-60-30 THA
8-98254-970-0
01
1
1410-
●
●
117
BOLT; FLANGE
M14X65 FLANGE THA
8-97113-167-0
01
1
1410-
●
●
206
BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT. THA
8-97606-768-0
01
1
1410-
●
●
206
BUSHING; IDLE GEAR
(C) AFTER PRESS FITTING, MACHINE IT. THA
8-97606-770-0
01
1
1410-
●
●
206
BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT. THA
8-98255-899-0
01
1
1410-
●
●
223
GASKET; COVER,IDLE GEAR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 THA
1-09623-423-0
01
1
1410-
●
●
224
BOLT; COVER
M8X16 FLANGE THA
0-28050-816-0
02
1
1410-
●
●
267
SENSOR; CAM ANGLE
THA
8-98019-024-0
01
1
1410-
●
●
269
BOLT; SENSOR
M6X12 FLANGE THA
0-28050-612-0
01
1
1410-
●
●
350
GASKET; SENSOR,CAM ANGLE
ID=14.2 OD=18.8 THA
8-97369-404-0
01
1
1410-
●
●
96
96
57
83
81
83
81
87
82
63
65
61
62
65
65
71
68
72
71
5
65
71
68
72
71
5
61
62
65
65
71
68
72
71
4
7
8
9
12
1
37
37
4
71
72
68
71
65
65
63
82
78
95
53
78
96
78
78
78
78
78
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CAMSHAFT
THA
8-97262-166-0
01
1
1410-
●
●
4
VALVE; INL
THA
8-94395-882-2
08
1
1410-
●
●
5
VALVE; EXH
THA
8-97209-876-3
08
1
1410-
●
●
7
BOLT; CM/SHF GEAR
M14X40 THA
8-94396-439-0
01
1
1410-
●
●
8
WASHER; CM/SHF GEAR
ID=14.5 THA
9-09851-850-3
01
1
1410-
●
●
9
GEAR; CM/SHF
Z=35 THA
8-98018-935-3
01
1
1410-
●
●
12
KEY; CAM GEAR SET
THA
8-94399-487-0
02
1
1410-
●
●
37
METAL; CM/SHF
B=16 THA
8-97386-189-0
10
1
1410-
●
●
53
SHAFT; ROCKER ARM
THA
8-97389-921-0
01
1
1410-
●
●
57
BOLT; ROCKER ARM BRKT
M10X62 FLANGE THA
8-94393-131-0
03
1
1410-
●
●
61
SCREW; ADJ,BRIDGE
M8X21 THA
8-94394-803-0
08
1
1410-
●
●
62
NUT; ADJ SCREW LK BRIDGE
M8 FLANGE THA
9-09844-574-0
08
1
1410-
●
●
63
BRIDGE
THA
8-94392-002-3
08
1
1410-
●
●
65
COLLAR; SPLIT
THA
5-12565-004-0
32
1
1410-
●
●
68
SPRING; VLV
EXHAUST MARK RED THA
8-97210-682-0
08
1
1410-
●
●
68
SPRING; VLV
INLET MARK BLUE THA
8-97352-888-0
08
1
1410-
●
●
71
SEAT; SPR
(A) OD=32.8 T=12.75 THA
8-94390-783-2
16
1
1410-
●
●
71
SEAT; SPR
(B) ID=14.3 T=1.0 THA
8-94391-468-0
16
1
1410-
●
●
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA
8-97376-720-0
16
1
1410-
●
●
78
ARM; ROCKER
INLET THA
8-97306-421-3
04
1
1410-
●
●
78
ARM; ROCKER
EXHAUST THA
8-97306-424-3
04
1
1410-
●
●
81
SCREW; ADJ,ROCKER ARM
M10 L=32 THA
8-94395-024-0
08
1
1410-
●
●
82
CAP; ROCKER SHAFT
THA
8-94396-015-2
08
1
1410-
●
●
83
NUT; ADJ SCREW,LK
M10 THA
0-91111-510-0
08
1
1410-
●
●
87
BOLT; ROCKER SHAFT
M8X40 FLANGE THA
0-28050-840-0
02
1
1410-
●
●
95
SPRING; ROCKER SHAFT
THA
8-94392-999-0
04
1
1410-
●
●
96
BRACKET; ROCKER ARM SHAFT
THA
8-97334-414-0
03
1
1410-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
