Sayfa 0-10 - Isuzu EPC

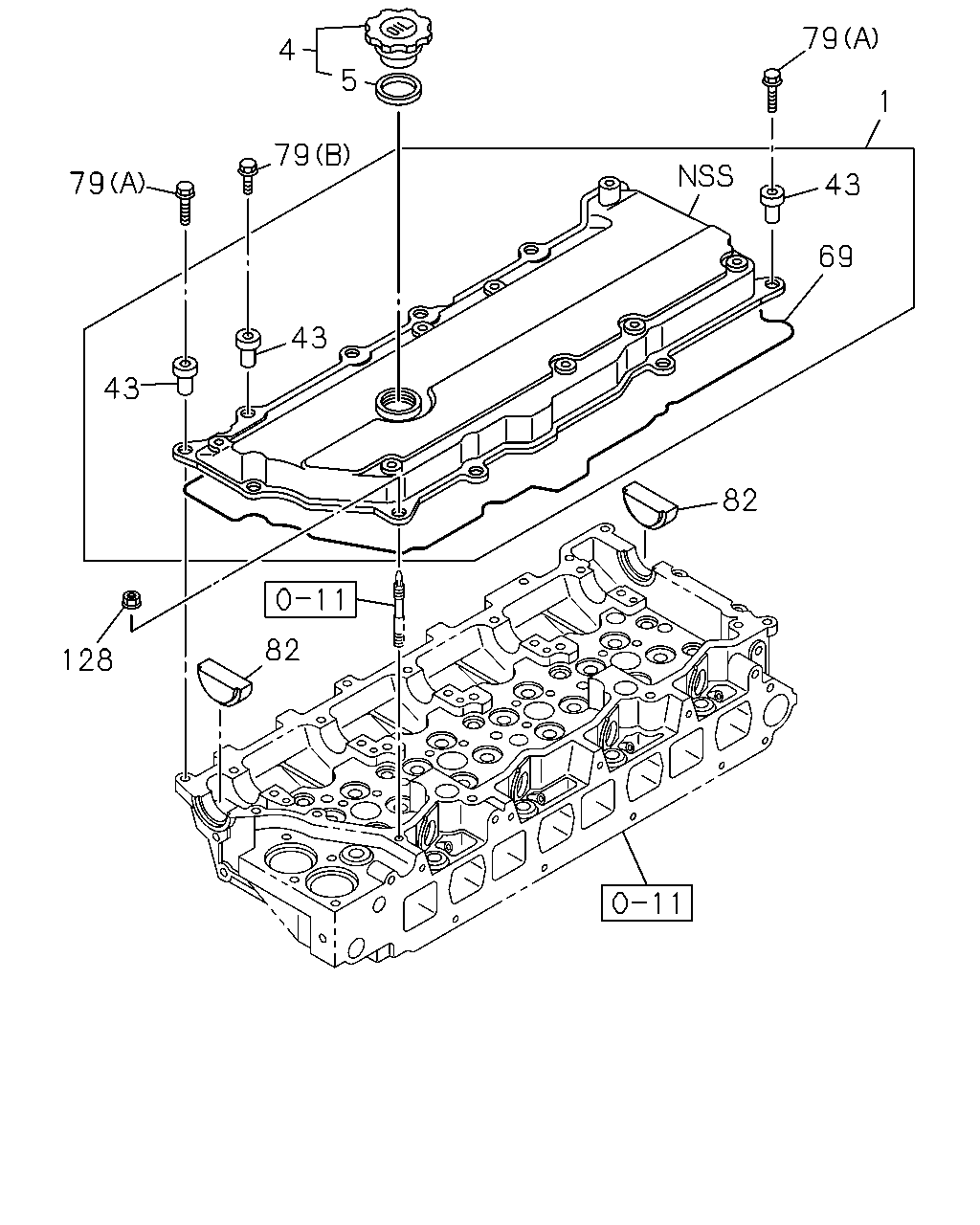

0-10 — CYLINDER HEAD COVER (#151235) — 9 parça

79 43 69 82 82 128 43 43 79 4 5 79 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COVER; CYL HD THA	8-97331-361-2	01	1	1410-	●	●
4	CAP; OIL FILLER THA	8-94133-207-5	01	1	1410-	●	●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40 THA	8-94123-623-1	01	1	1410-	●	●
43	RUBBER; MTG,HD COVER,OUTER OD=22 THA	8-94395-684-0	11	1	1410-	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97331-359-1	01	1	1410-	●	●
79	BOLT; COVER (B) M8X35 FLANGE THA	0-28650-835-0	02	1	1410-	●	●
79	BOLT; COVER (A) M8X65 FLANGE THA	1-09044-072-1	07	1	1410-	●	●
82	PLUG; CYL HD COVER THA	8-98163-813-0	02	1	1410-	●	●
128	NUT; COVER,CYL HEAD COVER M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
