9-01 — TOOLS (#151232) — 32 parça

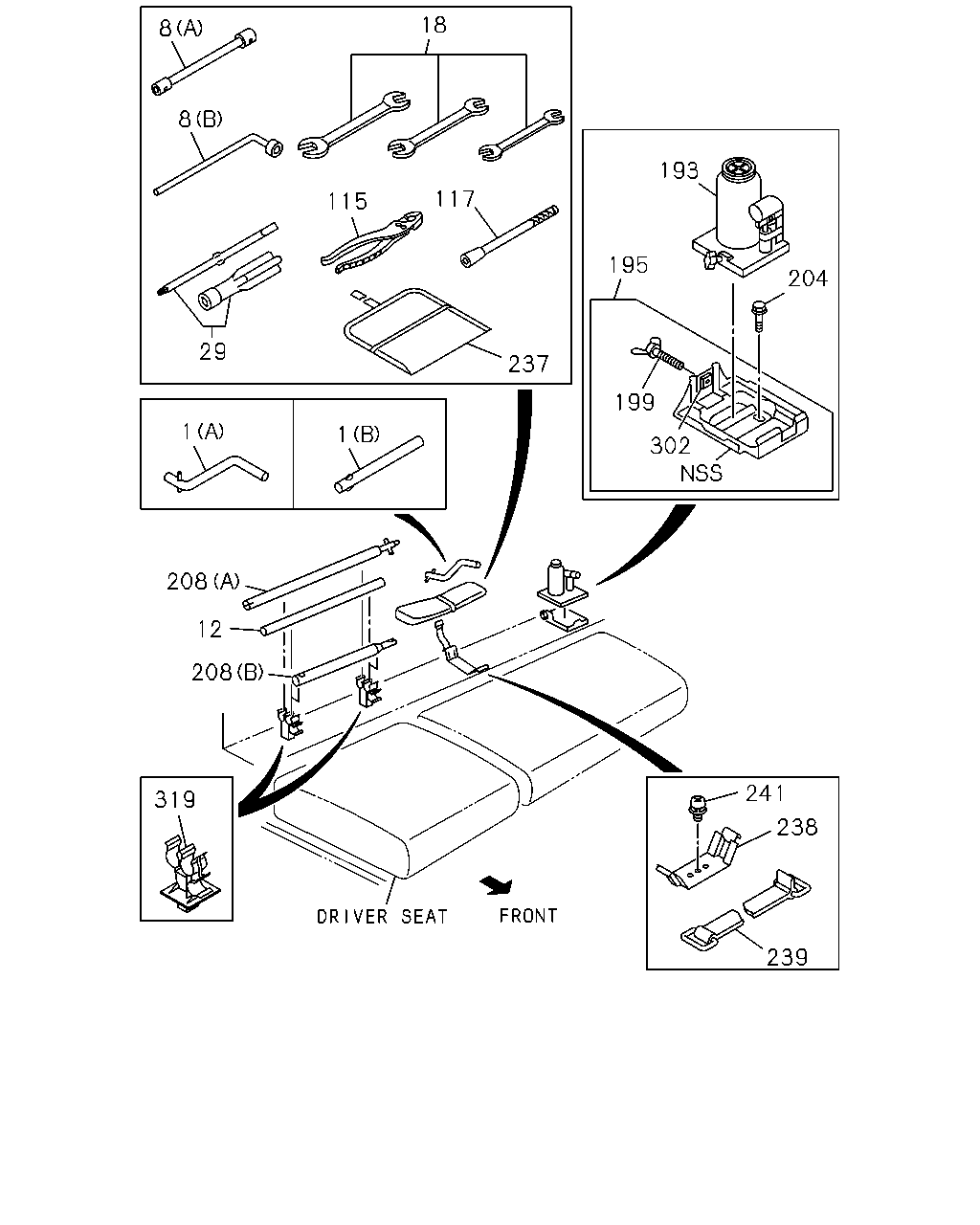

çizim 451394
8 8 18 115 117 29 237 1 1 208 12 208 319 241 238 239 193 195 199 302 204
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
(A) IMA 		8-97218-985-0 01 1 1410- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM<24W> (A) IMA 		8-97218-985-0 01 1 1410- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM<33W> (B) L=280 IMA 		8-98181-251-0 01 1 1410- ●
8 WRENCH; WHEEL
SINGLE RR TIRE<6TD> (B) B=23 L=300 IMA 		9-85113-935-0 01 1 1410- ●
8 WRENCH; WHEEL
EXC. SINGLE RR TIRE<6TD> (A) B=41X19 L=330 IMA 		8-94386-490-1 01 1 1410- ●
8 WRENCH; WHEEL
(A) B=41X19 L=330 IMA 		8-94386-490-1 01 1 1410- ●
12 HANDLE; WRENCH,WHEEL PIN
EXC. SINGLE RR TIRE<6TD> OD=25 L=480 IMA 		8-98257-407-0 01 1 1410- ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM<24W> OD=25 L=480 IMA 		8-98257-407-0 01 1 1410- ●
18 WRENCH KIT
IMA 		9-85161-902-0 01 1 1410- ● ●
29 DRIVER; SCREW
<+>,<-> L=160 IMA 		8-94242-798-1 01 1 1410- ● ●
115 PLIER
IMA 		5-85171-002-0 01 1 1410- ● ●
117 WRENCH; VALVE CAP
EXC. SINGLE RR TIRE<6TD> IMA 		9-85163-906-1 01 1 1410- ●
117 WRENCH; VALVE CAP
IMA 		9-85163-906-1 01 1 1410- ●
193 JACK ASM
SINGLE RR TIRE<6TD> 5TON IMA 		8-98114-047-0 01 1 1410- ●
193 JACK ASM
EXC. SINGLE RR TIRE<6TD> 4TON IMA 		8-98012-285-0 01 1 1410- ●
193 JACK ASM
4TON IMA 		8-98012-285-0 01 1 1410- ●
195 BRACKET; JACK
SINGLE RR TIRE<6TD> IMA 		8-97589-376-2 01 1 1410- ●
195 BRACKET; JACK
EXC. SINGLE RR TIRE<6TD> IMA 		8-98033-737-2 01 1 1410- ●
195 BRACKET; JACK
IMA 		8-98033-737-2 01 1 1410- ●
199 BOLT; JACK
SINGLE RR TIRE<6TD> M8X30 WING IMA 		8-98005-536-0 01 1 1410- ●
199 BOLT; JACK
EXC. SINGLE RR TIRE<6TD> M8X50 WING IMA 		8-98005-537-0 01 1 1410- ●
199 BOLT; JACK
M8X50 WING IMA 		8-98005-537-0 01 1 1410- ●
204 BOLT; BRKT,JACK
M8X25 FLANGE THA 		0-28650-825-0 01 1 1410- ● ●
208 HANDLE; JACK
(A) L=642 IMA 		8-98181-477-0 01 1 1410- ●
208 HANDLE; JACK
WHEEL BASE 2400MM<24W> (A) L=642 IMA 		8-98181-477-0 01 1 1410- ●
208 HANDLE; JACK
WHEEL BASE 3300MM<33W> (B) L=580 IMA 		8-98181-249-0 01 1 1410- ●
237 BAG; TOOL
IMA 		8-97130-903-1 01 1 1410- ● ●
238 SUPPORT; TOOL BAG
IMA 		8-97994-977-0 01 1 1410- ● ●
239 BAND; TOOL BAG
L=100 IMA 		5-73997-026-1 01 1 1410- ● ●
241 SCREW; TOOL BAG SUPPORT
M6X16 IMA 		0-38050-616-0 01 1 1410- ● ●
302 NUT; JACK BRKT
IMA 		8-98021-556-0 01 1 1410- ● ●
319 CLIP; TOOL BAR
IMA 		8-97853-077-2 02 1 1410- ● ●
