◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51567 - NLR/NMR THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#151230) — 34 parça
çizim 451870
196 34 30 43 46 137 48 135 33 74
BalonParca AdiParca NoAdetTipApplied Date A B
30 MOTOR ASM; FRT WASHER TANK
IMA 		8-97855-139-0 01 1 1410- ● ●
33 NUT; MOTOR TO ARM
M8 IMA 		8-97855-157-0 01 1 1410- ● ●
34 CAP; WASHER TANK
IMA 		8-97855-140-0 01 1 1410- ● ●
43 RUBBER; GASKET,TANK
IMA 		8-94352-050-0 01 1 1410- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
IMA 		8-98029-123-3 01 1 1410- ● ●
48 ARM; WIPER MOTOR
IMA 		8-98052-215-0 01 1 1410- ● ●
74 WASHER; ARM TO MOTOR
ID=8 IMA 		8-97855-158-0 01 1 1410- ● ●
135 RUBBER; CUSHION,WIPER MOTOR
IMA 		8-98052-214-0 04 1 1410- ● ●
137 SEAL; JOINT,WIPER MOTOR
IMA 		8-98052-218-0 01 1 1410- ● ●
196 TANK; WASHER
IMA 		8-98029-135-3 01 1 1410- ● ●

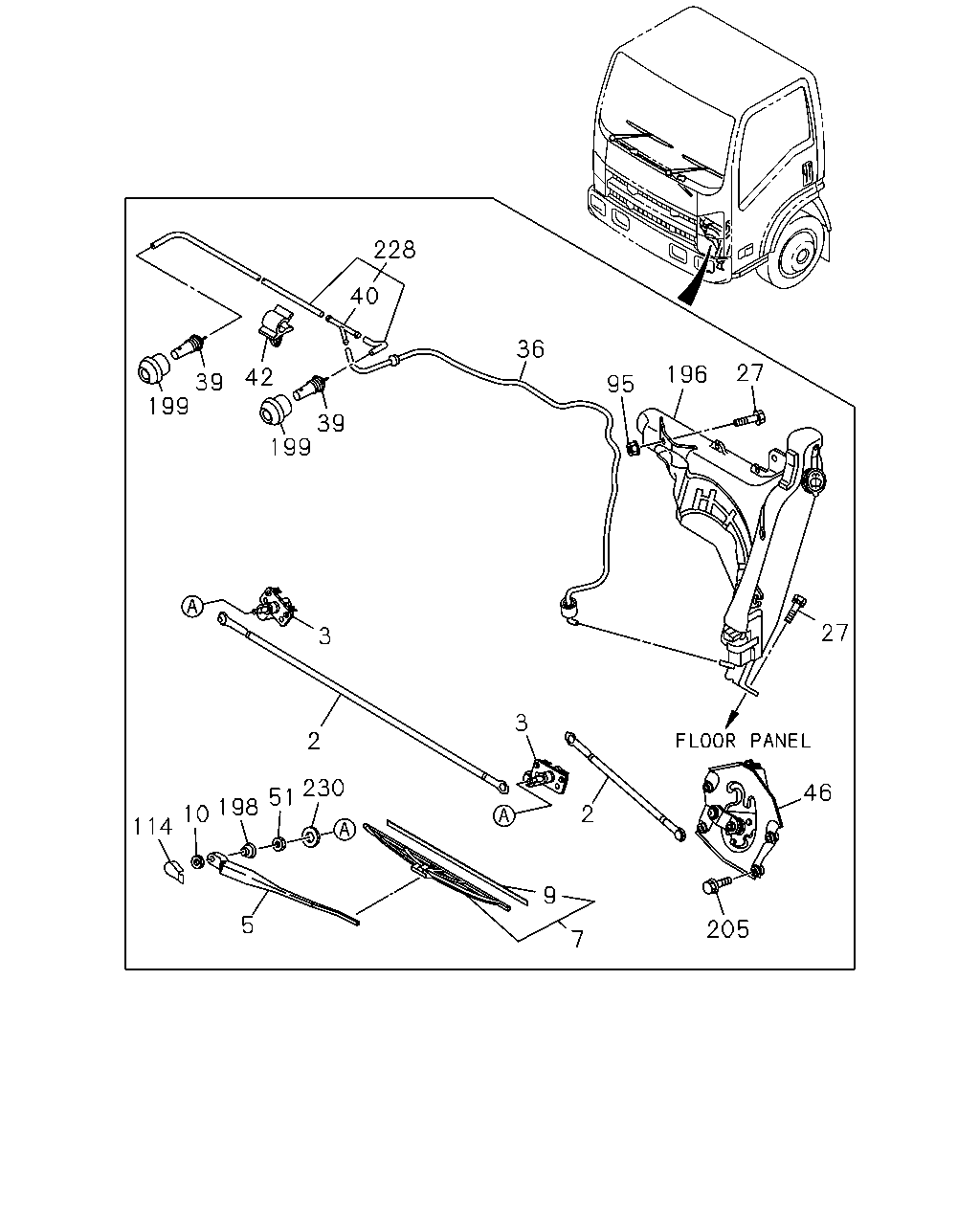

çizim 451983
228 36 95 196 27 27 46 205 7 2 9 3 230 51 198 10 114 3 2 199 39 42 39 199 40 5
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINK; FRT WIPER
L=400 W/CAP STAMP M IMA 		8-98053-767-0 01 1 1410- ● ●
2 LINK; FRT WIPER
L=590 W/CAP IMA 		8-98053-770-0 01 1 1410- ● ●
3 PIVOT ASM; FRT WIPER
IMA 		8-98053-763-0 01 1 1410- ● ●
3 PIVOT ASM; FRT WIPER
IMA 		8-98053-764-0 01 1 1410- ● ●
5 ARM; WIPER
DRIVER SIDE IMA 		8-98053-784-0 01 1 1410- ● ●
5 ARM; WIPER
PASSENGER SIDE IMA 		8-98053-785-0 01 1 1410- ● ●
7 BLADE; WIPER
IMA 		8-98053-790-0 02 1 1410- ● ●
9 RUBBER; FRT WIPER BLADE
L=475 IMA 		8-98053-793-0 02 1 1410- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M8 IMA 		0-91110-508-0 02 1 1410- ● ●
27 BOLT; WASHER TANK
M8X16 W/LK&PL WASHER IMA 		8-94310-730-0 02 1 1410- ● ●
36 HOSE; WASHER
THA 		8-97927-015-0 01 1 1410- ● ●
39 NOZZLE; WINDSHIELD WASHER
IMA 		8-98029-139-1 02 1 1410- ● ●
40 JOINT; WASHER HOSE
3WAY IMA 		5-83363-033-0 01 1 1410- ● ●
42 CLIP; WASHER HOSE
IMA 		8-94144-956-0 01 1 1410- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
IMA 		8-98029-123-3 01 1 1410- ● ●
51 NUT; WIPER MOTOR LINK
M24 IMA 		8-98029-167-0 02 1 1410- ● ●
95 NUT; WASHER TANK
M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
114 COVER; FRT WIPER ARM
BLACK IMA 		8-94282-851-0 02 1 1410- ● ●
196 TANK; WASHER
IMA 		8-98029-135-3 01 1 1410- ● ●
198 COVER; PIVOT,WIPER
IMA 		8-98029-164-0 02 1 1410- ● ●
199 COVER; NOZZLE,WIPER
IMA 		8-98079-030-0 02 1 1410- ● ●
205 BOLT; WIPER MOTOR
M6X25 W/LK&PL WASHER IMA 		8-98018-440-0 04 1 1410- ● ●
228 HOSE ASM; WASHER
IMA 		8-98029-169-1 01 1 1410- ● ●
230 COLLAR; WIPER LINK
IMA 		8-98029-097-0 02 1 1410- ● ●
