8-75 — CONDENSER (#151229) — 16 parça

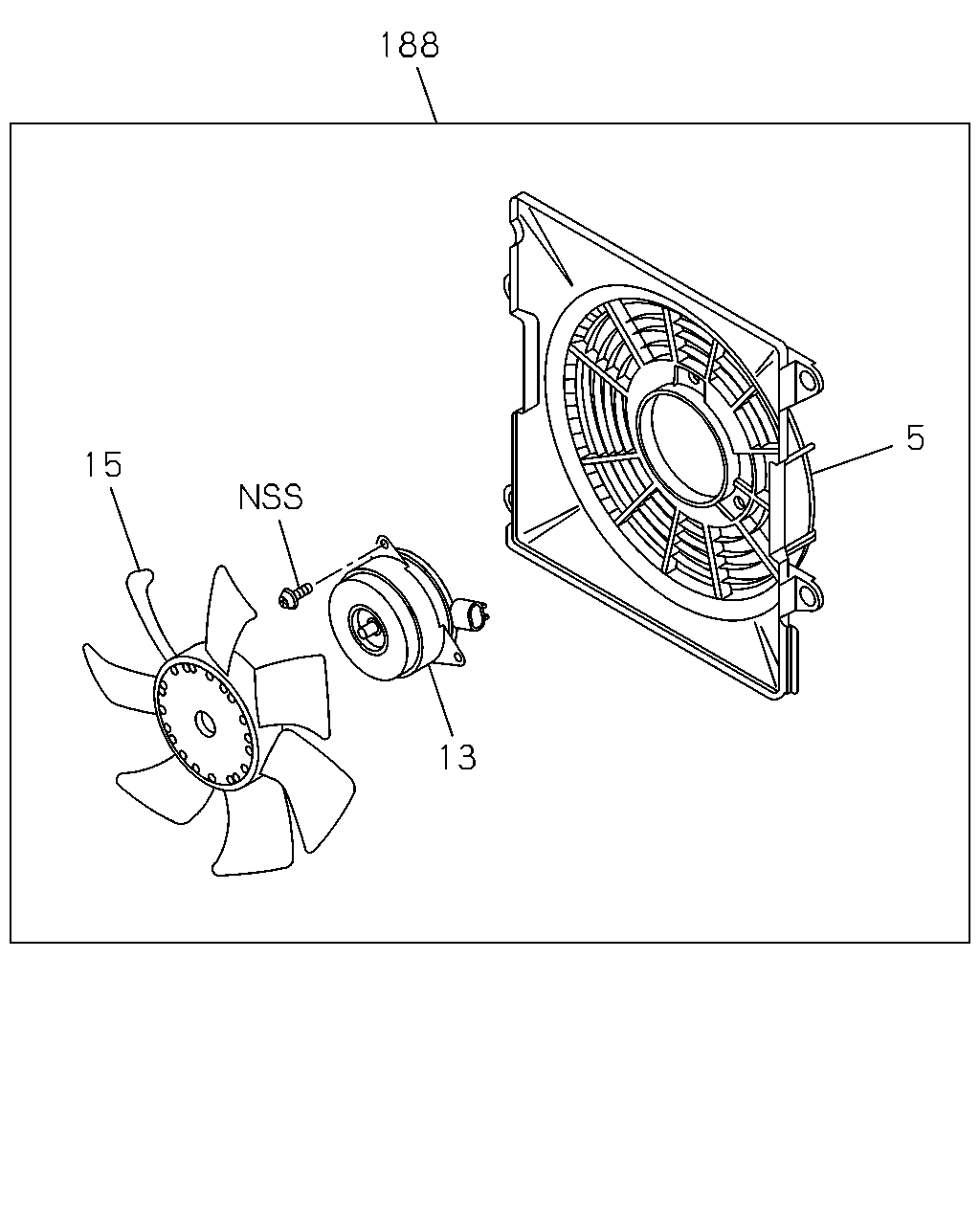

188 15 13 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	SHROUD; FAN MOTOR COOLER WO/HEATER<C65> IMA	8-98152-865-0	01	1	1410-	●	●
13	MOTOR; FAN COOLER WO/HEATER<C65> IMA	8-98157-044-0	01	1	1410-	●	●
15	FAN; MOTOR COOLER WO/HEATER<C65> THA	8-98152-860-0	01	1	1410-	●	●
188	BLOWER ASM; SHROUD COOLER WO/HEATER<C65> THA	8-98041-889-0	01	1	1410-	●	●

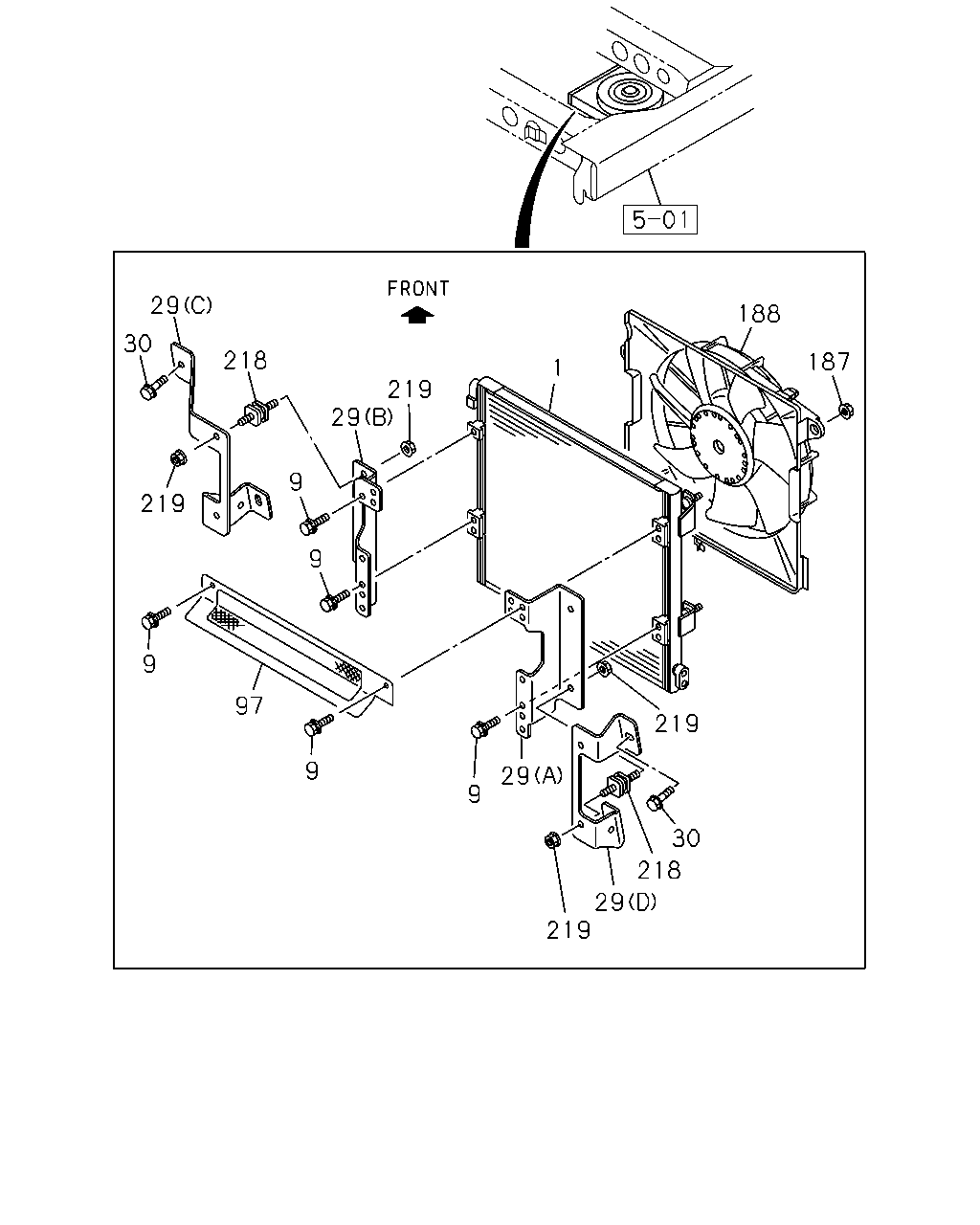

29 30 218 9 219 9 97 9 29 219 1 9 9 219 29 30 218 29 219 188 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C COOLER WO/HEATER<C65> THA	8-98041-884-0	01	1	1410-	●	●
9	BOLT; BRKT COOLER WO/HEATER<C65> M6X14 THA	1-83539-382-0	08	1	1410-	●	●
29	BRACKET; SIDE COOLER WO/HEATER<C65> (A) THA	8-98041-893-0	01	1	1410-	●	●
29	BRACKET; SIDE COOLER WO/HEATER<C65> (B) THA	8-98041-895-0	01	1	1410-	●	●
29	BRACKET; SIDE COOLER WO/HEATER<C65> (C) THA	8-98041-896-1	01	1	1410-	●	●
29	BRACKET; SIDE COOLER WO/HEATER<C65> (D) THA	8-98041-897-1	01	1	1410-	●	●
30	BOLT; CONDENSER,A/C COOLER WO/HEATER<C65> M8X35 FLANGE THA	0-28650-835-0	04	1	1410-	●	●
97	NET; CONDENSER UNIT COOLER WO/HEATER<C65> THA	8-98041-900-0	01	1	1410-	●	●
187	NUT; SHROUD COOLER WO/HEATER<C65> M6 THA	1-83539-354-0	04	1	1410-	●	●
188	BLOWER ASM; SHROUD COOLER WO/HEATER<C65> THA	8-98041-889-0	01	1	1410-	●	●
218	CUSHION; CONDENSER COOLER WO/HEATER<C65> THA	8-98041-898-0	04	1	1410-	●	●
219	NUT; CUSHION COOLER WO/HEATER<C65> M8 THA	1-83539-319-0	08	1	1410-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
