◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51567 - NLR/NMR THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#151223) — 15 parça
çizim 451631
17 25 387 32 47 46 47 14
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
COOLER WO/HEATER<C65> M8X100 FLANGE THA 		0-28050-800-0 04 1 1410- ● ●
17 NUT; CMPR
COOLER WO/HEATER<C65> M8 FLANGE THA 		0-91180-208-0 01 1 1410- ● ●
25 PULLEY ASM; IDLER,CMPR
COOLER WO/HEATER<C65> THA 		8-97948-894-0 01 1 1410- ● ●
32 BELT; A/C CMPR
COOLER WO/HEATER<C65> L=1355 MITSUBOSHI THA 		8-98088-385-0 01 1 1410- ● ●
32 BELT; A/C CMPR
COOLER WO/HEATER<C65> BEST VALUE PARTS IMA 		5-87610-103-0 01 1 1410- ● ●
46 BRACKET; CMPR
COOLER WO/HEATER<C65> THA 		8-97948-893-0 01 1 1410- ● ●
47 BOLT; BRKT TO BODY
COOLER WO/HEATER<C65> (A) M8X45 FLANGE THA 		0-28050-845-0 01 1 1410- ● ●
47 BOLT; BRKT TO BODY
COOLER WO/HEATER<C65> (B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1410- ● ●
387 BOLT; TENSIONER FIX
COOLER WO/HEATER<C65> M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ● ●

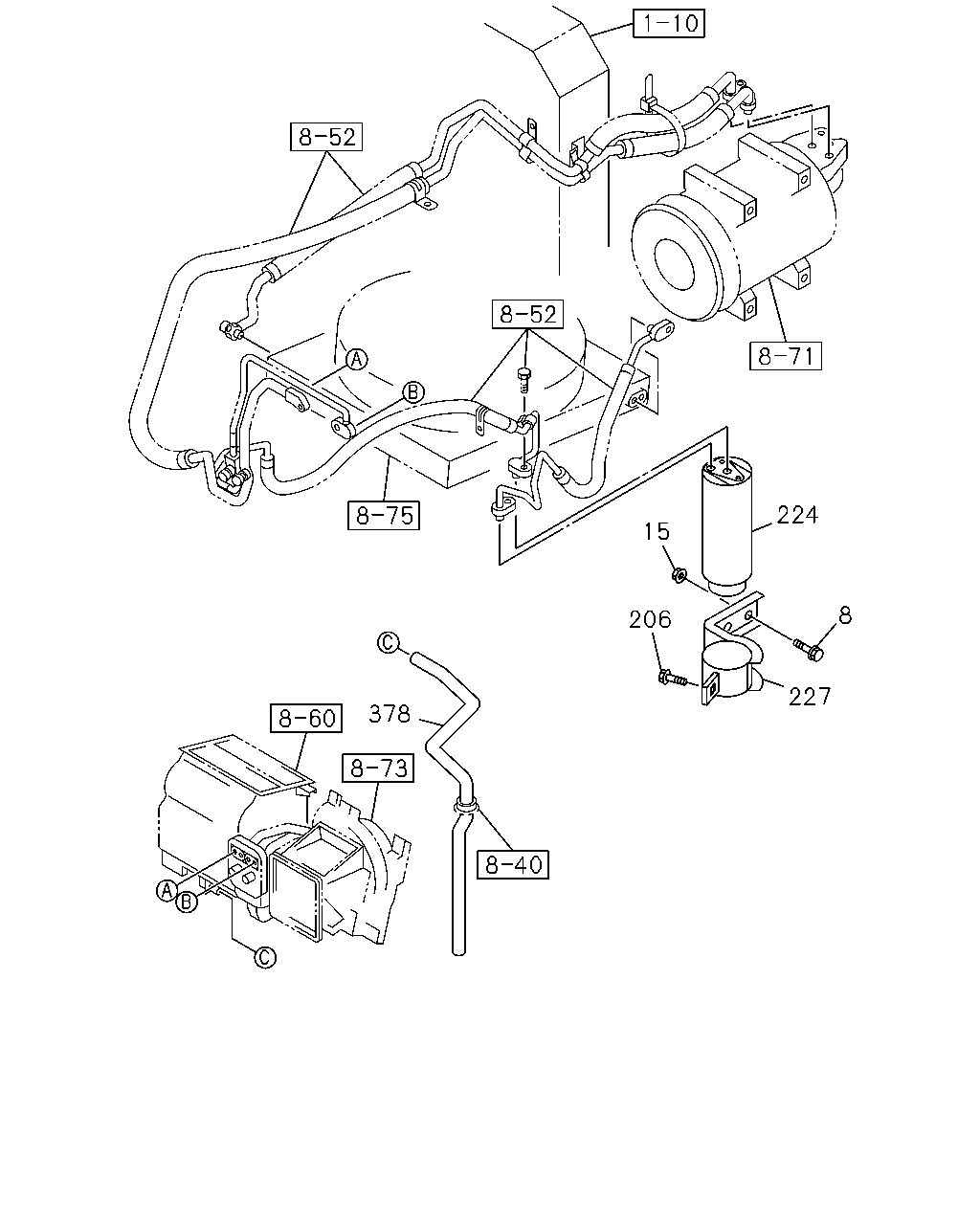

çizim 451698
15 224 227 206 378 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; BRKT
COOLER WO/HEATER<C65> M8X25 FLANGE THA 		0-28650-825-0 02 1 1410- ● ●
15 NUT; BRKT
COOLER WO/HEATER<C65> M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●
206 BOLT; CLIP BRKT
COOLER WO/HEATER<C65> M6X16 IMA 		8-97096-525-0 01 1 1410- ● ●
224 TANK ASM; RECEIVER
COOLER WO/HEATER<C65> IMA 		8-97096-593-0 01 1 1410- ● ●
227 BRACKET; RECEIVER TANK
COOLER WO/HEATER<C65> IMA 		8-98042-566-0 01 1 1410- ● ●
378 HOSE; DRAIN,EVAPORATOR
COOLER WO/HEATER<C65> IMA 		8-98001-241-2 01 1 1410- ● ●
