8-40 — HEATER SYSTEM (#151221) — 28 parça

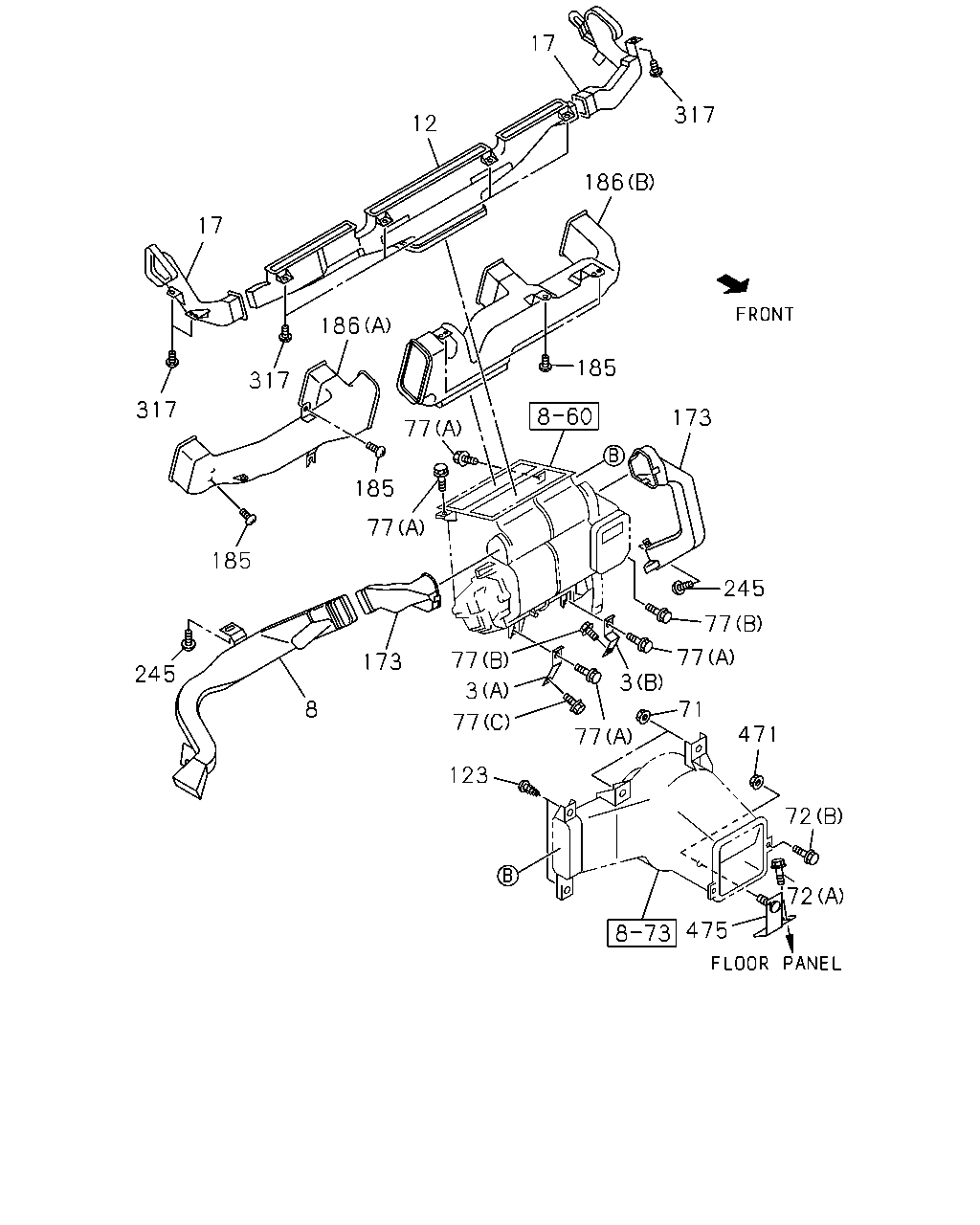

17 12 17 317 186 186 317 317 185 77 185 185 77 173 245 8 173 77 3 77 123 245 77 77 3 77 71 471 72 72 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	BRACKET; HTR UNIT COOLER WO/HEATER<C65> (A) IMA	8-98082-473-1	01	1	1410-	●	●
3	BRACKET; HTR UNIT COOLER WO/HEATER<C65> (B) IMA	8-98082-474-1	01	1	1410-	●	●
8	DUCT; HTR AIR,DRIVER FOOT COOLER WO/HEATER<C65> IMA	8-98084-146-0	01	1	1410-	●	●
12	NOZZLE; DEFROSTER IMA	8-97585-478-3	01	1	1410-	●	●
17	NOZZLE; DEFROSTER,SIDE COOLER WO/HEATER<C65> IMA	8-97585-469-1	01	1	1410-	●	●
17	NOZZLE; DEFROSTER,SIDE COOLER WO/HEATER<C65> IMA	8-97585-475-5	01	1	1410-	●	●
71	NUT; BLOWER UNIT TO DASH COOLER WO/HEATER<C65> M6 FLANGE THA	0-91180-106-0	02	1	1410-	●	●
72	BOLT; BLOWER UNIT COOLER WO/HEATER<C65> (A) M8X20 W/LK&PL WASHER IMA	8-97359-709-0	01	1	1410-	●	●
72	BOLT; BLOWER UNIT COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER IMA	8-98081-030-0	02	1	1410-	●	●
77	BOLT; HTR UNIT COOLER WO/HEATER<C65> (B) M6X20 W/LK&PL WASHER IMA	8-98081-030-0	02	1	1410-	●	●
77	BOLT; HTR UNIT COOLER WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER IMA	8-98081-175-0	01	1	1410-	●	●
77	BOLT; HTR UNIT COOLER WO/HEATER<C65> (A) M6X16 FLANGE THA	0-28650-616-0	04	1	1410-	●	●
123	SCREW; DUCT COOLER WO/HEATER<C65> T25 M5X16 TAPPING HEXALOBULAR IMA	0-72180-516-0	02	1	1410-	●	●
173	DUCT; FOOT,HTR COOLER WO/HEATER<C65> IMA	8-97585-504-3	01	1	1410-	●	●
173	DUCT; FOOT,HTR COOLER WO/HEATER<C65> IMA	8-98084-145-0	01	1	1410-	●	●
185	SCREW; VENT DUCT COOLER WO/HEATER<C65> T25 M5X16 TAPPING HEXALOBULAR IMA	0-72180-516-0	04	1	1410-	●	●
186	DUCT; VENTILATOR COOLER WO/HEATER<C65> (A) IMA	8-97585-466-7	01	1	1410-	●	●
186	DUCT; VENTILATOR COOLER WO/HEATER<C65> (B) IMA	8-97585-484-5	01	1	1410-	●	●
245	CLIP; FOOT DUCT COOLER WO/HEATER<C65> IMA	1-09987-144-0	02	1	1410-	●	●
317	SCREW; DEFROSTER NOZZLE COOLER WO/HEATER<C65> T25 M5X16 TAPPING HEXALOBULAR IMA	0-72180-516-0	02	1	1410-	●	●
317	SCREW; DEFROSTER NOZZLE T25 M5X16 TAPPING HEXALOBULAR IMA	0-72180-516-0	04	1	1410-	●	●
471	NUT; BLOWER COOLER WO/HEATER<C65> M6 FLANGE THA	0-91180-106-0	01	1	1410-	●	●
475	BRACKET; BLOWER COOLER WO/HEATER<C65> IMA	8-98001-196-2	01	1	1410-	●	●

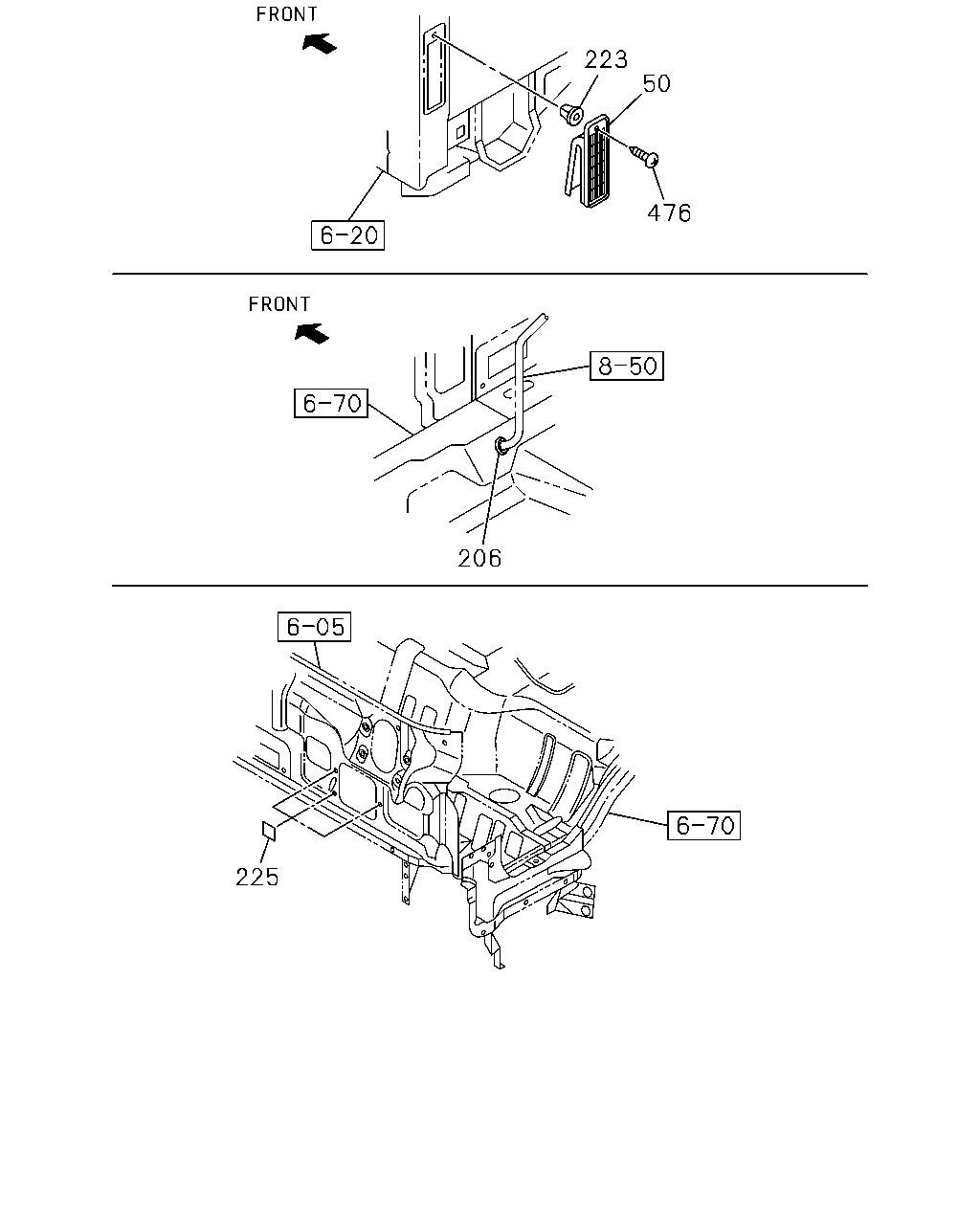

223 476 50 206 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	VALVE ASM; HTR THA	8-97925-112-0	01	1	1410-	●	●
206	GROMMET; A/C PIPE TO BLOWER UNIT IMA	8-98019-649-0	01	1	1410-	●	●
223	GROMMET; SCREW D=7.9X7.9 L=20 M5 IMA	8-94441-539-0	01	1	1410-	●	●
225	SEAL; WATER COOLER WO/HEATER<C65> IMA	8-97856-616-0	03	1	1410-	●	●
476	SCREW; VALVE T25 M5X16 TAPPING HEXALOBULAR IMA	8-98062-675-0	01	1	1410-	●	●
