8-15 — FIXING PARTS; WIRING HARNESS (#151216) — 86 parça

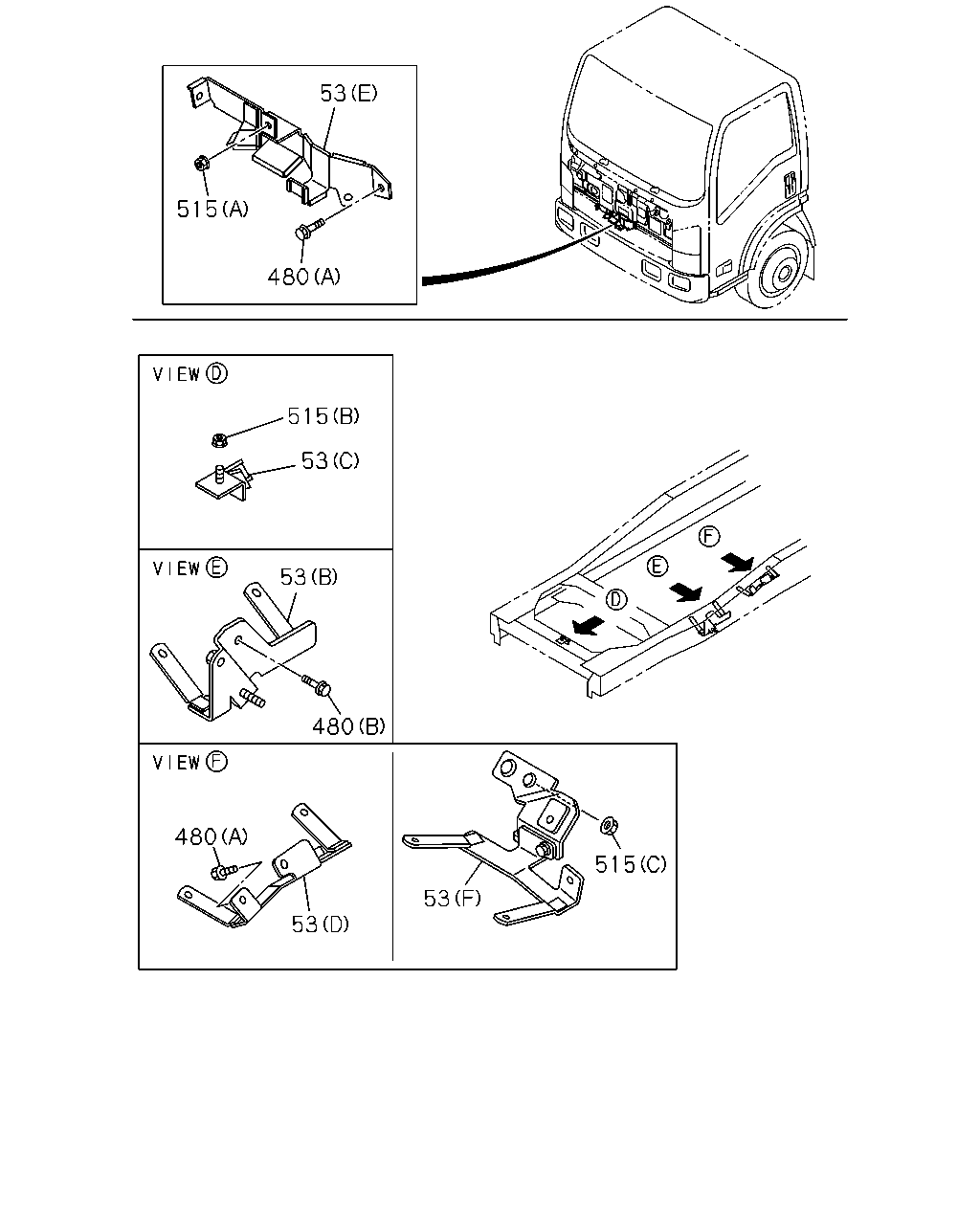

çizim 451408
53 515 480 515 53 53 480 480 53 53 515
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
(B) IMA 		8-98105-778-0 01 1 1410- ●
53 BRACKET; HARNESS
WHEEL BASE 2400MM<24W> (B) IMA 		8-98105-778-0 01 1 1410- ●
53 BRACKET; HARNESS
(F) IMA 		8-98107-111-1 01 1 1410- ●
53 BRACKET; HARNESS
WHEEL BASE 2400MM<24W> (F) IMA 		8-98107-111-1 01 1 1410- ●
53 BRACKET; HARNESS
(C) IMA 		8-98018-900-2 01 1 1410- ● ●
53 BRACKET; HARNESS
(E) IMA 		8-98039-984-2 01 1 1410- ● ●
53 BRACKET; HARNESS
(A) IMA 		8-98052-458-0 01 1 1410- ● ●
53 BRACKET; HARNESS
WHEEL BASE 3300MM<33W> (D) IMA 		8-98033-918-2 01 1 1410- ●
53 BRACKET; HARNESS
WHEEL BASE 3300MM<33W> (B) IMA 		8-98052-900-1 01 1 1410- ●
480 BOLT; BRKT
(A) M6X25 FLANGE THA 		0-28650-625-0 01 1 1410- ● ●
480 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ● ●
515 NUT; BRKT
(B) M8 FLANGE IMA 		8-98040-024-0 01 1 1410- ● ●
515 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-110-0 01 1 1410- ●
515 NUT; BRKT
WHEEL BASE 2400MM<24W> (C) M10 FLANGE THA 		0-91180-110-0 01 1 1410- ●
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 1410- ● ●
çizim 451412
22 22 48 22 16 22 22 22 16 16 22
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(E) L=250 IMA 		5-09707-030-1 01 1 1410- ● ●
16 CLIP; HARNESS
(D) ID=10 & 16 IMA 		8-94413-325-0 01 1 1410- ● ●
16 CLIP; HARNESS
(B) ID=6 & 10-13 IMA 		8-97069-515-0 02 1 1410- ● ●
16 CLIP; HARNESS
(A) L=155 THA 		8-97173-307-0 14 1 1410- ● ●
16 CLIP; HARNESS
(F) L=40.6 THA 		8-97229-357-0 02 1 1410- ● ●
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1410- ● ●
22 CLIP; ENG HARNESS
(D) L=119.5 IMA 		1-09707-197-0 01 1 1410- ● ●
22 CLIP; ENG HARNESS
(B) L=100 IMA 		5-09707-036-1 01 1 1410- ● ●
22 CLIP; ENG HARNESS
(C) ID=34 THA 		8-98069-482-0 01 1 1410- ● ●
22 CLIP; ENG HARNESS
(H) L=140 IMA 		5-09707-031-1 01 1 1410- ● ●
22 CLIP; ENG HARNESS
(F) ID=13.2 & 14.5 IMA 		8-94475-649-0 01 1 1410- ● ●
22 CLIP; ENG HARNESS
(G) ID=12 & 6.8 IMA 		8-97125-842-0 01 1 1410- ● ●
22 CLIP; ENG HARNESS
(E) ID=6 & 8.3 IMA 		8-94167-742-0 01 1 1410- ● ●
22 CLIP; ENG HARNESS
(A) L=140 THA 		8-97920-656-0 01 1 1410- ● ●
48 CLIP; FRAME HARNESS
SINGLE RR TIRE<6TD> ID=14 L=47 IMA 		5-09700-319-0 06 1 1410- ●
48 CLIP; FRAME HARNESS
EXC. SINGLE RR TIRE<6TD> ID=14 L=47 IMA 		5-09700-319-0 07 1 1410- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 2400MM<24W> ID=14 L=47 IMA 		5-09700-319-0 07 1 1410- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3300MM<33W> ID=14 L=47 IMA 		5-09700-319-0 09 1 1410- ●
çizim 451542
16 16 16 22
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(E) L=250 IMA 		5-09707-030-1 01 1 1410- ● ●
16 CLIP; HARNESS
(D) ID=10 & 16 IMA 		8-94413-325-0 01 1 1410- ● ●
16 CLIP; HARNESS
(B) ID=6 & 10-13 IMA 		8-97069-515-0 02 1 1410- ● ●
16 CLIP; HARNESS
(A) L=155 THA 		8-97173-307-0 14 1 1410- ● ●
16 CLIP; HARNESS
(F) L=40.6 THA 		8-97229-357-0 02 1 1410- ● ●
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1410- ● ●
22 CLIP; ENG HARNESS
(D) L=119.5 IMA 		1-09707-197-0 01 1 1410- ● ●
22 CLIP; ENG HARNESS
(B) L=100 IMA 		5-09707-036-1 01 1 1410- ● ●
22 CLIP; ENG HARNESS
(C) ID=34 THA 		8-98069-482-0 01 1 1410- ● ●
22 CLIP; ENG HARNESS
(H) L=140 IMA 		5-09707-031-1 01 1 1410- ● ●
22 CLIP; ENG HARNESS
(F) ID=13.2 & 14.5 IMA 		8-94475-649-0 01 1 1410- ● ●
22 CLIP; ENG HARNESS
(G) ID=12 & 6.8 IMA 		8-97125-842-0 01 1 1410- ● ●
22 CLIP; ENG HARNESS
(E) ID=6 & 8.3 IMA 		8-94167-742-0 01 1 1410- ● ●
22 CLIP; ENG HARNESS
(A) L=140 THA 		8-97920-656-0 01 1 1410- ● ●

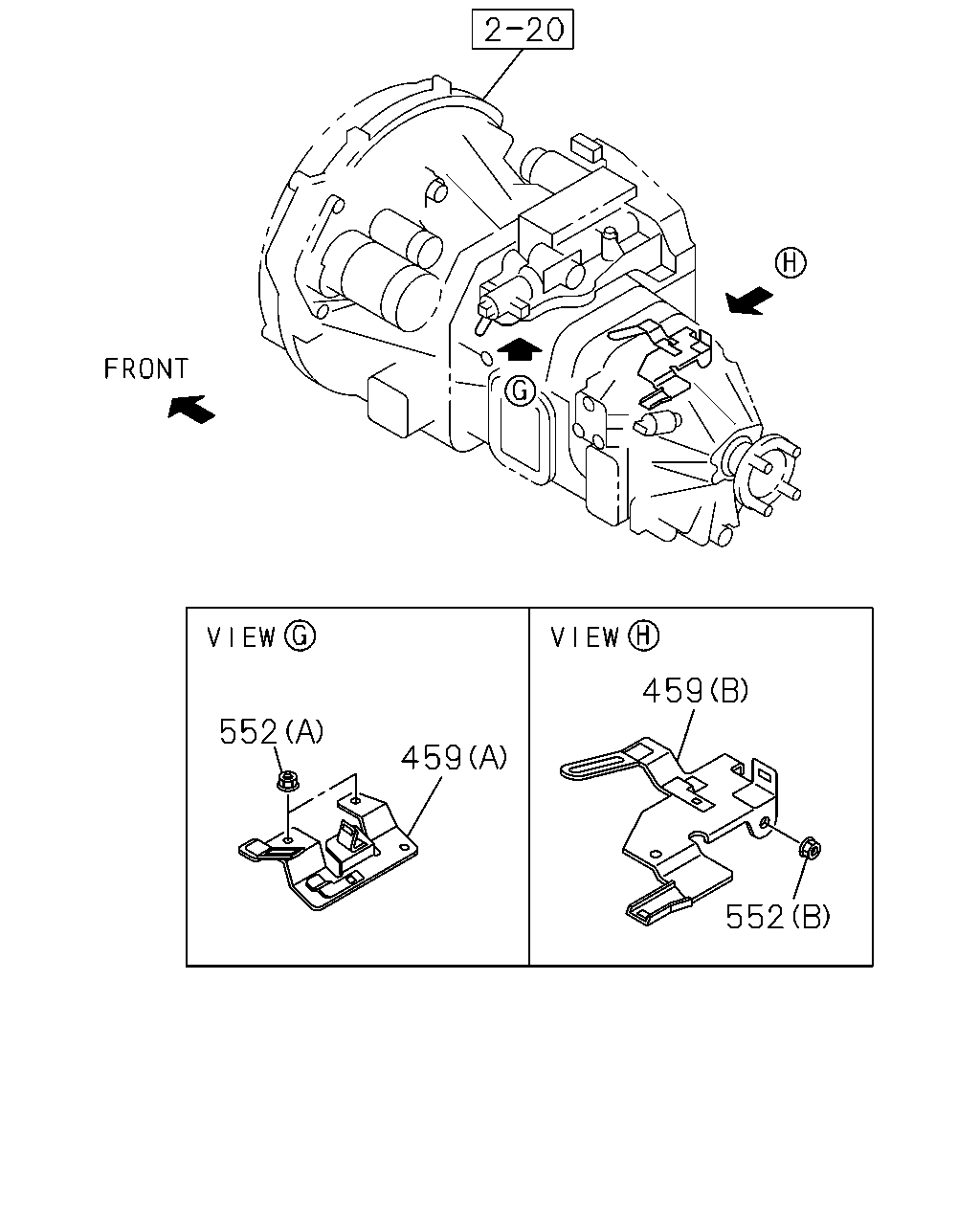

çizim 451622
552 459 459 552
BalonParca AdiParca NoAdetTipApplied Date A B
459 BRACKET; SUPPORT,HARNESS
(A) IMA 		8-98020-227-3 01 1 1410- ● ●
459 BRACKET; SUPPORT,HARNESS
(B) IMA 		8-98196-974-0 01 1 1410- ● ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1410- ● ●
çizim 451819
516 313 480 38 529 139 386 386 377 377 552 552 577 515 515 515 294 24 219
BalonParca AdiParca NoAdetTipApplied Date A B
24 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 01 1 1410- ● ●
38 BOLT; CLIP,HARNESS
M8X12 FLANGE THA 		0-28050-812-0 01 1 1410- ● ●
139 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 1410- ● ●
219 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●
294 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
313 BOLT; BRKT
M6X16 FLANGE THA 		0-28450-616-0 01 1 1410- ● ●
377 BOLT; CAB EARTH
(B) M8X18.5 W/PL WASHER IMA 		8-98141-255-0 03 1 1410- ● ●
377 BOLT; CAB EARTH
(A) M6X14 W/PL WASHER IMA 		8-98164-836-0 01 1 1410- ● ●
386 BOLT; GRAND HARNESS
(A) M8X18.5 W/PL WASHER IMA 		8-98141-255-0 01 1 1410- ● ●
386 BOLT; GRAND HARNESS
(B) M8X24 W/PL WASHER IMA 		8-98141-256-1 01 1 1410- ● ●
480 BOLT; BRKT
(A) M6X25 FLANGE THA 		0-28650-625-0 01 1 1410- ● ●
480 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ● ●
515 NUT; BRKT
(B) M8 FLANGE IMA 		8-98040-024-0 01 1 1410- ● ●
515 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-110-0 01 1 1410- ●
515 NUT; BRKT
WHEEL BASE 2400MM<24W> (C) M10 FLANGE THA 		0-91180-110-0 01 1 1410- ●
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 1410- ● ●
516 BOLT; HARNESS
M5X7 HEXALOBULAR SOCKET IMA 		8-98063-767-0 01 1 1410- ● ●
529 BOLT; RELAY BOX
M8X35 W/LK&PL WASHER IMA 		1-09030-094-0 03 1 1410- ● ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1410- ● ●
577 NUT; FUSE BOX
M6 FLANGE THA 		0-91180-106-0 02 1 1410- ● ●

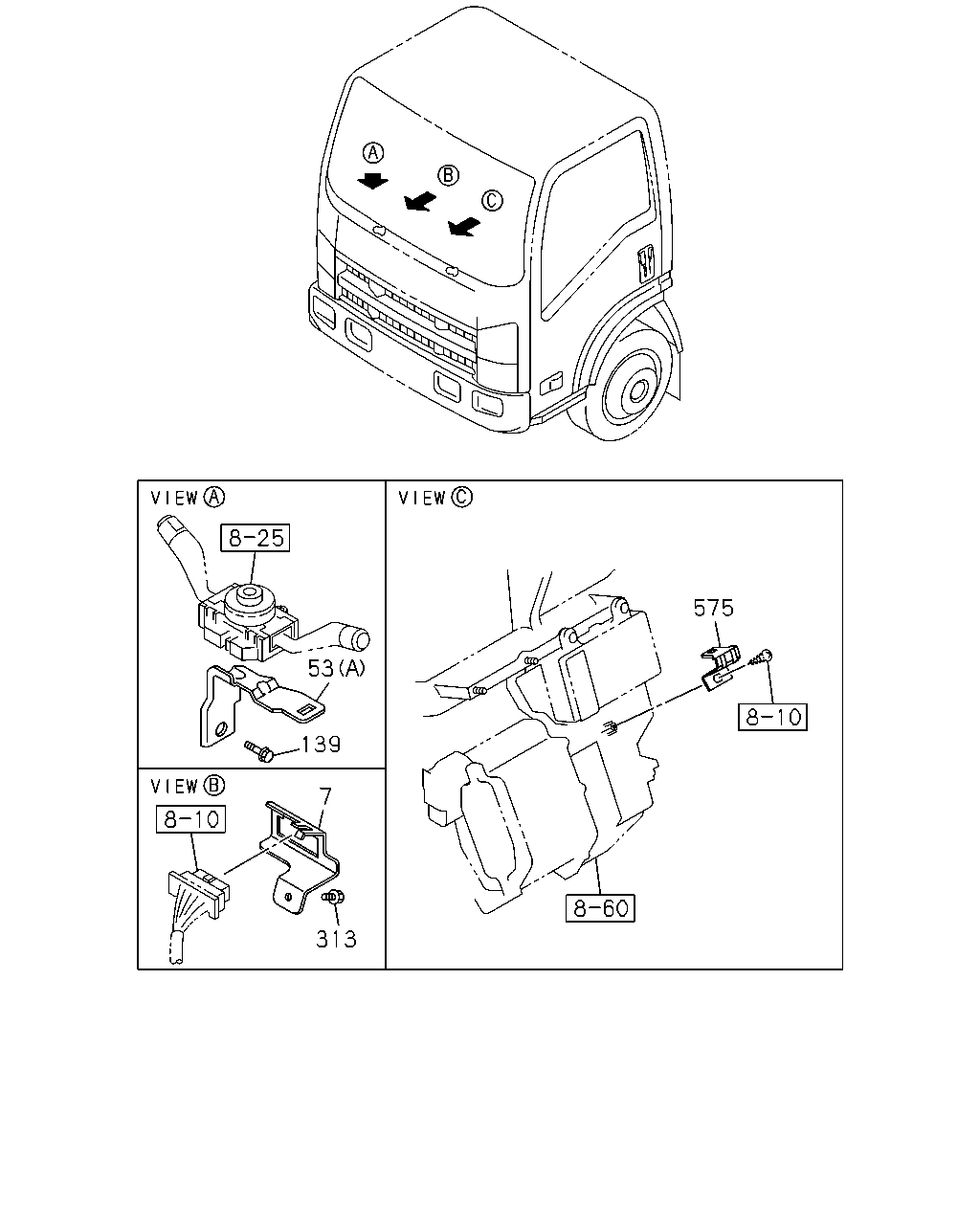

çizim 451843
53 139 313 575 7
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR
IMA 		8-98043-070-1 01 1 1410- ●
7 BRACKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> IMA 		8-98043-070-1 01 1 1410- ●
53 BRACKET; HARNESS
(B) IMA 		8-98105-778-0 01 1 1410- ●
53 BRACKET; HARNESS
WHEEL BASE 2400MM<24W> (B) IMA 		8-98105-778-0 01 1 1410- ●
53 BRACKET; HARNESS
(F) IMA 		8-98107-111-1 01 1 1410- ●
53 BRACKET; HARNESS
WHEEL BASE 2400MM<24W> (F) IMA 		8-98107-111-1 01 1 1410- ●
53 BRACKET; HARNESS
(C) IMA 		8-98018-900-2 01 1 1410- ● ●
53 BRACKET; HARNESS
(E) IMA 		8-98039-984-2 01 1 1410- ● ●
53 BRACKET; HARNESS
(A) IMA 		8-98052-458-0 01 1 1410- ● ●
53 BRACKET; HARNESS
WHEEL BASE 3300MM<33W> (D) IMA 		8-98033-918-2 01 1 1410- ●
53 BRACKET; HARNESS
WHEEL BASE 3300MM<33W> (B) IMA 		8-98052-900-1 01 1 1410- ●
139 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 1410- ● ●
313 BOLT; BRKT
M6X16 FLANGE THA 		0-28450-616-0 01 1 1410- ● ●
575 BRACKET; FUSE BOX
IMA 		8-98042-656-2 01 1 1410- ● ●
