◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51567 - NLR/NMR THAILAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#151209) — 28 parça

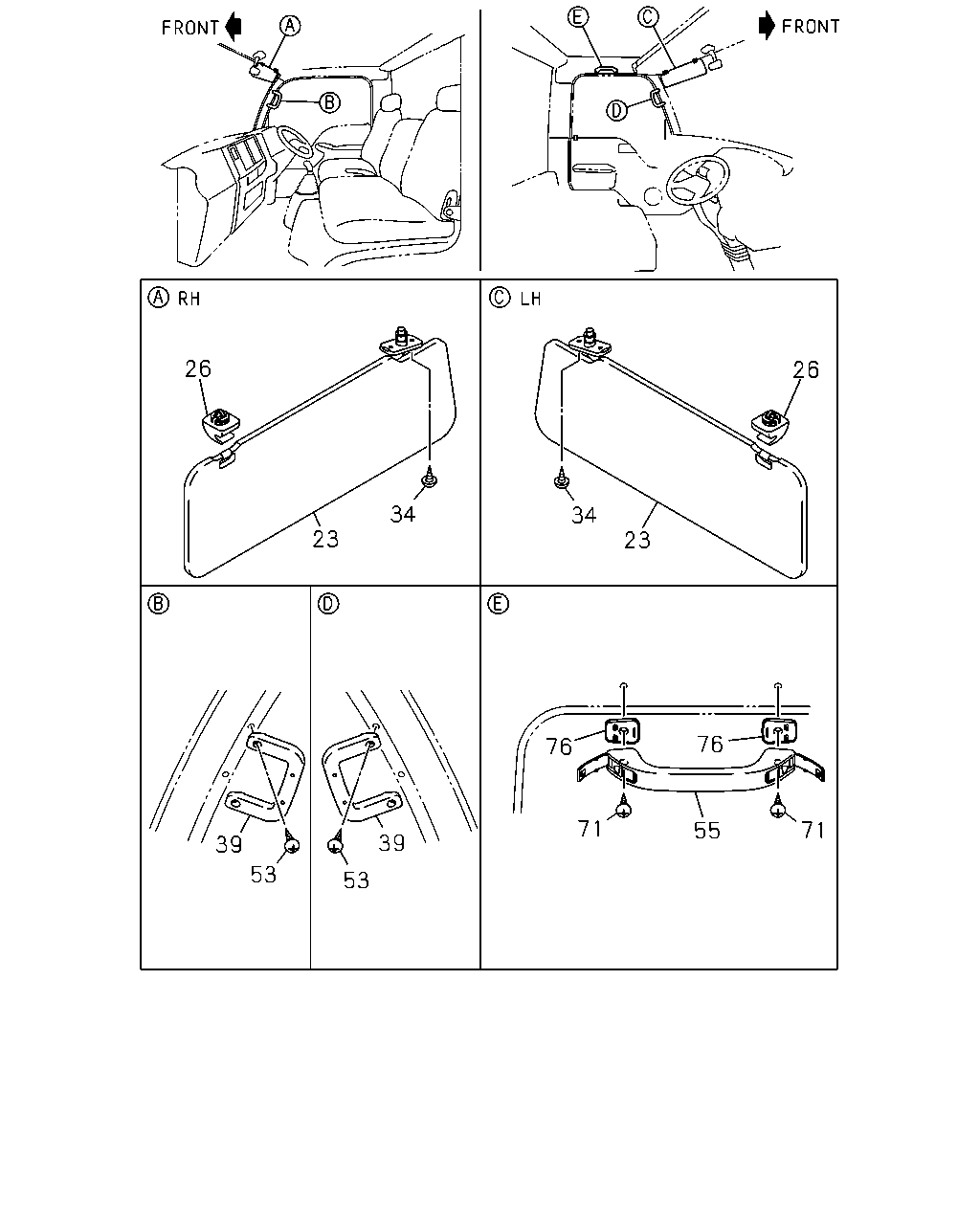

çizim 450884
26 23 34 39 53 53 39 76 71 55 76 71 34 23 26
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> THA 		8-97923-799-2 01 1 1410- ● ●
23 SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> THA 		8-97923-800-2 01 1 1410- ● ●
26 HOLDER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IMA 		8-97405-171-0 01 1 1410- ● ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IMA 		8-97405-171-0 01 1 1410- ● ●
34 SCREW; SUN VISOR
M6X26 IMA 		8-98033-674-0 02 1 1410- ● ●
34 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M6X26 IMA 		8-98033-674-0 02 1 1410- ● ●
34 SCREW; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 IMA 		8-98033-674-0 02 1 1410- ● ●
39 HANDLE; ASSIST,A-POST
DARK GRAY IMA 		8-97405-249-2 02 1 1410- ● ●
53 SCREW; ASSIST HANDLE
M6X28 IMA 		8-98004-344-0 04 1 1410- ● ●
55 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY IMA 		8-97405-285-2 01 1 1410- ● ●
71 SCREW
M6X28 IMA 		8-98004-344-0 02 1 1410- ● ●
76 SPACER; ASSIST GRIP
DARK GRAY IMA 		8-97405-286-0 02 1 1410- ● ●

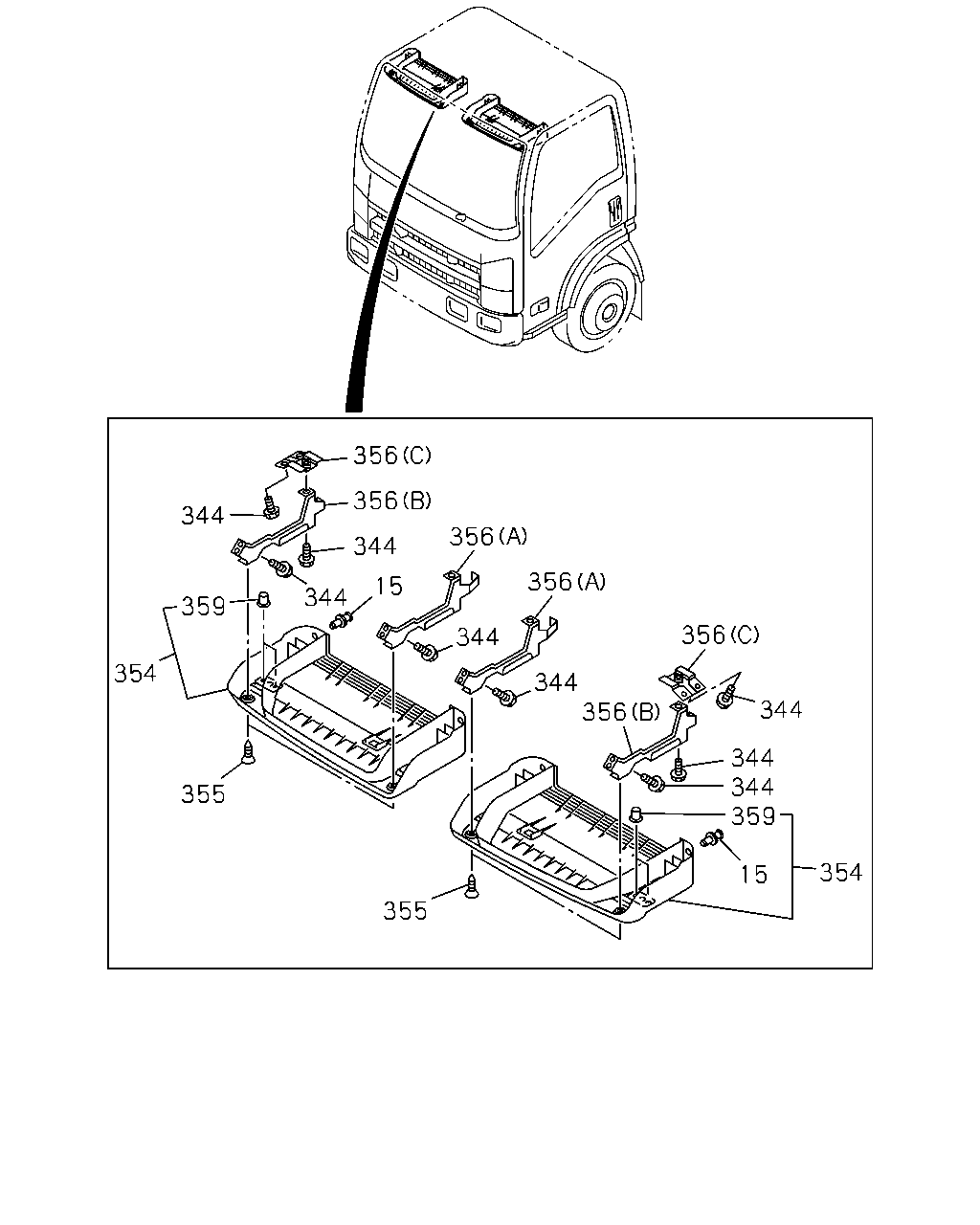

çizim 451356
356 356 344 356 15 356 344 344 356 344 344 344 359 354 15 355 355 354 359 344 344 356
BalonParca AdiParca NoAdetTipApplied Date A B
15 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IMA 		8-97406-299-0 02 1 1410- ● ●
15 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IMA 		8-97406-299-0 02 1 1410- ● ●
344 BOLT; BRKT,FRT
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE IMA 		8-97108-669-0 06 1 1410- ● ●
344 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE IMA 		8-97108-669-0 06 1 1410- ● ●
354 TRAY; HEADER ROOF
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IMA 		8-97408-061-2 01 1 1410- ● ●
354 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IMA 		8-97408-060-2 01 1 1410- ● ●
355 SCREW; TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72380-516-0 04 1 1410- ● ●
355 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72380-516-0 04 1 1410- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C) IMA 		8-97386-874-1 01 1 1410- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C) IMA 		8-97386-874-1 01 1 1410- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) IMA 		8-97585-576-4 01 1 1410- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B) IMA 		8-97585-576-4 01 1 1410- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) IMA 		8-98036-022-4 01 1 1410- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A) IMA 		8-98036-023-4 01 1 1410- ● ●
359 HOLDER; HEADER TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> IMA 		8-98041-754-0 02 1 1410- ● ●
359 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> IMA 		8-98041-754-0 02 1 1410- ● ●
