7-40 — INSTRUMENT PANEL AND BOX (#151207) — 87 parça

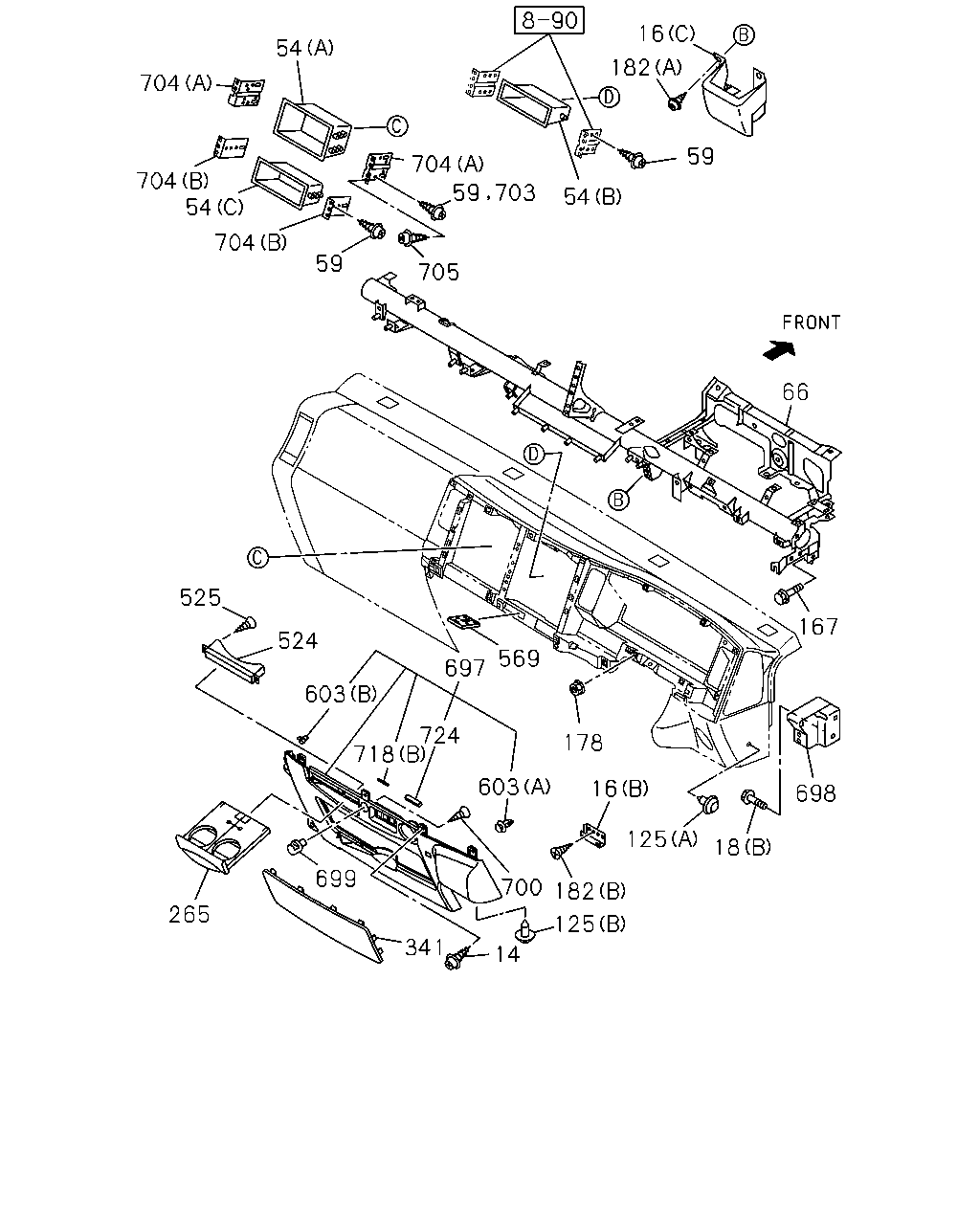

çizim 449478
16 182 59 54 54 704 59 703 704 704 54 704 59 705 66 167 569 178 16 698 697 603 125 18 724 603 524 525 718 182 125 700 699 341 14 265
BalonParca AdiParca NoAdetTipApplied Date A B
14 SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 04 1 1410- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (B) IMA 		8-97585-532-0 01 1 1410- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (A) IMA 		8-97585-612-2 01 1 1410- ● ●
16 BRACKET; INST PNL
(C) IMA 		8-98053-711-0 01 1 1410- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1410- ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1410- ● ●
54 POCKET; CENTER CLUSTER
(C) THA 		8-97926-412-0 01 1 1410- ● ●
54 POCKET; CENTER CLUSTER
EXC. COOLER WO/HEATER<C65> (C) THA 		8-97926-412-0 01 1 1410- ● ●
54 POCKET; CENTER CLUSTER
(B) THA 		8-97926-414-0 01 1 1410- ● ●
54 POCKET; CENTER CLUSTER
(A) THA 		8-97926-874-0 01 1 1410- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR IMA 		8-98058-632-0 04 1 1410- ● ●
66 REINFORCEMENT; INST PANEL
IMA 		8-98199-364-1 01 1 1410- ● ●
125 CLIP; INST PANEL
(B) GRAY IMA 		8-97408-063-0 02 1 1410- ● ●
125 CLIP; INST PANEL
(A) GRAY IMA 		8-97408-817-0 02 1 1410- ● ●
125 CLIP; INST PANEL
(C) GRAY IMA 		8-97419-968-1 02 1 1410- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE IMA 		8-97264-766-0 04 1 1410- ● ●
178 NUT; INST PANEL
M6 FLANGE THA 		0-91180-106-0 01 1 1410- ● ●
182 BOLT; BRKT,INST PANEL
COOLER WO/HEATER<C65> (B) T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 02 1 1410- ● ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 1410- ● ●
265 HOLDER; CUP
GRAY IMA 		8-97418-528-0 01 1 1410- ● ●
341 LID; FUSE BOX
GRAY IMA 		8-97423-658-0 01 1 1410- ● ●
524 STAND ASM; CUP,INST
IMA 		8-98054-414-0 01 1 1410- ● ●
525 SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 03 1 1410- ● ●
569 HOLDER; CARD
IMA 		8-97410-276-0 01 1 1410- ● ●
603 CLIP; COVER
(A) IMA 		8-98004-025-0 01 1 1410- ● ●
603 CLIP; COVER
(B) IMA 		8-98021-271-0 05 1 1410- ● ●
697 PANEL; INST CENTER
GRAY IMA 		8-97423-656-1 01 1 1410- ● ●
698 BRACKET; INST BAR SIDE
IMA 		8-98089-256-1 01 1 1410- ● ●
698 BRACKET; INST BAR SIDE
IMA 		8-98089-257-1 01 1 1410- ● ●
699 HOOK; INST PANEL
GRAY IMA 		8-97408-927-0 01 1 1410- ● ●
700 BOLT; HOOK
SCREW T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 01 1 1410- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR IMA 		8-98058-632-0 04 1 1410- ● ●
704 BRACKET; CENTER POCKET
(B) IMA 		8-97585-616-2 02 1 1410- ● ●
704 BRACKET; CENTER POCKET
(A) IMA 		8-97585-618-2 02 1 1410- ● ●
705 SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR IMA 		0-72180-520-0 08 1 1410- ● ●
718 SEAL; COVER
(A) 30X15 IMA 		8-98097-696-0 01 1 1410- ● ●
718 SEAL; COVER
(B) 5X30 IMA 		8-98176-199-0 01 1 1410- ● ●
718 SEAL; COVER
(B) 8X80 IMA 		8-98200-040-0 01 1 1410- ● ●
718 SEAL; COVER
(B) 4X35 IMA 		8-98200-041-0 01 1 1410- ● ●
724 INSULATOR; INST PANEL
IMA 		8-98200-042-0 01 1 1410- ● ●

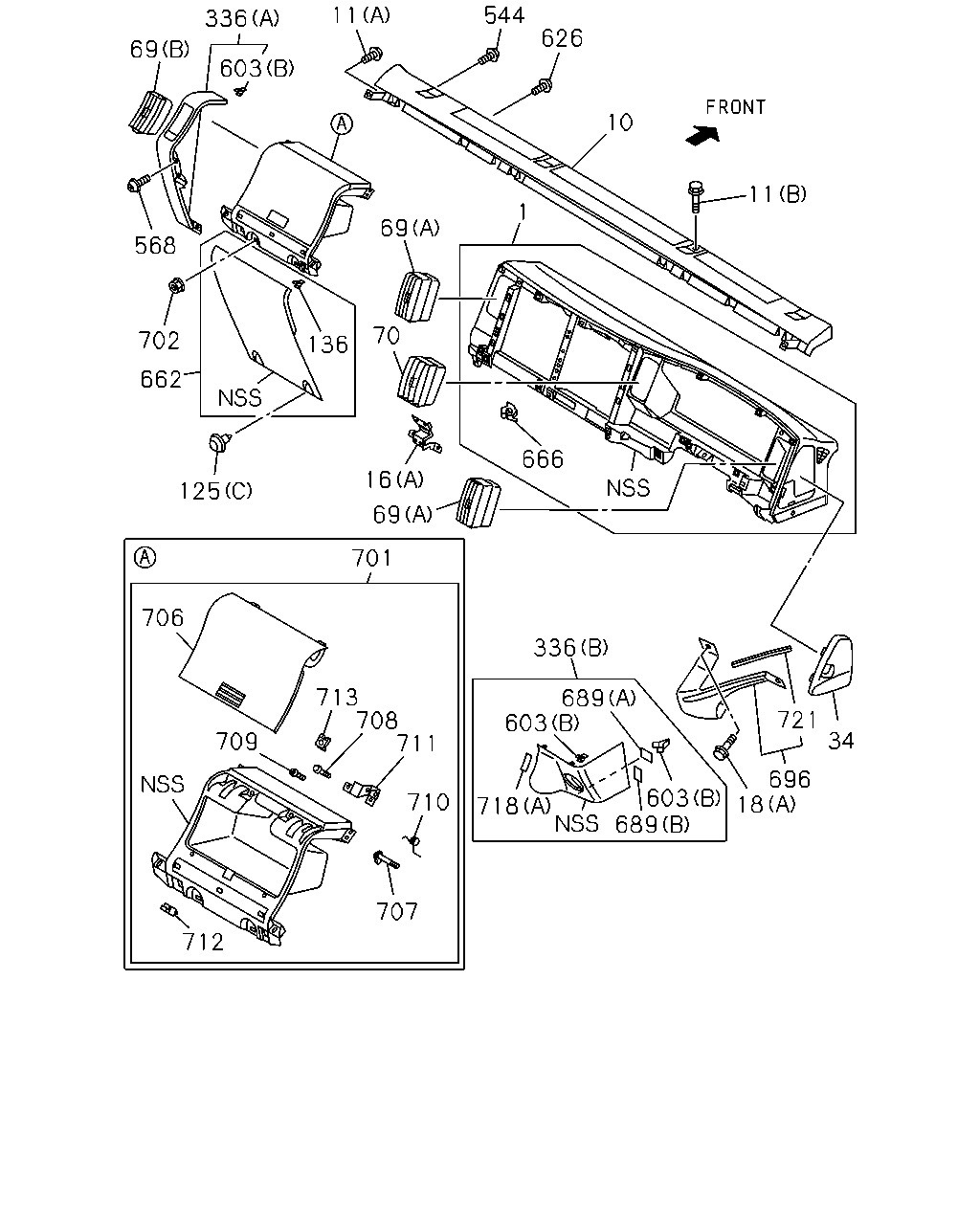

çizim 449573
336 69 603 11 544 626 10 11 666 69 16 125 662 702 568 136 70 69 701 706 709 713 708 711 710 707 712 336 689 603 718 689 603 18 696 34 721 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
THA 		8-97926-375-1 01 1 1410- ● ●
10 PANEL ASM; GARNISH
GRAY IMA 		8-97419-684-5 01 1 1410- ● ●
11 BOLT; INST PNL
(A) T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 08 1 1410- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER IMA 		8-98018-440-0 04 1 1410- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (B) IMA 		8-97585-532-0 01 1 1410- ● ●
16 BRACKET; INST PNL
COOLER WO/HEATER<C65> (A) IMA 		8-97585-612-2 01 1 1410- ● ●
16 BRACKET; INST PNL
(C) IMA 		8-98053-711-0 01 1 1410- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1410- ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1410- ● ●
34 LID; OIL TANK
GRAY IMA 		8-97405-260-1 01 1 1410- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) IMA 		8-98028-561-2 02 1 1410- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) IMA 		8-98028-562-2 01 1 1410- ● ●
70 GRILLE; CENTER,AIR OUTLET
IMA 		8-98028-563-2 01 1 1410- ● ●
125 CLIP; INST PANEL
(B) GRAY IMA 		8-97408-063-0 02 1 1410- ● ●
125 CLIP; INST PANEL
(A) GRAY IMA 		8-97408-817-0 02 1 1410- ● ●
125 CLIP; INST PANEL
(C) GRAY IMA 		8-97419-968-1 02 1 1410- ● ●
136 CLIP; INST COVER
IMA 		8-98021-271-0 05 1 1410- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY IMA 		8-97405-259-4 01 1 1410- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY IMA 		8-97414-688-1 01 1 1410- ● ●
544 SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 02 1 1410- ● ●
568 BOLT; COVER
SCREW T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 01 1 1410- ● ●
603 CLIP; COVER
(A) IMA 		8-98004-025-0 01 1 1410- ● ●
603 CLIP; COVER
(B) IMA 		8-98021-271-0 05 1 1410- ● ●
626 RETAINER
OD=15 BLACK IMA 		8-94279-804-0 02 1 1410- ● ●
662 COVER; LWR,INST PANEL
GRAY IMA 		8-97414-903-1 01 1 1410- ● ●
666 INSERT; INST PANEL
THA 		8-97926-385-0 30 1 1410- ● ●
689 SEAL; INST
(A) 7X31 IMA 		8-98061-777-0 01 1 1410- ● ●
689 SEAL; INST
(B) 18X170 IMA 		8-98061-778-1 01 1 1410- ● ●
696 BRACKET; KNEE
IMA 		8-98199-366-0 01 1 1410- ● ●
701 TRAY; INST
THA 		8-97926-379-0 01 1 1410- ● ●
702 NUT; TRAY
M6 FLANGE THA 		0-91180-106-0 02 1 1410- ● ●
706 LID; TRAY INST
THA 		8-97926-392-0 01 1 1410- ● ●
707 SHAFT; TRAY INST LID
THA 		8-97926-393-0 02 1 1410- ● ●
708 STOPPER; TRAY INST LID
THA 		8-97926-394-0 02 1 1410- ● ●
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 1410- ● ●
710 SPRING; TRAY INST LID
THA 		8-97926-398-0 01 1 1410- ● ●
710 SPRING; TRAY INST LID
THA 		8-97926-399-0 01 1 1410- ● ●
711 HOLDER ASM; LID
THA 		8-97926-396-0 01 1 1410- ● ●
711 HOLDER ASM; LID
THA 		8-97926-397-0 01 1 1410- ● ●
712 LOCK; TRAY INST LID
THA 		8-97926-395-0 01 1 1410- ● ●
713 NUT; TRAY INST LID
M5 THA 		8-97926-400-0 04 1 1410- ● ●
718 SEAL; COVER
(A) 30X15 IMA 		8-98097-696-0 01 1 1410- ● ●
718 SEAL; COVER
(B) 5X30 IMA 		8-98176-199-0 01 1 1410- ● ●
718 SEAL; COVER
(B) 8X80 IMA 		8-98200-040-0 01 1 1410- ● ●
718 SEAL; COVER
(B) 4X35 IMA 		8-98200-041-0 01 1 1410- ● ●
721 FINISHER; BRKT,KNEE
L=75 IMA 		8-98176-240-0 01 1 1410- ● ●

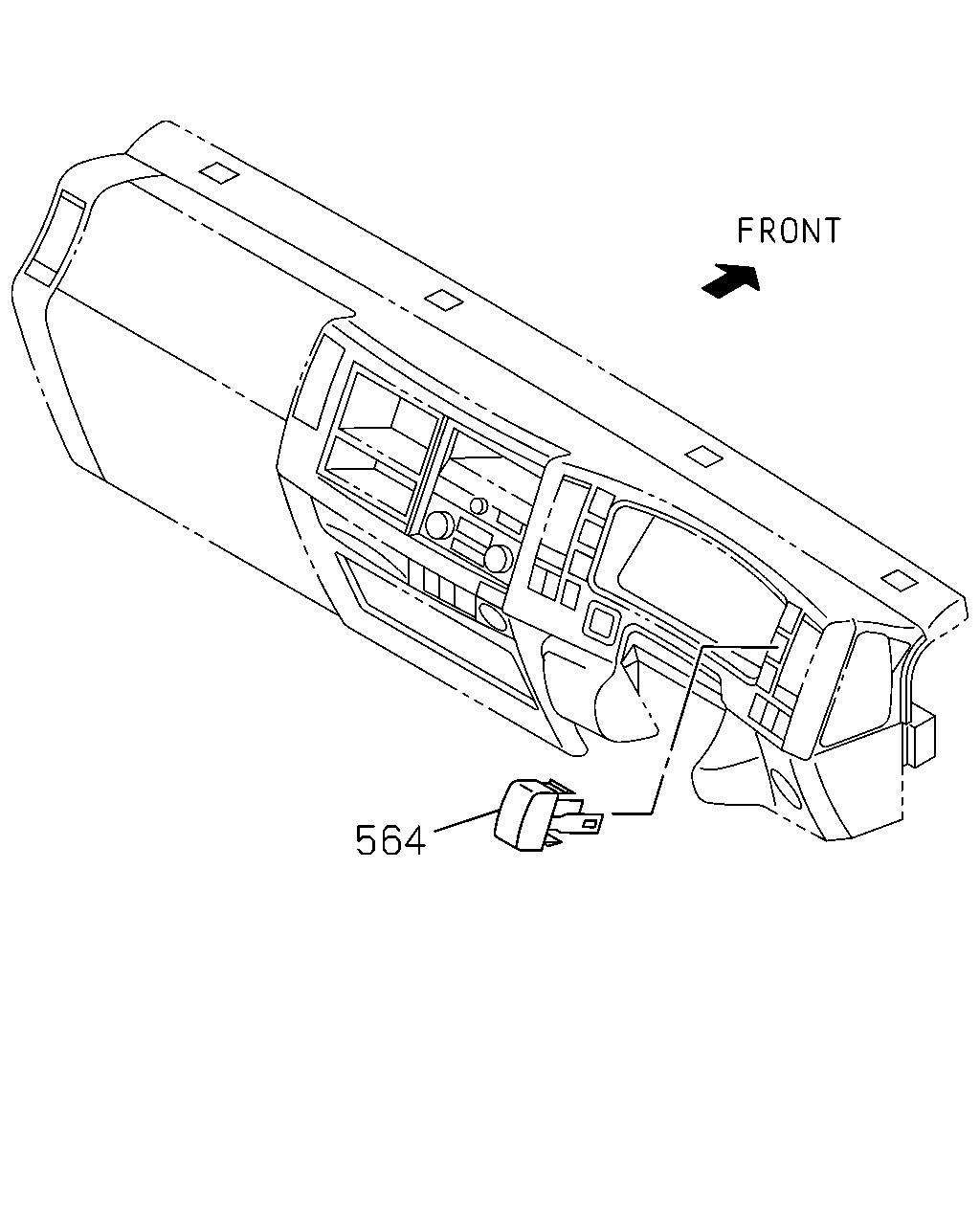

çizim 451284
564
BalonParca AdiParca NoAdetTipApplied Date A B
564 COVER; SW
IMA 		8-98025-954-1 03 1 1410- ● ●
