7-20 — MIRROR AND MIRROR STAY (#151205) — 22 parça
çizim 448941
18 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
THA 		8-97924-058-2 01 1 1410- ● ●
2 SCREW; MIRROR TO BODY
M6X26 IMA 		8-98033-674-0 02 1 1410- ● ●
18 CLIP; MIRROR
DARK GRAY IMA 		8-97408-241-0 01 1 1410- ● ●

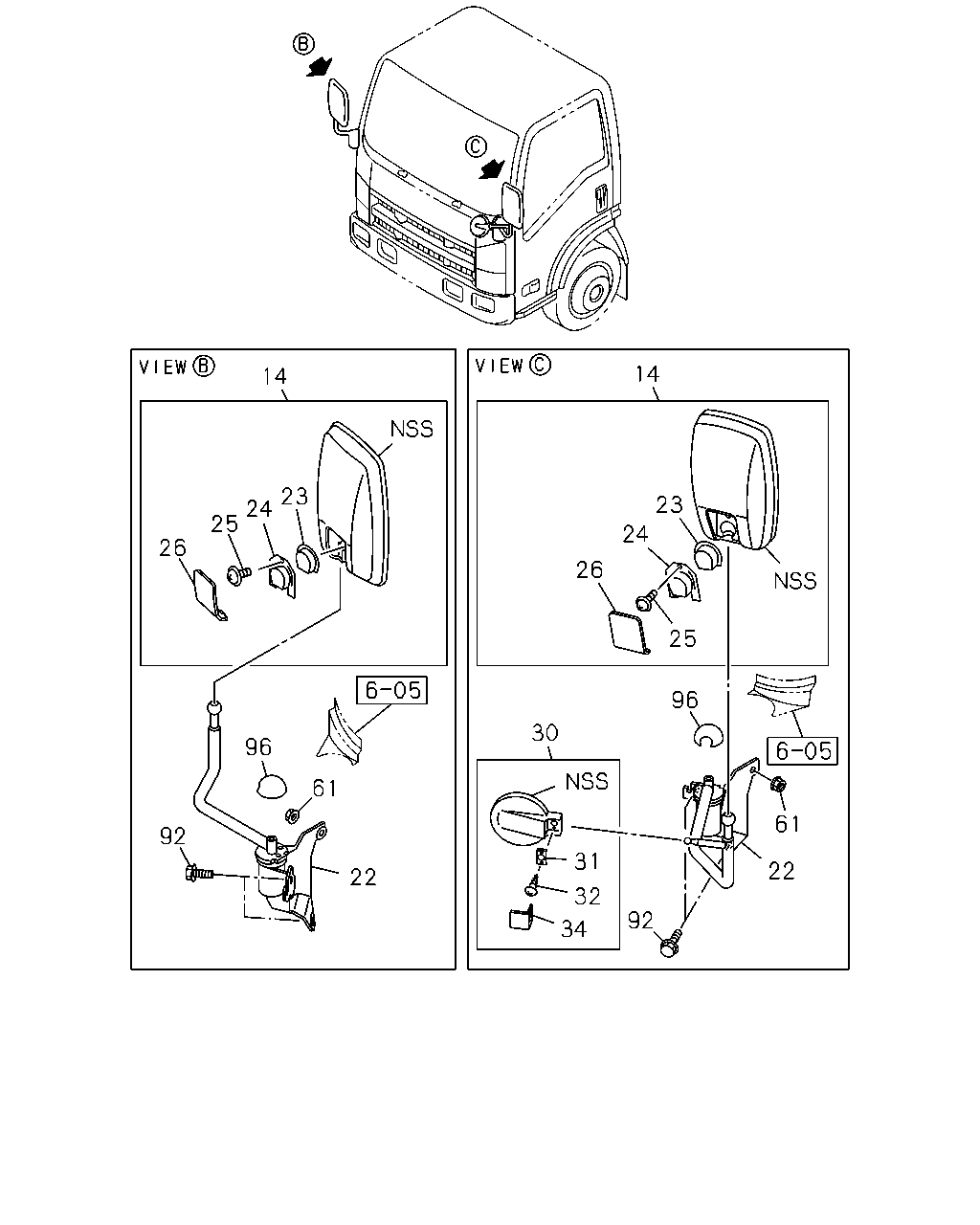

çizim 450853
14 14 23 26 25 24 96 61 22 92 32 34 30 22 61 96 92 26 25 24 23 31
BalonParca AdiParca NoAdetTipApplied Date A B
14 MIRROR ASM; OUTSIDE
IMA 		8-94262-542-3 01 1 1410- ● ●
14 MIRROR ASM; OUTSIDE
IMA 		8-94262-542-3 01 1 1410- ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> IMA 		8-98147-079-0 01 1 1410- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> IMA 		8-98147-082-0 01 1 1410- ● ●
23 WASHER; OUTSIDE MIRROR
T=2.0 IMA 		8-94262-545-0 01 1 1410- ● ●
23 WASHER; OUTSIDE MIRROR
T=2.0 IMA 		8-94262-545-0 01 1 1410- ● ●
24 HOLDER; OUTSIDE MIRROR
T=1.6 IMA 		8-94262-546-1 01 1 1410- ● ●
24 HOLDER; OUTSIDE MIRROR
T=1.6 IMA 		8-94262-546-1 01 1 1410- ● ●
25 SCREW; OUTSIDE MIRROR
M6X30 IMA 		8-94279-365-0 01 1 1410- ● ●
25 SCREW; OUTSIDE MIRROR
M6X30 IMA 		8-94279-365-0 01 1 1410- ● ●
26 COVER; OUTSIDE MIRROR
T=2.3 IMA 		8-94262-547-2 01 1 1410- ● ●
26 COVER; OUTSIDE MIRROR
T=2.3 IMA 		8-94262-547-2 01 1 1410- ● ●
30 MIRROR; UNDER
UNDER MIRROR<RR9> IMA 		8-94262-625-2 01 1 1410- ● ●
31 PLATE; MIRROR
UNDER MIRROR<RR9> IMA 		8-94262-631-0 01 1 1410- ● ●
32 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 IMA 		8-94279-372-0 02 1 1410- ● ●
34 CAP; MIRROR
UNDER MIRROR<RR9> IMA 		8-94262-629-0 01 1 1410- ● ●
61 NUT; STAY,OUTSIDE MIRROR
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X25 FLANGE THA 		0-28650-825-0 04 1 1410- ● ●
96 CAP; MIRROR STAY
IMA 		8-98027-552-2 02 1 1410- ● ●
