◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10633 - FVZ-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#1512) — 78 parça

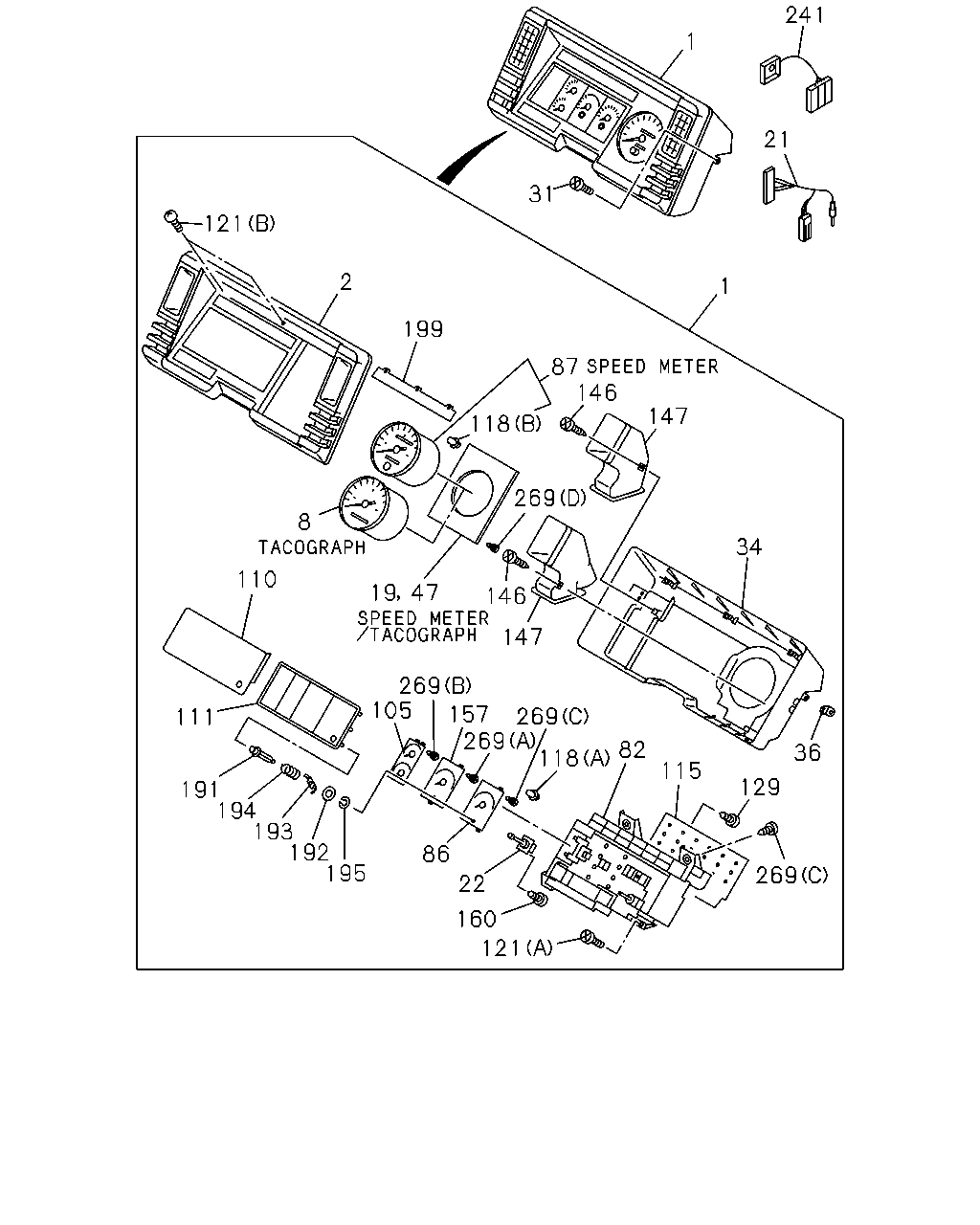

çizim 27925
241 1 21 31 121 2 1 199 146 147 118 269 8 34 110 19 146 147 269 105 157 269 269 118 111 82 36 115 129 191 194 193 192 195 86 269 22 160 121 47 87
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
EXC. TACHOMETER<UD7> 		1-83114-356-4 01 1 9203-
1 METER COMPL; CLUSTER
6SA1 STD ENG(06L) TACHOMETER<UD7> BRIGHT CONTROL METER<WX7> EXC. ENGINE OVERRUN BUZZER<SK4>,TACHOGRAPH 140KM/H<WC7> 		1-83114-360-4 01 1 9203-
1 METER COMPL; CLUSTER
6SA1 STD ENG(06L) TACHOMETER<UD7> EXC. ENGINE OVERRUN BUZZER<SK4>,TACHOGRAPH 140KM/H<WC7>,BRIGHT CONTROL METER<WX7> 		1-83114-357-4 01 1 9203-
1 METER COMPL; CLUSTER
6SA1 STD ENG(06L) TACHOMETER<UD7> TACHOGRAPH 140KM/H<WC7> EXC. ENGINE OVERRUN BUZZER<SK4>,BRIGHT CONTROL METER<WX7> 		1-83114-363-4 01 1 9203-
1 METER COMPL; CLUSTER
6SA1 STD ENG(06L) TACHOMETER<UD7> TACHOGRAPH 140KM/H<WC7> BRIGHT CONTROL METER<WX7> EXC. ENGINE OVERRUN BUZZER<SK4> 		1-83114-366-4 01 1 9203-
1 METER COMPL; CLUSTER
6SA1TC ENG(28L) ENGINE OVERRUN BUZZER<SK4> TACHOMETER<UD7> BRIGHT CONTROL METER<WX7> EXC. TACHOGRAPH 140KM/H<WC7> 		1-83114-351-1 01 1 9203-9205
1 METER COMPL; CLUSTER
6SA1TC ENG(28L) ENGINE OVERRUN BUZZER<SK4> TACHOMETER<UD7> BRIGHT CONTROL METER<WX7> EXC. TACHOGRAPH 140KM/H<WC7> 		1-83114-373-2 01 1 9206-
1 METER COMPL; CLUSTER
6SA1TC ENG(28L) TACHOMETER<UD7> BRIGHT CONTROL METER<WX7> EXC. ENGINE OVERRUN BUZZER<SK4>,TACHOGRAPH 140KM/H<WC7> 		1-83114-221-1 01 1 9203-9205
1 METER COMPL; CLUSTER
6SA1TC ENG(28L) TACHOMETER<UD7> BRIGHT CONTROL METER<WX7> EXC. ENGINE OVERRUN BUZZER<SK4>,TACHOGRAPH 140KM/H<WC7> 		1-83114-362-4 01 1 9206-
1 METER COMPL; CLUSTER
6SA1TC ENG(28L) TACHOMETER<UD7> EXC. ENGINE OVERRUN BUZZER<SK4>,TACHOGRAPH 140KM/H<WC7>,BRIGHT CONTROL METER<WX7> 		1-83114-213-1 01 1 9203-9205
1 METER COMPL; CLUSTER
6SA1TC ENG(28L) TACHOMETER<UD7> EXC. ENGINE OVERRUN BUZZER<SK4>,TACHOGRAPH 140KM/H<WC7>,BRIGHT CONTROL METER<WX7> 		1-83114-359-4 01 1 9206-
2 PANEL; CLUSTER 1-83117-327-0 01 1 9203-
8 TACHOGRAPH; CLUSTER METER
6SA1 STD ENG(06L) TACHOGRAPH 140KM/H<WC7> 		1-83120-360-1 01 1 9203-
19 COVER; SPEEDOMETER,CLUSTER METER
EXC. TACHOGRAPH 140KM/H<WC7> 		1-83129-081-0 01 1 9203-
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-82623-920-0 01 1 9203-
22 RHEOSTAT; CLUSTER METER
BRIGHT CONTROL METER<WX7> 		1-82380-075-0 01 1 9203-
31 SCREW; METER,INST PANEL
M4X14 TAPPING 		1-09140-009-0 03 1 9203-
31 SCREW; METER,INST PANEL
M6X20 W/PL WASHER 		5-09981-023-0 04 1 9203-
34 HOOD; CLUSTER METER 1-83117-440-0 01 1 9203-
36 BRACKET; CLUSTER METER 1-83119-118-0 01 1 9203-
36 BRACKET; CLUSTER METER 1-83119-117-0 01 1 9203-
47 COVER; TACHOGRAPH,CLUSTER METER
6SA1 STD ENG(06L) TACHOGRAPH 140KM/H<WC7> 		1-83129-034-1 01 1 9203-
82 CASE ASM; CLUSTER METER
EXC. TACHOGRAPH 140KM/H<WC7> 		1-83119-359-0 01 1 9203-9205
82 CASE ASM; CLUSTER METER
EXC. TACHOGRAPH 140KM/H<WC7> 		1-83119-414-0 01 1 9206-
82 CASE ASM; CLUSTER METER
6SA1 STD ENG(06L) TACHOGRAPH 140KM/H<WC7> 		1-83119-376-0 01 1 9203-9205
82 CASE ASM; CLUSTER METER
6SA1 STD ENG(06L) TACHOGRAPH 140KM/H<WC7> 		1-83119-415-0 01 1 9206-
86 TACHOMETER; CLUSTER METER
6SA1 STD ENG(06L) TACHOMETER<UD7> 		1-83120-500-0 01 1 9203-
86 TACHOMETER; CLUSTER METER
6SA1 STD ENG(06L) TACHOMETER<UD7> BRIGHT CONTROL METER<WX7> 		1-83120-498-0 01 1 9203-
86 TACHOMETER; CLUSTER METER
6SA1TC ENG(28L) ENGINE OVERRUN BUZZER<SK4> TACHOMETER<UD7> BRIGHT CONTROL METER<WX7> EXC. TACHOGRAPH 140KM/H<WC7> 		1-83120-482-0 01 1 9203-
86 TACHOMETER; CLUSTER METER
6SA1TC ENG(28L) TACHOMETER<UD7> BRIGHT CONTROL METER<WX7> EXC. ENGINE OVERRUN BUZZER<SK4>,TACHOGRAPH 140KM/H<WC7> 		1-83120-480-0 01 1 9203-
86 TACHOMETER; CLUSTER METER
6SA1TC ENG(28L) TACHOMETER<UD7> EXC. ENGINE OVERRUN BUZZER<SK4>,TACHOGRAPH 140KM/H<WC7>,BRIGHT CONTROL METER<WX7> 		1-83120-485-0 01 1 9203-
87 SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 		1-83120-488-0 01 1 9203-
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-071-0 01 1 9203-
110 GLASS; CLUSTER METER
BRIGHT CONTROL METER<WX7> 		1-83119-046-0 01 1 9203-
110 GLASS; CLUSTER METER
EXC. BRIGHT CONTROL METER<WX7> 		1-83119-101-0 01 1 9203-
111 RIM; GLASS,CLUSTER METER
TACHOMETER<UD7> 		1-83119-098-0 01 1 9203-
111 RIM; GLASS,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83119-106-0 01 1 9203-
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> BRIGHT CONTROL METER<WX7> EXC. TACHOGRAPH 140KM/H<WC7> 		1-83118-299-0 01 1 9203-9205
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> BRIGHT CONTROL METER<WX7> EXC. TACHOGRAPH 140KM/H<WC7> 		1-83189-229-0 01 1 9206-
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> EXC. ENGINE OVERRUN BUZZER<SK4>,TACHOGRAPH 140KM/H<WC7>,BRIGHT CONTROL METER<WX7> 		1-83189-223-0 01 1 9203-9205
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> EXC. ENGINE OVERRUN BUZZER<SK4>,TACHOGRAPH 140KM/H<WC7>,BRIGHT CONTROL METER<WX7> 		1-83189-230-0 01 1 9206-
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83189-221-0 01 1 9203-9205
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83189-235-0 01 1 9206-
115 CIRCUIT; PRINTED,CLUSTER METER
6SA1 STD ENG(06L) TACHOMETER<UD7> TACHOGRAPH 140KM/H<WC7> BRIGHT CONTROL METER<WX7> EXC. ENGINE OVERRUN BUZZER<SK4> 		1-83189-222-0 01 1 9203-9205
115 CIRCUIT; PRINTED,CLUSTER METER
6SA1 STD ENG(06L) TACHOMETER<UD7> TACHOGRAPH 140KM/H<WC7> BRIGHT CONTROL METER<WX7> EXC. ENGINE OVERRUN BUZZER<SK4> 		1-83189-232-0 01 1 9206-
115 CIRCUIT; PRINTED,CLUSTER METER
6SA1 STD ENG(06L) TACHOMETER<UD7> TACHOGRAPH 140KM/H<WC7> EXC. ENGINE OVERRUN BUZZER<SK4>,BRIGHT CONTROL METER<WX7> 		1-83189-225-0 01 1 9203-9205
115 CIRCUIT; PRINTED,CLUSTER METER
6SA1 STD ENG(06L) TACHOMETER<UD7> TACHOGRAPH 140KM/H<WC7> EXC. ENGINE OVERRUN BUZZER<SK4>,BRIGHT CONTROL METER<WX7> 		1-83189-233-0 01 1 9206-
118 BULB; CLUSTER METER
(A) BROWN 24V 3W 		1-82358-003-0 AR 1 9203-
118 BULB; CLUSTER METER
EXC. TACHOGRAPH 140KM/H<WC7> (B) GREEN 24V 3W 		1-82194-022-0 02 1 9203-
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING 		1-83119-059-0 04 1 9203-9205
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4X16 TAPPING 		1-83119-033-0 04 1 9206-
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-87590-049-0 02 1 9203-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 09 1 9203-
146 SCREW; AIR DUCT FIX,METER FOOD
M4X16 TAPPING 		1-83119-033-0 06 1 9203-
147 DUCT; AIR,CLUSTER METER 1-83119-043-0 01 1 9203-
147 DUCT; AIR,CLUSTER METER 1-83119-042-0 01 1 9203-
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-148-0 01 1 9203-
160 SCREW; RHEOSTAT,CLUSTER METER
BRIGHT CONTROL METER<WX7> 		1-83119-050-0 03 1 9203-
191 KNOB; BULB CHECK 1-83119-316-0 01 1 9203-
192 WASHER; BULB CHECK KNOB 1-83119-317-0 01 1 9203-
193 PLATE; BULB CHECK 1-83119-318-0 01 1 9203-
194 SPRING; BULB CHECK KNOB 1-83119-319-0 01 1 9203-
195 RING; SNAP,KNOB 1-83119-320-0 01 1 9203-
199 LENS; WARNING LAMP 1-82255-277-0 01 1 9203-9205
199 LENS; WARNING LAMP 1-82255-288-0 01 1 9206-
241 HARNESS; SPEEDOMETER 1-82623-837-1 01 1 9203-9204
241 HARNESS; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 		1-82623-837-1 01 1 9205-
269 SCREW; METER CLUSTER
(A) M4X10 		1-83119-051-0 03 1 9203-
269 SCREW; METER CLUSTER
(B) M3X8 		1-83119-058-0 06 1 9203-
269 SCREW; METER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (D) M3 TAPPING 		1-83119-084-0 04 1 9203-
269 SCREW; METER CLUSTER
TACHOMETER<UD7> EXC. ENGINE OVERRUN BUZZER<SK4> (C) M3 		1-83119-377-0 03 1 9203-9205
269 SCREW; METER CLUSTER
TACHOMETER<UD7> EXC. ENGINE OVERRUN BUZZER<SK4> (C) M3 		1-83119-361-0 03 1 9206-
269 SCREW; METER CLUSTER
6SA1TC ENG(28L) ENGINE OVERRUN BUZZER<SK4> TACHOMETER<UD7> BRIGHT CONTROL METER<WX7> EXC. TACHOGRAPH 140KM/H<WC7> (C) M3 		1-83119-377-0 04 1 9203-9205
269 SCREW; METER CLUSTER
6SA1TC ENG(28L) ENGINE OVERRUN BUZZER<SK4> TACHOMETER<UD7> BRIGHT CONTROL METER<WX7> EXC. TACHOGRAPH 140KM/H<WC7> (C) M3 		1-83119-361-0 04 1 9206-
çizim 28904
266 267 42 76
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE
FULLER RT7608LL M/T(X8P) OD=16.8 L=50 		1-09369-010-0 01 1 9203-
76 SLEEVE; RUBBER,FLEX SHAFT,METER
ID=29 OD=39 L=40 		1-09337-013-0 01 1 9211-
266 CLOCK; QUARTZ
ELECTRIC DIGITAL CLOCK<UE8> 		1-83170-002-0 01 1 9203-
267 SCREW; CLOCK
ELECTRIC DIGITAL CLOCK<UE8> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9203-
