6-05 — FRONT PANEL (#151184) — 41 parça

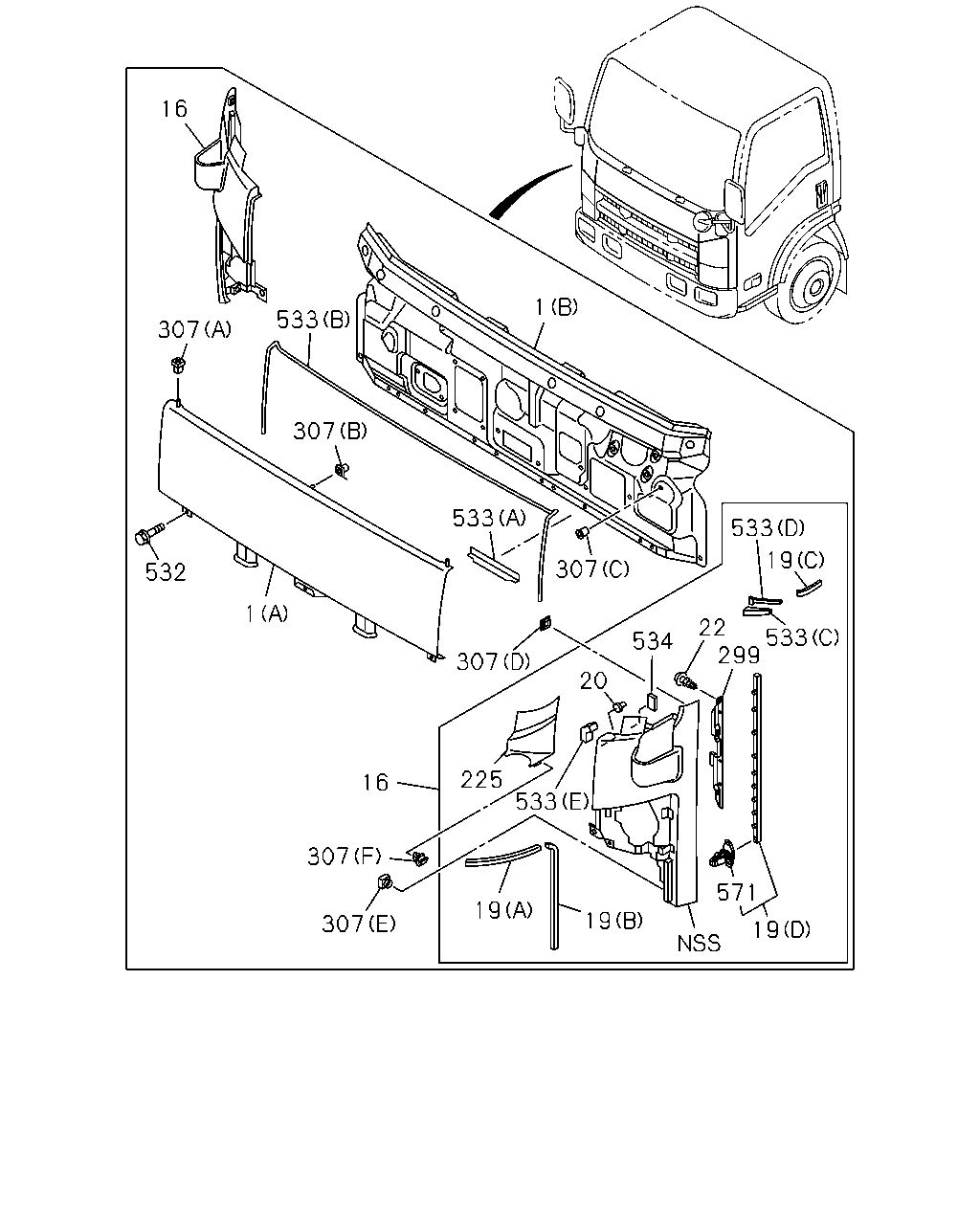

çizim 450958
1 16 307 533 307 533 307 533 533 299 22 534 20 225 16 307 307 19 19 307 533 571 19 19 1 532
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(A) IMA 		8-98122-692-0 01 1 1410- ● ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL<6WC> (B) IMA 		8-98186-848-0 01 1 1410- ● ●
16 PANEL; FRONT,SIDE
VIN MODEL YEAR 2011<VZB> WHITE THA 		8-97409-873-8 01 1 1410- ● ●
16 PANEL; FRONT,SIDE
VIN MODEL YEAR 2011<VZB> WHITE THA 		8-97409-874-8 01 1 1410- ● ●
19 SEAL; FRT SIDE PANEL
VIN MODEL YEAR 2011<VZB> (D) IMA 		8-98028-749-3 01 1 1410- ● ●
19 SEAL; FRT SIDE PANEL
VIN MODEL YEAR 2011<VZB> (D) IMA 		8-98028-750-3 01 1 1410- ● ●
19 SEAL; FRT SIDE PANEL
VIN MODEL YEAR 2011<VZB> (A) IMA 		8-98035-268-0 02 1 1410- ● ●
19 SEAL; FRT SIDE PANEL
VIN MODEL YEAR 2011<VZB> (C) IMA 		8-98038-608-0 02 1 1410- ● ●
19 SEAL; FRT SIDE PANEL
VIN MODEL YEAR 2011<VZB> (B) IMA 		8-98062-215-0 02 1 1410- ● ●
20 CLIP; FRT PANEL SIDE
VIN MODEL YEAR 2011<VZB> IMA 		8-97410-739-0 04 1 1410- ● ●
22 SCREW; FRT PANEL SIDE
VIN MODEL YEAR 2011<VZB> M4X10 TAPPING W/PL WASHER IMA 		0-74360-410-0 06 1 1410- ● ●
225 COVER; SIDE,FRT
VIN MODEL YEAR 2011<VZB> PLEASE PAINT TO MATCH BODY COLOR IMA 		8-98036-520-3 01 1 1410- ● ●
225 COVER; SIDE,FRT
VIN MODEL YEAR 2011<VZB> PLEASE PAINT TO MATCH BODY COLOR IMA 		8-98036-521-3 01 1 1410- ● ●
299 COVER; FRT PANEL SIDE
VIN MODEL YEAR 2011<VZB> IMA 		8-98028-144-1 01 1 1410- ● ●
299 COVER; FRT PANEL SIDE
VIN MODEL YEAR 2011<VZB> IMA 		8-98028-145-1 01 1 1410- ● ●
307 GROMMET; FRT PANEL
VIN MODEL YEAR 2011<VZB> (F) IMA 		8-98028-743-0 02 1 1410- ● ●
307 GROMMET; FRT PANEL
(D) IMA 		8-97410-738-0 02 1 1410- ● ●
307 GROMMET; FRT PANEL
(E) IMA 		8-98021-300-1 04 1 1410- ● ●
307 GROMMET; FRT PANEL
(A) IMA 		8-98021-968-0 01 1 1410- ● ●
307 GROMMET; FRT PANEL
(A) IMA 		8-98021-969-0 01 1 1410- ● ●
307 GROMMET; FRT PANEL
(B) IMA 		8-98023-229-1 01 1 1410- ● ●
307 GROMMET; FRT PANEL
(C) IMA 		8-98034-363-1 04 1 1410- ● ●
532 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER IMA 		0-52010-616-0 02 1 1410- ● ●
533 SEAL; FRT PANEL
(A) IMA 		8-98021-003-1 01 1 1410- ● ●
533 SEAL; FRT PANEL
VIN MODEL YEAR 2011<VZB> (C) IMA 		8-98043-509-0 01 1 1410- ● ●
533 SEAL; FRT PANEL
VIN MODEL YEAR 2011<VZB> (C) IMA 		8-98043-510-0 01 1 1410- ● ●
533 SEAL; FRT PANEL
VIN MODEL YEAR 2011<VZB> (D) IMA 		8-98043-511-1 02 1 1410- ● ●
533 SEAL; FRT PANEL
VIN MODEL YEAR 2011<VZB> (E) IMA 		8-98064-939-0 02 1 1410- ● ●
533 SEAL; FRT PANEL
(B) THA 		8-97927-012-0 01 1 1410- ● ●
534 FASTENER
VIN MODEL YEAR 2011<VZB> 20X30 IMA 		8-98059-208-1 02 1 1410- ● ●
571 CLIP; SEAL
VIN MODEL YEAR 2011<VZB> NATURAL IMA 		8-98027-457-0 20 1 1410- ● ●

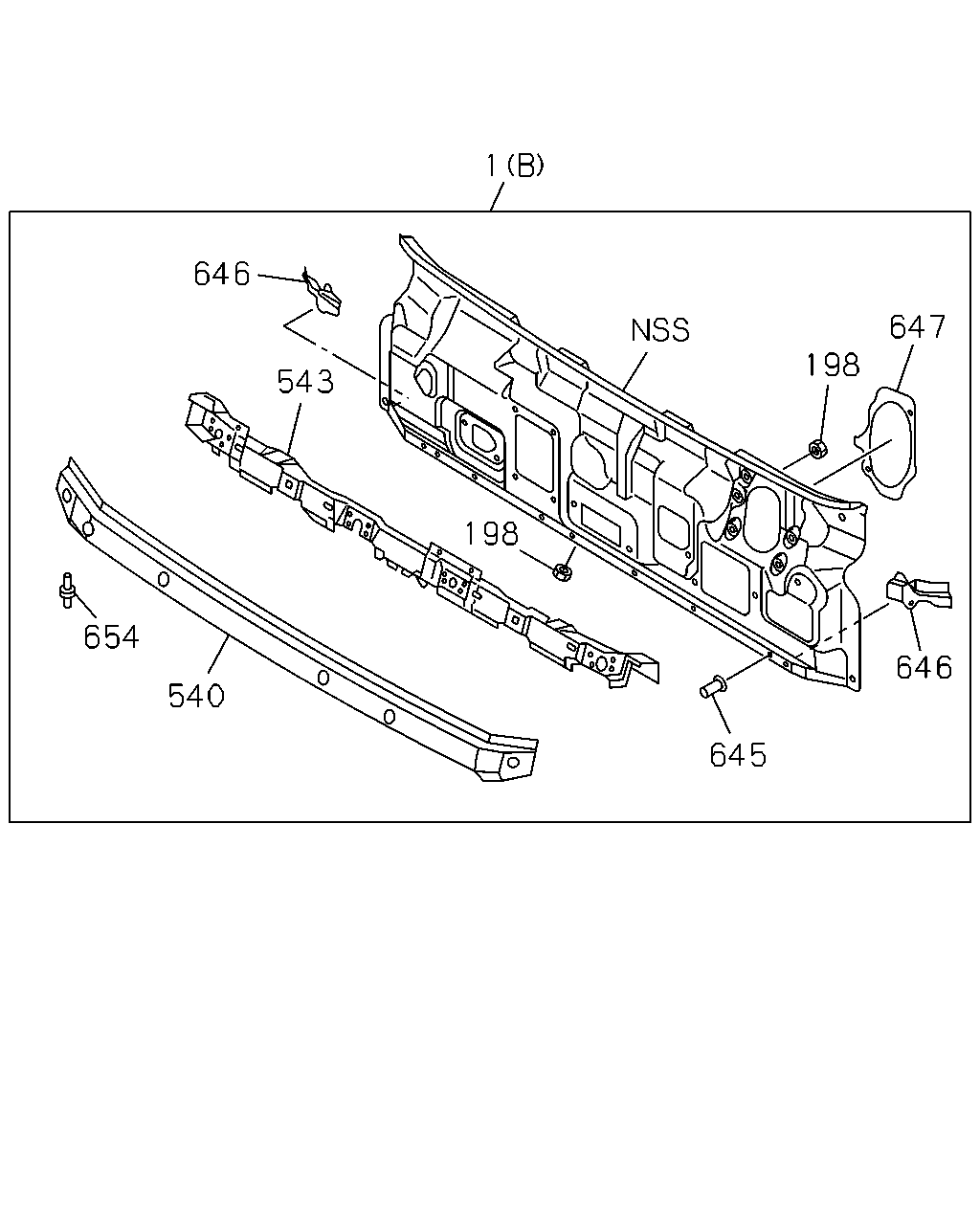

çizim 451167
1 646 543 198 198 647 645 646 540 654
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(A) IMA 		8-98122-692-0 01 1 1410- ● ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL<6WC> (B) IMA 		8-98186-848-0 01 1 1410- ● ●
198 NUT; PANEL
EXC. PTO MANUAL CONTROL<6WC> M6 THA 		9-09114-086-0 06 1 1410- ● ●
540 PANEL; FRONT,OUTER
IMA 		8-97585-962-3 01 1 1410- ● ●
543 CLOSING; FRT MTG RAIL
IMA 		8-97585-988-2 01 1 1410- ● ●
645 STUD; FRT PANEL
M6X12 IMA 		8-98013-112-0 06 1 1410- ● ●
646 REINFORCEMENT; DASH
IMA 		8-98023-098-1 01 1 1410- ● ●
646 REINFORCEMENT; DASH
IMA 		8-98023-099-1 01 1 1410- ● ●
647 REINFORCEMENT; WIPER MOTOR
IMA 		8-98006-327-0 01 1 1410- ● ●
654 PIN; FRT PANEL
IMA 		8-98021-967-2 02 1 1410- ● ●
