5-20 — BATTERY CARRIER (#151180) — 29 parça

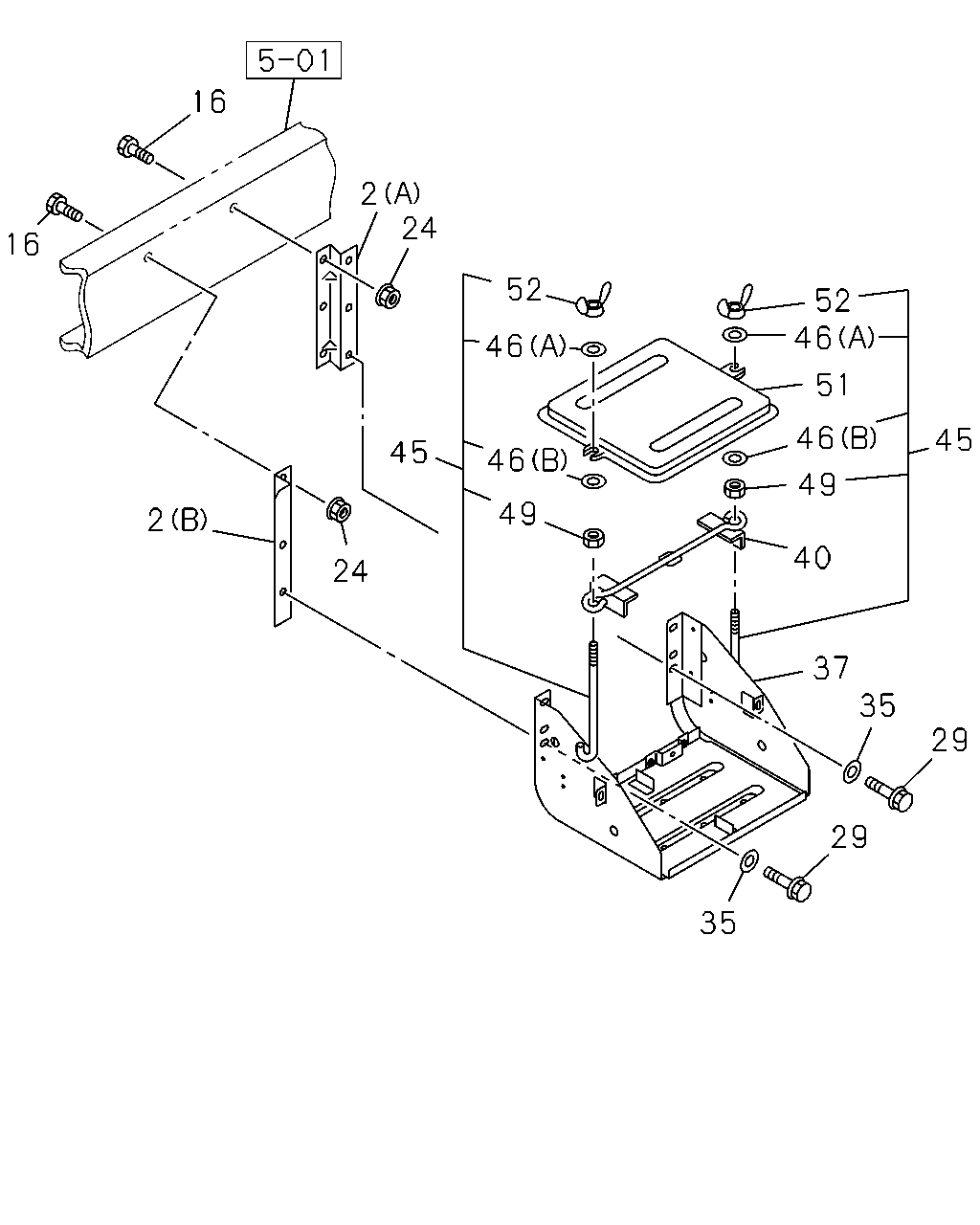

2 52 46 46 49 45 52 46 46 51 45 49 40 37 35 29 29 35 24 2 16 16 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BRACKET; BATTERY (A) IMA	8-97384-069-1	01	1	1410-	●
2	BRACKET; BATTERY WHEEL BASE 2400MM<24W> (A) IMA	8-97384-069-1	01	1	1410-		●
2	BRACKET; BATTERY (B) IMA	8-97384-070-1	01	1	1410-	●
2	BRACKET; BATTERY WHEEL BASE 2400MM<24W> (B) IMA	8-97384-070-1	01	1	1410-		●
16	BOLT; BRKT TO FRAME M10X35 FLANGE THA	0-28651-035-0	04	1	1410-	●
16	BOLT; BRKT TO FRAME WHEEL BASE 2400MM<24W> M10X35 FLANGE THA	0-28651-035-0	04	1	1410-		●
24	NUT; BRKT TO FRAME M10 FLANGE THA	0-91180-110-0	01	1	1410-	●
24	NUT; BRKT TO FRAME WHEEL BASE 2400MM<24W> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10 FLANGE THA	0-91180-110-0	01	1	1410-		●
29	BOLT; BRKT TO FRAME M10X35 FLANGE THA	0-28661-035-0	04	1	1410-	●	●
35	WASHER; PL,BATTERY CARRIER ID=10.5 OD=22 T=1.6 IMA	0-91610-610-0	04	1	1410-	●	●
37	BRACKET; BATTERY THA	8-97923-653-1	01	1	1410-	●	●
40	CLAMP; BATTERY THA	8-97910-232-0	01	1	1410-	●	●
45	ROD; TENSION,BATTERY THA	8-97926-647-0	02	1	1410-	●	●
46	WASHER; PL,BATTERY TO CARRIER (A) ID=8.4 OD=18 IMA	0-91614-608-0	02	1	1410-	●	●
46	WASHER; PL,BATTERY TO CARRIER (B) ID=8.4 OD=22 THA	0-91614-708-0	02	1	1410-	●	●
49	NUT; ROD,BATTERY M8 IMA	0-91110-508-0	02	1	1410-	●	●
51	COVER; BATTERY THA	8-97915-940-0	01	1	1410-	●	●
52	NUT; WING,COVER FIX M8 WING NUT THA	0-91118-408-0	02	1	1410-	●	●

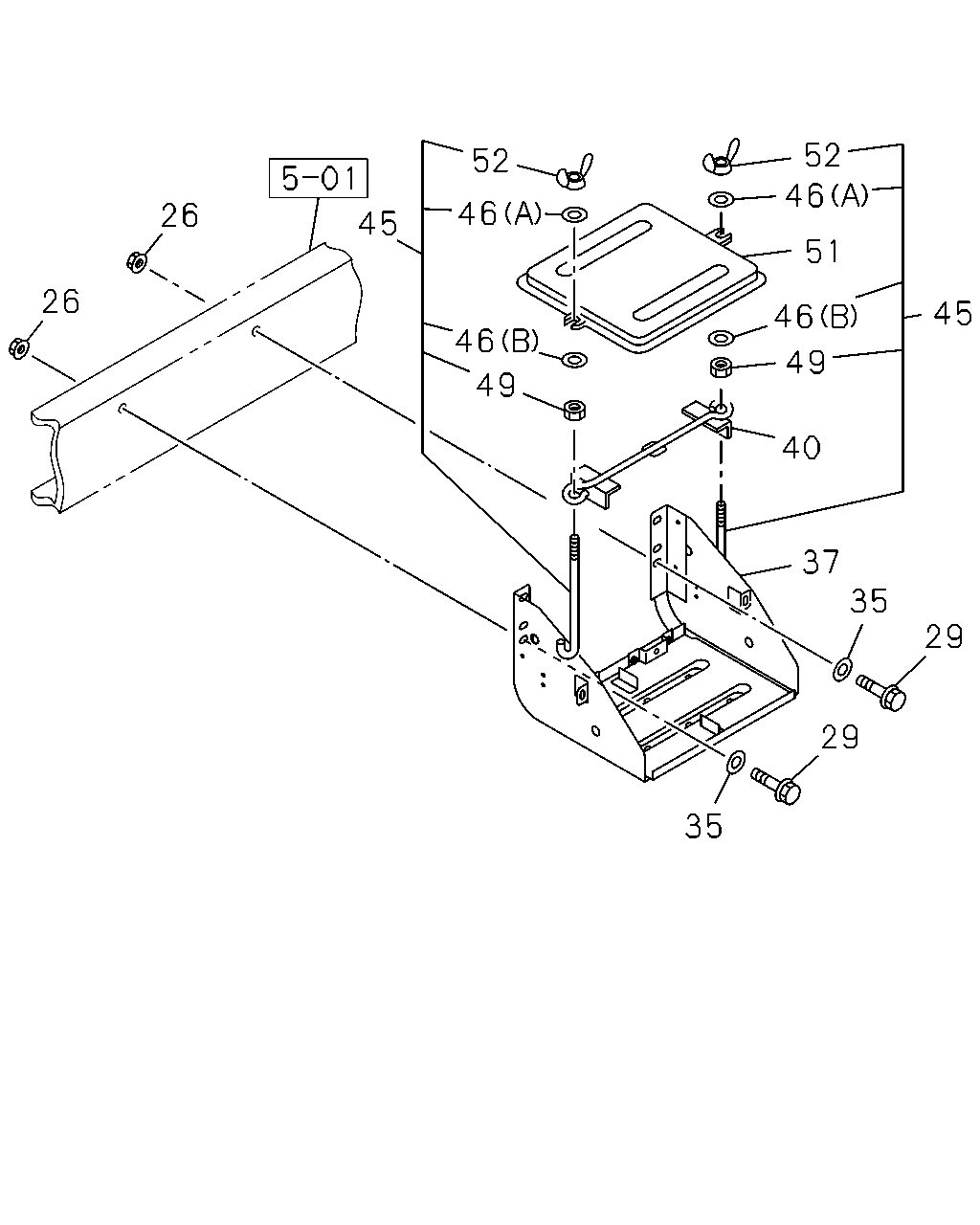

26 26 45 52 46 46 49 52 46 51 46 49 40 45 37 35 29 29 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; BRKT WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-210-0	04	1	1410-		●
29	BOLT; BRKT TO FRAME M10X35 FLANGE THA	0-28661-035-0	04	1	1410-	●	●
35	WASHER; PL,BATTERY CARRIER ID=10.5 OD=22 T=1.6 IMA	0-91610-610-0	04	1	1410-	●	●
37	BRACKET; BATTERY THA	8-97923-653-1	01	1	1410-	●	●
40	CLAMP; BATTERY THA	8-97910-232-0	01	1	1410-	●	●
45	ROD; TENSION,BATTERY THA	8-97926-647-0	02	1	1410-	●	●
46	WASHER; PL,BATTERY TO CARRIER (A) ID=8.4 OD=18 IMA	0-91614-608-0	02	1	1410-	●	●
46	WASHER; PL,BATTERY TO CARRIER (B) ID=8.4 OD=22 THA	0-91614-708-0	02	1	1410-	●	●
49	NUT; ROD,BATTERY M8 IMA	0-91110-508-0	02	1	1410-	●	●
51	COVER; BATTERY THA	8-97915-940-0	01	1	1410-	●	●
52	NUT; WING,COVER FIX M8 WING NUT THA	0-91118-408-0	02	1	1410-	●	●
