5-15 — CAB MOUNTING; CAB SIDE (#151179) — 48 parça

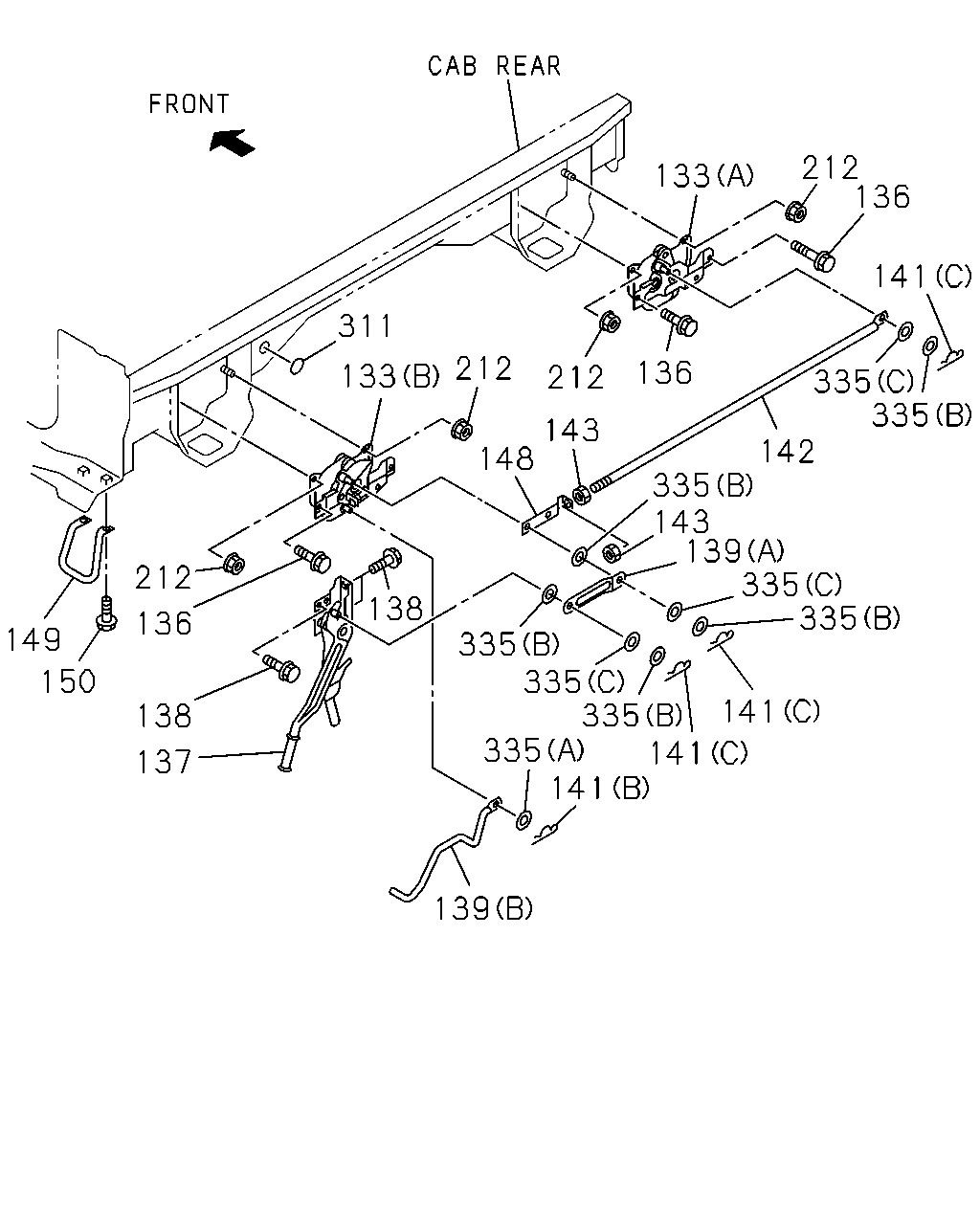

143 335 139 335 335 141 335 141 335 335 138 139 141 335 148 143 136 212 212 133 311 133 212 136 141 335 335 142 212 136 138 137 150 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B) IMA	8-97410-270-2	01	1	1410-	●	●
133	LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A) IMA	8-98182-353-0	01	1	1410-	●	●
136	BOLT; CAB LK MANUAL TILT CAB<RWZ> M8X20 FLANGE THA	0-28650-820-0	04	1	1410-	●	●
137	CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ> IMA	8-97411-004-3	01	1	1410-	●	●
138	BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> M8X20 FLANGE THA	0-28650-820-0	03	1	1410-	●	●
139	ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A) IMA	8-97584-483-2	01	1	1410-	●	●
139	ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B) IMA	8-98128-201-0	01	1	1410-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6 IMA	1-09987-142-0	01	1	1410-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3 IMA	8-98039-045-1	01	1	1410-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34 IMA	8-98039-426-1	03	1	1410-	●	●
142	ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ> IMA	8-97410-272-0	01	1	1410-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> M10 THA	0-91110-510-0	02	1	1410-	●	●
148	JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ> IMA	8-97410-736-0	01	1	1410-	●	●
149	HANDLE; TILT MANUAL TILT CAB<RWZ> IMA	8-98067-938-0	01	1	1410-	●	●
150	BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-	●	●
212	NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> M8 FLANGE THA	0-91180-108-0	04	1	1410-	●	●
311	SEAL; CAB LOCK OD=32 BLACK IMA	8-98031-126-0	01	1	1410-	●	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) ID=12.5 OD=22 IMA	0-91610-512-0	05	1	1410-	●	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) ID=8.4 OD=14 IMA	5-09550-002-0	01	1	1410-	●	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22 IMA	8-98060-839-0	03	1	1410-	●	●

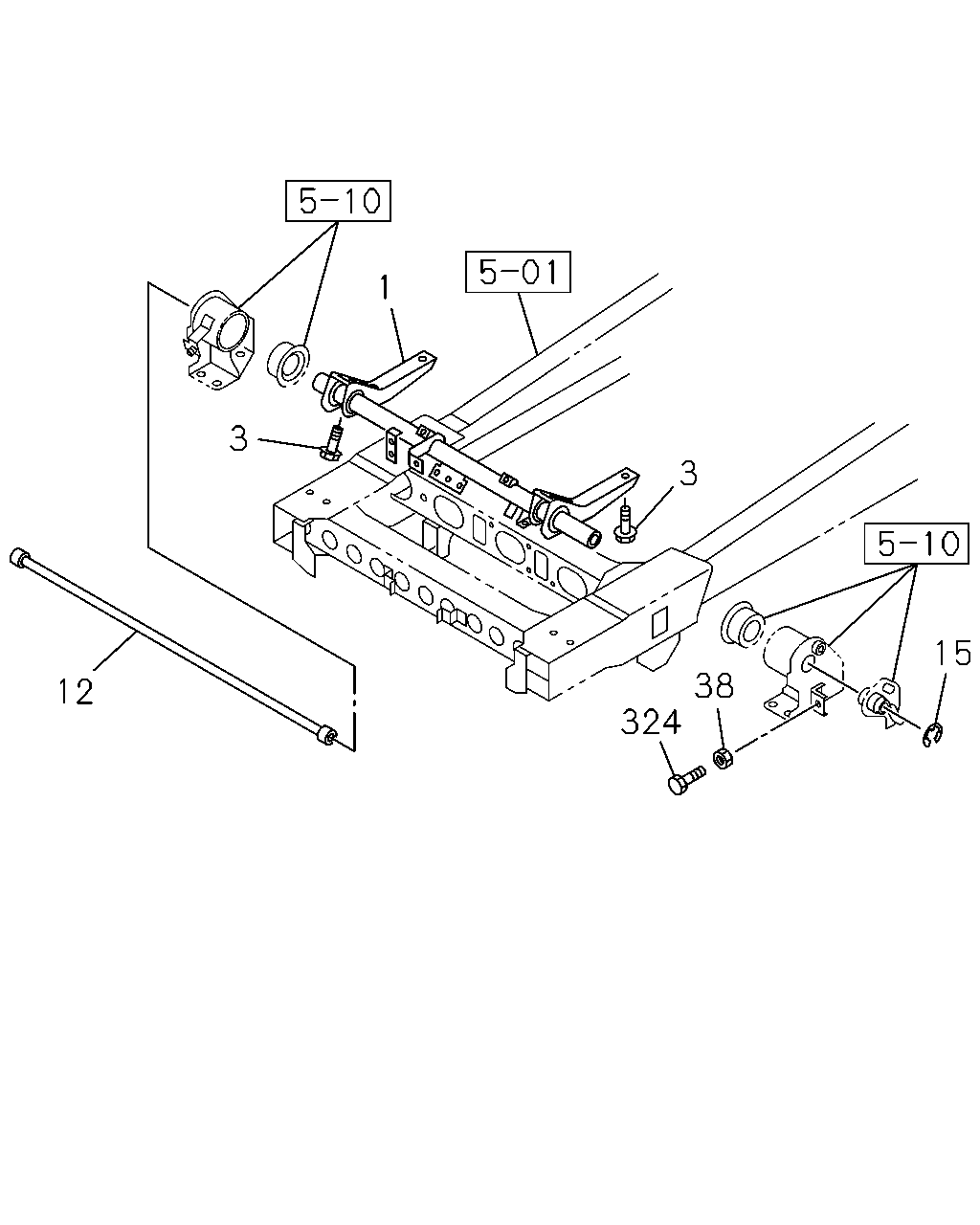

12 324 38 15 3 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; TORSION BAR MANUAL TILT CAB<RWZ> IMA	8-98001-433-2	01	1	1410-	●	●
3	BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER IMA	8-97359-033-0	06	1	1410-	●	●
12	BAR; TORSION,UPR MANUAL TILT CAB<RWZ> IMA	8-98001-520-0	01	1	1410-	●	●
15	RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ> IMA	8-97359-034-0	01	1	1410-	●	●
38	NUT; LK MANUAL TILT CAB<RWZ> M14 IMA	8-98039-988-0	01	1	1410-	●	●
324	BOLT; ADJUST MANUAL TILT CAB<RWZ> M14X55 IMA	8-98004-319-1	01	1	1410-	●	●

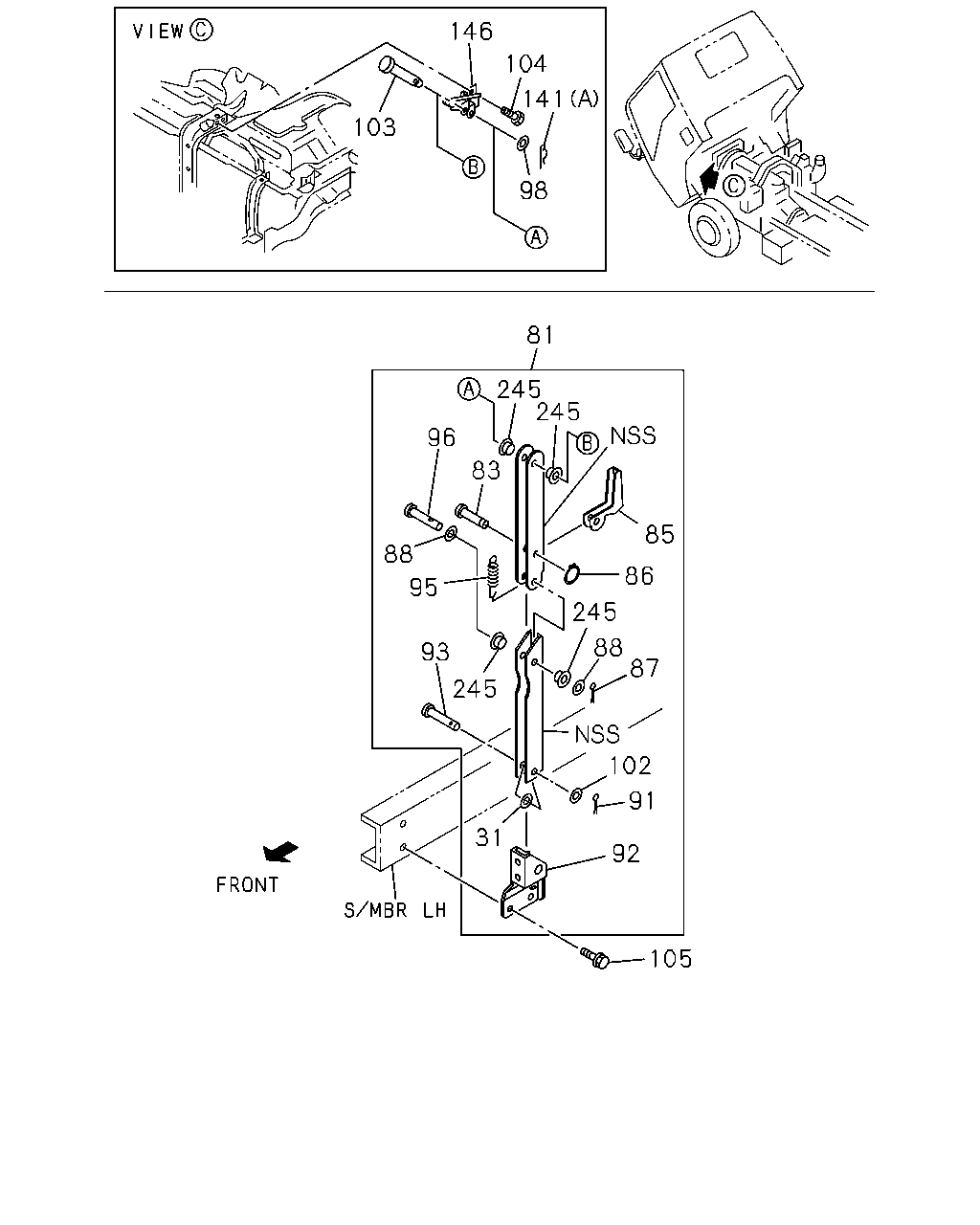

81 245 245 96 83 88 95 93 245 88 245 85 86 87 102 91 92 105 31 98 141 104 146 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	WASHER; WAVE MANUAL TILT CAB<RWZ> ID=13 OD=22 IMA	8-98060-839-0	01	1	1410-	●	●
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> IMA	8-98123-313-0	01	1	1410-	●	●
83	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> IMA	8-98122-493-0	01	1	1410-	●	●
85	LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> IMA	8-94331-481-0	01	1	1410-	●	●
86	RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> ID=6 IMA	0-91805-506-0	01	1	1410-	●	●
87	PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> OD=2.8 L=20 IMA	0-81123-020-0	01	1	1410-	●	●
88	WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> ID=10.5 OD=22 T=1.6 IMA	0-91610-610-0	02	1	1410-	●	●
91	PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> OD=3.7 L=20 IMA	0-81124-020-0	01	1	1410-	●	●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> IMA	8-97385-586-1	01	1	1410-	●	●
93	PIN; CAB STAY MANUAL TILT CAB<RWZ> IMA	8-98122-498-0	01	1	1410-	●	●
95	SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> IMA	8-94160-167-2	01	1	1410-	●	●
96	PIN; JOINT MANUAL TILT CAB<RWZ> IMA	8-98123-513-0	01	1	1410-	●	●
98	WASHER; CAB STAY MANUAL TILT CAB<RWZ> ID=10.5 T=2.0 IMA	1-09985-183-0	01	1	1410-	●	●
102	WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> ID=12.5 OD=26 IMA	0-91610-612-0	01	1	1410-	●	●
103	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48 IMA	1-09744-107-0	01	1	1410-	●	●
104	BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE IMA	0-28660-820-0	03	1	1410-	●	●
105	BOLT; CAB STAY MANUAL TILT CAB<RWZ> M10X30 FLANGE THA	0-28651-030-0	02	1	1410-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6 IMA	1-09987-142-0	01	1	1410-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3 IMA	8-98039-045-1	01	1	1410-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34 IMA	8-98039-426-1	03	1	1410-	●	●
146	BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ> IMA	8-98001-523-1	01	1	1410-	●	●
245	BUSHING; CAB STAY MANUAL TILT CAB<RWZ> IMA	1-62500-587-0	04	1	1410-	●	●
