5-10 — CAB MOUNTING; FRAME SIDE (#151178) — 21 parça

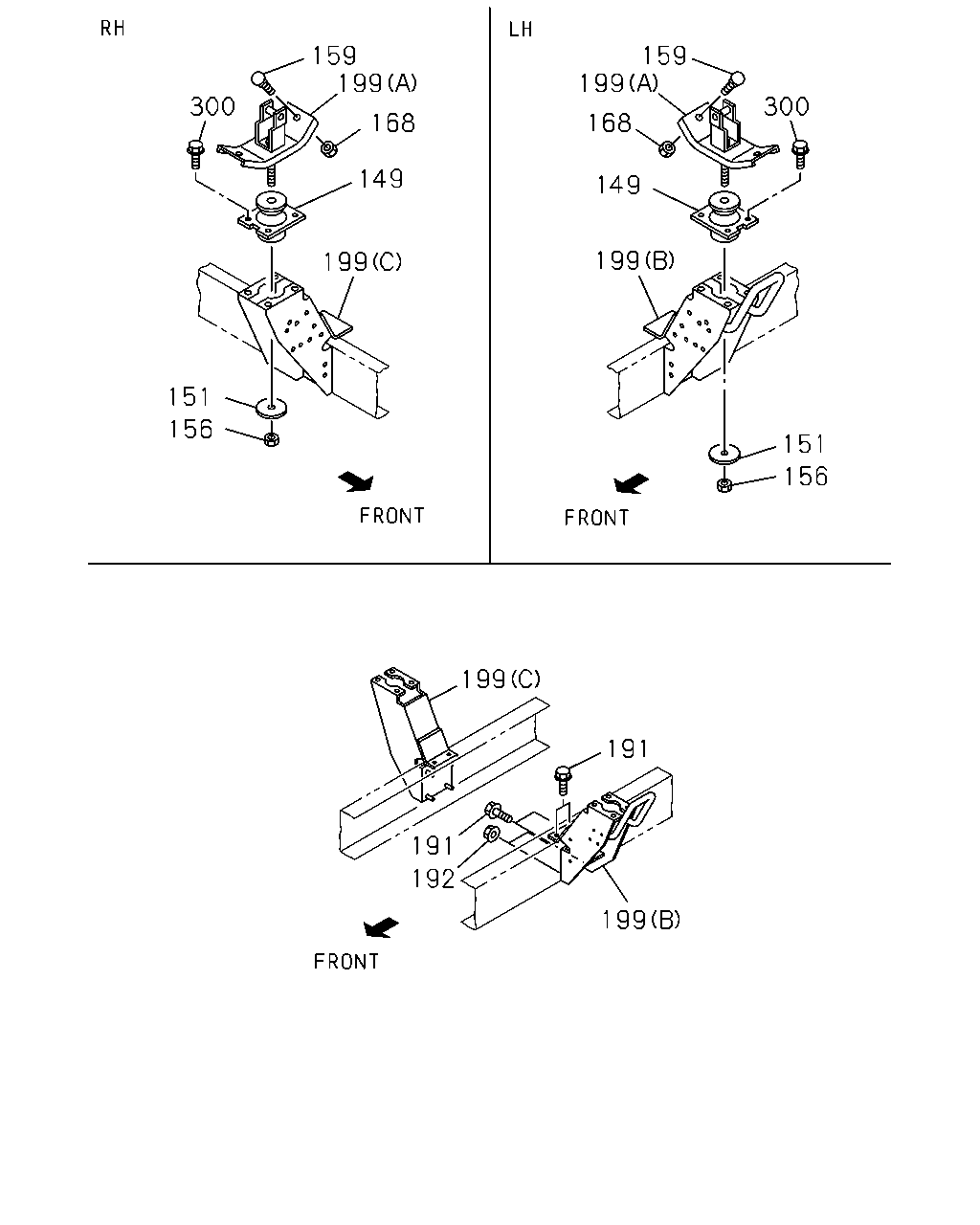

çizim 450862
300 159 199 168 149 199 151 156 199 168 149 199 159 300 151 156 199 191 191 192 199
BalonParca AdiParca NoAdetTipApplied Date A B
149 RUBBER; MTG,CAB,UPR RR
MANUAL TILT CAB<RWZ> IMA 		8-98021-561-1 02 1 1410- ● ●
151 WASHER; CAB MTG,RR UPR
MANUAL TILT CAB<RWZ> ID=17 OD=62 IMA 		8-97359-042-1 02 1 1410- ● ●
156 NUT; CAB MTG RR
MANUAL TILT CAB<RWZ> M16 THA 		0-91111-516-0 02 1 1410- ● ●
159 RUBBER; CUSHION,CAB MTG
MANUAL TILT CAB<RWZ> IMA 		8-97113-340-0 04 1 1410- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
MANUAL TILT CAB<RWZ> M8 FLANGE THA 		0-91180-108-0 04 1 1410- ● ●
191 BOLT; BRKT FIX
M12X35 FLANGE THA 		0-28651-235-0 08 1 1410- ● ●
192 NUT; BRKT FIX
M12 FLANGE THA 		0-91180-112-0 04 1 1410- ● ●
199 BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (A) IMA 		8-98036-883-0 02 1 1410- ● ●
199 BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (C) THA 		8-98001-443-4 01 1 1410- ● ●
199 BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (B) THA 		8-98001-444-2 01 1 1410- ● ●
300 BOLT; MTG RUBBER
M10X20 FLANGE THA 		0-28651-020-0 08 1 1410- ● ●

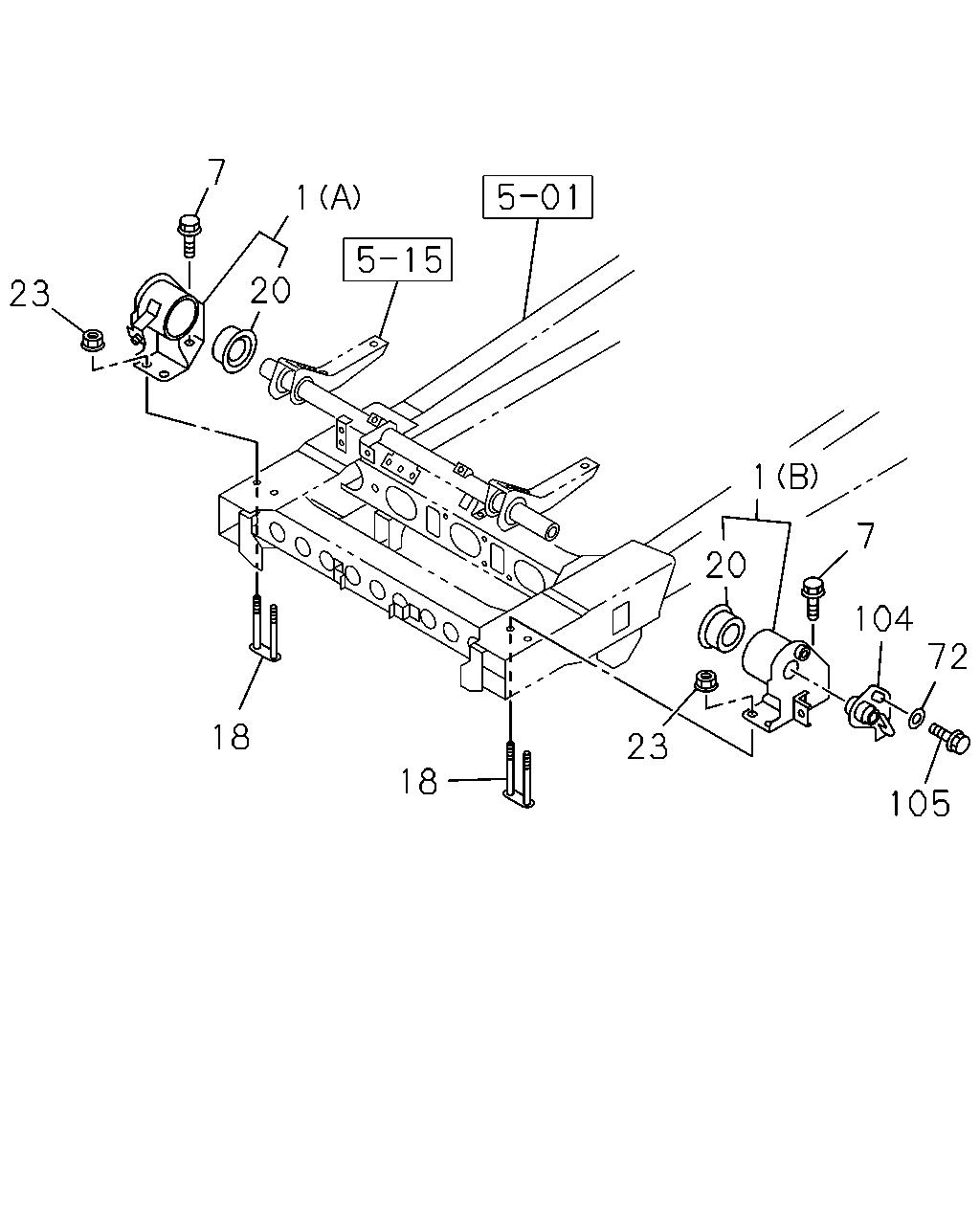

çizim 451293
23 7 1 20 18 18 23 20 7 1 104 72 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG
(B) IMA 		8-98021-410-5 01 1 1410- ● ●
1 BRACKET; CAB MTG
(A) IMA 		8-98021-407-6 01 1 1410- ● ●
7 BOLT; BRKT,CAB TILT
M14X40 FLANGE IMA 		0-28661-440-0 02 1 1410- ● ●
18 PLATE; MTG BRKT FIX
IMA 		8-98029-285-1 02 1 1410- ● ●
20 RUBBER; MTG,CAB BRKT
IMA 		8-98007-037-1 01 1 1410- ● ●
20 RUBBER; MTG,CAB BRKT
MANUAL TILT CAB<RWZ> IMA 		8-98007-037-1 01 1 1410- ● ●
23 NUT; MTG BRKT
M14 IMA 		8-98039-989-0 04 1 1410- ● ●
72 WASHER; PL,BRKT TO FRAME
MANUAL TILT CAB<RWZ> ID=15 OD=36 IMA 		0-91614-714-0 01 1 1410- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG
MANUAL TILT CAB<RWZ> IMA 		8-97383-788-1 01 1 1410- ● ●
105 BOLT; BRKT TO CAB FRAME
MANUAL TILT CAB<RWZ> M14X35 FLANGE IMA 		0-28661-435-0 01 1 1410- ● ●
