Isuzu WW
▶
TRUCKS
▶
NLR
▶
51567 - NLR/NMR THAILAND
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#151177) — 78 parça
Tümü
A - NMR5SE
B - NMR5SN
◀
[501A] CROSS MEMBER AND BRACKET(NO.4) (13 parça)
[501A] FRAME ASM (3 parça)
[501A] CROSS MEMBER AND BRACKET(NO.1) (12 parça)
[501A] CROSS MEMBER AND BRACKET(NO.2) (10 parça)
[501A] CROSS MEMBER AND BRACKET(NO.3) (6 parça)
[501A] CROSS MEMBER AND BRACKET(NO.5) (10 parça)
[501A] RIVET,BOLT,NUT (24 parça)
▶
173
173
105
215
105
215
103
147
103
147
101
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
101
BRACKET; RR SPR,FRT
(A) IMA
8-98034-042-0
02
1
1410-
●
101
BRACKET; RR SPR,FRT
WHEEL BASE 2400MM<24W> (B) IMA
8-97034-156-1
02
1
1410-
●
101
BRACKET; RR SPR,FRT
WHEEL BASE 3300MM<33W> (B) IMA
8-97042-245-1
02
1
1410-
●
103
STOPPER; SUB SPR
(B) IMA
8-97223-748-0
02
1
1410-
●
103
STOPPER; SUB SPR
(A) IMA
8-97223-750-0
02
1
1410-
●
105
BRACKET; RR SPR,RR
FRONT STABILIZER SHAFT<F59> VIN MODEL YEAR 2011<VZB> SINGLE RR TIRE<6TD> (A) THA
8-97948-645-0
01
1
1410-
●
105
BRACKET; RR SPR,RR
FRONT STABILIZER SHAFT<F59> VIN MODEL YEAR 2011<VZB> SINGLE RR TIRE<6TD> (A) THA
8-97948-644-0
01
1
1410-
●
105
BRACKET; RR SPR,RR
(B) IMA
8-98032-488-0
01
1
1410-
●
105
BRACKET; RR SPR,RR
(B) IMA
8-98032-489-0
01
1
1410-
●
147
RUBBER; SUB SPRING
IMA
8-97254-387-0
04
1
1410-
●
173
STIFFENER; RR SPRING
(B) THA
8-98012-947-3
02
1
1410-
●
173
STIFFENER; RR SPRING
WHEEL BASE 2400MM<24W> (A) IMA
8-98012-948-2
02
1
1410-
●
215
BUSHING; BRKT,RR SPRING
THA
8-97184-699-1
04
1
1410-
●

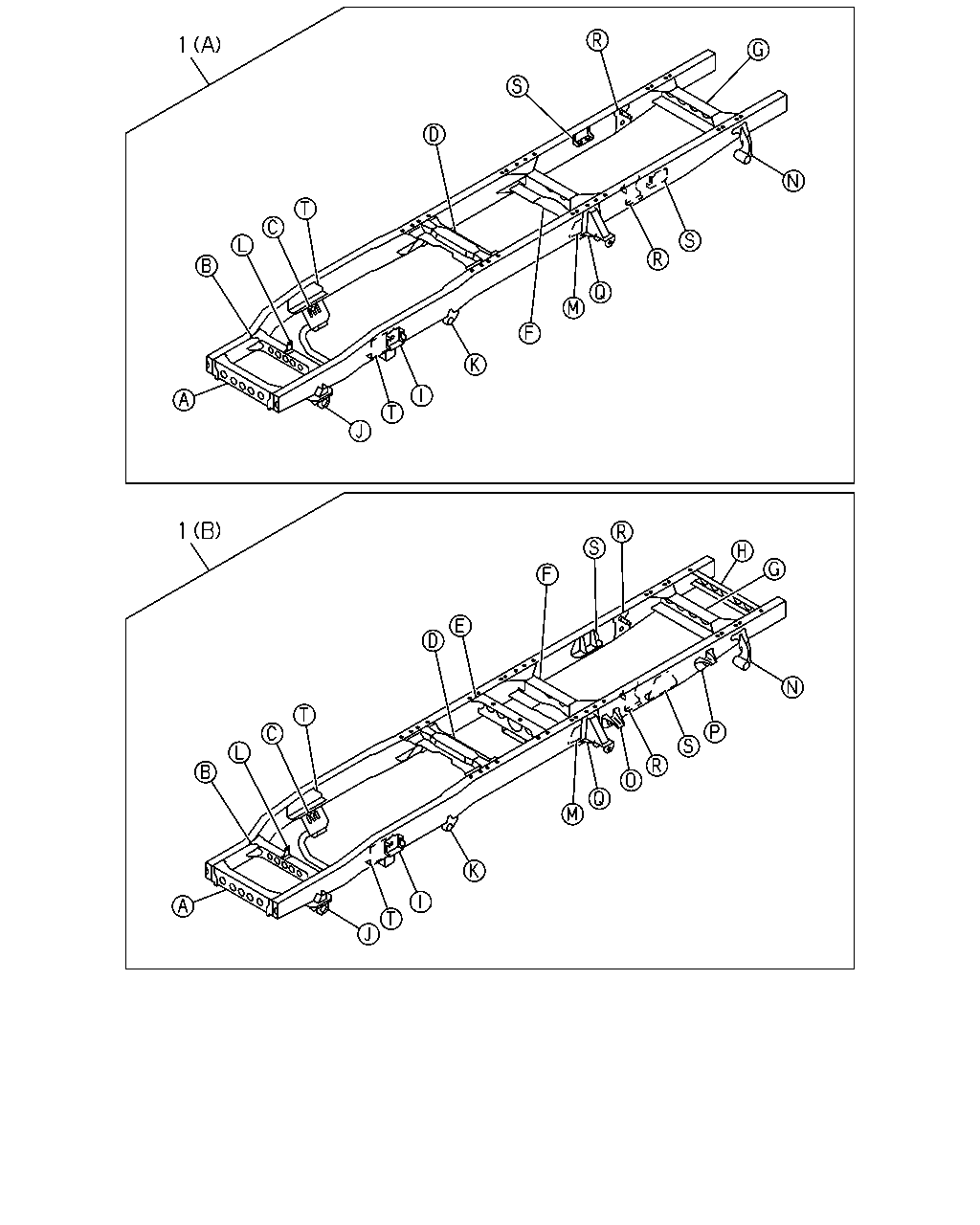

1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FRAME ASM
VIN MODEL YEAR 2011<VZB> (A) THA
8-97926-842-0
01
1
1410-
●
1
FRAME ASM
WHEEL BASE 2400MM<24W> (A) THA
8-97924-374-4
01
1
1410-
●
1
FRAME ASM
WHEEL BASE 3300MM<33W> (B) THA
8-97924-372-3
01
1
1410-
●

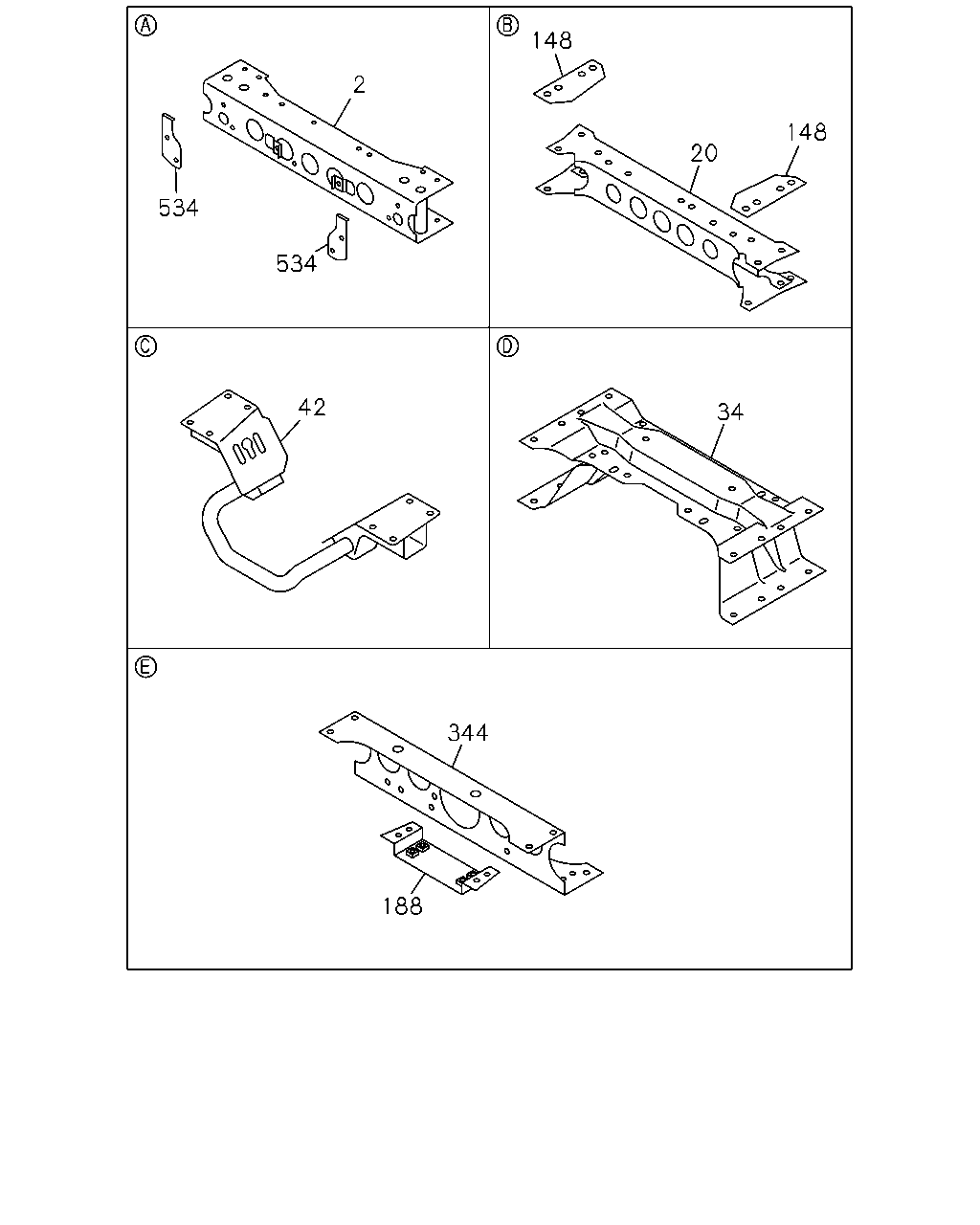

534
2
534
148
20
148
34
42
344
188
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
THA
8-97924-339-2
01
1
1410-
●
●
20
MEMBER; CROSS,2ND
THA
8-97924-340-0
01
1
1410-
●
●
34
MEMBER; CROSS,3RD
VIN MODEL YEAR 2011<VZB> IMA
8-98081-959-0
01
1
1410-
●
34
MEMBER; CROSS,3RD
WHEEL BASE 2400MM<24W> IMA
8-98081-959-0
01
1
1410-
●
34
MEMBER; CROSS,3RD
WHEEL BASE 3300MM<33W> THA
8-97924-342-0
01
1
1410-
●
42
MEMBER; CROSS,ENG MTG
THA
8-97924-341-0
01
1
1410-
●
●
148
SPACER; C/MBR
VIN MODEL YEAR 2011<VZB> IMA
8-98081-958-0
04
1
1410-
●
148
SPACER; C/MBR
WHEEL BASE 2400MM<24W> IMA
8-98081-958-0
04
1
1410-
●
188
BRACKET; SUPPORT,CTR BRG
WHEEL BASE 3300MM<33W> THA
8-97083-157-1
01
1
1410-
●
344
MEMBER; CROSS,4TH
WHEEL BASE 3300MM<33W> THA
8-97924-343-0
01
1
1410-
●
534
BRACKET; BACK BAR
IMA
8-98061-413-0
01
1
1410-
●
●
534
BRACKET; BACK BAR
IMA
8-98061-414-0
01
1
1410-
●
●
75
75
75
345
345
75
198
198
198
198
139
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
75
GUSSET; 5TH C/MBR
(A) THA
8-97924-487-0
01
1
1410-
●
75
GUSSET; 5TH C/MBR
(A) THA
8-97924-488-0
01
1
1410-
●
75
GUSSET; 5TH C/MBR
(B) THA
8-97924-345-0
04
1
1410-
●
139
MEMBER; CROSS,6TH
(B) THA
8-97924-349-0
01
1
1410-
●
139
MEMBER; CROSS,6TH
(A) THA
8-97924-348-0
01
1
1410-
●
198
GUSSET; 6TH C/MBR
VIN MODEL YEAR 2011<VZB> (B) THA
8-97925-670-0
01
1
1410-
●
198
GUSSET; 6TH C/MBR
VIN MODEL YEAR 2011<VZB> (B) THA
8-97925-671-0
01
1
1410-
●
198
GUSSET; 6TH C/MBR
(A) RH UPPER & LH LOWER THA
8-97924-489-0
02
1
1410-
●
198
GUSSET; 6TH C/MBR
(A) RH LOWER & LH UPPER THA
8-97924-490-0
02
1
1410-
●
345
MEMBER; CROSS,5TH
THA
8-97924-344-0
01
1
1410-
●
●
130
51
24
39
165
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
BRACKET; FRT SPR,FRT
IMA
8-98029-126-0
01
1
1410-
●
●
24
BRACKET; FRT SPR,FRT
IMA
8-98029-127-0
01
1
1410-
●
●
39
BRACKET; FRT SPR,RR
IMA
8-94258-091-0
02
1
1410-
●
●
51
BRACKET; ENG SUPPORT,OUTER
IMA
8-98038-962-3
02
1
1410-
●
●
130
MEMBER; CROSS,END
WHEEL BASE 3300MM<33W> THA
8-97924-353-0
01
1
1410-
●
165
BRACKET; RAD STAY
IMA
8-98000-886-0
01
1
1410-
●
●
140
140
140
217
217
217
356
356
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
140
BRACKET; S/ABS,RR
(A) IMA
8-98006-174-0
02
1
1410-
●
140
BRACKET; S/ABS,RR
(C) IMA
8-98006-180-0
01
1
1410-
●
140
BRACKET; S/ABS,RR
(B) IMA
8-98006-176-0
01
1
1410-
●
217
BRACKET; HELPER RUBBER,RR SPRING
VIN MODEL YEAR 2011<VZB> (A) IMA
8-97163-899-1
02
1
1410-
●
217
BRACKET; HELPER RUBBER,RR SPRING
WHEEL BASE 2400MM<24W> (B) THA
8-97202-417-0
02
1
1410-
●
217
BRACKET; HELPER RUBBER,RR SPRING
WHEEL BASE 3300MM<33W> (C) IMA
8-98006-210-0
02
1
1410-
●
356
BRACKET; ENG SUPPORT,INNER
(A) IMA
8-98062-610-1
AR
1
1410-
●
356
BRACKET; ENG SUPPORT,INNER
WHEEL BASE 2400MM<24W> (A) IMA
8-98062-610-1
AR
1
1410-
●
356
BRACKET; ENG SUPPORT,INNER
(B) IMA
8-98062-611-1
AR
1
1410-
●
356
BRACKET; ENG SUPPORT,INNER
WHEEL BASE 2400MM<24W> (B) IMA
8-98062-611-1
AR
1
1410-
●
376
376
376
376
376
376
376
376
376
376
376
376
376
376
40
81
60
176
40
118
62
64
67
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
40
BOLT; BRKT TO FRAME
VIN MODEL YEAR 2011<VZB> (B) M10X40 FLANGE IMA
0-28661-040-0
12
1
1410-
●
40
BOLT; BRKT TO FRAME
WHEEL BASE 3300MM<33W> (A) M8X20 FLANGE THA
0-28050-820-0
04
1
1410-
●
60
BOLT; MBR
M10X30 IMA
0-20851-030-0
04
1
1410-
●
●
62
NUT; MBR
M10 FLANGE THA
0-91180-210-0
04
1
1410-
●
●
64
NUT; BRKT TO FRAME
M10 FLANGE THA
0-91180-210-0
12
1
1410-
●
67
NUT; C/MBR
M10 FLANGE THA
0-91180-210-0
04
1
1410-
●
●
81
BOLT; BRKT
M10X25 FLANGE THA
0-28061-025-0
14
1
1410-
●
82
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
14
1
1410-
●
118
NUT; STOPPER
M8 LOCK NUT IMA
0-91370-008-0
02
1
1410-
●
176
BOLT; C/MBR,ENG MTG
M10X30 FLANGE IMA
0-28051-030-0
08
1
1410-
●
●
376
RIVET; FRAME
(A) D8X22 TAPER END IMA
9-06750-822-0
AR
1
1410-
●
●
376
RIVET; FRAME
(B) D8X26 TAPER END IMA
9-06750-826-0
AR
1
1410-
●
●
376
RIVET; FRAME
(C) D10X22 TAPER END IMA
9-06751-022-0
AR
1
1410-
●
●
376
RIVET; FRAME
(D) D10X24 TAPER END IMA
9-06751-024-0
AR
1
1410-
●
●
376
RIVET; FRAME
(E) D10X26 TAPER END IMA
9-06751-026-0
AR
1
1410-
●
●
376
RIVET; FRAME
(F) D10X28 TAPER END IMA
9-06751-028-0
AR
1
1410-
●
●
376
RIVET; FRAME
(G) D10X30 TAPER END IMA
9-06751-030-0
AR
1
1410-
●
●
376
RIVET; FRAME
(H) D10X32 TAPER END IMA
9-06751-032-0
AR
1
1410-
●
●
376
RIVET; FRAME
(I) D10X34 TAPER END IMA
9-06751-034-0
AR
1
1410-
●
●
376
RIVET; FRAME
(J) D10X36 TAPER END IMA
9-06751-036-0
AR
1
1410-
●
●
376
RIVET; FRAME
(K) D12X30 TAPER END IMA
9-06751-230-0
AR
1
1410-
●
●
376
RIVET; FRAME
(L) D12X32 TAPER END IMA
9-06751-232-0
AR
1
1410-
●
●
376
RIVET; FRAME
(M) D12X34 TAPER END IMA
9-06751-234-0
AR
1
1410-
●
●
376
RIVET; FRAME
(N) D12X36 TAPER END IMA
9-06751-236-0
AR
1
1410-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
