4-80 — ROAD WHEEL (#151176) — 32 parça

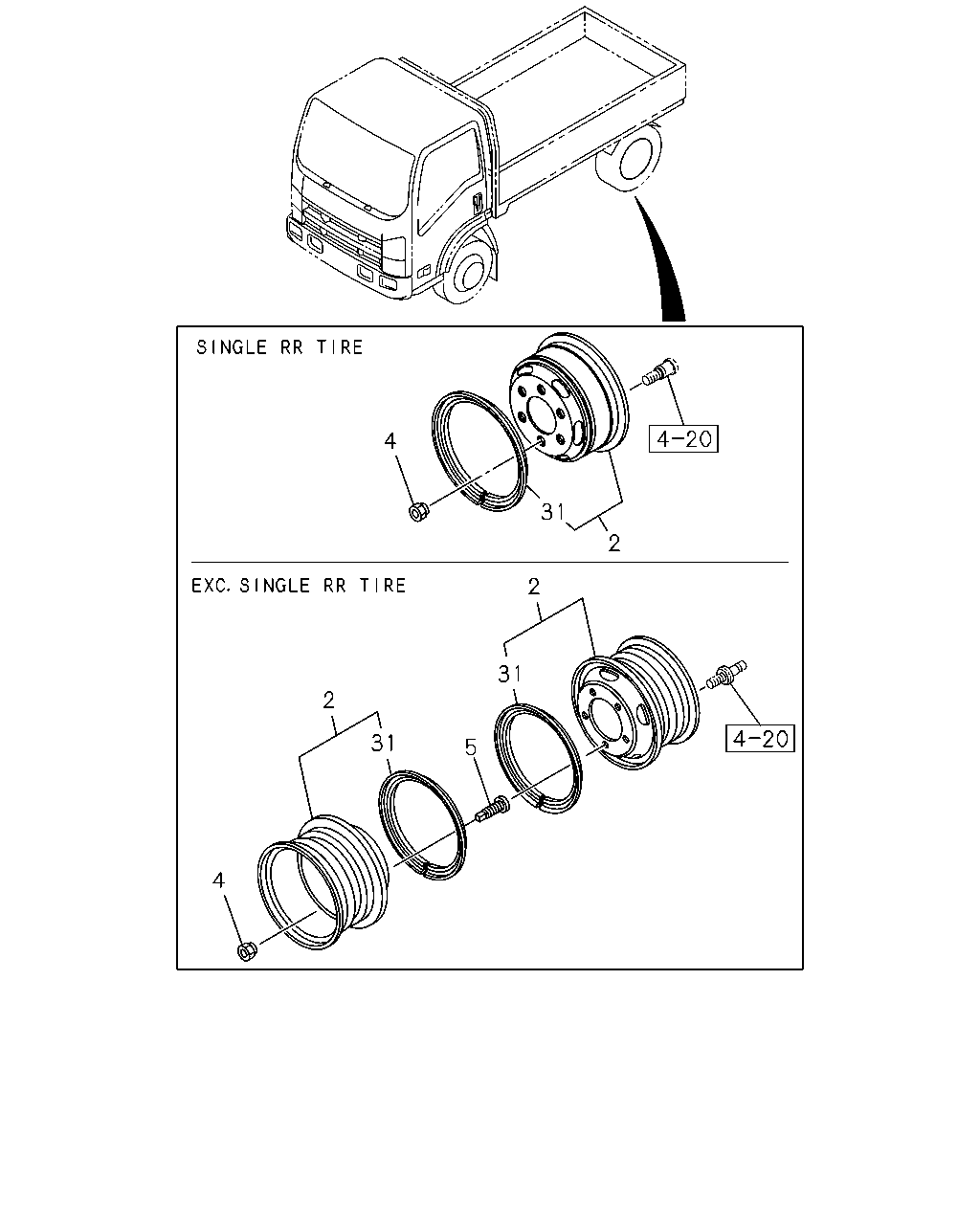

4 31 2 2 31 5 2 31 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE THA	8-94128-561-0	01	1	1410-	●
2	WHEEL; DISC FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE THA	8-94128-561-0	04	1	1410-	●
2	WHEEL; DISC SPARE THA	8-97915-709-0	01	1	1410-		●
2	WHEEL; DISC FRONT,REAR THA	8-97915-709-0	06	1	1410-		●
4	NUT; WHEEL,RR AXLE SINGLE RR TIRE<6TD> M14 RH THREAD IMA	8-98007-905-0	06	1	1410-	●
4	NUT; WHEEL,RR AXLE SINGLE RR TIRE<6TD> M14 LH THREAD IMA	8-98007-906-0	06	1	1410-	●
4	NUT; WHEEL,RR AXLE EXC. SINGLE RR TIRE<6TD> M27 RH THREAD IMA	8-98007-824-0	05	1	1410-	●
4	NUT; WHEEL,RR AXLE M27 RH THREAD IMA	8-98007-824-0	05	1	1410-		●
4	NUT; WHEEL,RR AXLE EXC. SINGLE RR TIRE<6TD> M27 LH THREAD IMA	8-98007-825-0	05	1	1410-	●
4	NUT; WHEEL,RR AXLE M27 LH THREAD IMA	8-98007-825-0	05	1	1410-		●
5	NUT; WHEEL,INNER,RR AXLE EXC. SINGLE RR TIRE<6TD> OUTER M27,INNER M18 RH THREAD IMA	8-98007-810-0	05	1	1410-	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD IMA	8-98007-810-0	05	1	1410-		●
5	NUT; WHEEL,INNER,RR AXLE EXC. SINGLE RR TIRE<6TD> OUTER M27,INNER M18 LH THREAD IMA	8-98007-811-0	05	1	1410-	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD IMA	8-98007-811-0	05	1	1410-		●
31	RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK IMA	8-94135-601-0	01	1	1410-	●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK IMA	8-94135-601-0	04	1	1410-	●
31	RING; SIDE,DISC WHEEL SPARE THA	8-97916-782-0	01	1	1410-		●
31	RING; SIDE,DISC WHEEL FRONT,REAR THA	8-97916-782-0	06	1	1410-		●

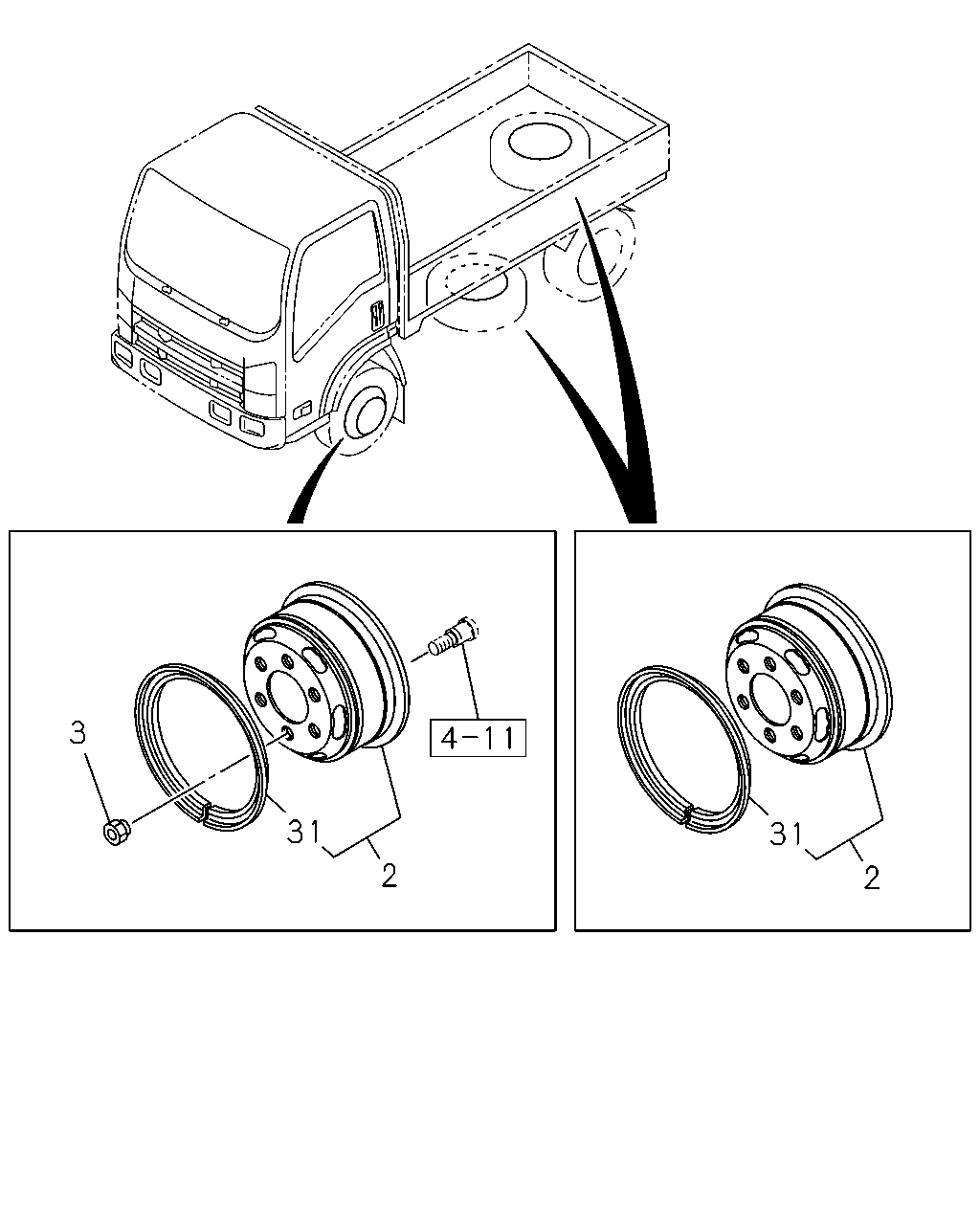

3 2 2 31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE THA	8-94128-561-0	01	1	1410-	●
2	WHEEL; DISC FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE THA	8-94128-561-0	04	1	1410-	●
2	WHEEL; DISC SPARE THA	8-97915-709-0	01	1	1410-		●
2	WHEEL; DISC FRONT,REAR THA	8-97915-709-0	06	1	1410-		●
3	NUT; WHEEL,FRT AXLE SINGLE RR TIRE<6TD> M14 RH THREAD IMA	8-98007-905-0	06	1	1410-	●
3	NUT; WHEEL,FRT AXLE SINGLE RR TIRE<6TD> M14 LH THREAD IMA	8-98007-906-0	06	1	1410-	●
3	NUT; WHEEL,FRT AXLE EXC. SINGLE RR TIRE<6TD> M18 RH THREAD IMA	8-98007-907-0	05	1	1410-	●
3	NUT; WHEEL,FRT AXLE M18 RH THREAD IMA	8-98007-907-0	05	1	1410-		●
3	NUT; WHEEL,FRT AXLE EXC. SINGLE RR TIRE<6TD> M18 LH THREAD IMA	8-98007-908-0	05	1	1410-	●
3	NUT; WHEEL,FRT AXLE M18 LH THREAD IMA	8-98007-908-0	05	1	1410-		●
31	RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK IMA	8-94135-601-0	01	1	1410-	●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK IMA	8-94135-601-0	04	1	1410-	●
31	RING; SIDE,DISC WHEEL SPARE THA	8-97916-782-0	01	1	1410-		●
31	RING; SIDE,DISC WHEEL FRONT,REAR THA	8-97916-782-0	06	1	1410-		●
