Isuzu WW
▶
TRUCKS
▶
NLR
▶
51567 - NLR/NMR THAILAND
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶
4-60 — REAR SUSPENSION
(#151172) — 37 parça
Tümü
A - NMR5SE
B - NMR5SN
◀

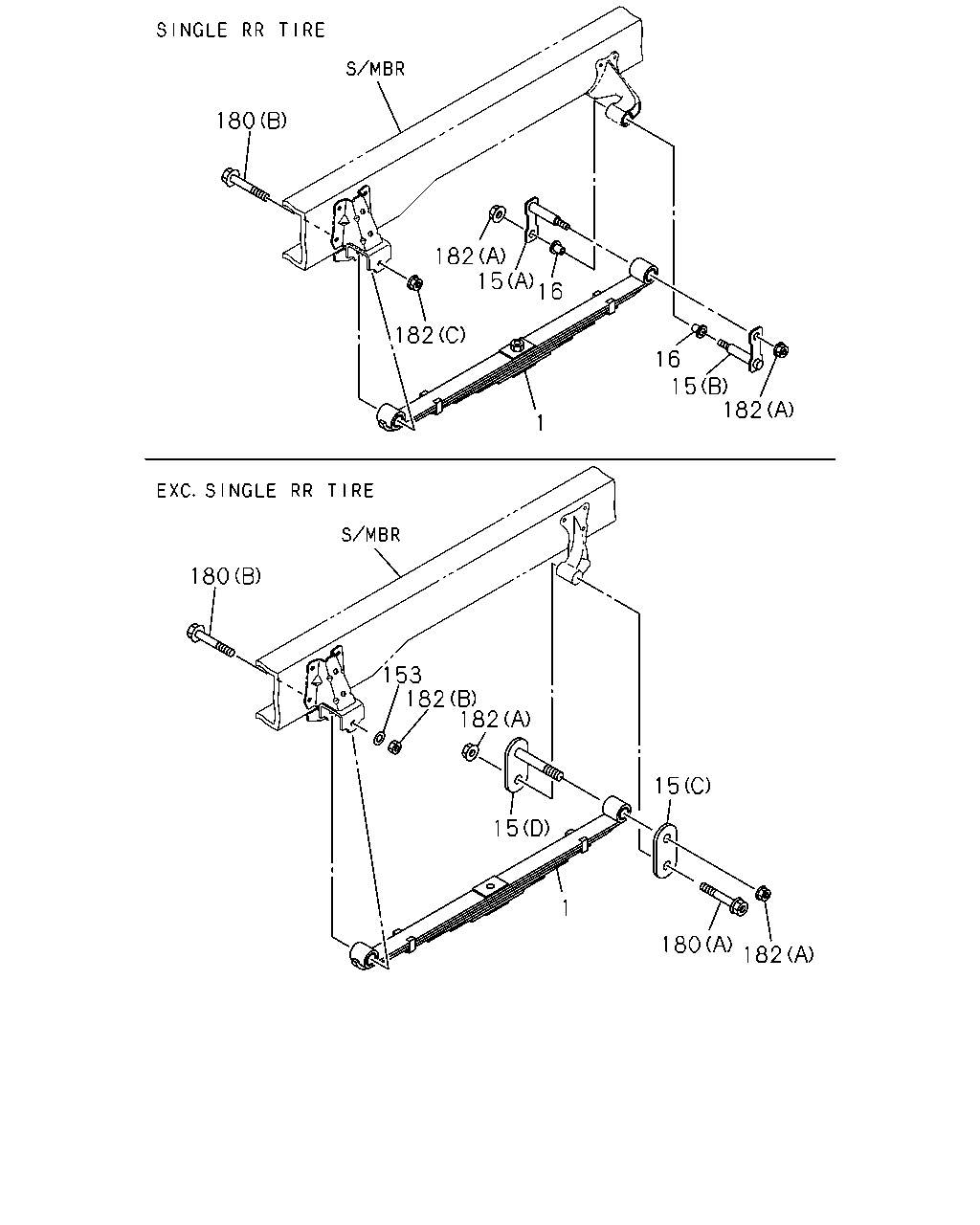

[460A] NO.1 (19 parça)
[460A] NO.2 (18 parça)
▶
180
182
182
15
16
16
15
180
182
153
182
182
15
15
180
182
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SINGLE RR TIRE<6TD> 5-LEAF THA
8-98001-551-1
02
1
1410-
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON<RPT> REAR WIDE TREAD<V4T> 10-LEAF THA
8-98022-373-0
02
1
1410-
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON<RPW> REAR WIDE TREAD<V4T> 10-LEAF THA
8-98022-374-0
02
1
1410-
●
15
SHACKLE; RR SPR
SINGLE RR TIRE<6TD> (B) IMA
8-94113-322-3
02
1
1410-
●
15
SHACKLE; RR SPR
SINGLE RR TIRE<6TD> (A) IMA
8-97033-966-1
02
1
1410-
●
15
SHACKLE; RR SPR
EXC. SINGLE RR TIRE<6TD> (C) IMA
8-94118-511-3
02
1
1410-
●
15
SHACKLE; RR SPR
(C) IMA
8-94118-511-3
02
1
1410-
●
15
SHACKLE; RR SPR
EXC. SINGLE RR TIRE<6TD> (D) IMA
8-97360-011-0
02
1
1410-
●
15
SHACKLE; RR SPR
(D) IMA
8-97360-011-0
02
1
1410-
●
16
BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE<6TD> IMA
8-94113-323-2
04
1
1410-
●
153
WASHER; PL,SPRING PIN
EXC. SINGLE RR TIRE<6TD> ID=19 IMA
8-97360-119-0
02
1
1410-
●
153
WASHER; PL,SPRING PIN
ID=19 IMA
8-97360-119-0
02
1
1410-
●
180
PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M16X122 IMA
8-98011-487-0
02
1
1410-
●
●
180
PIN; RR SPR
KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE<6TD> (A) M18X130 IMA
8-98011-488-0
02
1
1410-
●
180
PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) M18X130 IMA
8-98011-488-0
02
1
1410-
●
182
NUT; PIN,RR SPR
SINGLE RR TIRE<6TD> (C) M16 FLANGE IMA
8-97360-125-0
02
1
1410-
●
182
NUT; PIN,RR SPR
(A) M16 FLANGE IMA
8-97360-125-0
04
1
1410-
●
●
182
NUT; PIN,RR SPR
EXC. SINGLE RR TIRE<6TD> (B) M18 THA
0-91110-518-0
02
1
1410-
●
182
NUT; PIN,RR SPR
(B) M18 THA
0-91110-518-0
02
1
1410-
●
227
230
225
4
502
1
155
6
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SINGLE RR TIRE<6TD> 5-LEAF THA
8-98001-551-1
02
1
1410-
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON<RPT> REAR WIDE TREAD<V4T> 10-LEAF THA
8-98022-373-0
02
1
1410-
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON<RPW> REAR WIDE TREAD<V4T> 10-LEAF THA
8-98022-374-0
02
1
1410-
●
4
U-BOLT; RR SPR
SINGLE RR TIRE<6TD> L=245 THA
8-97948-506-0
04
1
1410-
●
4
U-BOLT; RR SPR
G.V.W. 5.0-5.5TON<RPT> REAR WIDE TREAD<V4T> L=265 THA
8-97948-507-0
04
1
1410-
●
4
U-BOLT; RR SPR
G.V.W. 6.5-7.0TON<RPW> REAR WIDE TREAD<V4T> L=285 THA
8-97948-509-0
04
1
1410-
●
5
NUT; U-BOLT,RR SPR
M16 IMA
8-97360-121-0
08
1
1410-
●
●
6
WASHER; PL,U-BOLT
ID=16.4 IMA
8-97360-118-0
08
1
1410-
●
●
155
BRACKET; S/ABS
SINGLE RR TIRE<6TD> IMA
8-94128-360-4
01
1
1410-
●
155
BRACKET; S/ABS
SINGLE RR TIRE<6TD> IMA
8-94128-361-4
01
1
1410-
●
225
RUBBER; CUSHION,RR SPR
REAR WIDE TREAD<V4T> IMA
8-98021-554-0
02
1
1410-
●
225
RUBBER; CUSHION,RR SPR
SINGLE RR TIRE<6TD> THA
8-97924-222-0
02
1
1410-
●
227
NUT; CUSHION RUBBER
M12 FLANGE THA
0-91180-112-0
02
1
1410-
●
●
230
SPACER; CUSHION RUBBER
SINGLE RR TIRE<6TD> IMA
8-97136-853-0
02
1
1410-
●
230
SPACER; CUSHION RUBBER
REAR WIDE TREAD<V4T> THA
8-97924-861-0
02
1
1410-
●
502
CLAMP; RR LEAF SPR
SINGLE RR TIRE<6TD> L=130 T=4.5 IMA
8-94119-069-2
02
1
1410-
●
502
CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 292MM<G73> REAR WIDE TREAD<V4T> L=130 T=4.5 IMA
8-94119-069-2
02
1
1410-
●
502
CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 320MM<6CP> REAR WIDE TREAD<V4T> L=140 T=4.5 IMA
8-94118-509-1
02
1
1410-
●
