◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51567 - NLR/NMR THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#151169) — 34 parça

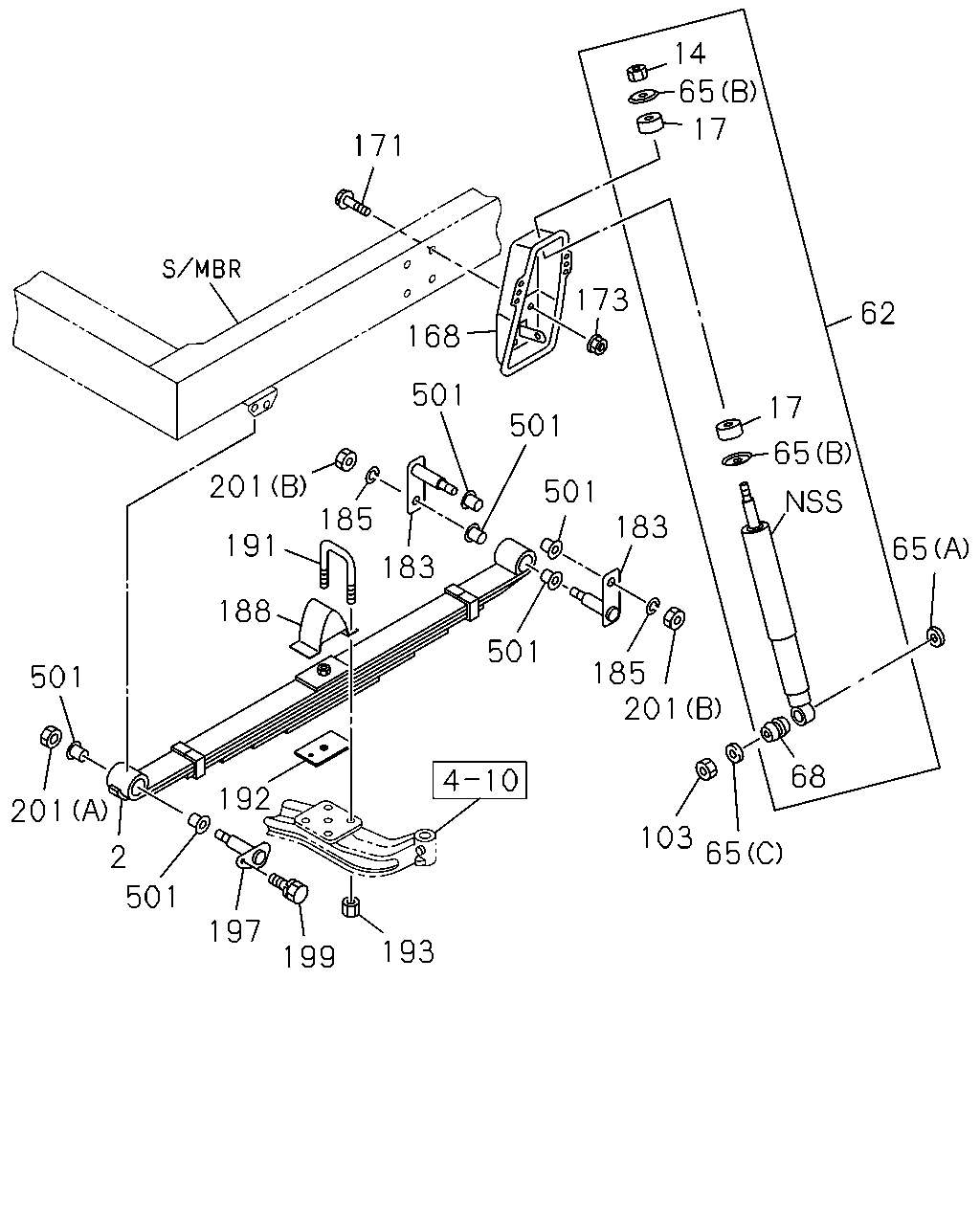

çizim 449402
193 199 197 501 2 201 501 192 103 65 68 201 185 501 183 501 501 501 183 185 188 201 191 168 173 17 62 65 65 17 65 14 171
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SINGLE RR TIRE<6TD> 6-LEAF THA 		8-98079-885-0 01 1 1410- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SINGLE RR TIRE<6TD> 6-LEAF THA 		8-98079-887-0 01 1 1410- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON<RPT> REAR WIDE TREAD<V4T> 6-LEAF THA 		8-98001-533-0 01 1 1410- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON<RPT> REAR WIDE TREAD<V4T> 6-LEAF THA 		8-98079-881-0 01 1 1410- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON<RPW> REAR WIDE TREAD<V4T> 8-LEAF THA 		8-98079-926-0 01 1 1410- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON<RPW> REAR WIDE TREAD<V4T> 8-LEAF THA 		8-98079-961-0 01 1 1410- ●
14 NUT; S/ABS,UPR
M10 THA 		8-94317-772-0 02 1 1410- ● ●
17 BUSHING; RUBBER,S/ABS
TOKICO THA 		9-51631-603-0 04 1 1410- ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97924-097-0 02 1 1410- ● ●
65 WASHER; S/ABS
(A) ID=17 OD=32 IMA 		0-91614-616-0 02 1 1410- ● ●
65 WASHER; S/ABS
(C) ID=12.5 IMA 		9-51679-022-0 02 1 1410- ● ●
65 WASHER; S/ABS
(B) ID=10.5 OD=38 THA 		9-51631-062-0 04 1 1410- ● ●
68 BUSHING; S/ABS
TOKICO THA 		8-94224-694-0 02 1 1410- ● ●
103 NUT; S/ABS TO LWR LINK
M12 IMA 		0-91111-512-0 02 1 1410- ● ●
168 BRACKET; S/ABS,FRT SUSP
IMA 		8-98002-081-0 01 1 1410- ● ●
168 BRACKET; S/ABS,FRT SUSP
IMA 		8-98039-597-0 01 1 1410- ● ●
171 BOLT; S/ABS BRKT
M10X30 FLANGE THA 		0-28651-030-0 08 1 1410- ● ●
173 NUT; S/ABS
M10 FLANGE THA 		0-91180-110-0 08 1 1410- ● ●
183 SHACKLE; FRT SUSP
IMA 		8-98034-341-0 04 1 1410- ● ●
185 WASHER; LK,PIN
ID=16.5 IMA 		8-98011-489-0 04 1 1410- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
IMA 		8-98033-515-0 02 1 1410- ● ●
191 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> REAR L=105 THA 		8-97948-510-0 02 1 1410- ●
191 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> FRONT L=115 THA 		8-97948-511-0 02 1 1410- ●
191 U-BOLT; FRT SPR
EXC. FRONT STABILIZER SHAFT<F59> L=105 THA 		8-97948-510-0 04 1 1410- ●
191 U-BOLT; FRT SPR
G.V.W. 5.0-5.5TON<RPT> L=105 THA 		8-97948-510-0 04 1 1410- ●
191 U-BOLT; FRT SPR
G.V.W. 6.5-7.0TON<RPW> L=125 THA 		8-97948-512-0 04 1 1410- ●
192 PIECE; DIST
SINGLE RR TIRE<6TD> IMA 		8-94249-413-1 02 1 1410- ●
193 NUT; U BOLT
M14 FLANGE IMA 		8-97360-124-0 08 1 1410- ● ●
197 PIN; FRT SPR,FRT
IMA 		8-94117-900-1 02 1 1410- ● ●
199 BOLT
M10X25 FLANGE THA 		0-28651-025-0 02 1 1410- ● ●
201 NUT; PIN LK
(A) M16 FLANGE IMA 		8-97360-125-0 02 1 1410- ● ●
201 NUT; PIN LK
(B) M16 THA 		0-91110-516-0 04 1 1410- ● ●
501 BUSHING; LEAF SPR,FRT
THA 		8-97925-208-0 04 1 1410- ● ●
501 BUSHING; LEAF SPR,FRT
THA 		8-97925-208-0 08 1 1410- ● ●
