◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51567 - NLR/NMR THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#151163) — 24 parça

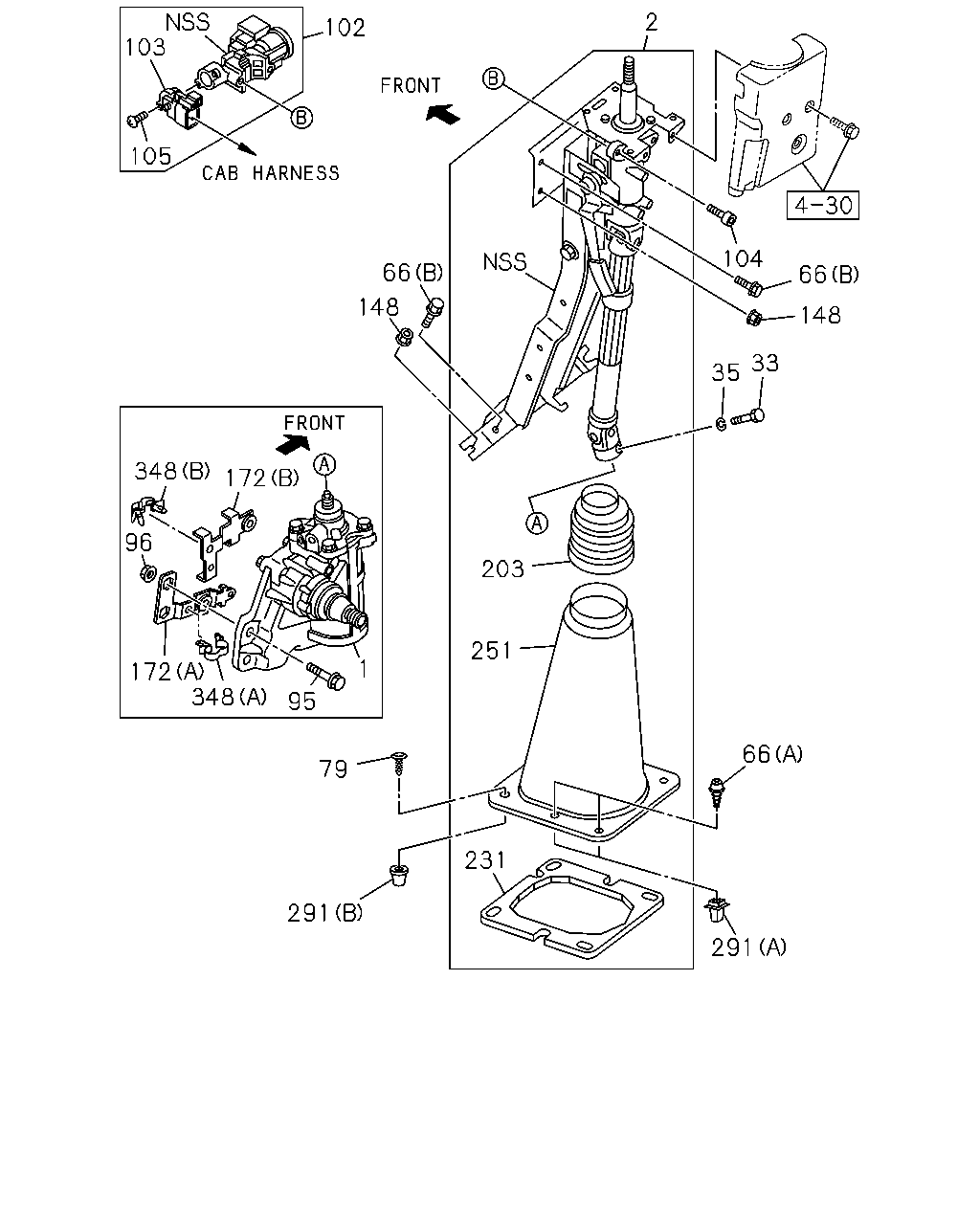

çizim 450554
103 105 102 66 148 348 96 172 348 172 95 79 291 2 203 251 231 66 291 104 66 148 35 33 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. THA 		8-97948-358-0 01 1 1410- ● ●
2 SHAFT ASM; STRG
THA 		8-97948-361-1 01 1 1410- ● ●
33 BOLT; STRG SHAFT TO UNIT
M8X30 IMA 		8-97359-615-0 01 1 1410- ● ●
35 WASHER; LK,STRG SHAFT
ID=8.2 THA 		0-91510-808-0 01 1 1410- ● ●
66 BOLT; STRG COLUMN
(A) M5X18 TAPPING IMA 		0-72180-518-0 04 1 1410- ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER IMA 		8-98051-939-0 02 1 1410- ● ●
66 BOLT; STRG COLUMN
(B) M8X20 FLANGE THA 		0-28650-820-0 02 1 1410- ● ●
79 CLIP; STRG COLUMN COVER
L=19 BLACK IMA 		8-94363-776-0 02 1 1410- ● ●
95 BOLT; STRG UNIT
M12X47 FLANGE IMA 		8-98055-055-0 04 1 1410- ● ●
96 NUT; STRG UNIT
M12 FLANGE IMA 		8-97359-618-0 02 1 1410- ● ●
102 LOCK ASM; STRG
THA 		8-97948-271-0 01 1 1410- ● ●
103 SWITCH; IGNITION
THA 		8-98045-349-0 01 1 1410- ● ●
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT IMA 		8-97321-385-0 02 1 1410- ● ●
105 SCREW; IGN SW
THA 		8-98045-346-0 02 1 1410- ● ●
148 NUT; COLUMN TO BRKT
M8 W/DISHED WASHER IMA 		8-97329-625-0 03 1 1410- ● ●
172 BRACKET; STRG
(B) IMA 		8-98055-061-0 01 1 1410- ● ●
172 BRACKET; STRG
(A) IMA 		8-98078-803-0 01 1 1410- ● ●
203 BOOT; STRG COLUMN LWR
THA 		8-97948-997-0 01 1 1410- ● ●
231 SEAL; RUBBER,STRG COLUMN
THA 		8-97949-002-0 01 1 1410- ● ●
251 COVER; LWR
THA 		8-97948-999-0 01 1 1410- ● ●
291 GROMMET; STRG SHAFT COVER
(A) H=15 IMA 		8-94463-268-1 04 1 1410- ● ●
291 GROMMET; STRG SHAFT COVER
(B) IMA 		8-98029-442-1 02 1 1410- ● ●
348 CLIP; BRKT,STRG
(A) ID=5-12 L=18 IMA 		1-09709-287-0 01 1 1410- ● ●
348 CLIP; BRKT,STRG
(B) ID=5-12 L=22 IMA 		1-09709-288-0 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
