4-20 — REAR AXLE CASE AND SHAFT (#151160) — 124 parça

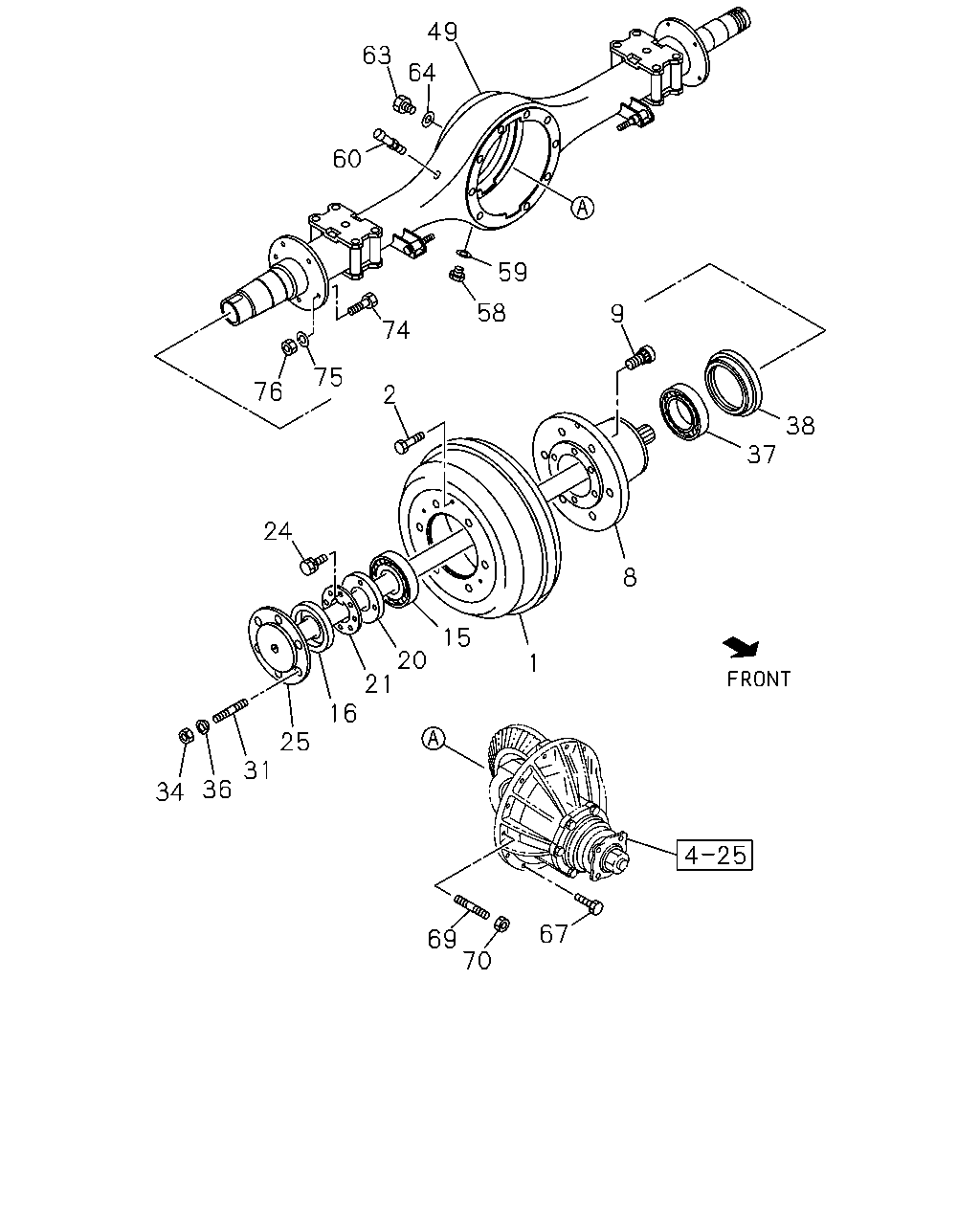

63 49 64 60 76 75 74 58 59 9 38 37 8 1 15 20 21 16 25 31 36 34 69 70 67 2 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR THA	8-97940-559-0	02	1	1410-	●
1	DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM<G73> THA	8-97940-560-0	02	1	1410-		●
1	DRUM; BRK,RR REAR AXLE HEAVY DUTY 320MM<6CP> THA	8-97940-561-0	02	1	1410-		●
2	BOLT; BRK DRUM M8X18 IMA	0-20800-618-0	02	1	1410-	●
8	HUB; RR AXLE THA	8-97940-278-0	02	1	1410-	●
8	HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> THA	8-97940-277-0	02	1	1410-		●
8	HUB; RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> THA	8-97940-279-0	02	1	1410-		●
9	PIN; WHEEL,RR AXLE M14X50 RH THREAD IMA	9-42331-605-5	06	1	1410-	●
9	PIN; WHEEL,RR AXLE M14X50 LH THREAD IMA	9-42332-605-5	06	1	1410-	●
9	PIN; WHEEL,RR AXLE M18X29,M20X43.5 RH THREAD IMA	8-94383-436-2	05	1	1410-		●
9	PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X43.5 RH THREAD IMA	8-94383-437-2	05	1	1410-		●
15	BEARING; HUB OUTER,RR AXLE NSK THA	9-00093-082-0	02	1	1410-	●
15	BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> NSK THA	9-00093-082-0	02	1	1410-		●
15	BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> NSK THA	9-00093-607-0	02	1	1410-		●
16	SEAL; OIL,RR HUB,OUTER NOK IMA	8-98202-911-0	02	1	1410-	●
16	SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM<G73> NOK IMA	8-98202-911-0	02	1	1410-		●
16	SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM<6CP> NOK IMA	8-98202-912-0	02	1	1410-		●
20	NUT; BRG,RR HUB M52 IMA	8-98236-850-0	02	1	1410-	●
20	NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 292MM<G73> M52 IMA	8-98236-850-0	02	1	1410-		●
20	NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 320MM<6CP> M55 IMA	8-97137-094-0	02	1	1410-		●
21	WASHER; LK,BRG NUT ID=52 IMA	9-09853-214-0	02	1	1410-	●
21	WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 292MM<G73> ID=52 IMA	9-09853-214-0	02	1	1410-		●
21	WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 320MM<6CP> ID=55 IMA	9-09653-002-0	02	1	1410-		●
24	BOLT; LK WASHER M6X10 FLANGE THA	0-28050-610-0	04	1	1410-	●	●
25	SHAFT; AXLE,RR IMA	8-94366-192-0	02	1	1410-	●
25	SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM<G73> IMA	8-97032-496-0	02	1	1410-		●
25	SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-98098-425-0	02	1	1410-		●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49 IMA	8-97359-803-0	12	1	1410-	●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49 IMA	8-97359-803-0	16	1	1410-		●
34	NUT; AXLE SHAFT M10 FLANGE THA	0-91180-210-0	12	1	1410-	●
34	NUT; AXLE SHAFT M10 FLANGE THA	0-91180-210-0	16	1	1410-		●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5 IMA	8-97360-004-0	12	1	1410-	●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5 IMA	8-97360-004-0	16	1	1410-		●
37	BEARING; HUB INNER,RR AXLE NSK THA	9-00093-081-0	02	1	1410-	●
37	BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> NSK THA	9-00093-081-0	02	1	1410-		●
37	BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> NSK THA	9-00093-624-0	02	1	1410-		●
38	SEAL; OIL,RR HUB,INNER TKK IMA	8-94336-314-1	02	1	1410-	●
38	SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM<G73> TKK IMA	8-94336-314-1	02	1	1410-		●
38	SEAL; OIL,RR HUB,INNER NOK IMA	8-94367-959-0	02	1	1410-	●
38	SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM<G73> NOK IMA	8-94367-959-0	02	1	1410-		●
38	SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM<6CP> TKK IMA	8-94336-316-1	02	1	1410-		●
38	SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM<6CP> NOK IMA	8-94367-958-0	02	1	1410-		●
49	CASE; RR AXLE IMA	8-98061-921-0	01	1	1410-	●
49	CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> IMA	8-97032-861-5	01	1	1410-		●
49	CASE; RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-97122-348-4	01	1	1410-		●
58	PLUG; DRAIN,AXLE CASE M16X12.5 IMA	8-97307-060-0	01	1	1410-	●	●
59	GASKET; DRAIN PLUG ID=16.2 OD=24 THA	9-09571-416-0	01	1	1410-	●	●
60	BREATHER; RR AXLE CASE L=29 IMA	8-98006-960-0	01	1	1410-	●	●
63	PLUG; OIL FILLER,AXLE CASE M20X10.5 IMA	8-98009-333-0	01	1	1410-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=20 OD=30 THA	8-94462-734-0	01	1	1410-	●	●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER IMA	0-50561-040-0	11	1	1410-	●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM<G73> M10X40 W/LK WASHER IMA	0-50561-040-0	11	1	1410-		●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M10X40 W/LK WASHER IMA	0-50561-040-0	07	1	1410-		●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M10X50 W/LK WASHER IMA	0-50561-050-0	04	1	1410-		●
69	STUD; AXLE CASE M10X40.5 L=52.5 IMA	8-97359-802-0	02	1	1410-	●	●
70	NUT; CARRIER M10 FLANGE THA	0-91180-210-0	02	1	1410-	●	●
74	BOLT; RR BRK ASM SETTING IMA	8-98007-877-0	12	1	1410-	●
74	BOLT; RR BRK ASM SETTING M12X32 IMA	8-97359-819-0	12	1	1410-		●
75	WASHER; LK,RR BRK ASM SETTING ID=10.2 IMA	0-91510-810-0	12	1	1410-	●
75	WASHER; LK,RR BRK ASM SETTING ID=12.2 IMA	0-91510-612-0	12	1	1410-		●
76	NUT; RR BRK ASM SETTING M10 THA	0-91110-510-0	12	1	1410-	●
76	NUT; RR BRK ASM SETTING M12 IMA	0-91110-512-0	12	1	1410-		●

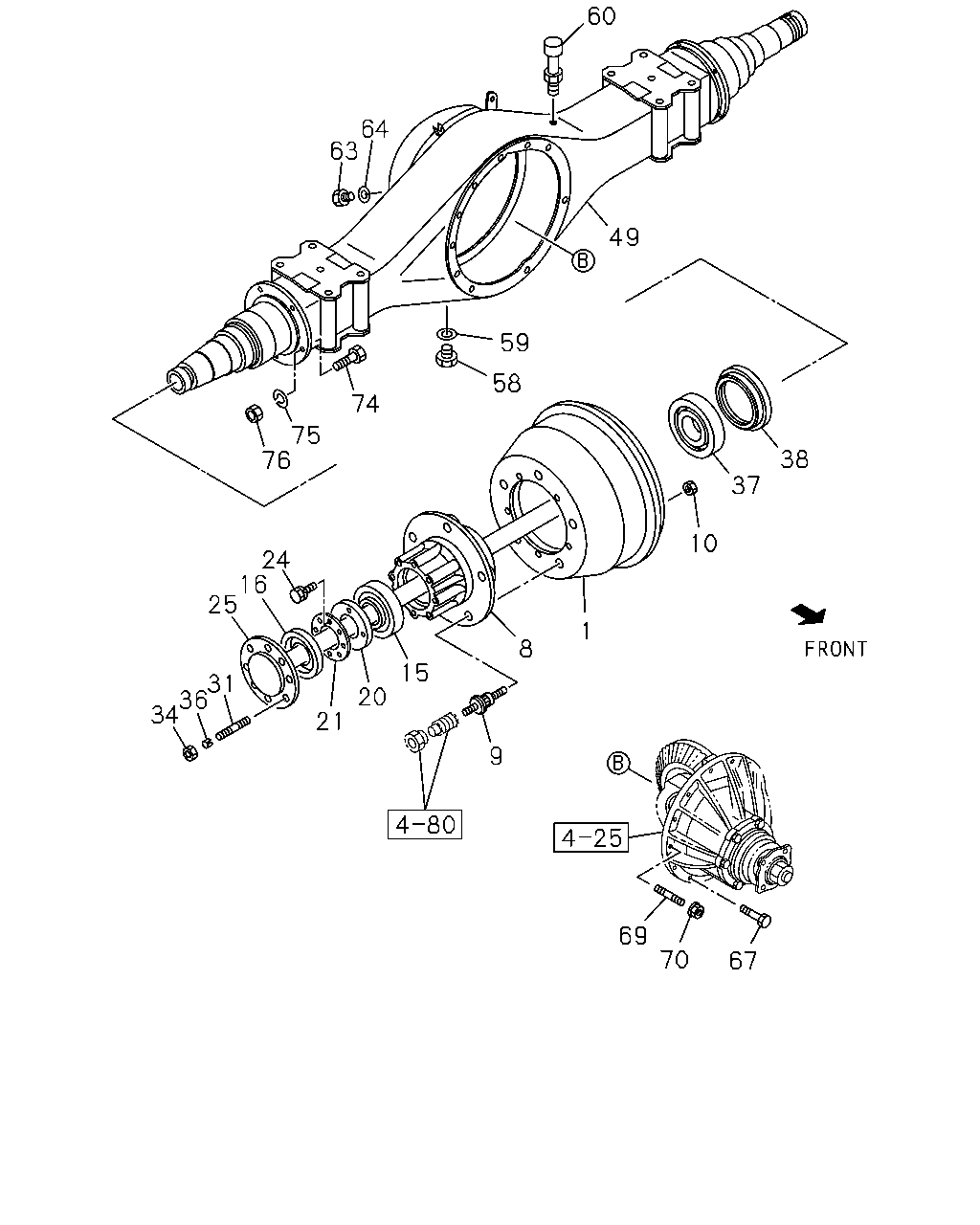

60 64 63 76 75 74 58 59 49 34 36 31 25 16 24 21 20 15 8 1 10 37 38 9 67 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR THA	8-97940-559-0	02	1	1410-	●
1	DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM<G73> THA	8-97940-560-0	02	1	1410-		●
1	DRUM; BRK,RR REAR AXLE HEAVY DUTY 320MM<6CP> THA	8-97940-561-0	02	1	1410-		●
8	HUB; RR AXLE THA	8-97940-278-0	02	1	1410-	●
8	HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> THA	8-97940-277-0	02	1	1410-		●
8	HUB; RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> THA	8-97940-279-0	02	1	1410-		●
9	PIN; WHEEL,RR AXLE M14X50 RH THREAD IMA	9-42331-605-5	06	1	1410-	●
9	PIN; WHEEL,RR AXLE M14X50 LH THREAD IMA	9-42332-605-5	06	1	1410-	●
9	PIN; WHEEL,RR AXLE M18X29,M20X43.5 RH THREAD IMA	8-94383-436-2	05	1	1410-		●
9	PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X43.5 RH THREAD IMA	8-94383-437-2	05	1	1410-		●
10	NUT; WHEEL PIN,RR AXLE M20 IMA	0-91110-520-0	10	1	1410-		●
15	BEARING; HUB OUTER,RR AXLE NSK THA	9-00093-082-0	02	1	1410-	●
15	BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> NSK THA	9-00093-082-0	02	1	1410-		●
15	BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> NSK THA	9-00093-607-0	02	1	1410-		●
16	SEAL; OIL,RR HUB,OUTER NOK IMA	8-98202-911-0	02	1	1410-	●
16	SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM<G73> NOK IMA	8-98202-911-0	02	1	1410-		●
16	SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM<6CP> NOK IMA	8-98202-912-0	02	1	1410-		●
20	NUT; BRG,RR HUB M52 IMA	8-98236-850-0	02	1	1410-	●
20	NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 292MM<G73> M52 IMA	8-98236-850-0	02	1	1410-		●
20	NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 320MM<6CP> M55 IMA	8-97137-094-0	02	1	1410-		●
21	WASHER; LK,BRG NUT ID=52 IMA	9-09853-214-0	02	1	1410-	●
21	WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 292MM<G73> ID=52 IMA	9-09853-214-0	02	1	1410-		●
21	WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 320MM<6CP> ID=55 IMA	9-09653-002-0	02	1	1410-		●
24	BOLT; LK WASHER M6X10 FLANGE THA	0-28050-610-0	04	1	1410-	●	●
25	SHAFT; AXLE,RR IMA	8-94366-192-0	02	1	1410-	●
25	SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM<G73> IMA	8-97032-496-0	02	1	1410-		●
25	SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-98098-425-0	02	1	1410-		●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49 IMA	8-97359-803-0	12	1	1410-	●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49 IMA	8-97359-803-0	16	1	1410-		●
34	NUT; AXLE SHAFT M10 FLANGE THA	0-91180-210-0	12	1	1410-	●
34	NUT; AXLE SHAFT M10 FLANGE THA	0-91180-210-0	16	1	1410-		●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5 IMA	8-97360-004-0	12	1	1410-	●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5 IMA	8-97360-004-0	16	1	1410-		●
37	BEARING; HUB INNER,RR AXLE NSK THA	9-00093-081-0	02	1	1410-	●
37	BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> NSK THA	9-00093-081-0	02	1	1410-		●
37	BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> NSK THA	9-00093-624-0	02	1	1410-		●
38	SEAL; OIL,RR HUB,INNER TKK IMA	8-94336-314-1	02	1	1410-	●
38	SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM<G73> TKK IMA	8-94336-314-1	02	1	1410-		●
38	SEAL; OIL,RR HUB,INNER NOK IMA	8-94367-959-0	02	1	1410-	●
38	SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM<G73> NOK IMA	8-94367-959-0	02	1	1410-		●
38	SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM<6CP> TKK IMA	8-94336-316-1	02	1	1410-		●
38	SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM<6CP> NOK IMA	8-94367-958-0	02	1	1410-		●
49	CASE; RR AXLE IMA	8-98061-921-0	01	1	1410-	●
49	CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM<G73> IMA	8-97032-861-5	01	1	1410-		●
49	CASE; RR AXLE REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-97122-348-4	01	1	1410-		●
58	PLUG; DRAIN,AXLE CASE M16X12.5 IMA	8-97307-060-0	01	1	1410-	●	●
59	GASKET; DRAIN PLUG ID=16.2 OD=24 THA	9-09571-416-0	01	1	1410-	●	●
60	BREATHER; RR AXLE CASE L=29 IMA	8-98006-960-0	01	1	1410-	●	●
63	PLUG; OIL FILLER,AXLE CASE M20X10.5 IMA	8-98009-333-0	01	1	1410-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=20 OD=30 THA	8-94462-734-0	01	1	1410-	●	●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER IMA	0-50561-040-0	11	1	1410-	●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM<G73> M10X40 W/LK WASHER IMA	0-50561-040-0	11	1	1410-		●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M10X40 W/LK WASHER IMA	0-50561-040-0	07	1	1410-		●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M10X50 W/LK WASHER IMA	0-50561-050-0	04	1	1410-		●
69	STUD; AXLE CASE M10X40.5 L=52.5 IMA	8-97359-802-0	02	1	1410-	●	●
70	NUT; CARRIER M10 FLANGE THA	0-91180-210-0	02	1	1410-	●	●
74	BOLT; RR BRK ASM SETTING IMA	8-98007-877-0	12	1	1410-	●
74	BOLT; RR BRK ASM SETTING M12X32 IMA	8-97359-819-0	12	1	1410-		●
75	WASHER; LK,RR BRK ASM SETTING ID=10.2 IMA	0-91510-810-0	12	1	1410-	●
75	WASHER; LK,RR BRK ASM SETTING ID=12.2 IMA	0-91510-612-0	12	1	1410-		●
76	NUT; RR BRK ASM SETTING M10 THA	0-91110-510-0	12	1	1410-	●
76	NUT; RR BRK ASM SETTING M12 IMA	0-91110-512-0	12	1	1410-		●
