Isuzu WW
▶
TRUCKS
▶
NLR
▶
51567 - NLR/NMR THAILAND
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

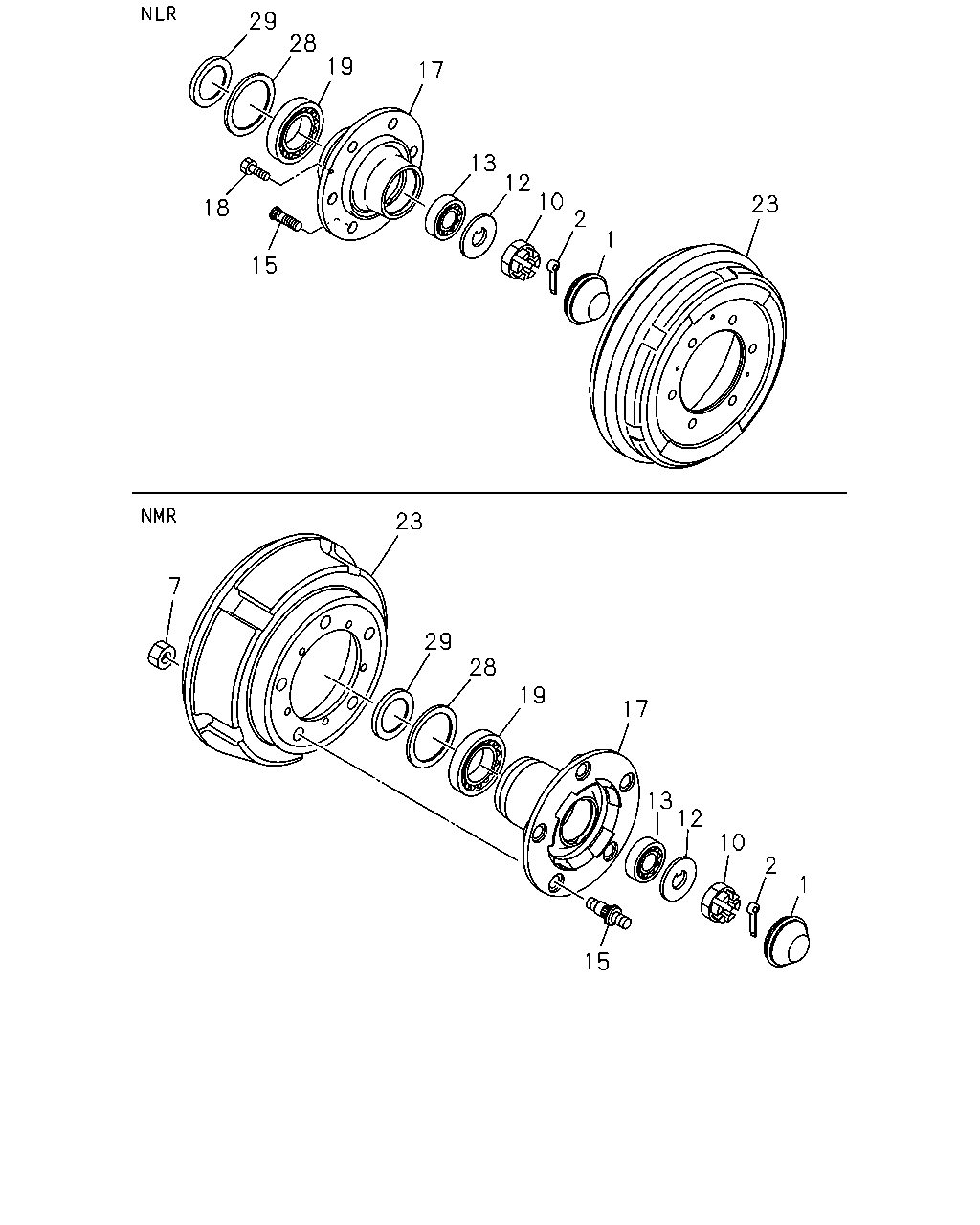

4-11 — FRONT HUB AND DRUM OR ROTOR
(#151159) — 22 parça
Tümü
A - NMR5SE
B - NMR5SN
29
19
17
13
12
10
2
1
23
18
15
23
29
28
19
17
13
12
10
2
1
15
7
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CAP; HUB,FRT AXLE
IMA
8-98276-604-0
02
1
1410-
●
●
2
PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 IMA
0-81125-040-0
02
1
1410-
●
●
7
NUT; FRT HUB
M20 IMA
0-91110-520-0
10
1
1410-
●
10
NUT; FRT HUB BRG
IMA
8-94247-357-1
02
1
1410-
●
●
12
WASHER; LK,FRT HUB BRG
IMA
8-94247-356-1
02
1
1410-
●
●
13
BEARING; HUB OUTER,FRT AXLE
NSK IMA
9-00093-172-0
02
1
1410-
●
●
15
PIN; WHEEL,FRT AXLE
M14X50 RH THREAD IMA
9-42331-605-5
06
1
1410-
●
15
PIN; WHEEL,FRT AXLE
M14X50 LH THREAD IMA
9-42332-605-5
06
1
1410-
●
15
PIN; WHEEL,FRT AXLE
M18X29,M20X43.5 RH THREAD IMA
8-94383-436-2
05
1
1410-
●
15
PIN; WHEEL,FRT AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD IMA
8-94383-437-2
05
1
1410-
●
17
HUB; FRT AXLE
THA
8-97940-274-0
02
1
1410-
●
17
HUB; FRT AXLE
THA
8-97940-273-0
02
1
1410-
●
18
BOLT; DRUM TO HUB
M8X18 IMA
0-20800-618-0
02
1
1410-
●
19
BEARING; HUB INNER,FRT AXLE
JTEKT IMA
8-98171-254-0
02
1
1410-
●
●
23
DRUM; BRK,FRT
THA
8-97940-554-0
02
1
1410-1410
●
23
DRUM; BRK,FRT
THA
8-98293-400-0
02
1
1411-
●
23
DRUM; BRK,FRT
G.V.W. 5.0-5.5TON<RPT> THA
8-97940-555-0
02
1
1410-1410
●
23
DRUM; BRK,FRT
G.V.W. 5.0-5.5TON<RPT> THA
8-98293-369-0
02
1
1411-
●
23
DRUM; BRK,FRT
G.V.W. 6.5-7.0TON<RPW> THA
8-97940-564-0
02
1
1410-1410
●
23
DRUM; BRK,FRT
G.V.W. 6.5-7.0TON<RPW> THA
8-98293-372-0
02
1
1411-
●
28
SEAL; OIL,FRT HUB
IMA
8-94248-117-1
02
1
1410-
●
●
29
DISTANCE PIECE; HUB BRKT
NTN IMA
8-97234-513-0
02
1
1410-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
