◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51567 - NLR/NMR THAILAND ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#151155) — 52 parça
çizim 450512
184 39 116 39
BalonParca AdiParca NoAdetTipApplied Date A B
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 1410- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 IMA 		8-94238-568-0 02 1 1410- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 IMA 		8-98008-098-0 02 1 1410- ● ●
116 HOSE; VAC,M/VAC
(C) L=130 SERVICED BY L=3000 IMA 		0-08158-300-0 01 1 1410- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97924-102-1 01 1 1410- ● ●
116 HOSE; VAC,M/VAC
(A) THA 		8-98094-547-0 01 1 1410- ● ●
184 BRACKET; UNION FIX
(A) IMA 		8-98183-467-1 01 1 1410- ● ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) IMA 		8-98017-628-1 01 1 1410- ● ●

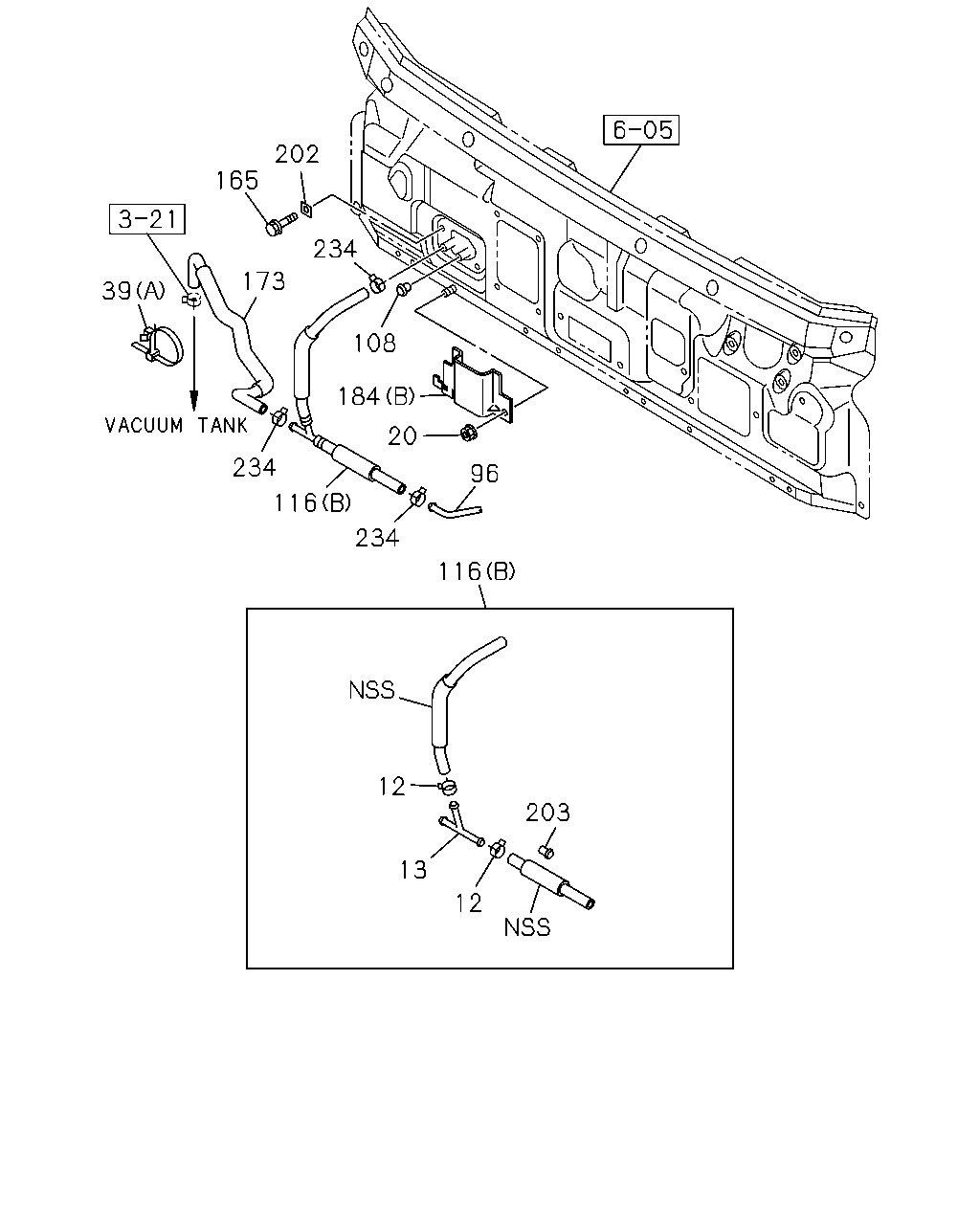

çizim 450573
203 12 13 12 116 234 96 116 20 184 108 234 39 173 234 202 165
BalonParca AdiParca NoAdetTipApplied Date A B
12 CLIP; HOSE
ID=15.5 THA 		8-98008-097-0 02 1 1410- ● ●
13 JOINT; HOSE,VAC
THA 		8-98035-106-0 01 1 1410- ● ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL<6WC> M6 FLANGE THA 		0-91180-106-0 01 1 1410- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 1410- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 IMA 		8-94238-568-0 02 1 1410- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 IMA 		8-98008-098-0 02 1 1410- ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP
THA 		8-98039-736-1 01 1 1410- ● ●
108 GROMMET; PIPE
IMA 		9-09956-353-0 01 1 1410- ● ●
116 HOSE; VAC,M/VAC
(C) L=130 SERVICED BY L=3000 IMA 		0-08158-300-0 01 1 1410- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97924-102-1 01 1 1410- ● ●
116 HOSE; VAC,M/VAC
(A) THA 		8-98094-547-0 01 1 1410- ● ●
165 BOLT; BRKT
M6X20 W/LK&PL WASHER IMA 		8-98031-842-0 02 1 1410- ● ●
173 HOSE; VAC,VAC TANK SIDE
THA 		8-98107-558-0 01 1 1410- ● ●
184 BRACKET; UNION FIX
(A) IMA 		8-98183-467-1 01 1 1410- ● ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL<6WC> (B) IMA 		8-98017-628-1 01 1 1410- ● ●
202 SEAL
IMA 		8-97856-616-0 02 1 1410- ● ●
203 VALVE; CHECK
IMA 		8-94386-540-0 01 1 1410- ● ●
234 CLAMP; PIPE
ID=16 IMA 		8-94238-568-0 03 1 1410- ● ●

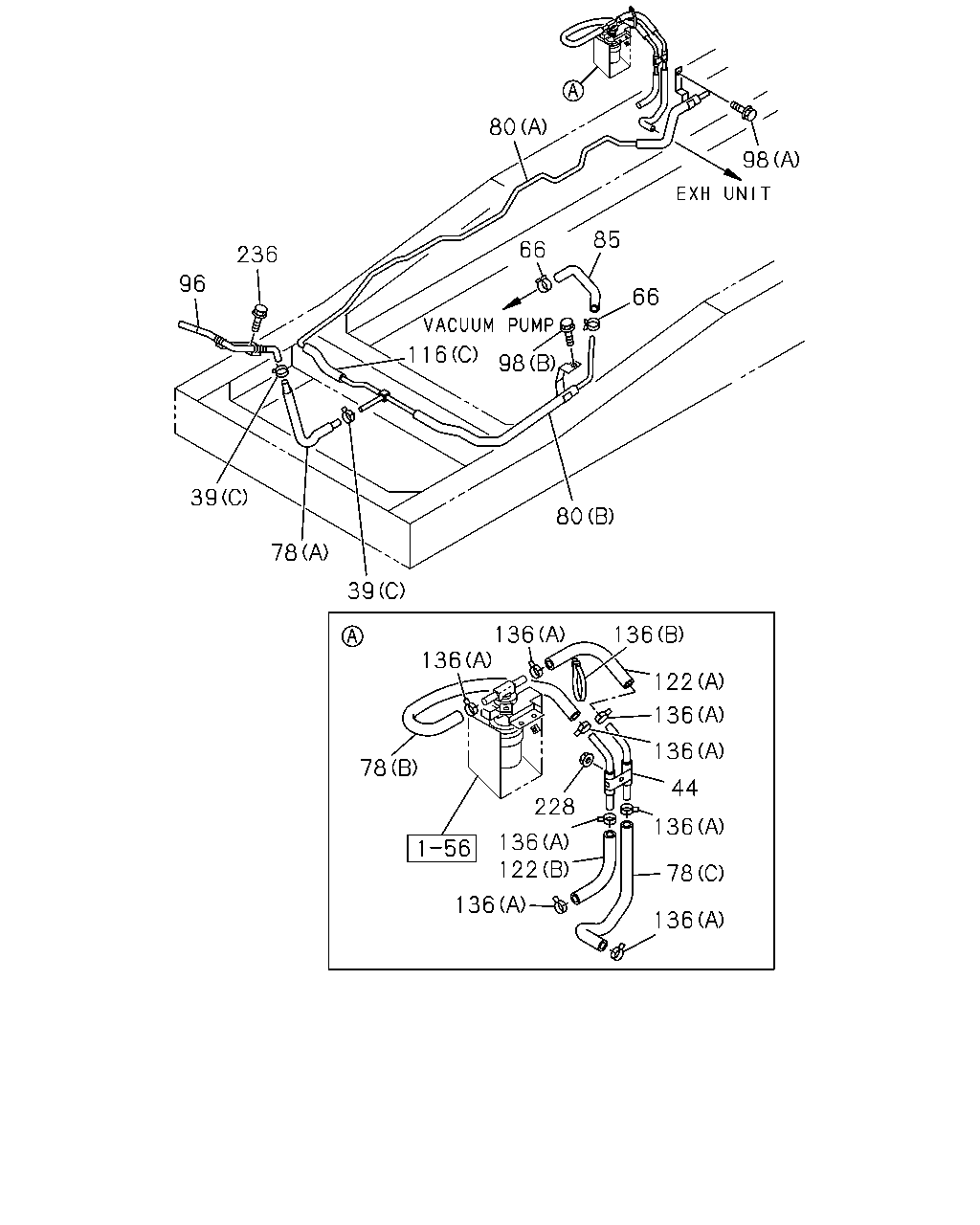

çizim 450608
96 236 80 66 85 98 66 116 39 78 39 80 136 136 136 122 136 136 44 136 78 228 78 136 122 136 136 98
BalonParca AdiParca NoAdetTipApplied Date A B
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 1410- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 IMA 		8-94238-568-0 02 1 1410- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 IMA 		8-98008-098-0 02 1 1410- ● ●
44 PIPE; VAC,MAG VLV
THA 		8-97924-419-0 01 1 1410- ● ●
66 CLIP; VAC HOSE,M/VAC
ID=16 IMA 		8-98008-098-0 02 1 1410- ● ●
78 HOSE; VAC,PIPE TO PIPE
(A) THA 		8-97389-745-1 01 1 1410- ● ●
78 HOSE; VAC,PIPE TO PIPE
(B) THA 		8-97924-420-1 01 1 1410- ● ●
78 HOSE; VAC,PIPE TO PIPE
(C) THA 		8-98189-223-0 01 1 1410- ● ●
80 PIPE; VAC,ENG SIDE
(A) THA 		8-98065-063-2 01 1 1410- ●
80 PIPE; VAC,ENG SIDE
WHEEL BASE 2400MM<24W> (A) THA 		8-98065-063-2 01 1 1410- ●
80 PIPE; VAC,ENG SIDE
(B) THA 		8-98064-345-2 01 1 1410- ● ●
80 PIPE; VAC,ENG SIDE
WHEEL BASE 3300MM<33W> (A) THA 		8-98056-002-2 01 1 1410- ●
85 HOSE; VAC,ENG SIDE
THA 		8-97924-679-0 01 1 1410- ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP
THA 		8-98039-736-1 01 1 1410- ● ●
98 BOLT; VAC PIPE FIX
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ● ●
98 BOLT; VAC PIPE FIX
(A) M10X30 FLANGE THA 		0-28651-030-0 01 1 1410- ● ●
116 HOSE; VAC,M/VAC
(C) L=130 SERVICED BY L=3000 IMA 		0-08158-300-0 01 1 1410- ● ●
116 HOSE; VAC,M/VAC
(B) THA 		8-97924-102-1 01 1 1410- ● ●
116 HOSE; VAC,M/VAC
(A) THA 		8-98094-547-0 01 1 1410- ● ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
(A) THA 		8-97924-421-1 01 1 1410- ● ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
(B) THA 		8-98189-226-0 01 1 1410- ● ●
136 CLIP; VAC HOSE
(A) ID=16 IMA 		8-98008-098-0 02 1 1410- ● ●
136 CLIP; VAC HOSE
(A) ID=16 IMA 		8-98008-098-0 04 1 1410- ● ●
136 CLIP; VAC HOSE
(B) L=140 THA 		8-97920-656-0 01 1 1410- ● ●
228 NUT; PIPE
M6 FLANGE THA 		0-91180-106-0 01 1 1410- ● ●
236 BOLT; PIPE
M6X12 FLANGE THA 		0-28050-612-0 01 1 1410- ● ●
