◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51567 - NLR/NMR THAILAND ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#151151) — 13 parça

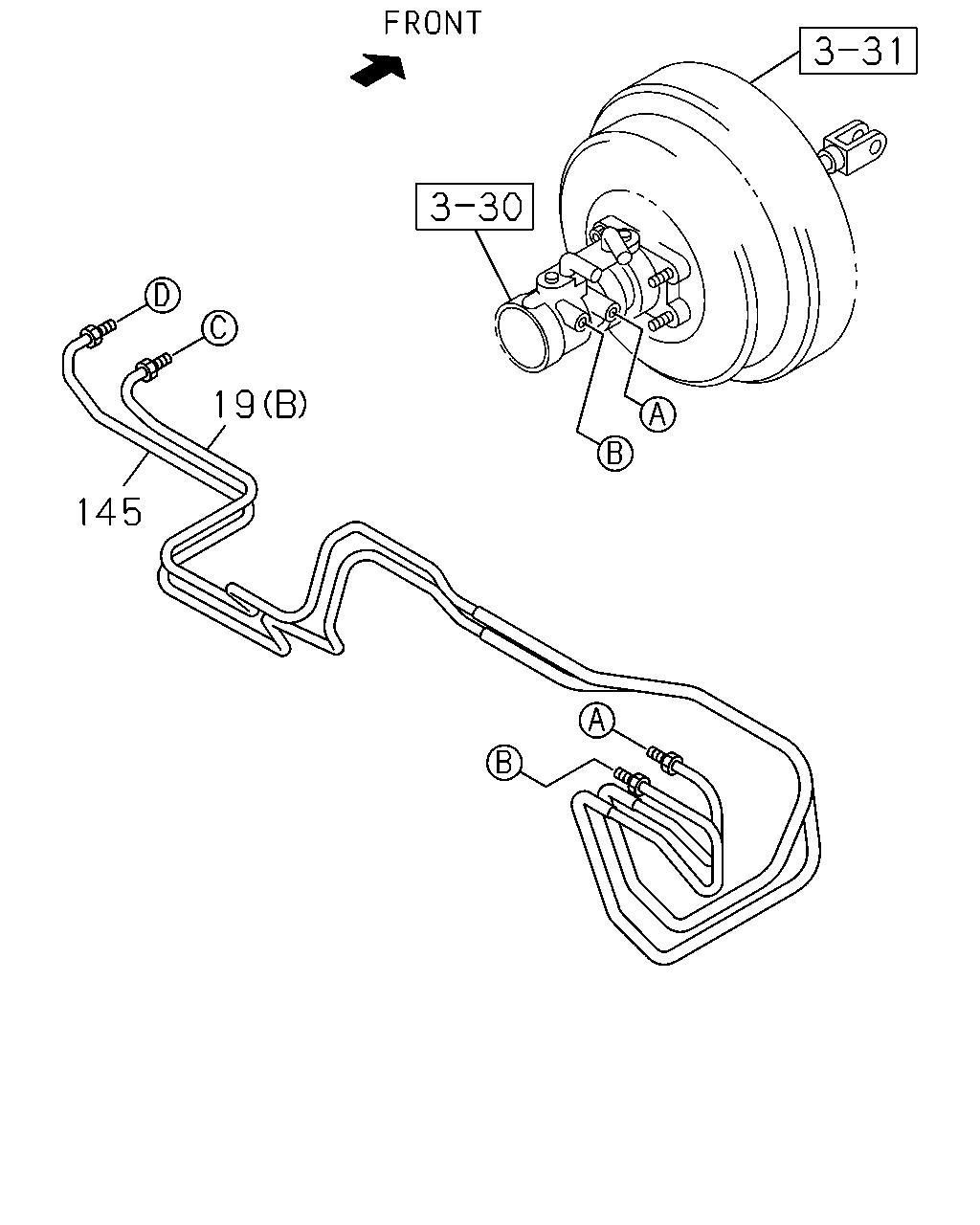

çizim 449213
19 145
BalonParca AdiParca NoAdetTipApplied Date A B
19 PIPE; BRK,M/CYL TO UNION
(B) THA 		8-97389-337-3 01 1 1410- ● ●
19 PIPE; BRK,M/CYL TO UNION
(A) THA 		8-98012-095-1 02 1 1410- ● ●
145 PIPE; BRK,METERING VLV TO UNION
THA 		8-97389-295-3 01 1 1410- ● ●

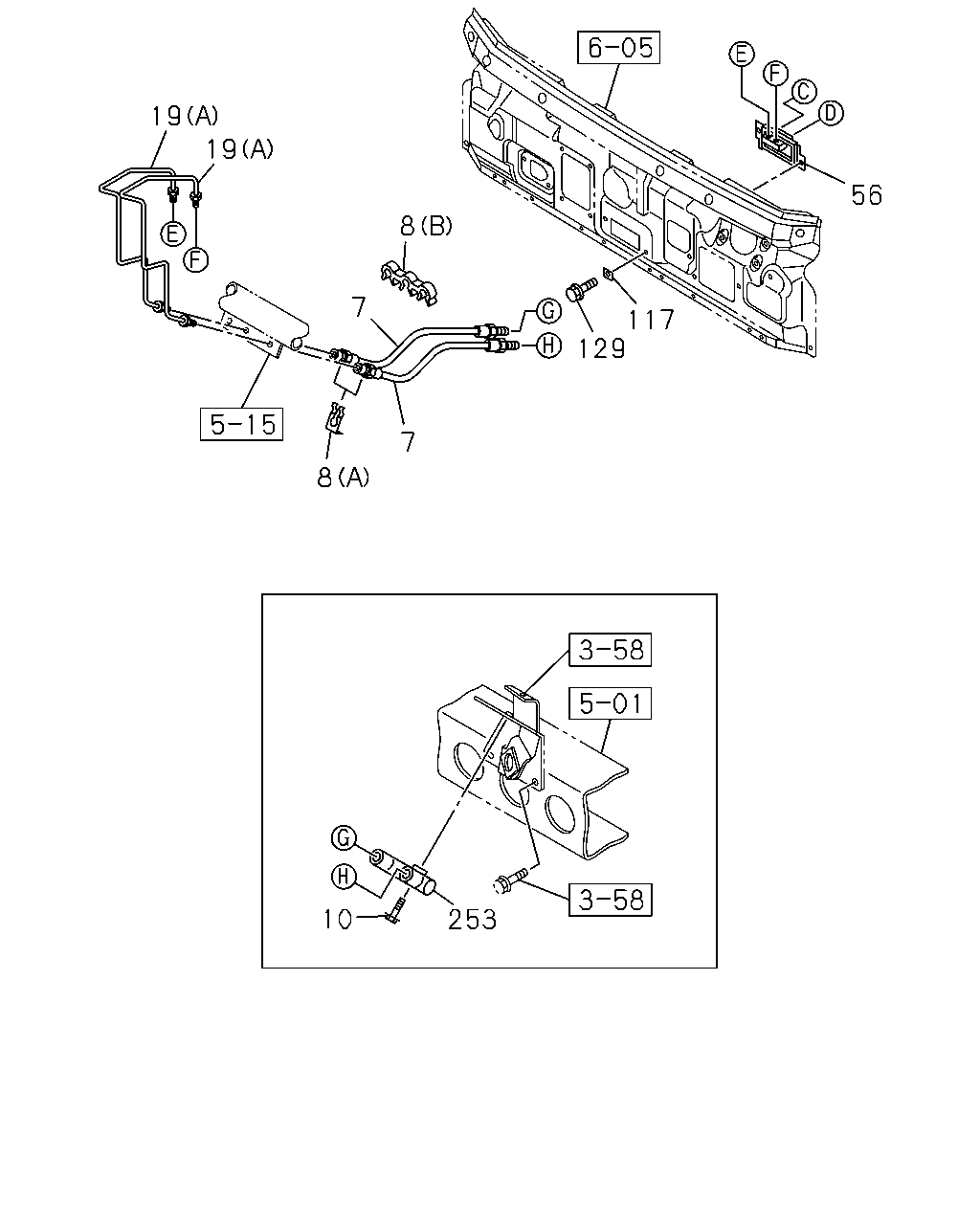

çizim 450707
19 19 8 7 7 8 129 117 56 10 253
BalonParca AdiParca NoAdetTipApplied Date A B
7 HOSE; FLEX,PIPE TO 5 WAY JOINT
IMA 		8-98033-732-0 02 1 1410- ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(A) IMA 		8-97365-304-0 02 1 1410- ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(B) IMA 		8-98056-614-0 01 1 1410- ● ●
10 BOLT; JOINT
M6X40 FLANGE IMA 		0-28650-640-0 01 1 1410- ● ●
19 PIPE; BRK,M/CYL TO UNION
(B) THA 		8-97389-337-3 01 1 1410- ● ●
19 PIPE; BRK,M/CYL TO UNION
(A) THA 		8-98012-095-1 02 1 1410- ● ●
56 BRACKET; UNION,BRK
IMA 		8-98154-264-1 01 1 1410- ● ●
117 SEAL; UNION,BRK PIPE JOINT
IMA 		8-97856-616-0 02 1 1410- ● ●
129 BOLT; BRKT
M6X20 W/LK&PL WASHER IMA 		8-98081-030-0 02 1 1410- ● ●
253 JOINT
IMA 		5-47456-009-1 01 1 1410- ● ●
