3-11 — PARKING BRAKE CONTROL
(#151147) — 33 parça
Tümü
A - NMR5SE
B - NMR5SN
◀

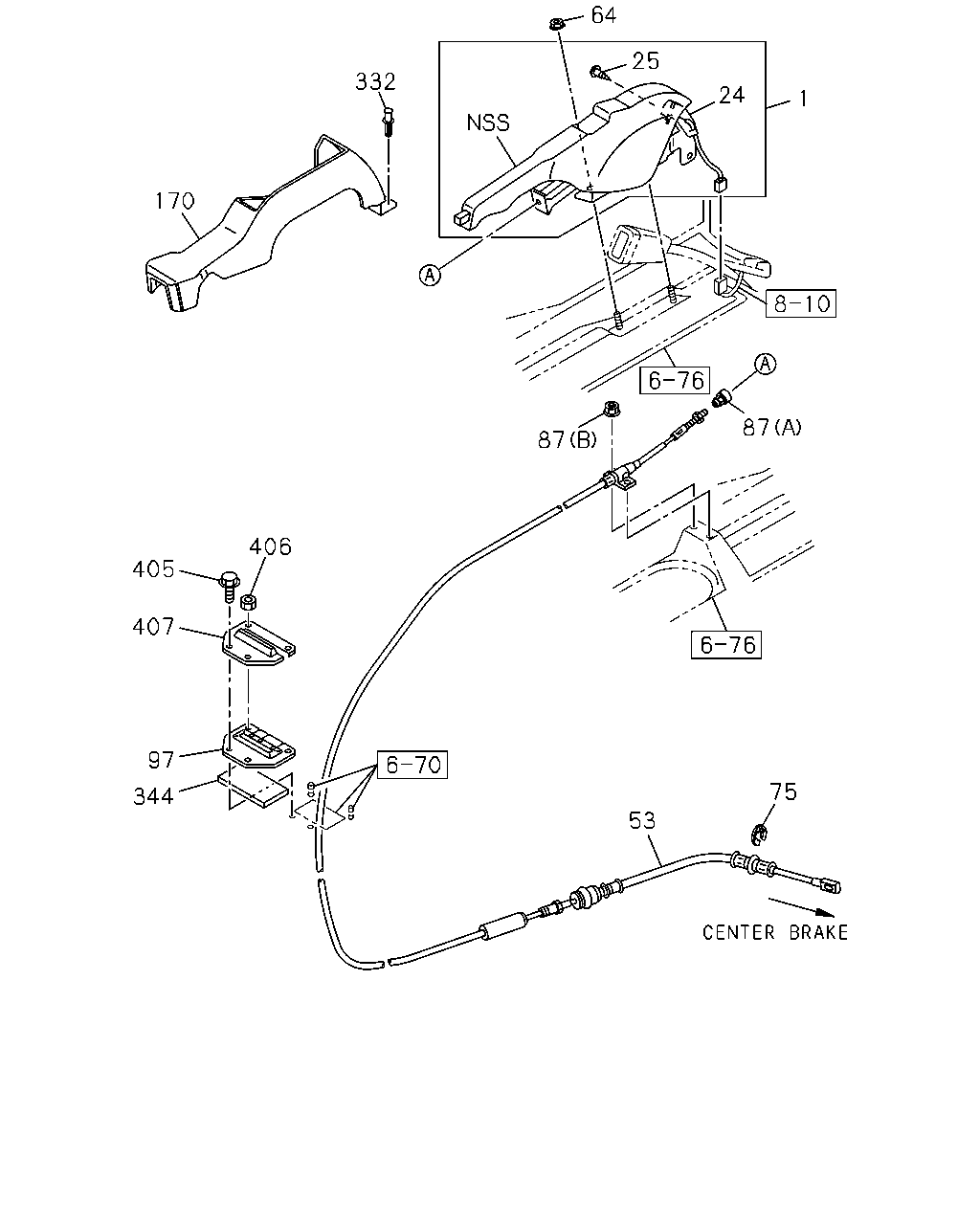

[311A] STEM AND CABLE (16 parça)
[311A] FIXING PARTS (17 parça)
▶
344
407
405
406
170
53
75
87
97
64
24
1
25
332
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
STEM ASM; PARKING BRK
GRAY IMA
8-97426-513-0
01
1
1410-
●
●
24
SWITCH ASM; PARK BRK
IMA
8-98238-611-0
01
1
1410-
●
●
25
SCREW; SW,PARKING BRK
IMA
8-98152-463-0
01
1
1410-
●
●
53
CABLE; PARK BRK,FRT LWR
M/T MYY5T<RSM> THA
8-97948-447-0
01
1
1410-
●
●
53
CABLE; PARK BRK,FRT LWR
M/T MYY6S<RST> THA
8-97948-448-0
01
1
1410-
●
64
NUT; PARKING BRK
M8 LOCK NUT FLANGE IMA
0-91380-008-0
02
1
1410-
●
●
75
RING; SNAP,HAND BRK CABLE
ID=12 IMA
0-91805-512-0
01
1
1410-
●
●
87
NUT
(A) M6 IMA
8-98034-313-1
01
1
1410-
●
●
87
NUT
(B) M8 FLANGE THA
0-91180-108-0
02
1
1410-
●
●
97
GROMMET; PARKING BRK CABLE
IMA
8-97065-212-1
01
1
1410-
●
●
170
COVER; PARKING BRK LEVER
GRAY IMA
8-97406-170-1
01
1
1410-
●
●
332
CLIP; COVER
GRAY IMA
8-97406-179-0
01
1
1410-
●
●
344
GASKET; DASH LWR
IMA
8-97096-753-0
01
1
1410-
●
●
405
BOLT; GROMMET
M6X20 FLANGE IMA
0-28450-620-0
02
1
1410-
●
●
406
NUT; GROMMET
M6 FLANGE THA
0-91180-106-0
02
1
1410-
●
●
407
RETAINER; GROMMET
IMA
1-33657-674-0
01
1
1410-
●
●
225
324
91
181
91
238
91
238
225
237
235
85
241
236
324
181
223
324
241
238
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
CABLE; PARK BRK,FRT LWR
M/T MYY5T<RSM> THA
8-97948-447-0
01
1
1410-
●
●
53
CABLE; PARK BRK,FRT LWR
M/T MYY6S<RST> THA
8-97948-448-0
01
1
1410-
●
85
CLIP; BRKT
ID=14.5 L=20 IMA
1-09701-012-0
01
1
1410-
●
●
91
CLIP; PARKING BRK CABLE
(B) IMA
8-97036-333-1
02
1
1410-
●
●
91
CLIP; PARKING BRK CABLE
(A) IMA
8-98023-622-0
01
1
1410-
●
●
181
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
01
1
1410-
●
●
181
BOLT; BRKT
M8X25 FLANGE THA
0-28650-825-0
01
1
1410-
●
●
223
CLIP; PARKING BRK CABLE
IMA
8-97036-333-1
01
1
1410-
●
●
225
NUT; CABLE CLIP
M8 FLANGE THA
0-91180-108-0
02
1
1410-
●
●
235
BRACKET; CONT CABLE TO FRAME
IMA
8-98034-352-0
01
1
1410-
●
●
236
BOLT; BRKT TO FRAME
M8X25 FLANGE THA
0-28650-825-0
01
1
1410-
●
●
237
NUT; BRKT TO FRAME
M8 FLANGE THA
0-91180-108-0
01
1
1410-
●
●
238
BOLT; CLIP TO BRKT
M8X25 FLANGE THA
0-28650-825-0
03
1
1410-
●
●
241
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
01
1
1410-
●
●
324
BRACKET
(A) IMA
8-98003-642-1
01
1
1410-
●
●
324
BRACKET
(C) IMA
8-98026-099-2
01
1
1410-
●
●
324
BRACKET
(B) IMA
8-98034-115-0
01
1
1410-
●
●
