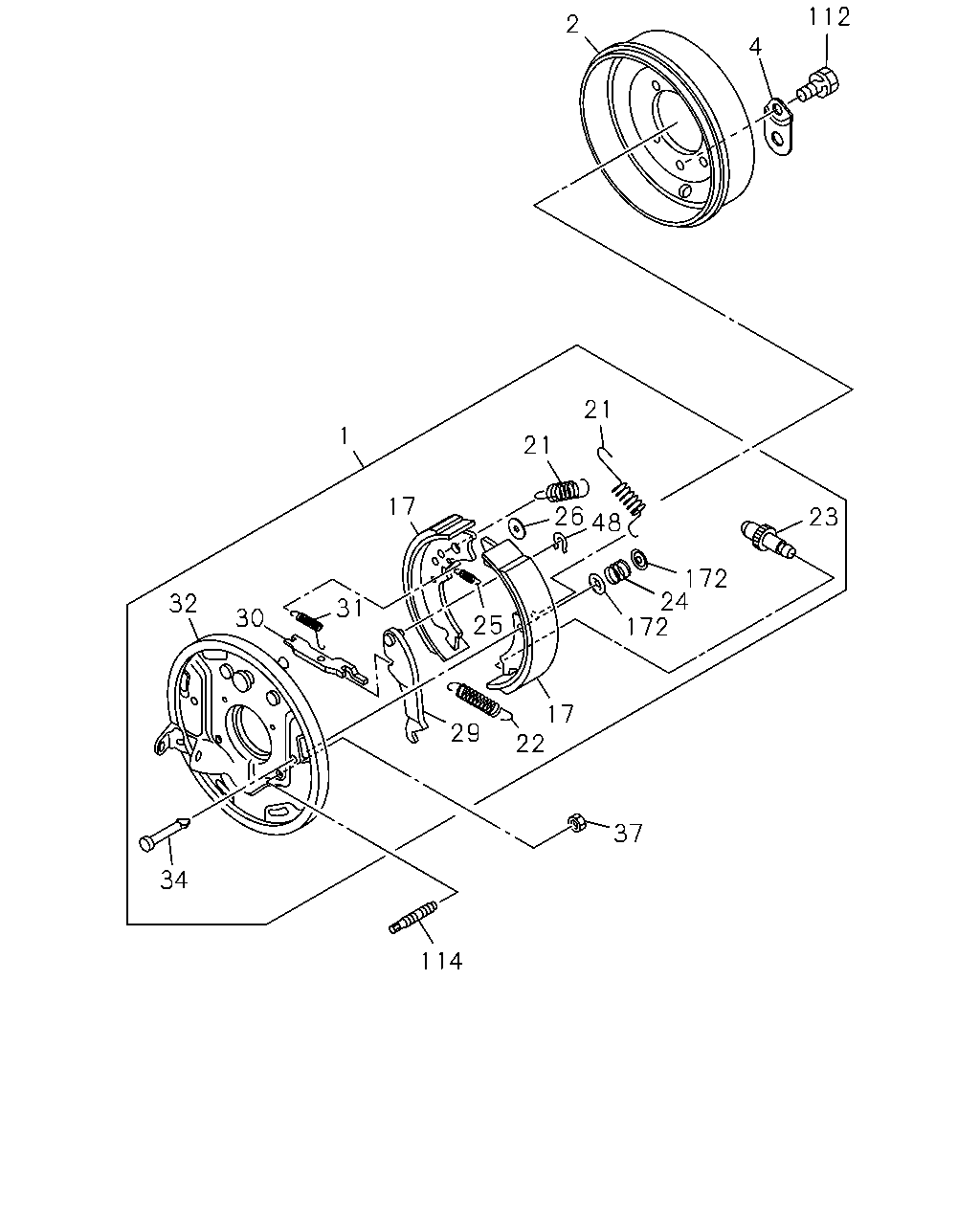

3-08 — PARKING BRAKE
(#151145) — 20 parça
Tümü
A - NMR5SE
B - NMR5SN
2
4
112
21
23
172
24
172
17
22
37
114
34
32
30
31
17
21
26
48
1
25
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRAKE ASM; CENTER,PARKING
IMA
8-98029-922-0
01
1
1410-
●
●
2
DRUM; PARKING BRK
IMA
8-97033-989-1
01
1
1410-
●
●
4
COVER; ADJ HOLE
IMA
8-98029-820-0
01
1
1410-
●
●
17
SHOE; PARKING BRK
IMA
8-97020-250-2
02
1
1410-
●
●
21
SPRING; RETURN,PARKING BRK SHOE
IMA
8-94132-157-0
02
1
1410-
●
●
22
SPRING; ADJ SCREW,PARKING BRK
IMA
8-94107-618-0
01
1
1410-
●
●
23
SCREW; ADJ,PARKING BRK SHOE
IMA
8-98043-954-0
01
1
1410-
●
●
24
SPRING; BRK SHOE
IMA
8-94132-155-1
02
1
1410-
●
●
25
SPRING; SHOE ALIGNMENT
IMA
8-94132-156-0
01
1
1410-
●
●
26
PLATE; SHOE GUIDE
IMA
8-98043-959-0
01
1
1410-
●
●
29
LEVER; PARKING BRK
IMA
8-98043-949-0
01
1
1410-
●
●
30
STRUT; PARKING BRK
IMA
8-98043-953-0
01
1
1410-
●
●
31
SPRING; SHOE TO STRUT
IMA
8-94132-158-0
01
1
1410-
●
●
32
PLATE; SUPPORT,PARKING BRK
IMA
8-97308-176-0
01
1
1410-
●
●
34
PIN; BRK SHOE
IMA
8-98043-955-0
02
1
1410-
●
●
37
NUT; SUPPORT PLATE
M12 LOCK NUT IMA
8-98029-927-0
04
1
1410-
●
●
48
RETAINER; PIN,PARKING BRK
IMA
8-98043-958-0
01
1
1410-
●
●
112
BOLT; COVER TO BRK DRUM
M6X16 W/LK WASHER THA
0-50540-616-0
01
1
1410-
●
●
114
STUD; SUPPORT PLATE
IMA
8-98029-929-0
04
1
1410-
●
●
172
CUP; SHOE HOLD
IMA
8-98043-956-0
04
1
1410-
●
●
