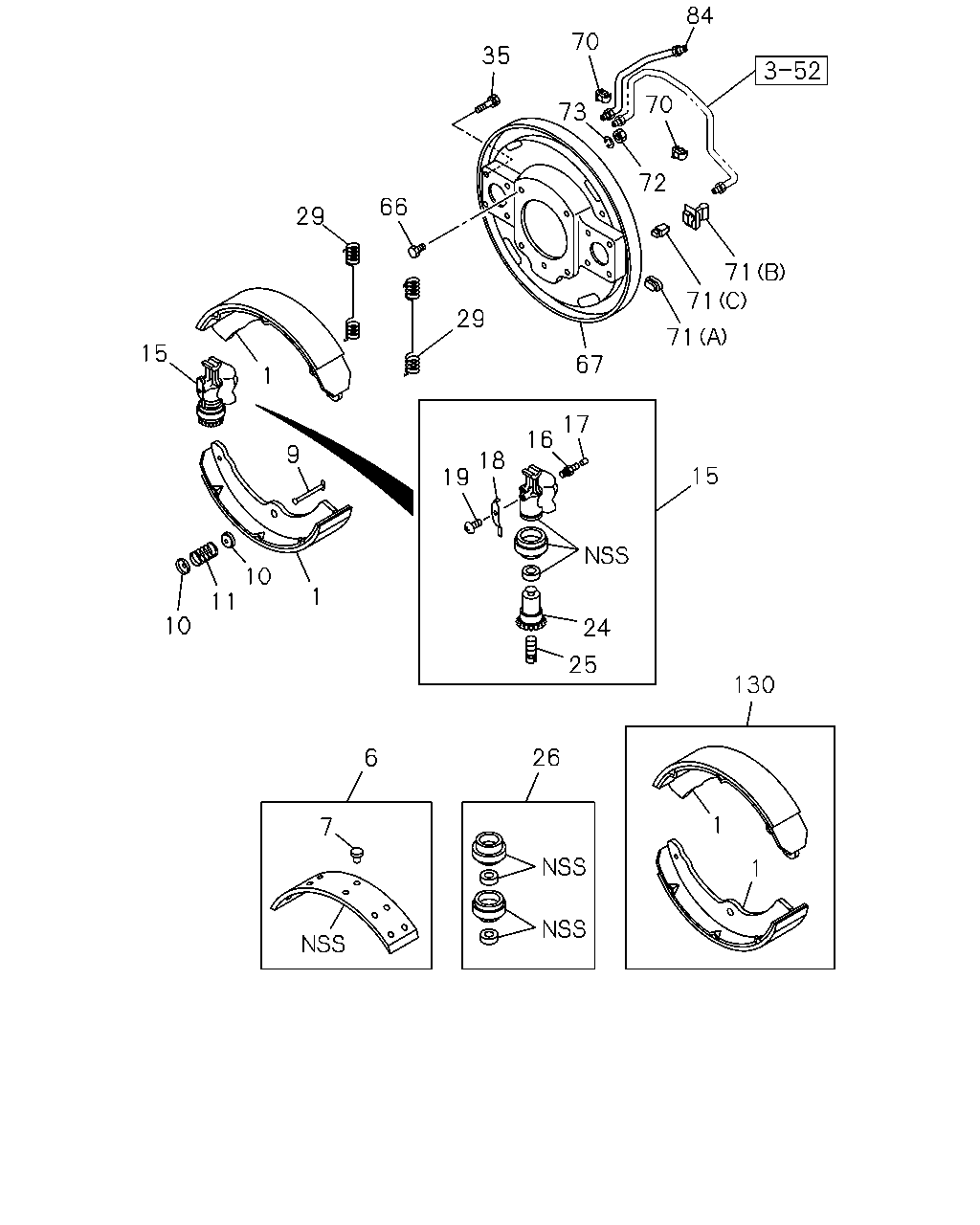

3-01 — FRONT WHEEL BRAKE (#151143) — 70 parça

15 29 66 35 70 84 70 73 72 71 71 71 67 29 1 9 1 10 11 10 17 16 18 19 24 25 15 130 26 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT G.V.W. 6.5-7.0TON<RPW> IMA	8-97287-778-0	04	1	1410-	●
1	SHOE; BRK,FRT IMA	8-97520-655-0	04	1	1410-		●
1	SHOE; BRK,FRT G.V.W. 5.0-5.5TON<RPT> IMA	8-97520-655-0	04	1	1410-	●
6	LINING KIT; FRT BRK G.V.W. 6.5-7.0TON<RPW> IMA	5-87831-801-0	01	1	1410-	●
7	RIVET; LINING,FRT BRK G.V.W. 6.5-7.0TON<RPW> IMA	1-09732-029-0	40	1	1410-	●
9	PIN; SHOE HOLDER G.V.W. 6.5-7.0TON<RPW> IMA	5-47162-001-0	04	1	1410-	●
9	PIN; SHOE HOLDER IMA	8-97520-659-0	04	1	1410-		●
9	PIN; SHOE HOLDER G.V.W. 5.0-5.5TON<RPT> IMA	8-97520-664-0	04	1	1410-	●
10	CUP; SHOE HOLDING G.V.W. 6.5-7.0TON<RPW> IMA	9-47165-096-0	08	1	1410-	●
10	CUP; SHOE HOLDING IMA	8-97520-658-0	08	1	1410-		●
10	CUP; SHOE HOLDING G.V.W. 5.0-5.5TON<RPT> IMA	8-97520-658-0	08	1	1410-	●
11	SPRING; SHOE HOLDING G.V.W. 6.5-7.0TON<RPW> IMA	5-09580-101-1	04	1	1410-	●
11	SPRING; SHOE HOLDING IMA	8-97520-657-0	04	1	1410-		●
11	SPRING; SHOE HOLDING G.V.W. 5.0-5.5TON<RPT> IMA	8-97520-657-0	04	1	1410-	●
15	CYLINDER; WHEEL,FRT BRK G.V.W. 6.5-7.0TON<RPW> REAR IMA	8-97139-810-0	01	1	1410-	●
15	CYLINDER; WHEEL,FRT BRK G.V.W. 6.5-7.0TON<RPW> REAR IMA	8-97139-811-0	01	1	1410-	●
15	CYLINDER; WHEEL,FRT BRK G.V.W. 6.5-7.0TON<RPW> FRONT IMA	8-97139-812-0	01	1	1410-	●
15	CYLINDER; WHEEL,FRT BRK G.V.W. 6.5-7.0TON<RPW> FRONT IMA	8-97139-813-0	01	1	1410-	●
15	CYLINDER; WHEEL,FRT BRK REAR IMA	8-97179-357-0	01	1	1410-		●
15	CYLINDER; WHEEL,FRT BRK G.V.W. 5.0-5.5TON<RPT> REAR IMA	8-97179-357-0	01	1	1410-	●
15	CYLINDER; WHEEL,FRT BRK REAR IMA	8-97179-358-0	01	1	1410-		●
15	CYLINDER; WHEEL,FRT BRK G.V.W. 5.0-5.5TON<RPT> REAR IMA	8-97179-358-0	01	1	1410-	●
15	CYLINDER; WHEEL,FRT BRK FRONT IMA	8-97179-359-0	01	1	1410-		●
15	CYLINDER; WHEEL,FRT BRK G.V.W. 5.0-5.5TON<RPT> FRONT IMA	8-97179-359-0	01	1	1410-	●
15	CYLINDER; WHEEL,FRT BRK FRONT IMA	8-97179-360-0	01	1	1410-		●
15	CYLINDER; WHEEL,FRT BRK G.V.W. 5.0-5.5TON<RPT> FRONT IMA	8-97179-360-0	01	1	1410-	●
16	SCREW; BLEEDER,FRT BRK G.V.W. 6.5-7.0TON<RPW> IMA	8-98050-476-0	02	1	1410-	●
17	CAP; BLEEDER,FRT WHEEL CYL G.V.W. 6.5-7.0TON<RPW> IMA	8-98050-479-0	02	1	1410-	●
18	STOPPER; ADJ SCREW G.V.W. 6.5-7.0TON<RPW> IMA	8-94128-486-0	04	1	1410-	●
19	SCREW; STOPPER SETTING G.V.W. 6.5-7.0TON<RPW> IMA	8-94128-727-0	04	1	1410-	●
24	PISTON; FRT WHEEL CYL G.V.W. 6.5-7.0TON<RPW> IMA	8-94414-700-1	04	1	1410-	●
24	PISTON; FRT WHEEL CYL IMA	8-97078-621-0	04	1	1410-		●
24	PISTON; FRT WHEEL CYL G.V.W. 5.0-5.5TON<RPT> IMA	8-97078-621-0	04	1	1410-	●
25	SCREW; ADJ,FRT WHEEL CYL G.V.W. 6.5-7.0TON<RPW> IMA	8-94414-702-0	04	1	1410-	●
25	SCREW; ADJ,FRT WHEEL CYL IMA	8-97078-623-0	04	1	1410-		●
25	SCREW; ADJ,FRT WHEEL CYL G.V.W. 5.0-5.5TON<RPT> IMA	8-97078-623-0	04	1	1410-	●
26	CUP SET; FRT WHEEL CYL IMA	5-87831-602-0	01	1	1410-		●
26	CUP SET; FRT WHEEL CYL G.V.W. 5.0-5.5TON<RPT> IMA	5-87831-602-0	01	1	1410-	●
26	CUP SET; FRT WHEEL CYL G.V.W. 6.5-7.0TON<RPW> IMA	5-87831-598-0	01	1	1410-	●
29	SPRING; RETURN,FRT BRK SHOE G.V.W. 6.5-7.0TON<RPW> IMA	5-09583-118-0	04	1	1410-	●
29	SPRING; RETURN,FRT BRK SHOE IMA	8-97078-739-0	04	1	1410-		●
29	SPRING; RETURN,FRT BRK SHOE G.V.W. 5.0-5.5TON<RPT> IMA	8-97078-739-0	04	1	1410-	●
35	BOLT; FRT WHEEL CYL G.V.W. 6.5-7.0TON<RPW> IMA	8-97078-643-0	16	1	1410-	●
35	BOLT; FRT WHEEL CYL IMA	8-97520-660-0	16	1	1410-		●
35	BOLT; FRT WHEEL CYL G.V.W. 5.0-5.5TON<RPT> IMA	8-97520-665-0	16	1	1410-	●
66	BOLT; OIL SHIELD COVER M12X33 IMA	8-98009-493-2	08	1	1410-	●	●
67	PLATE; BACK,FRT BRK G.V.W. 6.5-7.0TON<RPW> IMA	8-97302-592-0	01	1	1410-	●
67	PLATE; BACK,FRT BRK G.V.W. 6.5-7.0TON<RPW> IMA	8-97302-593-0	01	1	1410-	●
67	PLATE; BACK,FRT BRK IMA	8-97520-651-0	01	1	1410-		●
67	PLATE; BACK,FRT BRK IMA	8-97520-652-0	01	1	1410-		●
67	PLATE; BACK,FRT BRK G.V.W. 5.0-5.5TON<RPT> IMA	8-97520-662-0	01	1	1410-	●
67	PLATE; BACK,FRT BRK G.V.W. 5.0-5.5TON<RPT> IMA	8-97520-663-0	01	1	1410-	●
70	CLIP; PIPE HOLD IMA	8-94128-306-0	04	1	1410-		●
70	CLIP; PIPE HOLD G.V.W. 5.0-5.5TON<RPT> IMA	8-94128-306-0	04	1	1410-	●
70	CLIP; PIPE HOLD G.V.W. 6.5-7.0TON<RPW> IMA	8-94128-306-0	02	1	1410-	●
71	GROMMET; CHECK HOLE G.V.W. 6.5-7.0TON<RPW> (A) IMA	8-94171-287-0	02	1	1410-	●
71	GROMMET; CHECK HOLE (C) IMA	8-97520-661-0	02	1	1410-		●
71	GROMMET; CHECK HOLE G.V.W. 5.0-5.5TON<RPT> (C) IMA	8-97520-661-0	02	1	1410-	●
71	GROMMET; CHECK HOLE (B) IMA	9-09756-034-0	04	1	1410-	●	●
72	NUT; OIL SHIELD COVER M12 IMA	0-91110-512-0	08	1	1410-	●	●
73	WASHER; LK,OIL SHIELD COVER ID=12.2 IMA	0-91510-812-0	08	1	1410-	●	●
84	PIPE; BRK,WHEEL CYL TO HOSE THA	8-97940-701-0	01	1	1410-		●
84	PIPE; BRK,WHEEL CYL TO HOSE G.V.W. 5.0-5.5TON<RPT> THA	8-97940-701-0	01	1	1410-	●
84	PIPE; BRK,WHEEL CYL TO HOSE THA	8-97940-702-0	01	1	1410-		●
84	PIPE; BRK,WHEEL CYL TO HOSE G.V.W. 5.0-5.5TON<RPT> THA	8-97940-702-0	01	1	1410-	●
84	PIPE; BRK,WHEEL CYL TO HOSE G.V.W. 6.5-7.0TON<RPW> THA	8-97940-697-0	01	1	1410-	●
84	PIPE; BRK,WHEEL CYL TO HOSE G.V.W. 6.5-7.0TON<RPW> THA	8-97940-698-0	01	1	1410-	●
130	SHOE KIT; BRK,FRT IMA	5-87832-331-0	01	1	1410-		●
130	SHOE KIT; BRK,FRT G.V.W. 5.0-5.5TON<RPT> IMA	5-87832-331-0	01	1	1410-	●
130	SHOE KIT; BRK,FRT G.V.W. 6.5-7.0TON<RPW> IMA	5-87832-047-0	01	1	1410-	●
