Isuzu WW
▶
TRUCKS
▶
NLR
▶
51567 - NLR/NMR THAILAND
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶

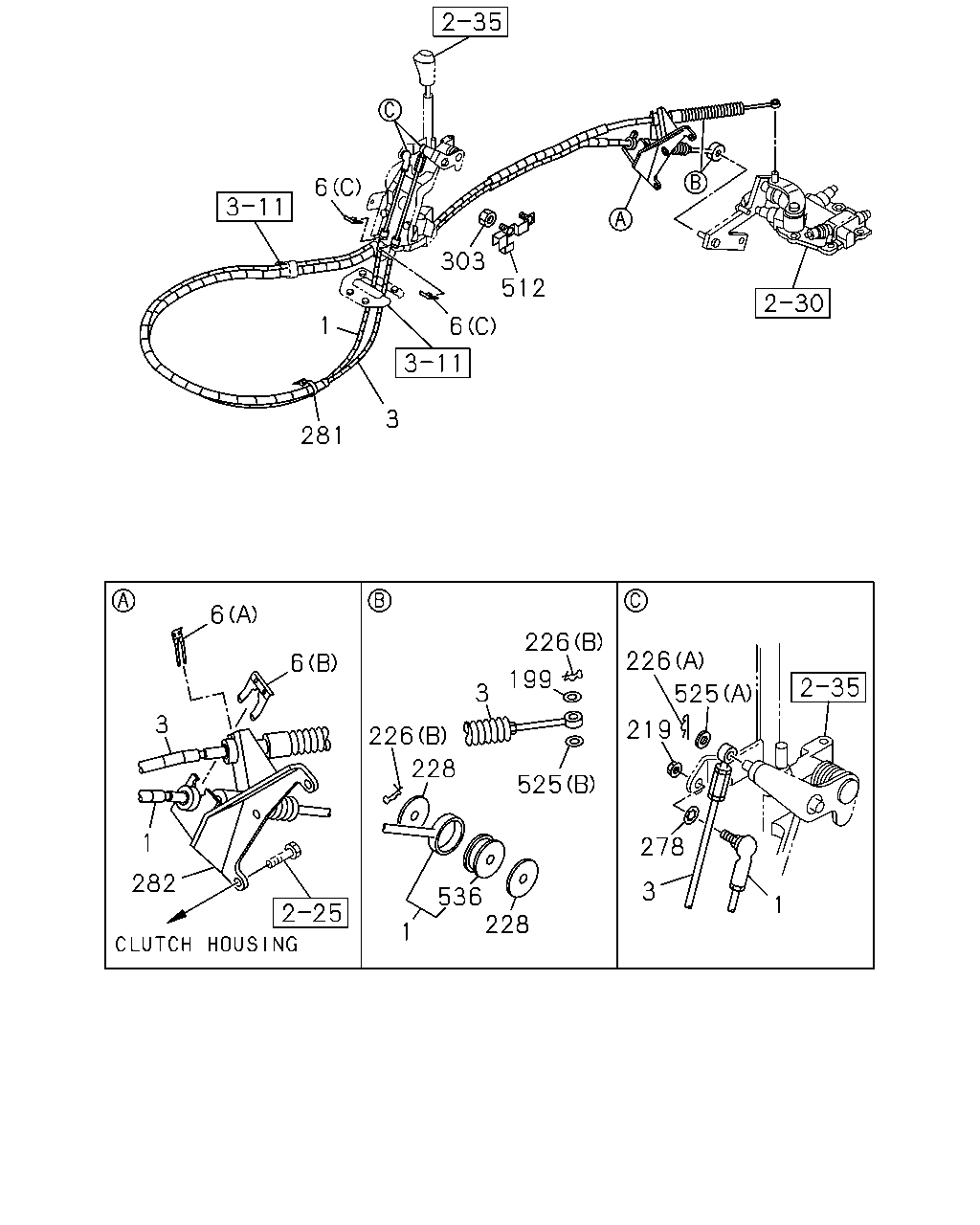

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#151142) — 18 parça
Tümü
A - M/T MYY5T
B - M/T MYY6S
303
512
6
1
3
281
6
6
3
1
282
226
228
525
3
199
226
536
228
1
219
525
226
278
3
1
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CABLE; SHIFT,TRANS CONT
L=2955 THA
8-98146-815-1
01
1
1410-
●
●
3
CABLE; SELECT,TRANS CONT
L=3035 THA
8-98001-087-2
01
1
1410-
●
●
6
CLIP; CABLE
(A) ID=22.2 IMA
1-09701-209-1
01
1
1410-
●
●
6
CLIP; CABLE
(C) IMA
8-97011-448-0
02
1
1410-
●
●
6
CLIP; CABLE
(B) ID=19.2 IMA
8-97211-011-0
01
1
1410-
●
●
199
WASHER; PL,SELECT
ID=8.4 OD=16 THA
0-91610-508-0
01
1
1410-
●
●
219
NUT; FLANGE,SHAFT CABLE
M8 T=8.0 IMA
8-94363-045-0
01
1
1410-
●
●
226
PIN; SHIFT CABLE
(A) L=27.7 IMA
8-94111-137-0
01
1
1410-
●
●
226
PIN; SHIFT CABLE
(B) L=23 IMA
8-94170-378-0
02
1
1410-
●
●
228
WASHER; PL,SHIFT CABLE
ID=8.2 OD=40 IMA
8-97182-975-0
02
1
1410-
●
●
278
WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT IMA
0-91541-208-0
01
1
1410-
●
●
281
CLIP; BAND
L=140 THA
8-97920-656-0
01
1
1410-
●
●
282
BRACKET; TRANS SIDE
IMA
8-97350-449-0
01
1
1410-
●
●
303
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1410-
●
●
512
GUIDE; CABLE,GEAR CONT
IMA
8-98111-916-0
01
1
1410-
●
●
525
WASHER; SHIFT CABLE
(A) ID=8.4 OD=16 IMA
0-91614-508-0
01
1
1410-
●
●
525
WASHER; SHIFT CABLE
(B) ID=8.4 OD=14 IMA
5-09550-002-0
01
1
1410-
●
●
536
DAMPER; CABLE
THA
8-98097-681-0
01
1
1410-
●
●
