2-30 — GEAR SHIFTER AND QUADRANT BOX (#151140) — 80 parça

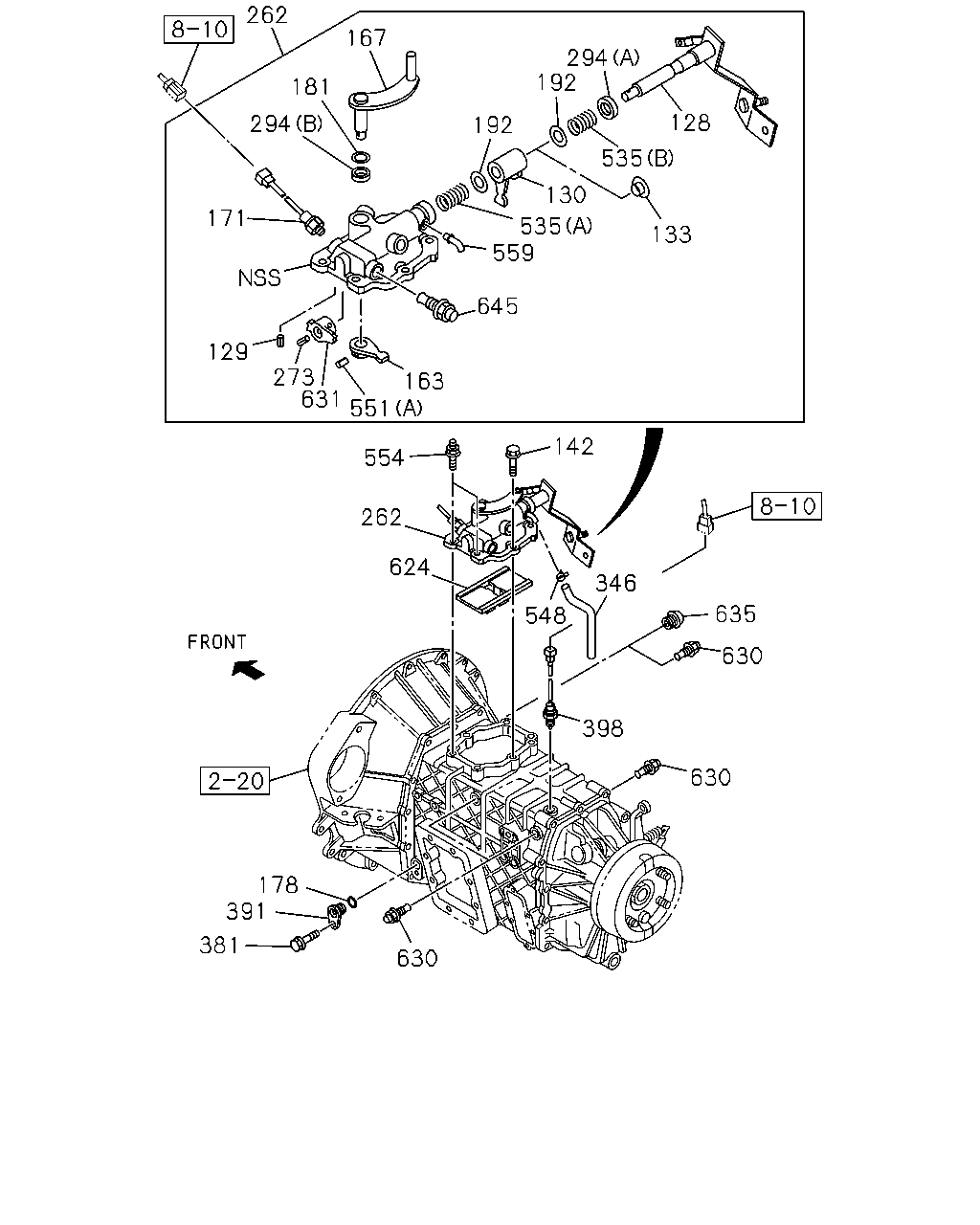

çizim 448708
262 167 181 294 171 129 631 551 163 645 559 535 130 133 535 128 294 192 192 554 262 624 178 391 381 630 630 398 630 635 346 548 142 273
BalonParca AdiParca NoAdetTipApplied Date A B
128 LEVER; SHIFT,EXTERNAL
IMA 		8-97305-725-0 01 1 1410- ●
128 LEVER; SHIFT,EXTERNAL
IMA 		8-97363-226-0 01 1 1410- ●
129 PIN; SPR,SHIFT
L=30 OD=4 IMA 		1-09748-031-0 01 1 1410- ● ●
130 LEVER; SHIFT,INTERNAL
IMA 		8-97306-647-0 01 1 1410- ● ●
133 SEAT; SPR
IMA 		8-97305-667-0 01 1 1410- ●
142 BOLT; QUAD BOX
M8X22 FLANGE IMA 		8-97365-376-0 04 1 1410- ● ●
163 LEVER; SELECT,INTERNAL
IMA 		8-97305-663-0 01 1 1410- ● ●
167 LEVER; SELECT,EXTERNAL
IMA 		8-98039-436-0 01 1 1410- ● ●
171 SWITCH; NEUTRAL
IMA 		8-98242-172-1 01 1 1410- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). IMA 		9-09567-113-0 01 1 1410- ● ●
181 WASHER; PL,SELECT LEVER
IMA 		8-97367-327-0 01 1 1410- ● ●
192 WASHER; PL
IMA 		8-97305-661-0 01 1 1410- ●
192 WASHER; PL
IMA 		8-97305-661-0 02 1 1410- ●
262 BOX ASM; SHIFT CONT
IMA 		8-98241-002-1 01 1 1410- ●
262 BOX ASM; SHIFT CONT
IMA 		8-98240-993-1 01 1 1410- ●
273 PIN; SPR,STOPPER
D=4.2 L=25 IMA 		8-97103-142-0 01 1 1410- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) IMA 		8-97305-662-0 01 1 1410- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) IMA 		8-97363-225-0 01 1 1410- ● ●
346 HOSE; AIR
IMA 		8-97309-855-0 01 1 1410- ● ●
381 BOLT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1410- ● ●
391 PLUG; SW HOLE
IMA 		8-97300-273-1 01 1 1410- ● ●
398 SWITCH; REV LAMP
IMA 		8-98256-418-0 01 1 1410- ● ●
535 SPRING; LEVER
(A) IMA 		8-97323-771-0 01 1 1410- ●
535 SPRING; LEVER
(B) IMA 		8-97323-772-0 01 1 1410- ●
535 SPRING; LEVER
(A) IMA 		8-97305-659-0 01 1 1410- ●
535 SPRING; LEVER
(B) IMA 		8-97305-660-0 01 1 1410- ●
548 CLIP; HOSE
IMA 		8-97031-674-0 01 1 1410- ● ●
551 PIN; SPRING
(A) L=25 OD=5 IMA 		1-09748-032-0 01 1 1410- ● ●
551 PIN; SPRING
(B) L=32 IMA 		8-97011-596-2 04 1 1410- ● ●
551 PIN; SPRING
(C) L=20 IMA 		8-97241-340-0 01 1 1410- ● ●
551 PIN; SPRING
(B) L=32 IMA 		8-97011-596-2 01 1 1410- ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 IMA 		8-97365-378-0 02 1 1410- ● ●
559 PIPE; BREATHER
IMA 		8-97358-318-0 01 1 1410- ● ●
624 PLATE; INTER LOCK
IMA 		8-97241-317-3 01 1 1410- ● ●
630 DETENT ASM
IMA 		8-98019-536-0 03 1 1410- ●
630 DETENT ASM
IMA 		8-98019-536-0 04 1 1410- ●
631 STOPPER; SPRING
IMA 		8-97305-666-0 01 1 1410- ● ●
635 PLUG; DETENT
IMA 		8-97380-892-0 01 1 1410- ●
645 DETENT ASM
IMA 		8-98019-536-0 01 1 1410- ● ●

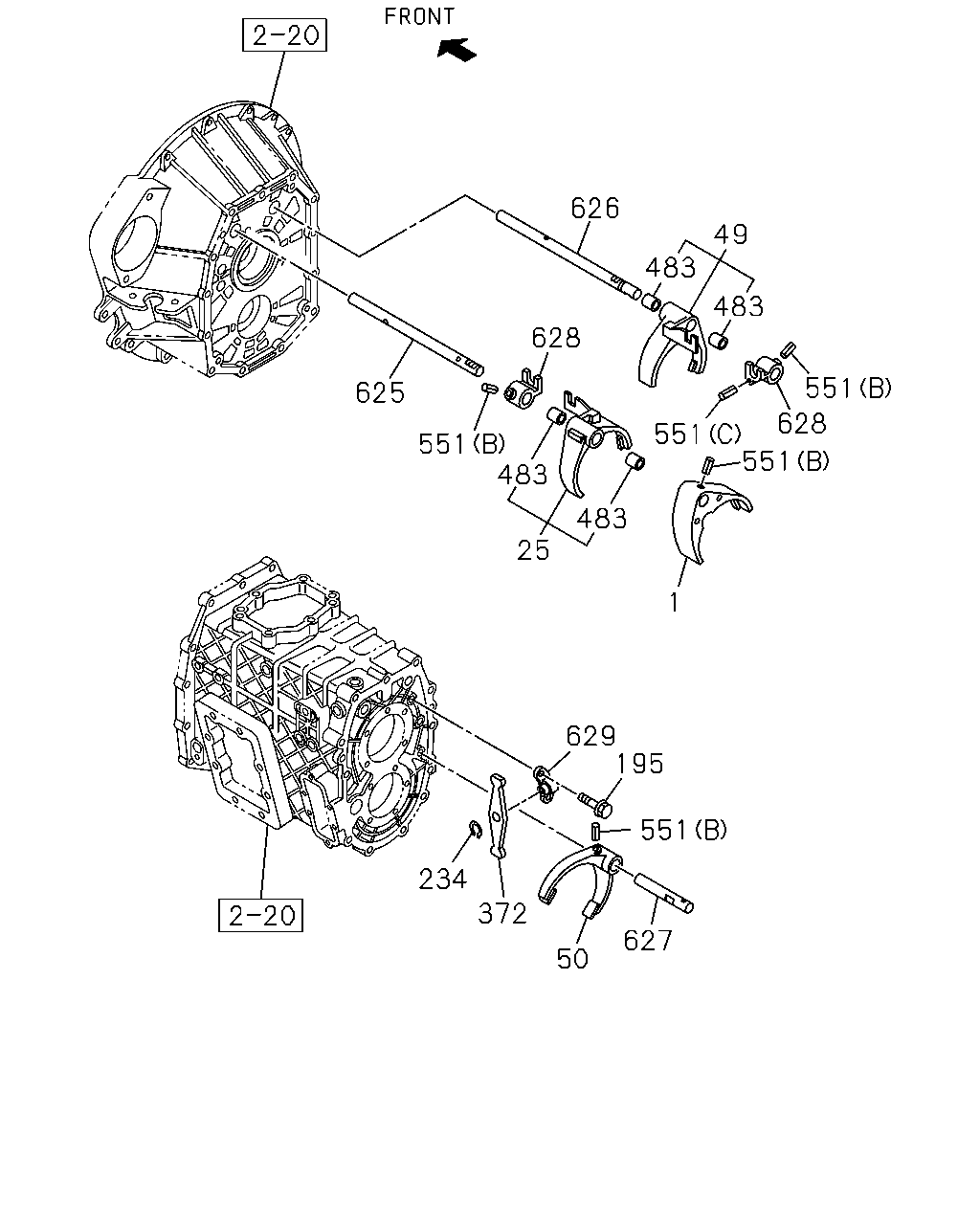

çizim 449878
626 483 49 483 551 628 551 551 628 625 551 483 483 25 1 551 195 629 627 50 372 234
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV
IMA 		8-97241-320-2 01 1 1410- ● ●
25 ARM; SHIFT,2ND & 3RD
IMA 		8-98255-926-1 01 1 1410- ● ●
49 ARM; SHIFT,4TH & 5TH
IMA 		8-97258-716-0 01 1 1410- ●
49 ARM; SHIFT,4TH & 5TH
IMA 		8-97362-732-1 01 1 1410- ●
50 ARM; SHIFT,6TH
IMA 		8-97241-325-1 01 1 1410- ●
195 BOLT
M10X28 FLANGE REAMER IMA 		8-97365-375-0 02 1 1410- ● ●
234 RING; SNAP
ID=12 IMA 		8-94460-357-0 01 1 1410- ●
234 RING; SNAP
ID=16.5 IMA 		0-91800-618-0 01 1 1410- ●
372 LEVER; RELAY,6TH
IMA 		8-97241-343-0 01 1 1410- ●
483 BUSHING; SHIFT ARM
IMA 		8-97241-326-2 02 1 1410- ● ●
483 BUSHING; SHIFT ARM
IMA 		8-97241-326-2 02 1 1410- ● ●
551 PIN; SPRING
(A) L=25 OD=5 IMA 		1-09748-032-0 01 1 1410- ● ●
551 PIN; SPRING
(B) L=32 IMA 		8-97011-596-2 04 1 1410- ● ●
551 PIN; SPRING
(C) L=20 IMA 		8-97241-340-0 01 1 1410- ● ●
551 PIN; SPRING
(B) L=32 IMA 		8-97011-596-2 01 1 1410- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
IMA 		8-97362-741-0 01 1 1410- ● ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH
IMA 		8-97366-024-1 01 1 1410- ●
627 ROD; GEAR SHIFT,6TH SUB
IMA 		8-98119-293-0 01 1 1410- ●
628 BLOCK; SHIFT,LOW,REV & 6TH
IMA 		8-97241-327-1 02 1 1410- ●
629 BRIDGE; LEVER
IMA 		8-97237-107-1 01 1 1410- ●
629 BRIDGE; LEVER
IMA 		8-97241-345-1 01 1 1410- ●

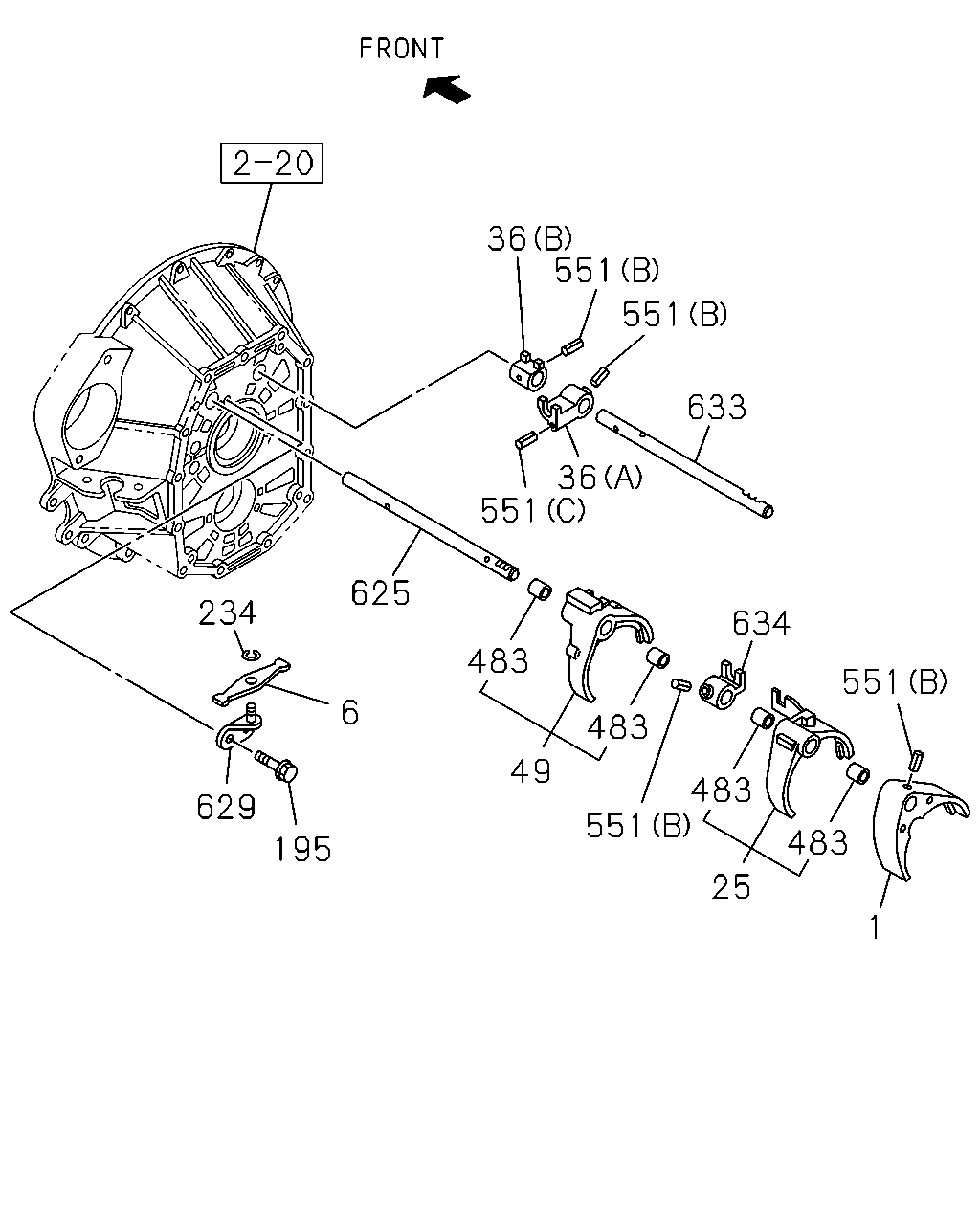

çizim 450261
36 551 551 633 36 551 625 234 6 629 195 49 483 551 483 634 483 483 25 551
BalonParca AdiParca NoAdetTipApplied Date A B
6 LEVER; RELAY
IMA 		8-97241-344-0 01 1 1410- ●
25 ARM; SHIFT,2ND & 3RD
IMA 		8-98255-926-1 01 1 1410- ● ●
36 BLOCK; SHIFT,4TH & 5TH
(A) IMA 		8-97241-329-1 01 1 1410- ●
36 BLOCK; SHIFT,4TH & 5TH
(B) IMA 		8-97241-330-0 01 1 1410- ●
49 ARM; SHIFT,4TH & 5TH
IMA 		8-97258-716-0 01 1 1410- ●
49 ARM; SHIFT,4TH & 5TH
IMA 		8-97362-732-1 01 1 1410- ●
195 BOLT
M10X28 FLANGE REAMER IMA 		8-97365-375-0 02 1 1410- ● ●
234 RING; SNAP
ID=12 IMA 		8-94460-357-0 01 1 1410- ●
234 RING; SNAP
ID=16.5 IMA 		0-91800-618-0 01 1 1410- ●
483 BUSHING; SHIFT ARM
IMA 		8-97241-326-2 02 1 1410- ● ●
483 BUSHING; SHIFT ARM
IMA 		8-97241-326-2 02 1 1410- ● ●
551 PIN; SPRING
(A) L=25 OD=5 IMA 		1-09748-032-0 01 1 1410- ● ●
551 PIN; SPRING
(B) L=32 IMA 		8-97011-596-2 04 1 1410- ● ●
551 PIN; SPRING
(C) L=20 IMA 		8-97241-340-0 01 1 1410- ● ●
551 PIN; SPRING
(B) L=32 IMA 		8-97011-596-2 01 1 1410- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
IMA 		8-97362-741-0 01 1 1410- ● ●
629 BRIDGE; LEVER
IMA 		8-97237-107-1 01 1 1410- ●
629 BRIDGE; LEVER
IMA 		8-97241-345-1 01 1 1410- ●
633 ROD; GEAR SHIFT,4TH,5TH
IMA 		8-97362-743-0 01 1 1410- ●
634 BLOCK; SHIFT,LOW,REV
IMA 		8-97241-327-1 01 1 1410- ●
