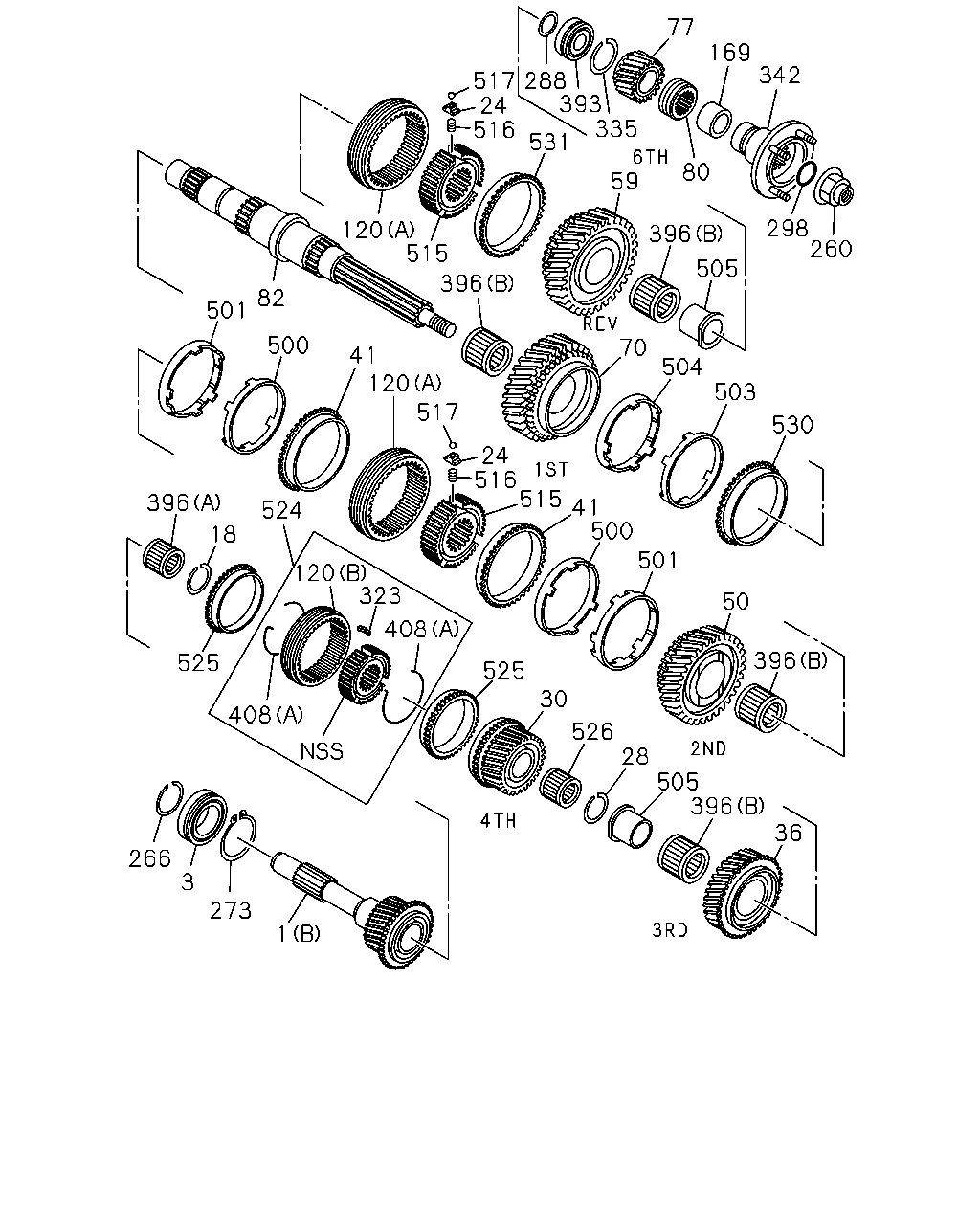

2-26 — MANUAL TRANSMISSION GEAR (#151139) — 164 parça

519 517 24 516 120 531 288 393 335 342 80 298 260 59 515 396 396 505 82 501 500 41 70 504 503 530 120 517 24 516 515 41 500 501 50 396 396 18 524 120 323 525 408 408 525 523 526 28 505 396 36 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS (A) Z=28 IMA	8-98031-848-0	01	1	1410-	●
1	SHAFT; TOP GEAR,TRANS (B) Z=26 IMA	8-98021-266-0	01	1	1410-		●
3	BEARING; TOP GEAR SHAFT NSK IMA	8-97253-098-1	01	1	1410-	●	●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8 IMA	8-97254-728-0	01	1	1410-	●	●
24	BLOCK; INDEX,SYN IMA	8-97241-313-1	06	1	1410-	●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8 IMA	8-97254-743-0	01	1	1410-	●	●
36	GEAR; 3RD,MAINSHAFT Z=34 IMA	8-97241-234-0	01	1	1410-	●	●
41	RING; BLOCK,2ND & 3RD Z=45 IMA	8-97241-306-1	02	1	1410-	●	●
50	GEAR; 2ND,MAINSHAFT Z=38 IMA	8-97241-237-1	01	1	1410-	●	●
59	GEAR; REV MAINSHAFT Z=41 IMA	8-97241-244-0	01	1	1410-	●	●
70	GEAR; 1ST,MAINSHAFT Z=43 IMA	8-97350-010-0	01	1	1410-	●	●
80	GEAR; SPD DRIVE Z=4 IMA	8-97253-556-0	01	1	1410-	●	●
82	SHAFT; MAIN,TRANS Z=28-42-42-21 IMA	8-97253-117-3	01	1	1410-	●
82	SHAFT; MAIN,TRANS Z=28-42-42-21 IMA	8-97253-116-3	01	1	1410-		●
120	SLEEVE (B) Z=45 IMA	8-94421-871-1	01	1	1410-	●	●
120	SLEEVE (A) Z=45 IMA	8-98258-279-0	02	1	1410-	●	●
260	NUT; MAINSHAFT END M27 H=25 IMA	8-97360-410-0	01	1	1410-	●	●
266	RING; SNAP,BRG INNER IMA	8-97286-916-0	01	1	1410-	●	●
273	RING; SNAP,BRG OUTER IMA	8-97254-610-0	01	1	1410-	●	●
288	SPACER; BRG,MAINSHAFT IMA	8-97252-942-0	01	1	1410-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 IMA	8-98028-226-0	01	1	1410-	●	●
323	INSERT IMA	8-94448-202-2	03	1	1410-	●	●
335	RING; SNAP,BEARING IMA	8-97254-722-0	01	1	1410-	●	●
342	FLANGE; OUTPUT IMA	8-98031-640-0	01	1	1410-	●	●
393	BEARING; MAINSHAFT END IMA	8-97253-105-1	01	1	1410-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A) IMA	8-97253-102-1	01	1	1410-	●	●
396	BEARING; NEEDLE,MAINSHAFT (B) IMA	8-97253-110-0	04	1	1410-	●	●
408	SPRING (A) IMA	8-97366-040-1	02	1	1410-	●	●
408	SPRING (A) IMA	8-97366-040-1	02	1	1410-		●
408	SPRING (B) IMA	8-94148-196-0	03	1	1410-	●	●
500	RING; OUTSIDE,3RD & 2ND IMA	8-97241-309-1	02	1	1410-	●	●
501	RING; INSIDE,3RD & 2ND IMA	8-97241-312-1	02	1	1410-	●	●
503	RING; OUTSIDE,LOW & REV IMA	8-97241-309-1	01	1	1410-	●	●
504	RING; INSIDE,LOW & REV IMA	8-97241-312-1	01	1	1410-	●	●
505	COLLAR; 3RD & REV IMA	8-97253-119-2	02	1	1410-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD IMA	8-97241-298-3	02	1	1410-	●	●
516	SPRING; SYNCHRO,INDEX IMA	8-97254-835-0	06	1	1410-	●	●
517	BALL; SYNCHRO,INDEX IMA	8-97252-935-0	06	1	1410-	●	●
519	COLLAR; MAINSHAFT END,5TH IMA	8-97252-940-0	01	1	1410-	●
523	GEAR; OD,MAINSHAFT Z=22 IMA	8-97241-231-0	01	1	1410-	●
524	SLEEVE & HUB ASM; TOP-4TH,OD IMA	8-97366-526-0	01	1	1410-	●	●
525	RING; BLOCK,TOP & 4TH,OD Z=45 IMA	8-97309-532-0	02	1	1410-	●	●
526	BEARING; NEEDLE,4TH & 5TH IMA	8-97253-112-0	01	1	1410-	●	●
530	RING; BLOCK,LOW Z=45 IMA	8-97241-306-1	01	1	1410-	●	●
531	RING; BLOCK,REV Z=45 IMA	8-97368-343-0	01	1	1410-	●	●

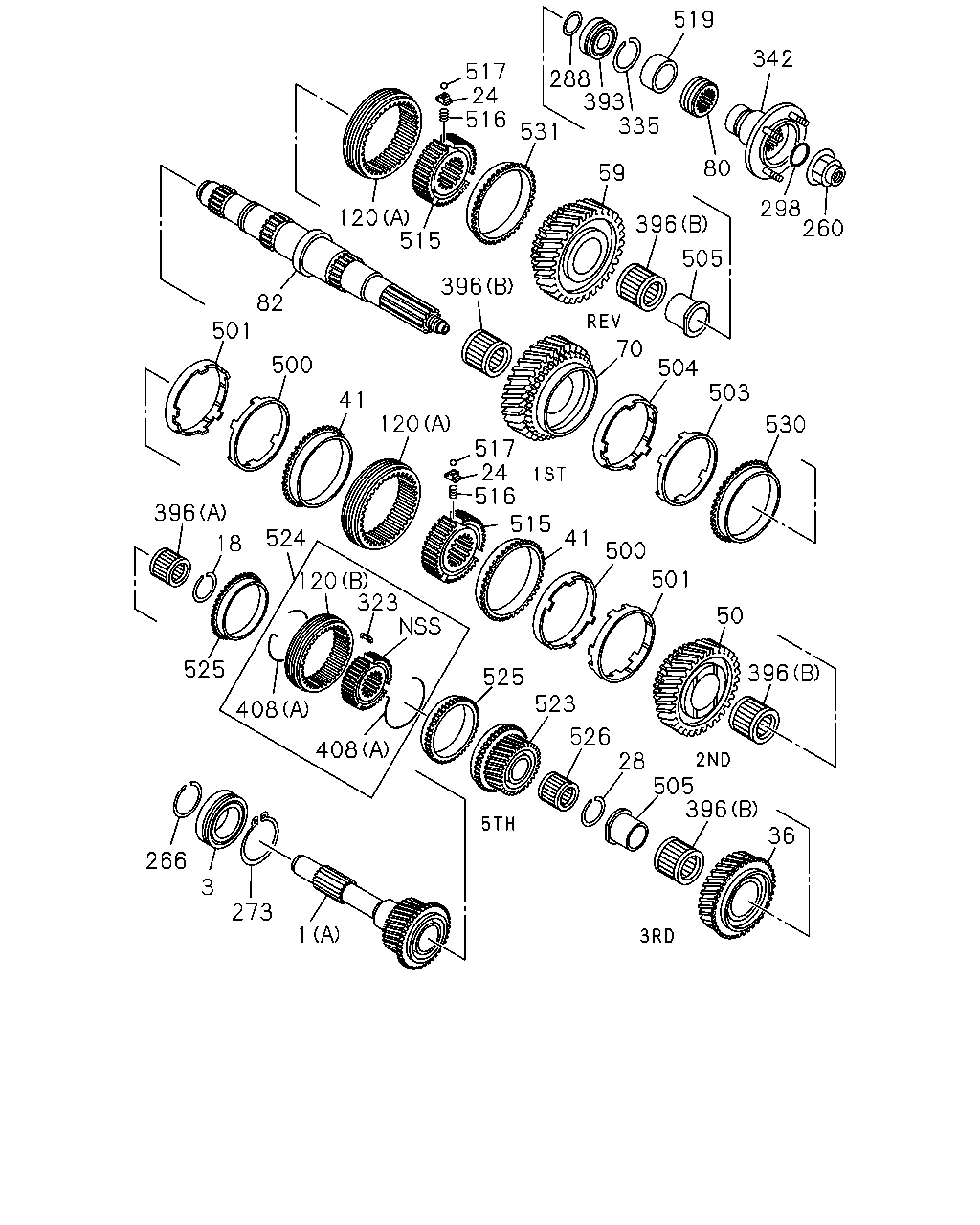

77 169 342 298 260 505 396 59 80 335 393 288 517 24 516 531 515 120 396 70 504 503 530 396 50 501 500 41 515 516 24 517 120 41 500 82 501 524 18 396 525 408 408 323 120 525 30 526 28 505 396 36 1 273 3 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS (A) Z=28 IMA	8-98031-848-0	01	1	1410-	●
1	SHAFT; TOP GEAR,TRANS (B) Z=26 IMA	8-98021-266-0	01	1	1410-		●
3	BEARING; TOP GEAR SHAFT NSK IMA	8-97253-098-1	01	1	1410-	●	●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8 IMA	8-97254-728-0	01	1	1410-	●	●
24	BLOCK; INDEX,SYN IMA	8-97241-313-1	06	1	1410-	●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8 IMA	8-97254-743-0	01	1	1410-	●	●
30	GEAR; 4TH,MAINSHAFT Z=28 IMA	8-97241-230-0	01	1	1410-		●
36	GEAR; 3RD,MAINSHAFT Z=34 IMA	8-97241-234-0	01	1	1410-	●	●
41	RING; BLOCK,2ND & 3RD Z=45 IMA	8-97241-306-1	02	1	1410-	●	●
50	GEAR; 2ND,MAINSHAFT Z=38 IMA	8-97241-237-1	01	1	1410-	●	●
59	GEAR; REV MAINSHAFT Z=41 IMA	8-97241-244-0	01	1	1410-	●	●
70	GEAR; 1ST,MAINSHAFT Z=43 IMA	8-97350-010-0	01	1	1410-	●	●
77	GEAR; 6TH,MAINSHAFT Z=21 IMA	8-97386-582-0	01	1	1410-		●
80	GEAR; SPD DRIVE Z=4 IMA	8-97253-556-0	01	1	1410-	●	●
82	SHAFT; MAIN,TRANS Z=28-42-42-21 IMA	8-97253-117-3	01	1	1410-	●
82	SHAFT; MAIN,TRANS Z=28-42-42-21 IMA	8-97253-116-3	01	1	1410-		●
120	SLEEVE (B) Z=45 IMA	8-94421-871-1	01	1	1410-	●	●
120	SLEEVE (A) Z=45 IMA	8-98258-279-0	02	1	1410-	●	●
169	COLLAR; MAINSHAFT IMA	8-97252-937-1	01	1	1410-		●
260	NUT; MAINSHAFT END M27 H=25 IMA	8-97360-410-0	01	1	1410-	●	●
266	RING; SNAP,BRG INNER IMA	8-97286-916-0	01	1	1410-	●	●
273	RING; SNAP,BRG OUTER IMA	8-97254-610-0	01	1	1410-	●	●
288	SPACER; BRG,MAINSHAFT IMA	8-97252-942-0	01	1	1410-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 IMA	8-98028-226-0	01	1	1410-	●	●
323	INSERT IMA	8-94448-202-2	03	1	1410-	●	●
335	RING; SNAP,BEARING IMA	8-97254-722-0	01	1	1410-	●	●
342	FLANGE; OUTPUT IMA	8-98031-640-0	01	1	1410-	●	●
393	BEARING; MAINSHAFT END IMA	8-97253-105-1	01	1	1410-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A) IMA	8-97253-102-1	01	1	1410-	●	●
396	BEARING; NEEDLE,MAINSHAFT (B) IMA	8-97253-110-0	04	1	1410-	●	●
408	SPRING (A) IMA	8-97366-040-1	02	1	1410-	●	●
408	SPRING (A) IMA	8-97366-040-1	02	1	1410-		●
408	SPRING (B) IMA	8-94148-196-0	03	1	1410-	●	●
500	RING; OUTSIDE,3RD & 2ND IMA	8-97241-309-1	02	1	1410-	●	●
501	RING; INSIDE,3RD & 2ND IMA	8-97241-312-1	02	1	1410-	●	●
503	RING; OUTSIDE,LOW & REV IMA	8-97241-309-1	01	1	1410-	●	●
504	RING; INSIDE,LOW & REV IMA	8-97241-312-1	01	1	1410-	●	●
505	COLLAR; 3RD & REV IMA	8-97253-119-2	02	1	1410-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD IMA	8-97241-298-3	02	1	1410-	●	●
516	SPRING; SYNCHRO,INDEX IMA	8-97254-835-0	06	1	1410-	●	●
517	BALL; SYNCHRO,INDEX IMA	8-97252-935-0	06	1	1410-	●	●
524	SLEEVE & HUB ASM; TOP-4TH,OD IMA	8-97366-526-0	01	1	1410-	●	●
525	RING; BLOCK,TOP & 4TH,OD Z=45 IMA	8-97309-532-0	02	1	1410-	●	●
526	BEARING; NEEDLE,4TH & 5TH IMA	8-97253-112-0	01	1	1410-	●	●
530	RING; BLOCK,LOW Z=45 IMA	8-97241-306-1	01	1	1410-	●	●
531	RING; BLOCK,REV Z=45 IMA	8-97368-343-0	01	1	1410-	●	●

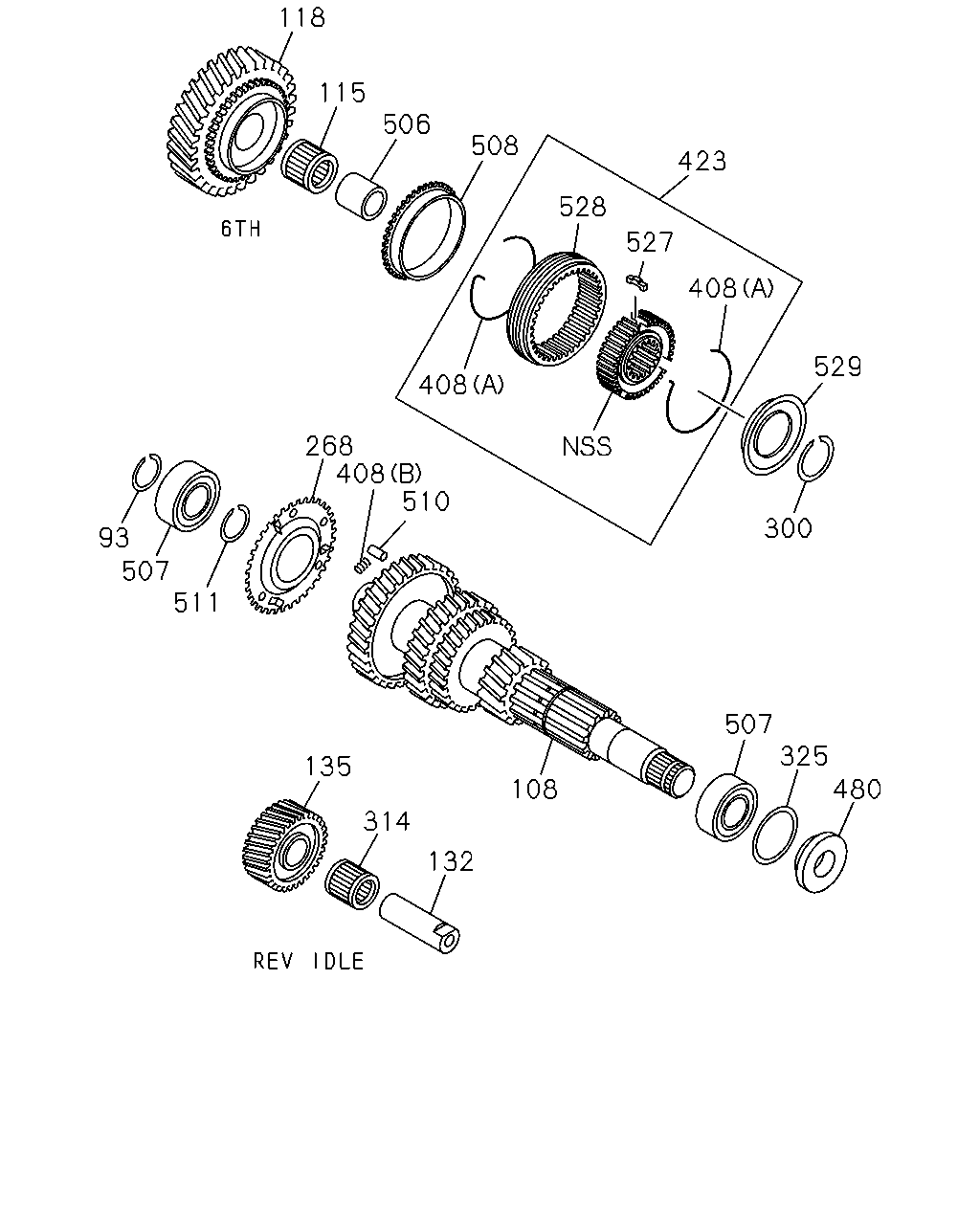

93 507 511 268 408 510 108 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9 IMA	8-97254-734-0	01	1	1410-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1 IMA	8-97254-740-0	01	1	1410-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3 IMA	8-97254-742-0	01	1	1410-	●	●
108	SHAFT; COUNTER Z=45-49-33-20 IMA	8-97380-630-1	01	1	1410-	●
108	SHAFT; COUNTER Z=47-39-33-20 IMA	8-97380-627-1	01	1	1410-		●
132	SHAFT; REV IMA	8-97252-655-0	01	1	1410-	●	●
135	GEAR; REV IDLER Z=25 IMA	8-98031-869-1	01	1	1410-	●	●
268	PLATE; ANTI LASH,COUNTER IMA	8-97257-300-1	01	1	1410-	●
268	PLATE; ANTI LASH,COUNTER IMA	8-97252-684-1	01	1	1410-		●
314	BEARING; NEEDLE,REV GEAR NSK IMA	8-97253-114-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29 IMA	8-97252-666-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35 IMA	8-97252-667-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41 IMA	8-97252-668-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47 IMA	8-97252-669-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53 IMA	8-97252-670-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59 IMA	8-97252-671-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65 IMA	8-97252-672-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71 IMA	8-97252-673-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77 IMA	8-97252-674-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83 IMA	8-97252-675-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89 IMA	8-97257-622-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11 IMA	8-97306-188-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17 IMA	8-97306-189-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23 IMA	8-97306-190-0	01	1	1410-	●	●
408	SPRING (A) IMA	8-97366-040-1	02	1	1410-	●	●
408	SPRING (A) IMA	8-97366-040-1	02	1	1410-		●
408	SPRING (B) IMA	8-94148-196-0	03	1	1410-	●	●
507	BEARING; COUNTER SHAFT,FRT & RR IMA	8-97253-107-0	02	1	1410-	●	●
510	PIN; STRAIGHT,ANTI LASH IMA	9-08160-825-0	03	1	1410-	●	●
511	RING; SNAP,ANTI LASH PLATE IMA	8-97254-767-0	01	1	1410-	●	●

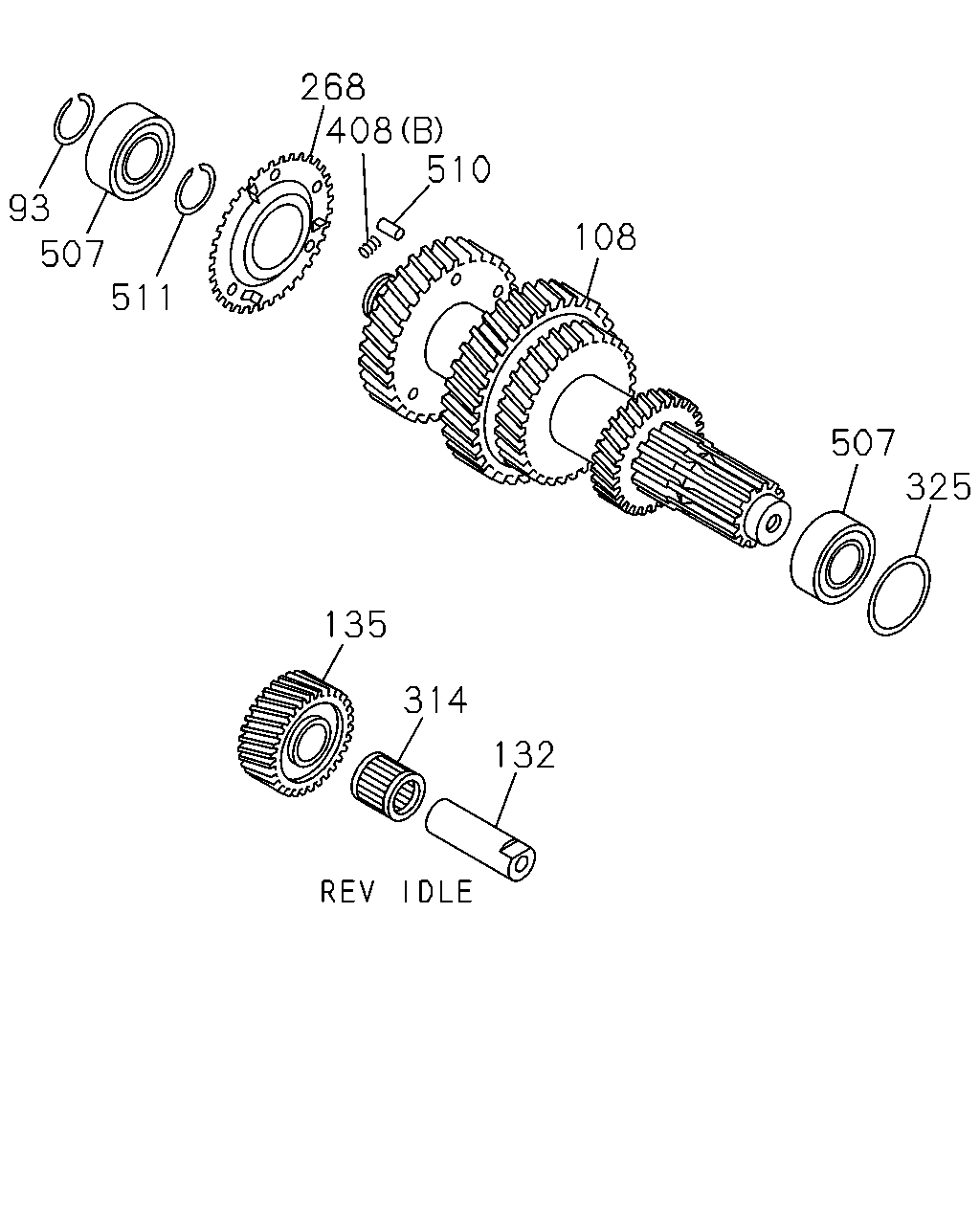

108 132 314 135 480 325 507 300 529 510 408 268 511 507 93 115 118 508 506 528 408 423 527 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9 IMA	8-97254-734-0	01	1	1410-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1 IMA	8-97254-740-0	01	1	1410-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3 IMA	8-97254-742-0	01	1	1410-	●	●
108	SHAFT; COUNTER Z=45-49-33-20 IMA	8-97380-630-1	01	1	1410-	●
108	SHAFT; COUNTER Z=47-39-33-20 IMA	8-97380-627-1	01	1	1410-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.75 IMA	8-97253-113-0	01	1	1410-		●
118	GEAR; 6TH,COUNTER Z=50 IMA	8-97386-580-0	01	1	1410-		●
132	SHAFT; REV IMA	8-97252-655-0	01	1	1410-	●	●
135	GEAR; REV IDLER Z=25 IMA	8-98031-869-1	01	1	1410-	●	●
268	PLATE; ANTI LASH,COUNTER IMA	8-97257-300-1	01	1	1410-	●
268	PLATE; ANTI LASH,COUNTER IMA	8-97252-684-1	01	1	1410-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7 IMA	8-97254-727-0	01	1	1410-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.8 IMA	8-97254-728-0	01	1	1410-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9 IMA	8-97254-734-0	01	1	1410-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6 IMA	8-97365-617-0	01	1	1410-		●
314	BEARING; NEEDLE,REV GEAR NSK IMA	8-97253-114-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29 IMA	8-97252-666-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35 IMA	8-97252-667-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41 IMA	8-97252-668-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47 IMA	8-97252-669-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53 IMA	8-97252-670-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59 IMA	8-97252-671-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65 IMA	8-97252-672-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71 IMA	8-97252-673-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77 IMA	8-97252-674-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83 IMA	8-97252-675-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89 IMA	8-97257-622-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11 IMA	8-97306-188-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17 IMA	8-97306-189-0	01	1	1410-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23 IMA	8-97306-190-0	01	1	1410-	●	●
408	SPRING (A) IMA	8-97366-040-1	02	1	1410-	●	●
408	SPRING (A) IMA	8-97366-040-1	02	1	1410-		●
408	SPRING (B) IMA	8-94148-196-0	03	1	1410-	●	●
423	SLEEVE & HUB ASM; 6TH IMA	8-97367-022-0	01	1	1410-		●
480	WASHER; THRUST,6TH IMA	8-97253-123-1	01	1	1410-		●
506	COLLAR; 6TH,COUNTER IMA	8-97253-121-1	01	1	1410-		●
507	BEARING; COUNTER SHAFT,FRT & RR IMA	8-97253-107-0	02	1	1410-	●	●
508	RING; BLOCK,6TH Z=45 IMA	8-97309-532-0	01	1	1410-		●
510	PIN; STRAIGHT,ANTI LASH IMA	9-08160-825-0	03	1	1410-	●	●
511	RING; SNAP,ANTI LASH PLATE IMA	8-97254-767-0	01	1	1410-	●	●
527	INSERT; 6TH IMA	8-94448-202-2	03	1	1410-		●
528	SLEEVE; 6TH Z=45 IMA	8-94421-871-1	01	1	1410-		●
529	PLATE; STOPPER,6TH IMA	8-97248-952-0	01	1	1410-		●
