◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51567 - NLR/NMR THAILAND ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#151138) — 15 parça

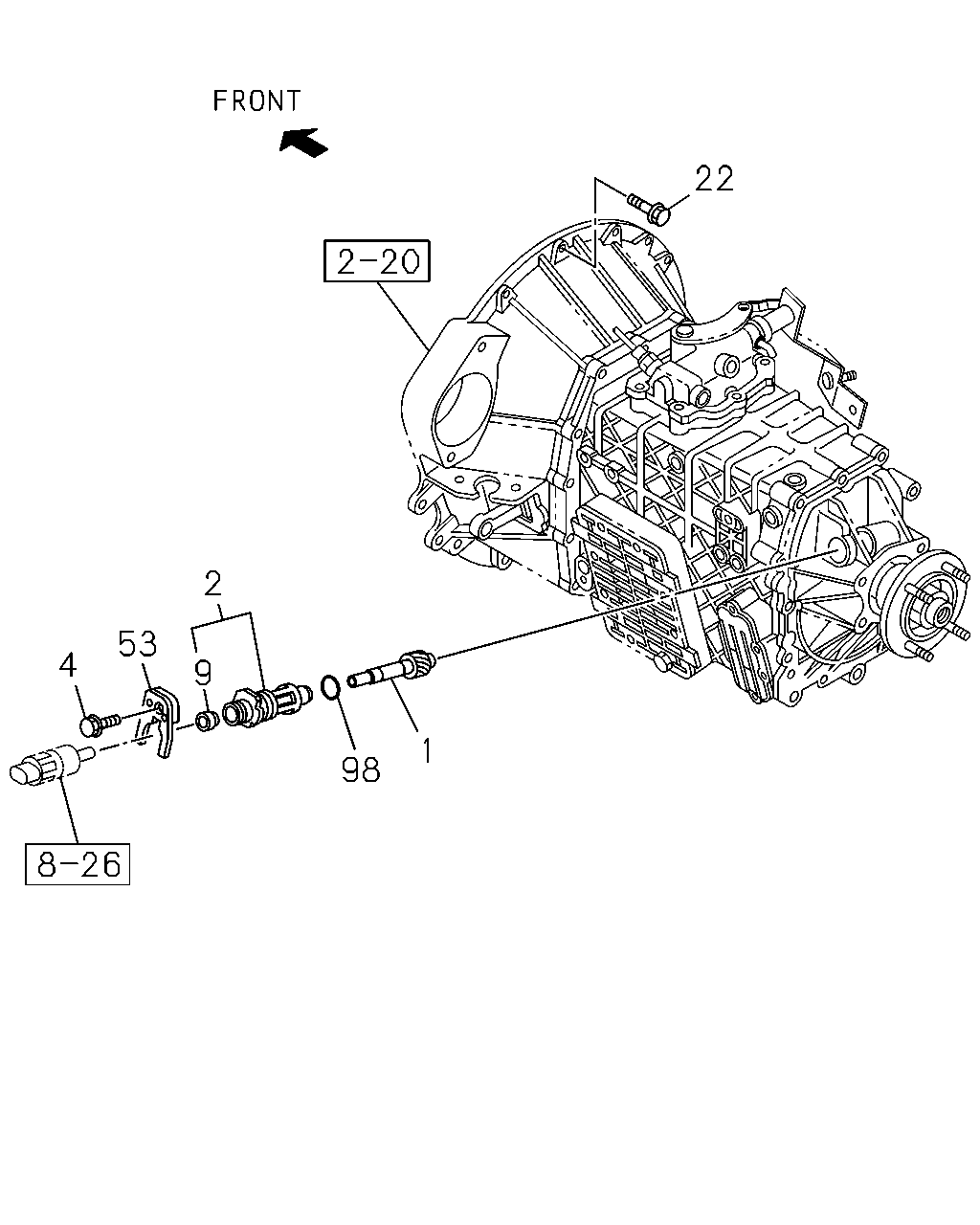

çizim 450200
22 1 98 2 53 9 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD
M/T MYY5T<RSM> FRT&RR 7R-16-12 16X5.5F-125<CVP>,FRT&RR 7.5-15-10 5.5FX15-25<09V> Z=11 IMA 		8-97253-559-1 01 1 1410- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9<HC6>,FINAL GEAR RATIO 43/9<S2J> FRT&RR 7R-16-12 16X5.5F-115<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> Z=12 IMA 		8-97253-563-1 01 1 1410- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/8<R40> FRT&RR 7R-16-12 16X5.5F-115<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> Z=14 IMA 		8-97253-561-1 01 1 1410- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T<RSM> FRT&RR 7R-16-12 16X5.5F-125<CVP>,FRT&RR 7.5-15-10 5.5FX15-25<09V> MARK "10,11,16,17" IMA 		8-97253-124-0 01 1 1410- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/9<S2J> FRT&RR 7-15-8 5.5FX15-115<46H> MARK "12,13,14,15" IMA 		8-97253-125-0 01 1 1410- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9<HC6>,FINAL GEAR RATIO 43/8<R40>,FINAL GEAR RATIO 43/9<S2J> FRT&RR 7R-16-12 16X5.5F-115<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> MARK "12,13,14,15" IMA 		8-97253-125-0 01 1 1410- ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ● ●
9 SEAL; OIL,DRIVEN GEAR
NOK IMA 		8-97131-328-1 01 1 1410- ● ●
22 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X140 FLANGE IMA 		0-28156-014-0 01 1 1410- ● ●
22 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> M10X30 FLANGE IMA 		0-28151-030-0 03 1 1410- ● ●
22 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> M10X35 FLANGE IMA 		0-28151-035-0 03 1 1410- ● ●
22 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> M10X120 FLANGE IMA 		0-28156-012-0 01 1 1410- ● ●
22 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> M10X50 FLANGE THA 		0-28151-050-0 01 1 1410- ● ●
53 PLATE; LOCK,DRIVEN GEAR
IMA 		8-98046-217-0 01 1 1410- ● ●
98 SEAL; OIL,BUSH
IMA 		9-09561-324-0 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
