2-20 — MANUAL TRANSMISSION ASM AND CASE (#151137) — 35 parça

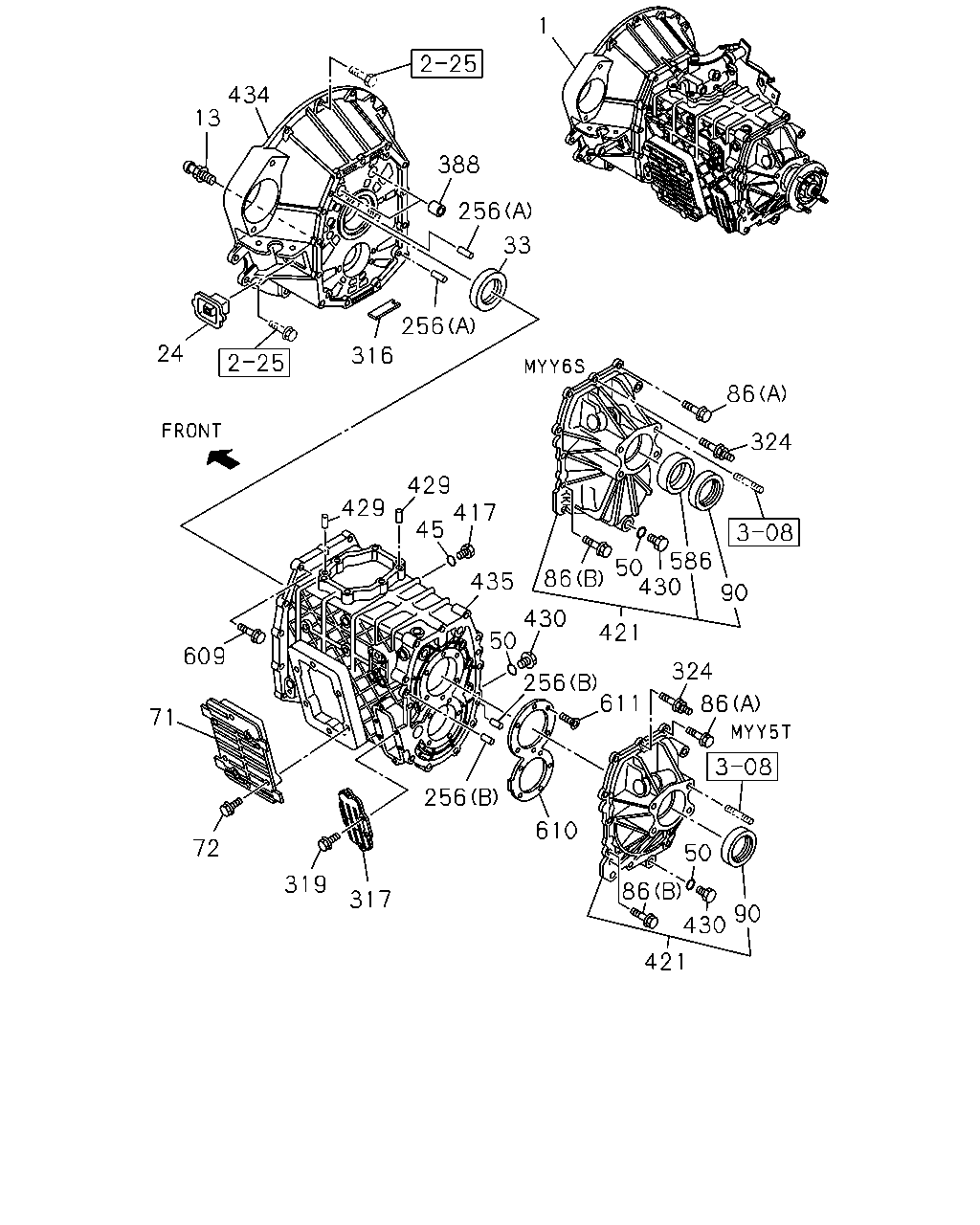

çizim 450069
1 434 13 24 316 256 33 256 388 86 324 586 90 430 50 86 430 421 611 86 324 50 90 430 421 86 610 256 256 50 435 417 45 429 429 609 71 72 319 317
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> IMA 		8-98067-623-0 01 1 1410- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> IMA 		8-98067-656-0 01 1 1410- ●
13 SUPPORT; SHIFT FORK
IMA 		8-97255-384-1 01 1 1410- ● ●
24 COVER; CHECK HOLE,DUST
IMA 		8-97255-201-0 01 1 1410- ● ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). IMA 		8-97253-550-0 01 1 1410- ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA 		8-97115-712-0 01 1 1410- ● ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA 		8-97115-712-0 01 1 1410- ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA 		8-97115-712-0 02 1 1410- ●
71 COVER; SIDE,TRANS CASE
EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> IMA 		8-97252-625-0 01 1 1410- ● ●
72 BOLT; SIDE COVER
EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL CONTROL<6WC> M10X20 FLANGE IMA 		8-98014-142-0 06 1 1410- ● ●
86 BOLT; RR COVER
(A) M10X40 FLANGE IMA 		0-28151-040-0 10 1 1410- ●
86 BOLT; RR COVER
(B) M10X40 FLANGE IMA 		8-97365-377-0 02 1 1410- ● ●
86 BOLT; RR COVER
(A) M10X40 FLANGE IMA 		0-28151-040-0 09 1 1410- ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK IMA 		8-97253-552-1 01 1 1410- ● ●
256 PIN; KNOCK
(A) OD=10 L=20 IMA 		8-97135-423-0 02 1 1410- ● ●
256 PIN; KNOCK
(B) ID=6 L=12 THA 		9-08160-612-0 02 1 1410- ● ●
316 MAGNET; TRANS CASE
IMA 		8-94249-524-2 01 1 1410- ● ●
317 COVER; CASE
IMA 		8-97252-626-0 01 1 1410- ● ●
319 BOLT; COVER
M8X20 FLANGE THA 		0-28050-820-0 06 1 1410- ● ●
324 STUD; RR COVER
M10X15,M10X40 L=65 IMA 		8-97365-379-0 01 1 1410- ●
324 STUD; RR COVER
M10X15,M10X40 L=65 IMA 		8-97365-379-0 02 1 1410- ●
388 BUSHING; CLU HSG
IMA 		8-97241-326-2 02 1 1410- ● ●
417 PLUG; OIL FILLER,TRANS
IMA 		8-97365-373-0 01 1 1410- ● ●
421 COVER; RR,TRANS
IMA 		8-98020-029-0 01 1 1410- ●
421 COVER; RR,TRANS
IMA 		8-98020-028-0 01 1 1410- ●
429 PIN; STRAIGHT
OD=10 L=20 IMA 		8-97135-423-0 02 1 1410- ● ●
430 PLUG; OIL DRAIN
IMA 		8-97365-374-0 01 1 1410- ●
430 PLUG; OIL DRAIN
IMA 		8-97365-374-0 02 1 1410- ●
434 HOUSING; CLU
IMA 		8-97237-099-5 01 1 1410- ● ●
435 CASE; TRANS
IMA 		8-97379-375-0 01 1 1410- ●
435 CASE; TRANS
IMA 		8-97379-374-0 01 1 1410- ●
586 BEARING; NEEDLE
IMA 		8-97253-109-0 01 1 1410- ●
609 BOLT; HSG TO CASE
M10X40 FLANGE IMA 		0-28151-040-0 13 1 1410- ● ●
610 RETAINER; BRG
IMA 		8-97241-315-1 01 1 1410- ● ●
611 SCREW
M10X27 TORQUES IMA 		8-97365-354-0 11 1 1410- ● ●
