◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51567 - NLR/NMR THAILAND ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#151126) — 33 parça

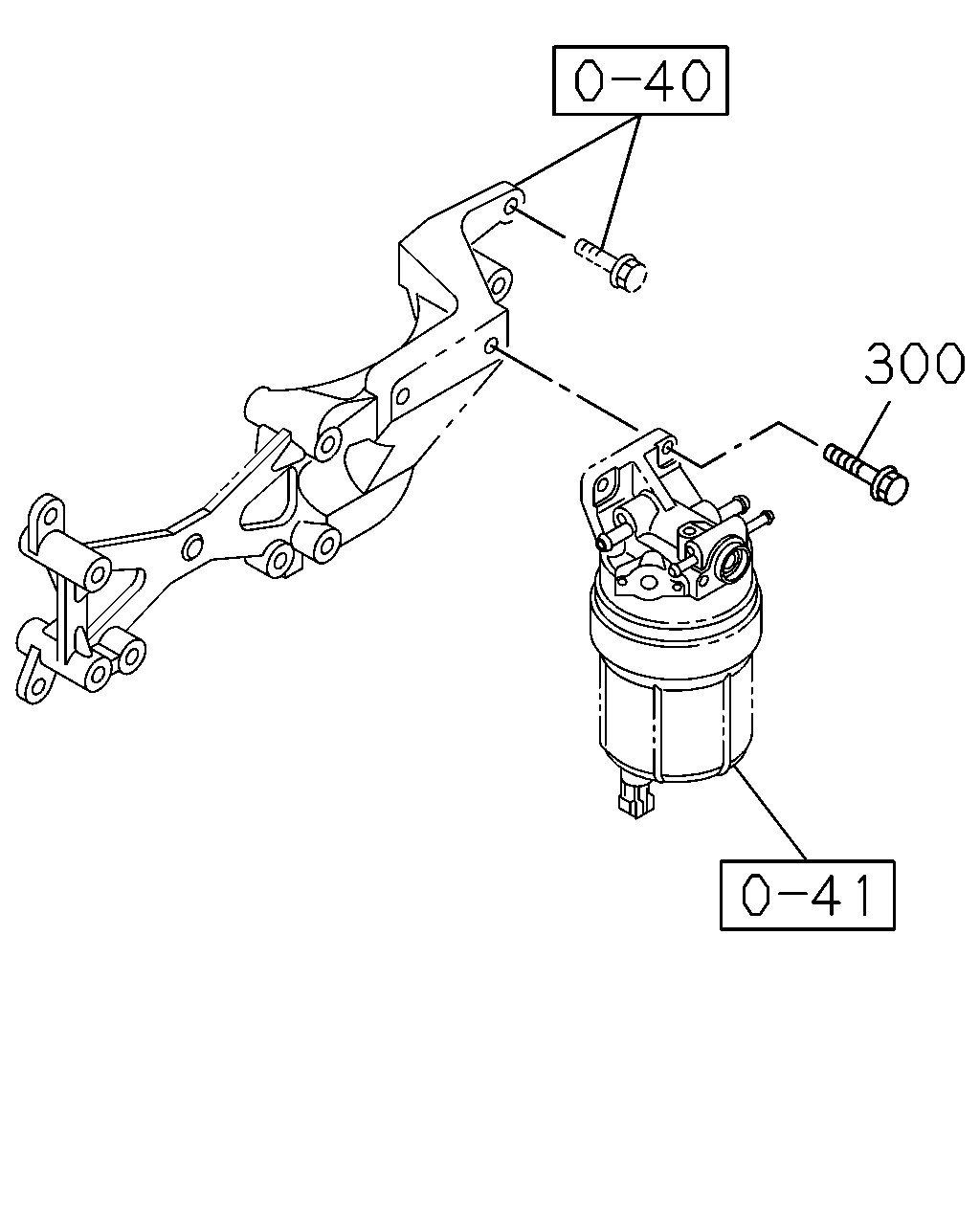

çizim 449832
300
BalonParca AdiParca NoAdetTipApplied Date A B
300 BOLT; BRKT TO BODY
ENGINE BREAKDOWN<RZX> KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> M8X25 FLANGE THA 		0-28650-825-0 02 1 1410- ● ●

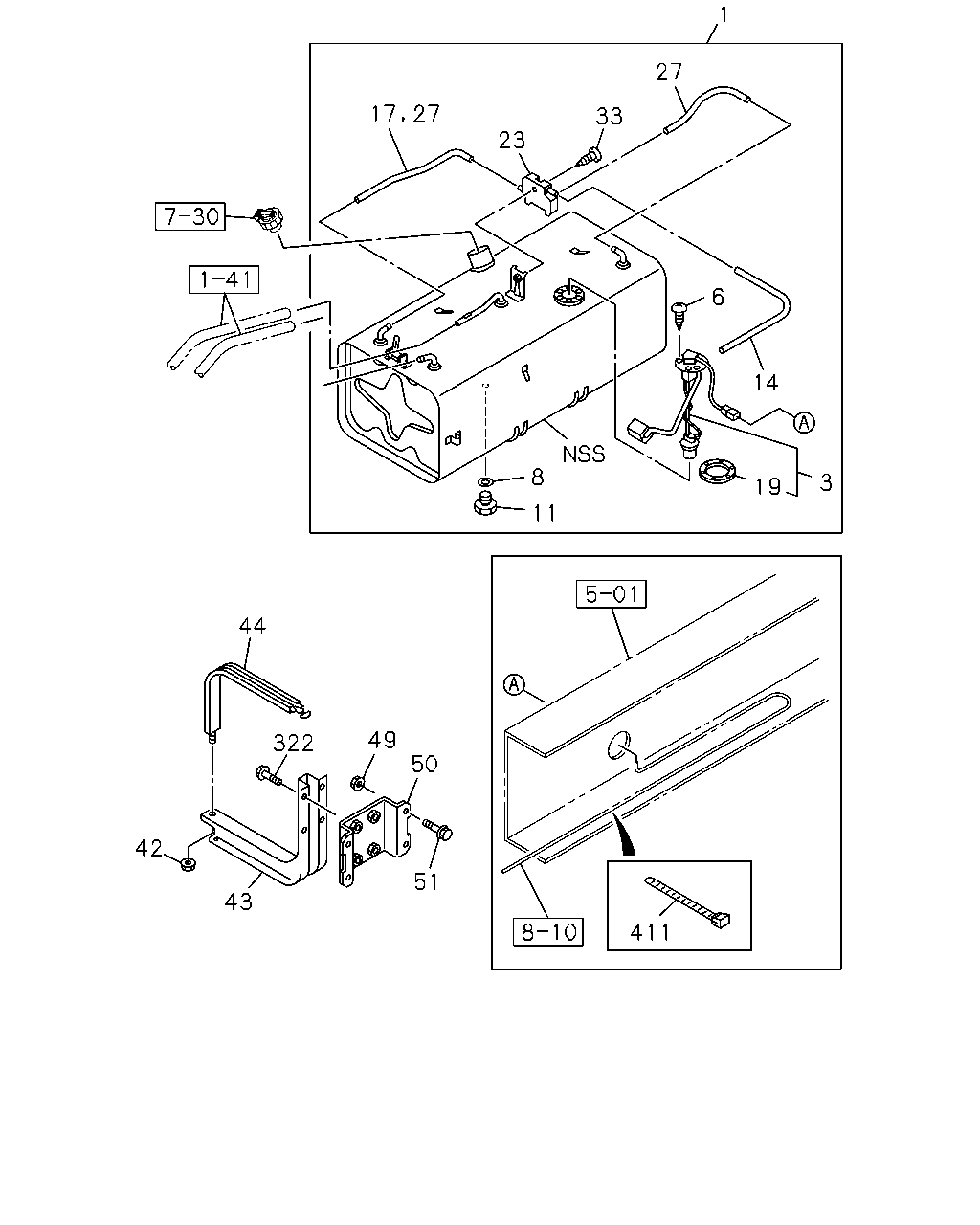

çizim 450279
1 27 33 23 27 17 8 14 6 3 19 11 44 322 50 49 51 43 42 411
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
753X340X327 75L THA 		8-97924-555-0 01 1 1410- ●
1 TANK; FUEL
FUEL TANK 75 LITTER<7GX> 753X340X327 75L THA 		8-97924-555-0 01 1 1410- ●
1 TANK; FUEL
FUEL TANK 100 LITTER<N02> 1000X340X327 100L THA 		8-97924-556-0 01 1 1410- ●
3 UNIT; FUEL TANK,SUB
IMA 		8-94316-190-0 01 1 1410- ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X12 W/LK WASHER IMA 		0-36220-512-0 05 1 1410- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
THA 		8-97918-206-0 01 1 1410- ● ●
11 PLUG; DRAIN,FUEL TANK
THA 		8-97917-063-0 01 1 1410- ● ●
14 HOSE; BREATHER,OUTLET
THA 		8-97917-066-0 01 1 1410- ●
14 HOSE; BREATHER,OUTLET
FUEL TANK 75 LITTER<7GX> THA 		8-97917-066-0 01 1 1410- ●
14 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=430 THA 		8-97917-065-0 01 1 1410- ●
17 HOSE; BREATHER
THA 		8-97917-069-0 01 1 1410- ●
17 HOSE; BREATHER
FUEL TANK 75 LITTER<7GX> THA 		8-97917-069-0 01 1 1410- ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 IMA 		5-83148-001-0 01 1 1410- ● ●
23 JOINT; BREATHER HOSE
THA 		8-97917-064-0 01 1 1410- ● ●
27 HOSE; BREATHER
THA 		8-97917-068-0 01 1 1410- ●
27 HOSE; BREATHER
FUEL TANK 75 LITTER<7GX> THA 		8-97917-068-0 01 1 1410- ●
27 HOSE; BREATHER
FUEL TANK 100 LITTER<N02> L=470 THA 		8-97917-067-0 02 1 1410- ●
33 SCREW; JOINT TO FUEL TANK
M6X20 W/LK&PL WASHER THA 		0-36230-620-0 01 1 1410- ● ●
42 NUT; SUPPORT BELT
M8 FLANGE IMA 		9-09130-408-0 02 1 1410- ● ●
43 BRACKET; FUEL TANK
THA 		8-97917-011-0 02 1 1410- ● ●
44 BAND; FUEL TANK
THA 		8-97916-551-0 02 1 1410- ● ●
49 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 06 1 1410- ●
49 NUT; BRKT
WHEEL BASE 2400MM<24W> M10 FLANGE THA 		0-91180-210-0 06 1 1410- ●
49 NUT; BRKT
WHEEL BASE 3300MM<33W> M10 FLANGE THA 		0-91180-210-0 08 1 1410- ●
50 BRACKET; SUPPORT,FUEL BRKT
THA 		8-97923-999-1 02 1 1410- ● ●
51 BOLT; BRKT TO FRAME
M10X30 FLANGE THA 		0-28661-030-0 08 1 1410- ●
51 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM<24W> M10X30 FLANGE THA 		0-28661-030-0 08 1 1410- ●
51 BOLT; BRKT TO FRAME
WHEEL BASE 3300MM<33W> M10X35 FLANGE THA 		0-28661-035-0 08 1 1410- ●
322 BOLT; BRKT FIX
M10X25 FLANGE THA 		0-28661-025-0 08 1 1410- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
L=140 THA 		8-97920-656-0 03 1 1410- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2400MM<24W> L=140 THA 		8-97920-656-0 03 1 1410- ●
411 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM<33W> L=140 THA 		8-97920-656-0 02 1 1410- ●
