0-22 — ENGINE MOUNTING (#151101) — 23 parça

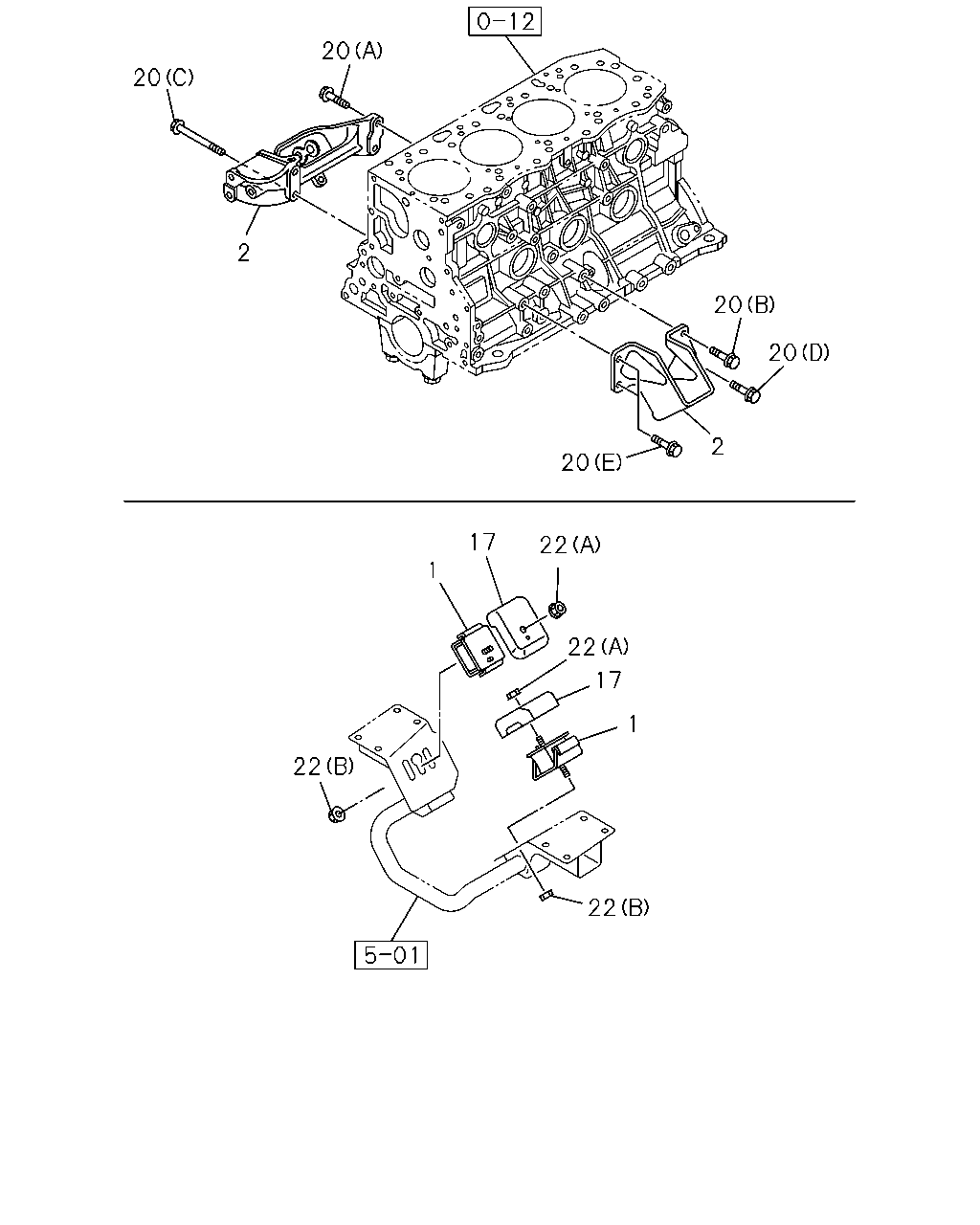

20 20 2 20 20 20 2 22 17 1 22 17 1 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RUBBER; ENG FOOT,FRT IMA	8-98043-000-0	01	1	1410-
1	RUBBER; ENG FOOT,FRT IMA	8-98043-001-0	01	1	1410-
2	FOOT; ENG IMA	8-97381-513-1	01	1	1410-
2	FOOT; ENG IMA	8-97381-514-2	01	1	1410-
17	COVER; CUSHION RUBBER,FRT IMA	8-97229-825-0	01	1	1410-
17	COVER; CUSHION RUBBER,FRT IMA	8-97383-796-0	01	1	1410-
20	BOLT; ENG FOOT (C) M10X70 FLANGE THA	0-28051-070-0	01	1	1410-
20	BOLT; ENG FOOT (A) M10X30 FLANGE THA	0-28651-030-0	03	1	1410-
20	BOLT; ENG FOOT (D) M10X20 FLANGE THA	0-28651-020-0	01	1	1410-
20	BOLT; ENG FOOT (E) M10X25 FLANGE THA	0-28651-025-0	02	1	1410-
20	BOLT; ENG FOOT (B) M10X35 FLANGE THA	0-28651-035-0	01	1	1410-
22	NUT; CUSHION RUBBER TO BRKT (B) M12 FLANGE IMA	8-98046-987-0	02	1	1410-
22	NUT; CUSHION RUBBER TO BRKT (A) M12 FLANGE THA	0-91180-112-0	02	1	1410-

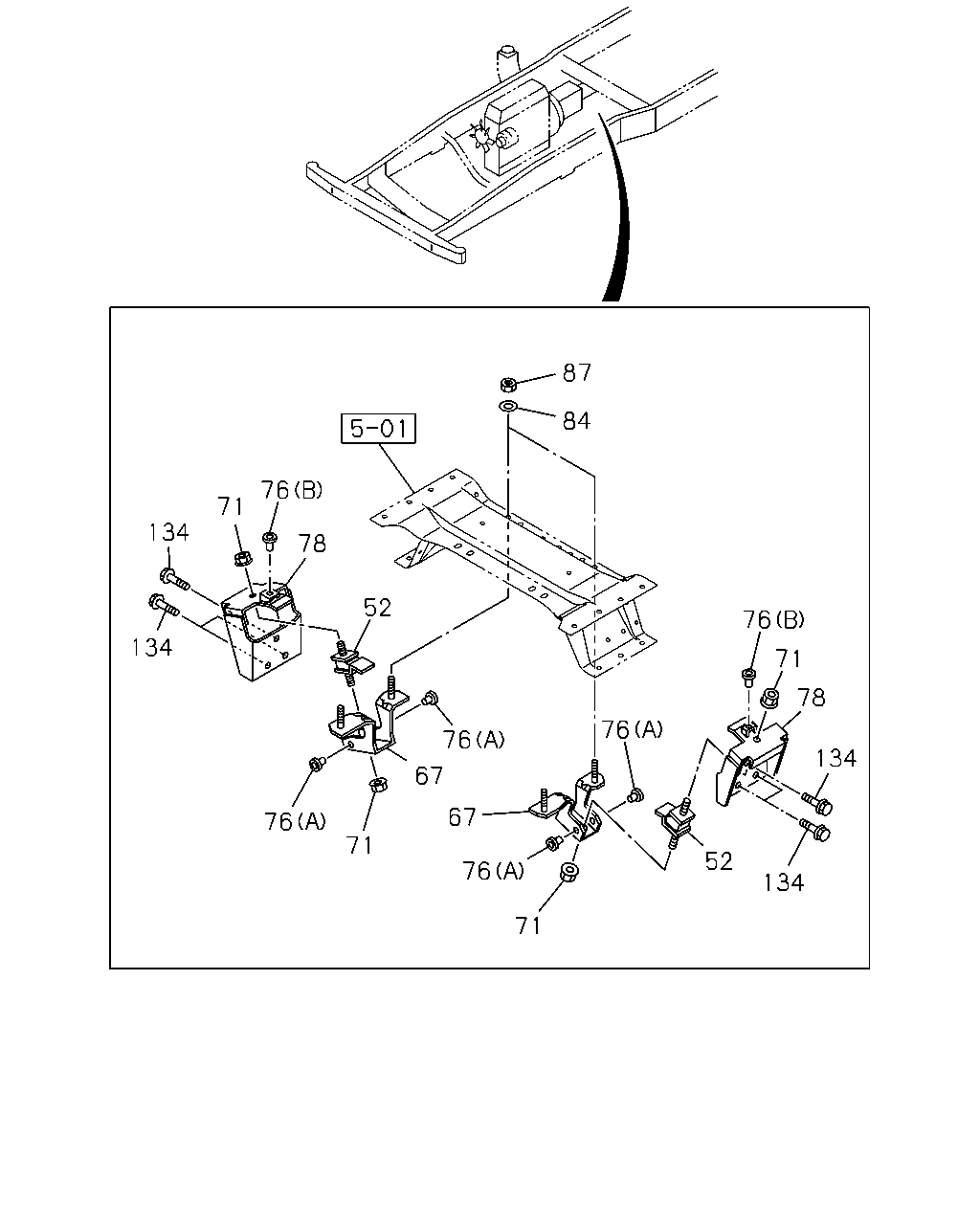

87 84 76 71 134 134 52 78 76 67 76 71 67 76 71 76 76 71 78 134 134 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	RUBBER; CUSHION,ENG MTG,RR IMA	8-94111-903-1	02	1	1410-
67	BRACKET; SUPPORT,ENG MTG,RR IMA	8-97354-876-1	01	1	1410-
67	BRACKET; SUPPORT,ENG MTG,RR IMA	8-97354-877-1	01	1	1410-
71	NUT; SUPPORT RUBBER TO BRKT M10 FLANGE THA	0-91180-110-0	04	1	1410-
76	STOPPER; ENG MTG RUBBER (B) IMA	8-94111-904-0	02	1	1410-
76	STOPPER; ENG MTG RUBBER (A) IMA	8-97039-947-1	04	1	1410-
78	BRACKET; ENG MTG,RR IMA	8-98053-902-1	02	1	1410-
84	WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32 IMA	0-91614-810-0	04	1	1410-
87	NUT; ENG MTG RR M10 FLANGE THA	0-91180-110-0	04	1	1410-
134	BOLT; SUPPORT BRKT M12X25 FLANGE IMA	0-28751-225-0	06	1	1410-
