Isuzu WW
▶
TRUCKS
▶
NLR
▶
51567 - NLR/NMR THAILAND
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶

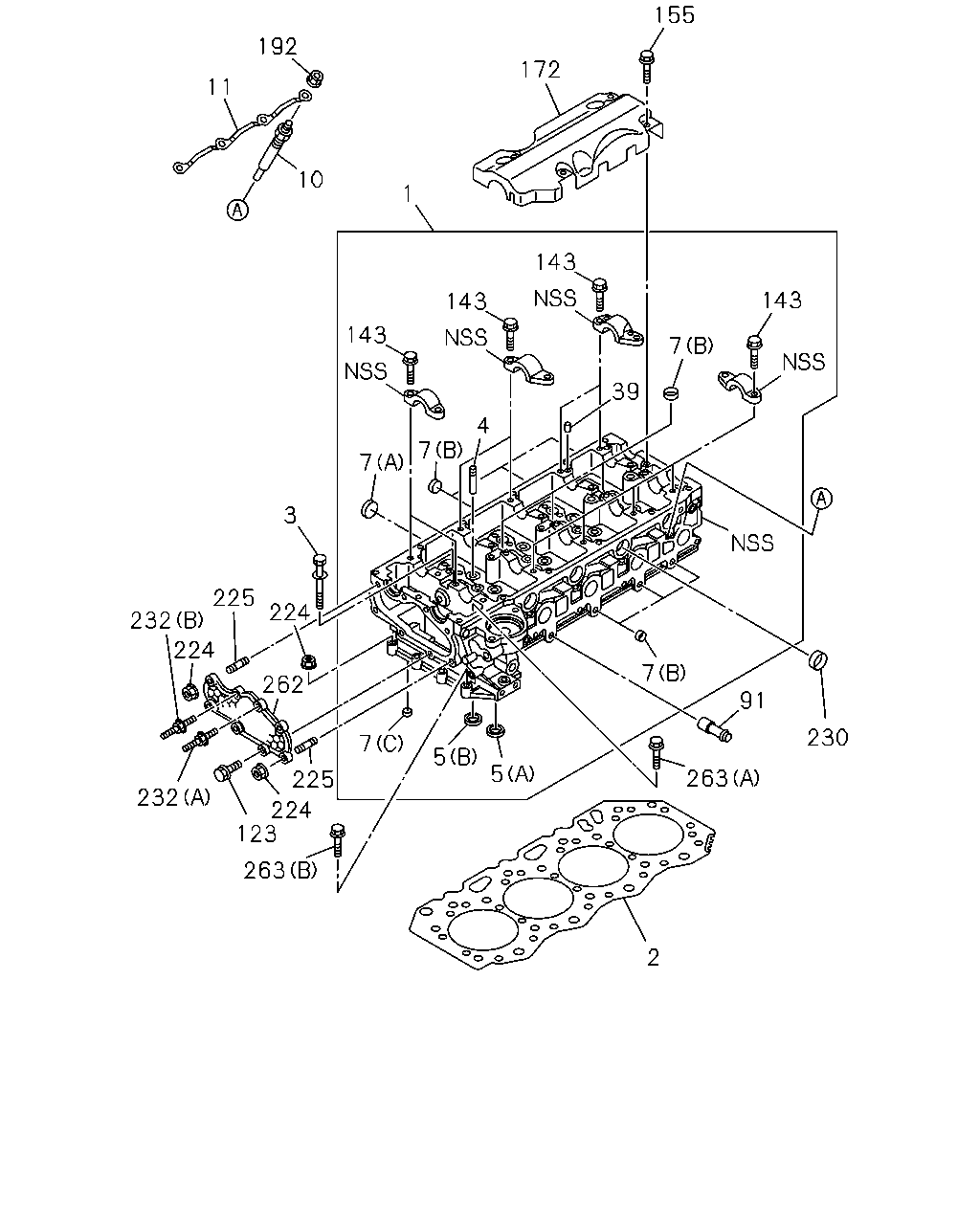

0-11 — CYLINDER HEAD
(#151095) — 28 parça
172
155
143
143
1
10
192
11
143
4
7
7
3
224
225
232
224
262
7
5
5
7
91
230
263
7
143
39
225
224
123
263
232
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
IMA
8-98223-017-0
01
1
1410-
2
GASKET; CYL HD
T=1.05 1-NOTCH THA
8-98241-037-0
01
1
1410-
2
GASKET; CYL HD
T=1.10 2-NOTCH THA
8-98241-038-0
01
1
1410-
2
GASKET; CYL HD
T=1.15 3-NOTCH THA
8-98241-039-0
01
1
1410-
3
BOLT; CYL HD TO BLOCK
M11X114 W/WASHER IMA
8-98201-019-0
18
1
1410-
4
GUIDE; VLV
L=42 IMA
8-94239-423-0
16
1
1410-
5
SEAT; VLV INSERT
ENGINE MADE IN THAILAND<6ZP> (A) INLET THA
8-97944-904-1
08
1
1410-
5
SEAT; VLV INSERT
ENGINE MADE IN THAILAND<6ZP> (B) EXHAUST THA
8-97944-905-1
08
1
1410-
7
CUP; SEALING,CYL HEAD
(A) OD=32 IMA
1-09600-012-2
02
1
1410-
7
CUP; SEALING,CYL HEAD
(B) OD=18 IMA
5-11219-008-0
13
1
1410-
7
CUP; SEALING,CYL HEAD
(C) OD=14 IMA
5-11219-011-0
07
1
1410-
10
PLUG; GLOW
NGK IMA
8-94390-777-6
04
1
1410-
11
CONNECTOR; GLOW PLUG
IMA
8-98014-335-0
01
1
1410-
39
DOWEL; CAP,CM/SHF
IMA
8-97329-129-1
20
1
1410-
91
PIPE; HTR
THA
8-94343-211-1
01
1
1410-
123
BOLT; COVER
M8X20 FLANGE THA
0-28050-820-0
04
1
1410-
143
BOLT; FIX
M8X40 FLANGE THA
0-28650-840-0
20
1
1410-
155
BOLT; BAFFLE PLATE
M6X10 HEX SOCKET THA
0-58330-610-0
04
1
1410-
172
PLATE; BAFFLE,CYL HD
THA
8-98049-103-0
01
1
1410-
192
NUT; GLOW PLUG
M4 FLANGE IMA
8-97368-853-0
04
1
1410-
224
NUT; COVER
M8 FLANGE THA
0-91180-208-0
04
1
1410-
225
STUD; COVER
M8X20 L=31 THA
8-97945-022-0
02
1
1410-
230
GASKET; SLEEVE,INJECTOR
THA
8-97943-955-0
04
1
1410-
232
STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 THA
8-97375-460-0
01
1
1410-
232
STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 THA
8-98166-373-0
01
1
1410-
262
COVER; CYL HEAD
THA
8-97355-516-4
01
1
1410-
263
BOLT; CYL HD
(A) M8X60 FLANGE THA
0-28050-860-0
01
1
1410-
263
BOLT; CYL HD
(B) M8X35 FLANGE THA
0-28650-835-0
03
1
1410-
